Toyota RAV4 点火线圈和火花塞 — Figure 1901

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.

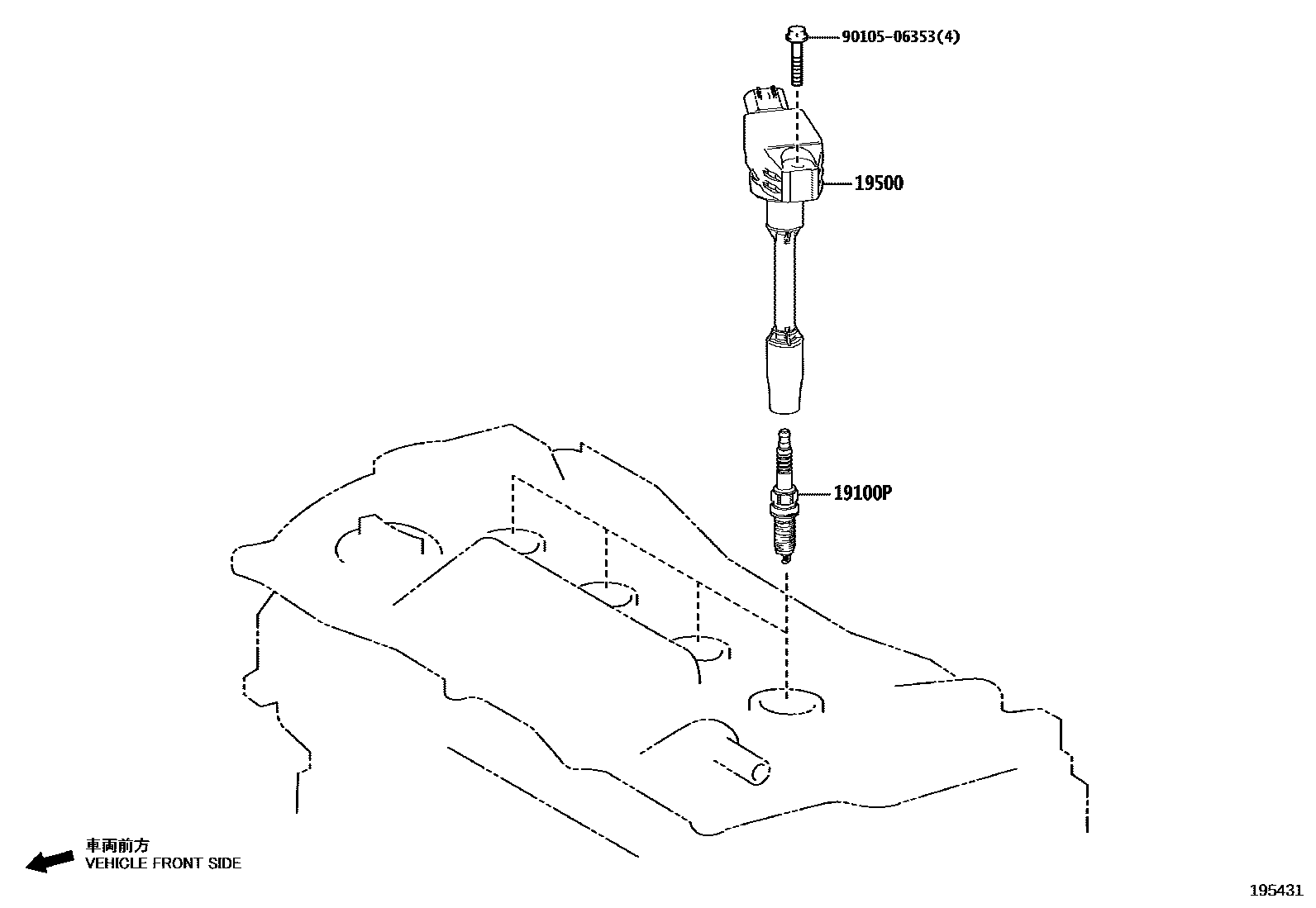

Toyota RAV4 点火线圈和火花塞 EPC diagram — 195431
点火线圈和火花塞 — 195431 (201904 – 999999)
Toyota RAV4 点火线圈和火花塞 EPC diagram — 195434
点火线圈和火花塞 — 195434 (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01289 · 90919-01297
19500Ignition coil assembly90919-02276 · 90919-02277
