Toyota RAV4 Oil Filter — Figure 1502

Toyota RAV4 EPC diagram 1502, Oil Filter, with 2 images and 2 PNC and OE references.

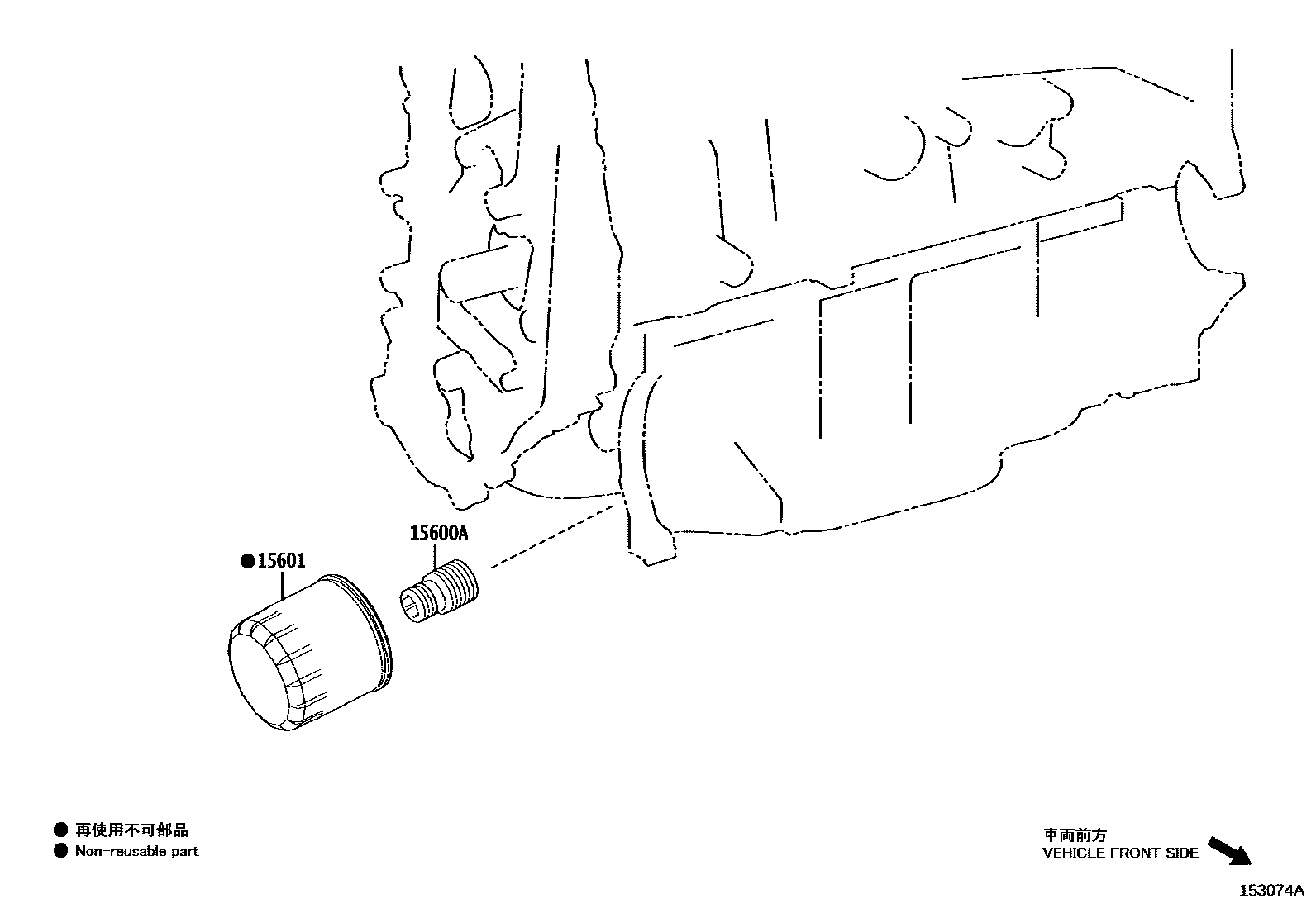

Toyota RAV4 Oil Filter EPC diagram — 153074A
Oil Filter — 153074A (201904 – 999999)

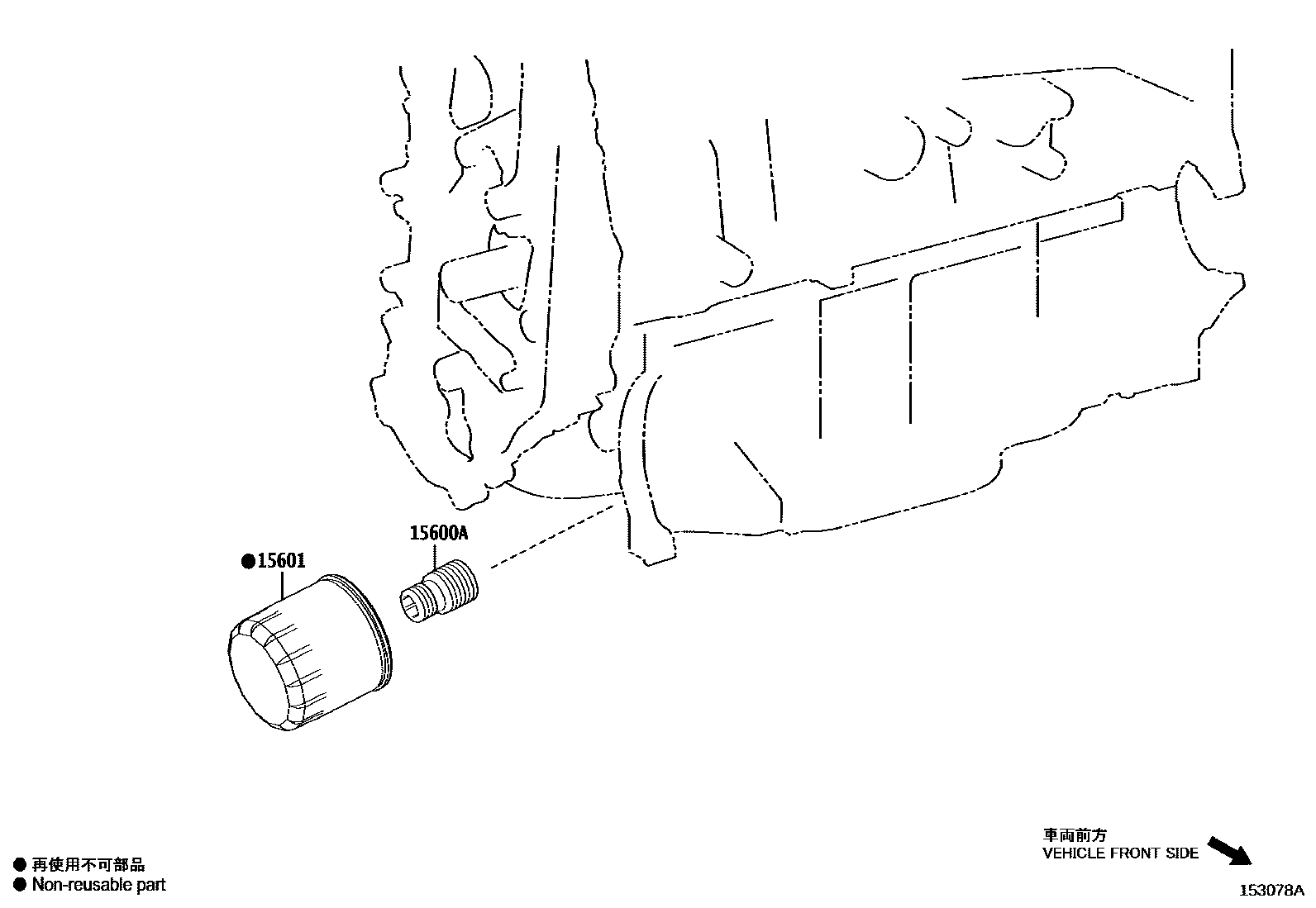

Toyota RAV4 Oil Filter EPC diagram — 153078A
Oil Filter — 153078A (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10009
