Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 4 PNC and OE references.

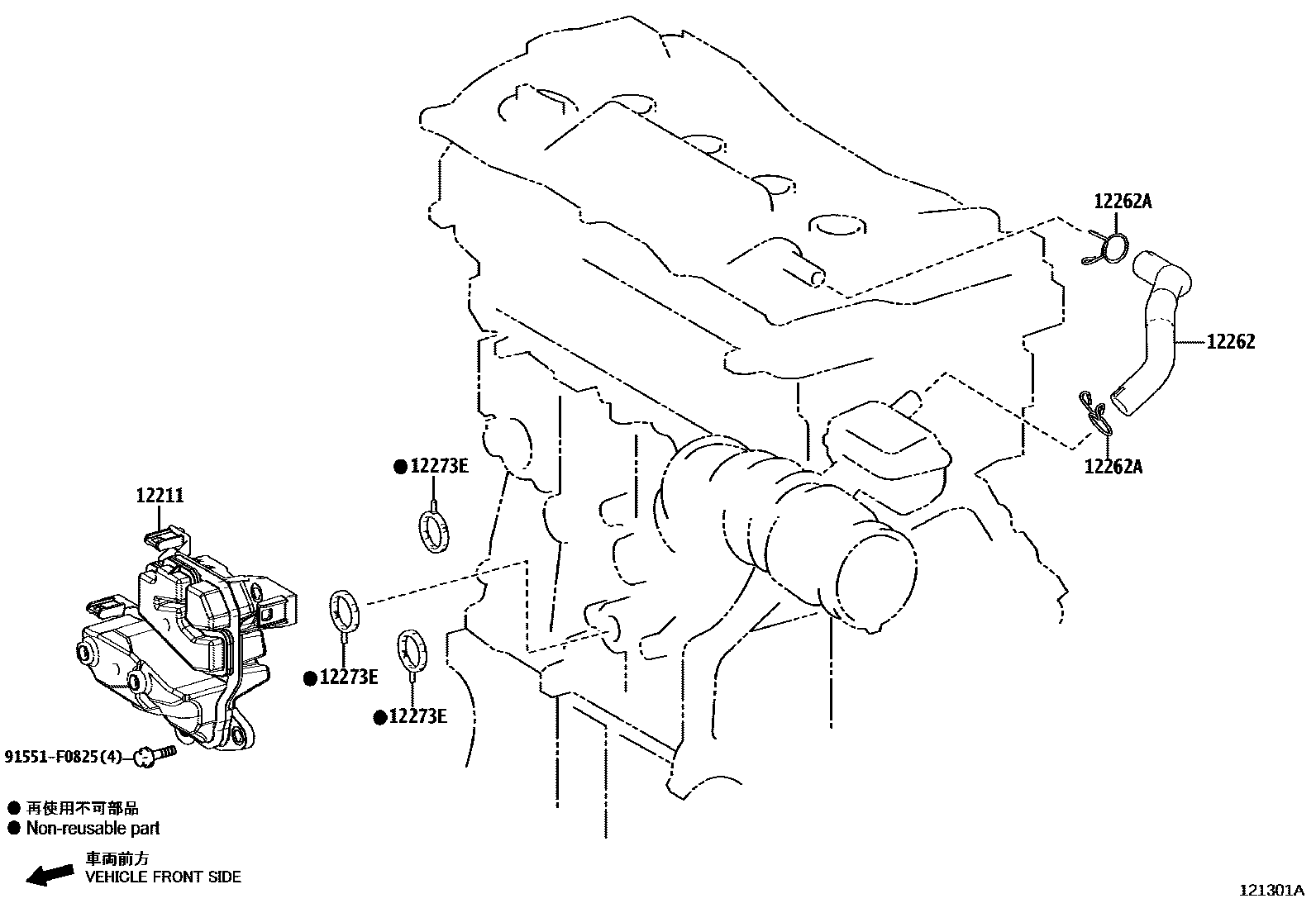

Toyota RAV4 Ventilation Hose EPC diagram — 121301A
Ventilation Hose — 121301A (201904 – 999999)

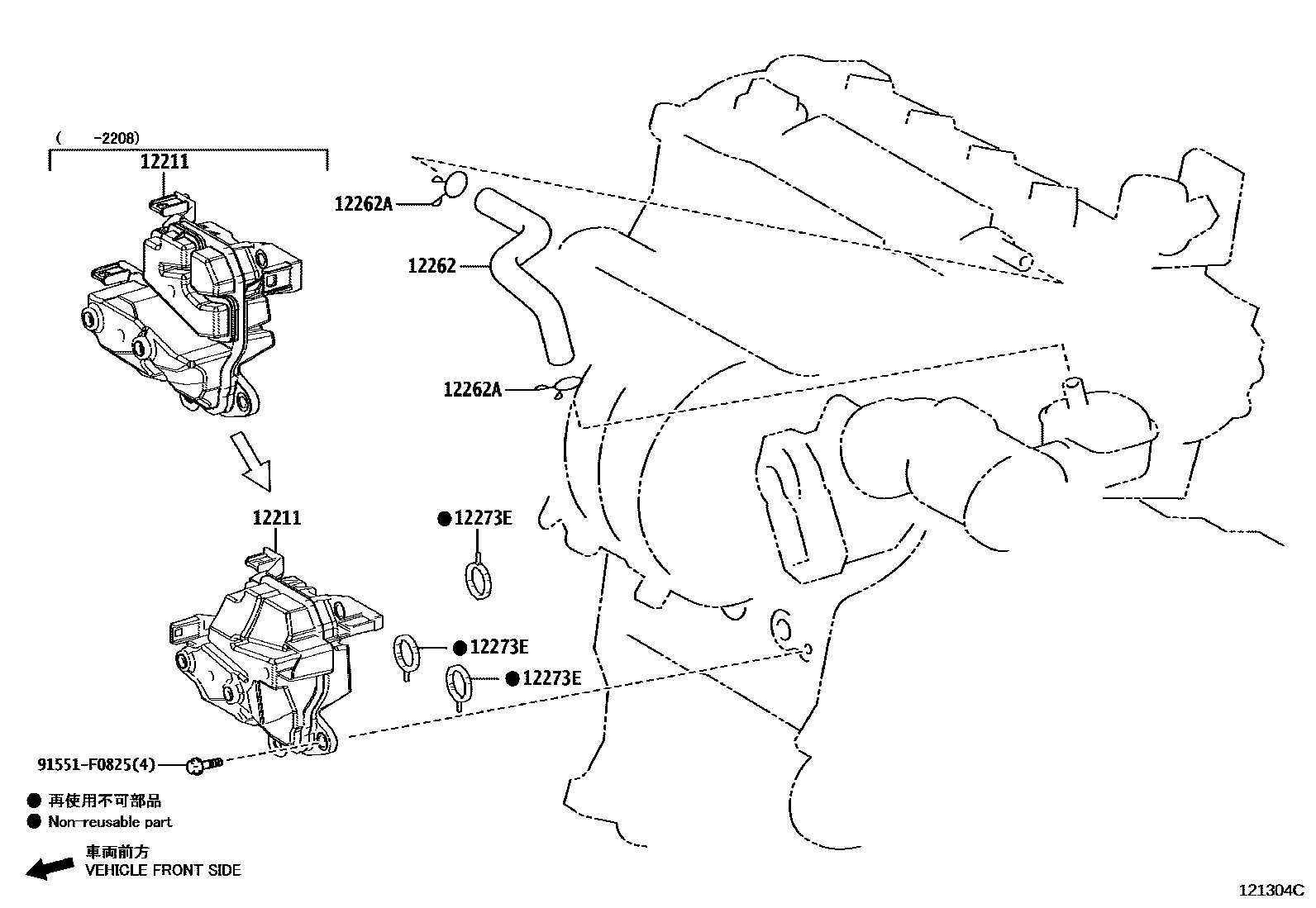

Toyota RAV4 Ventilation Hose EPC diagram — 121304C
Ventilation Hose — 121304C (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-24010 · 12211-24020 · 12211-25010 · 12211-25011
12262Ventilation hose No. 212262-24060 · 12262-25080
12262AClamp (for vent hose No. 2)90467-21004
12273EToyota part12273-24010
