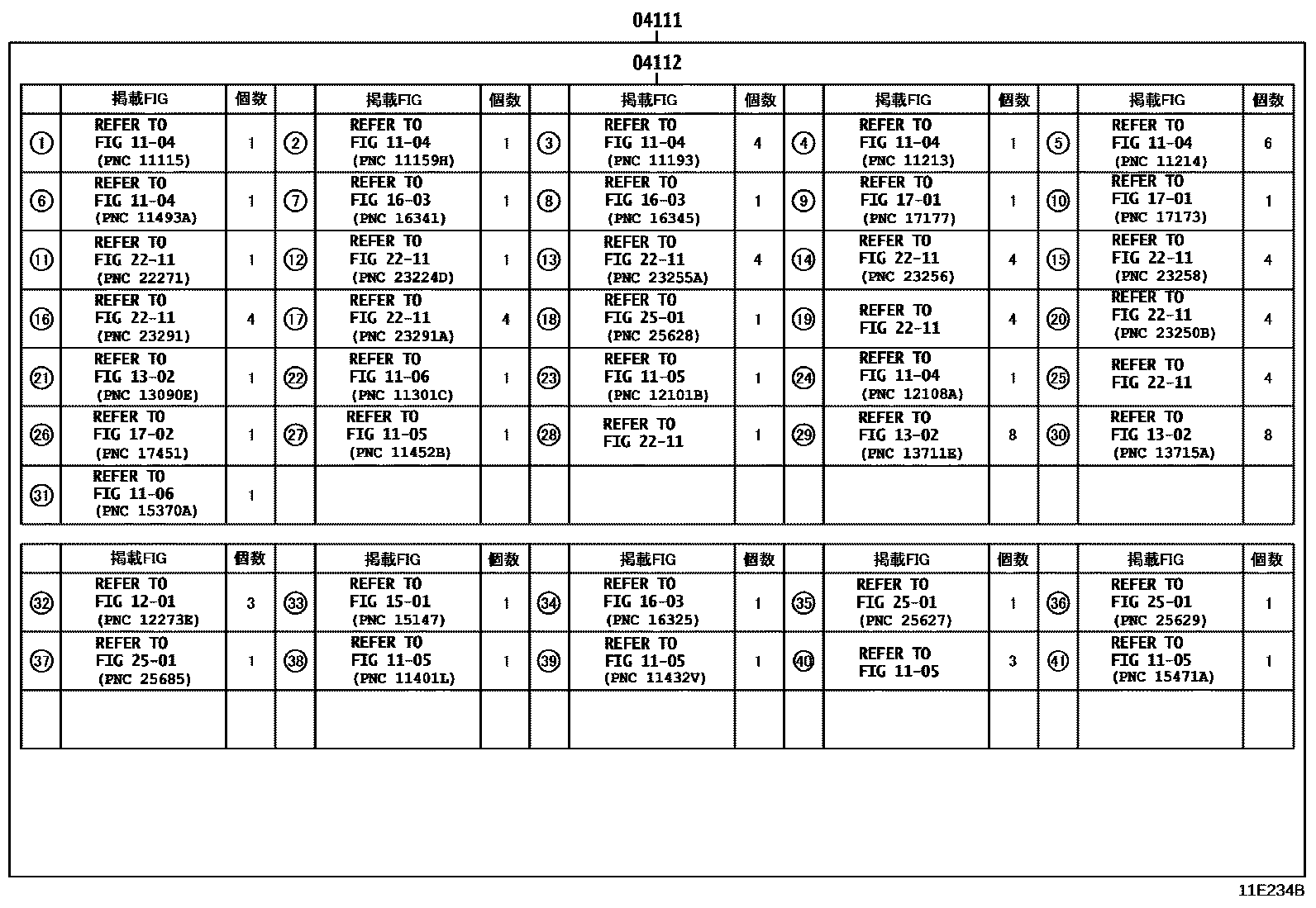

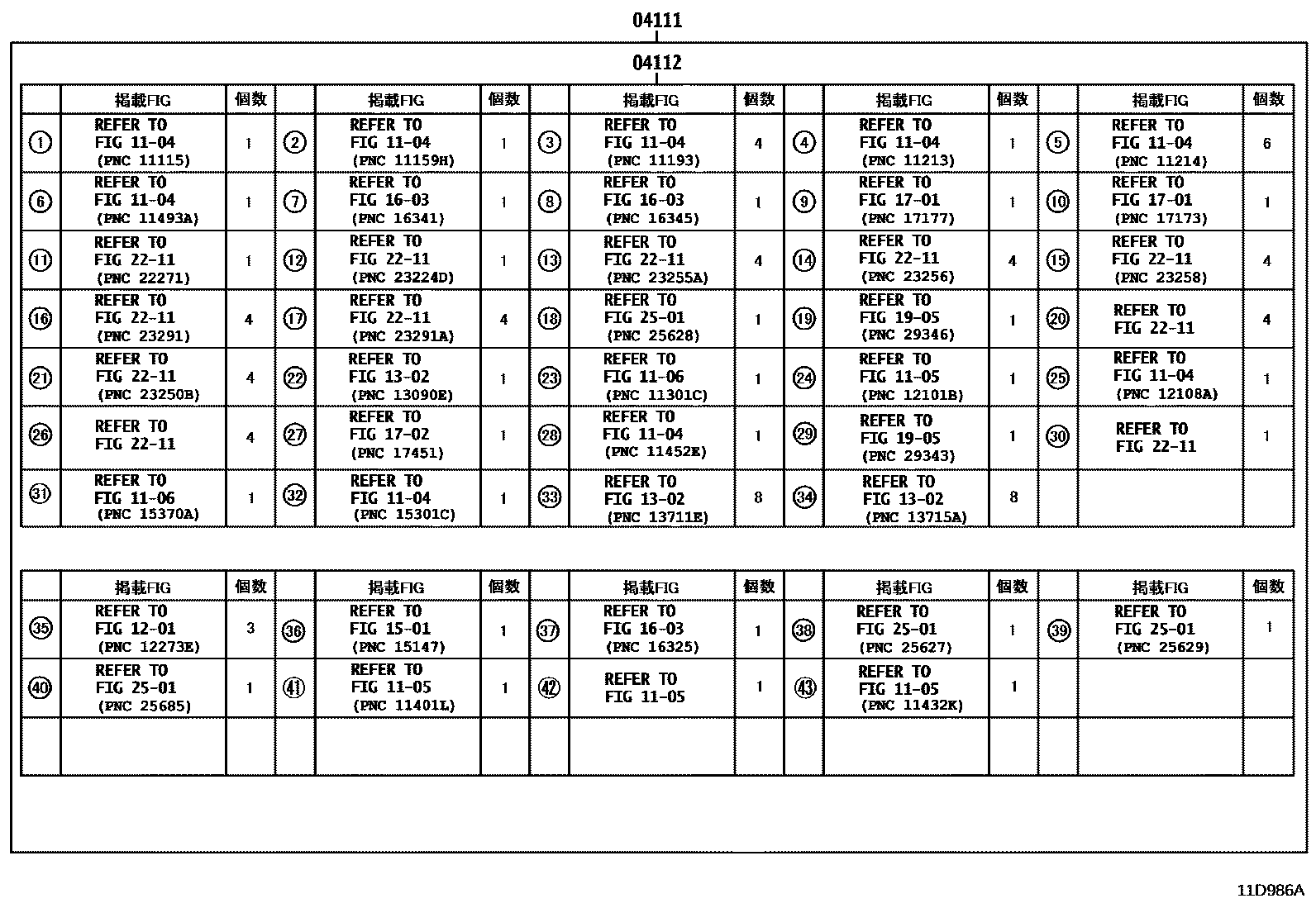

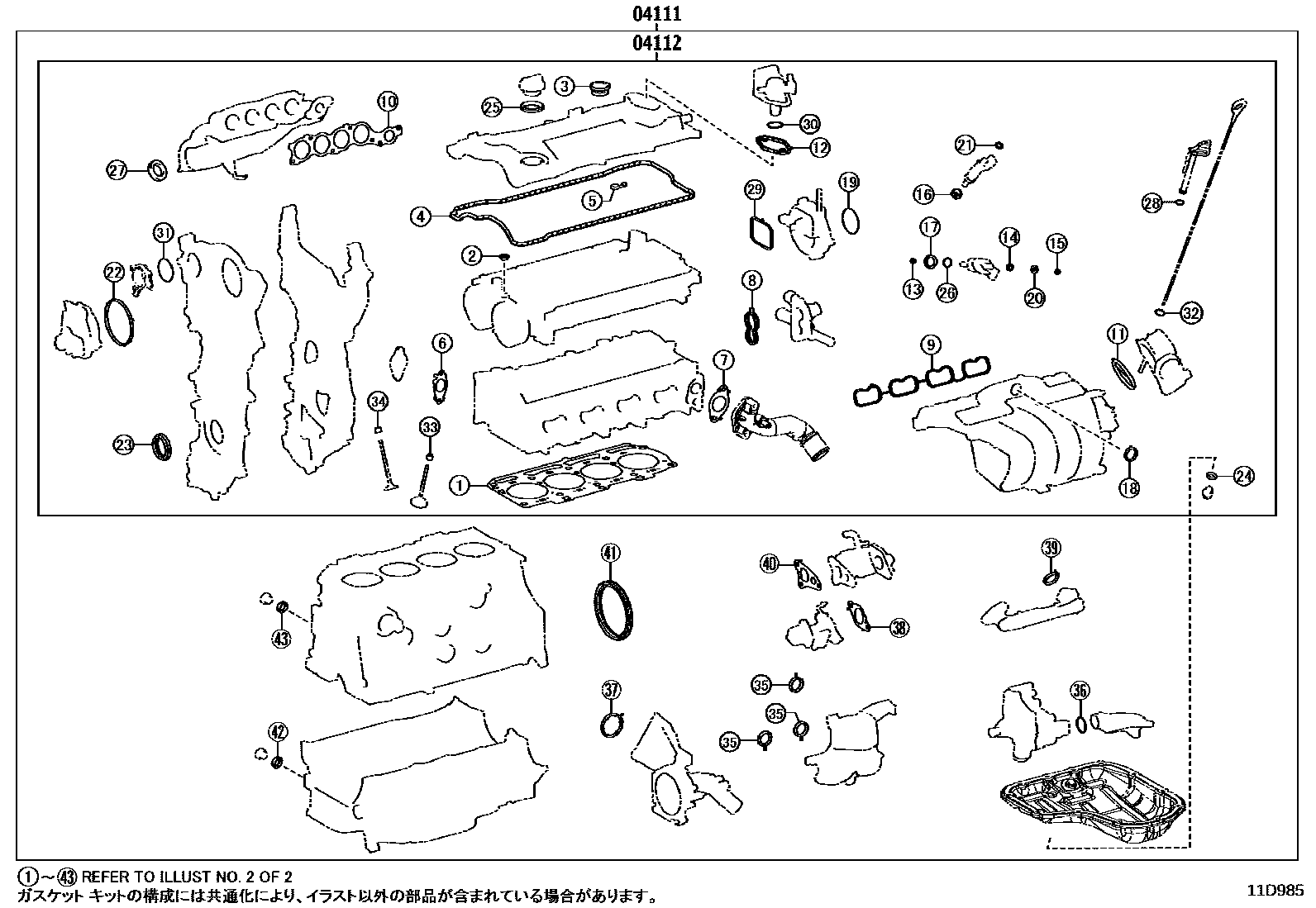

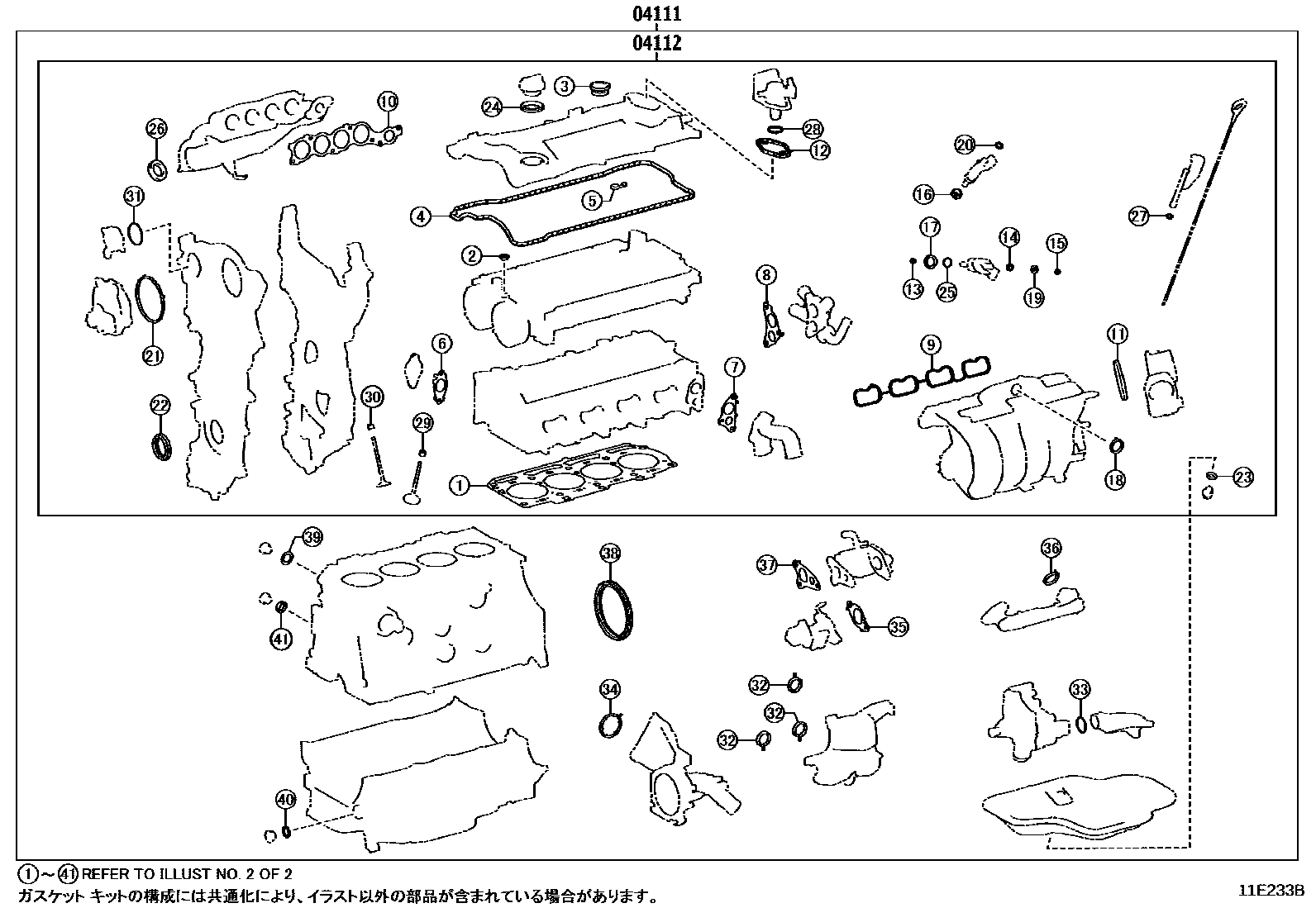

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-24170 · 04111-24171 · 04111-25210 · 04111-25290 |
| 04112 | Engine valve grinding pad assembly | 04112-24090 · 04112-24091 · 04112-25150 · 04112-25181 |
