Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

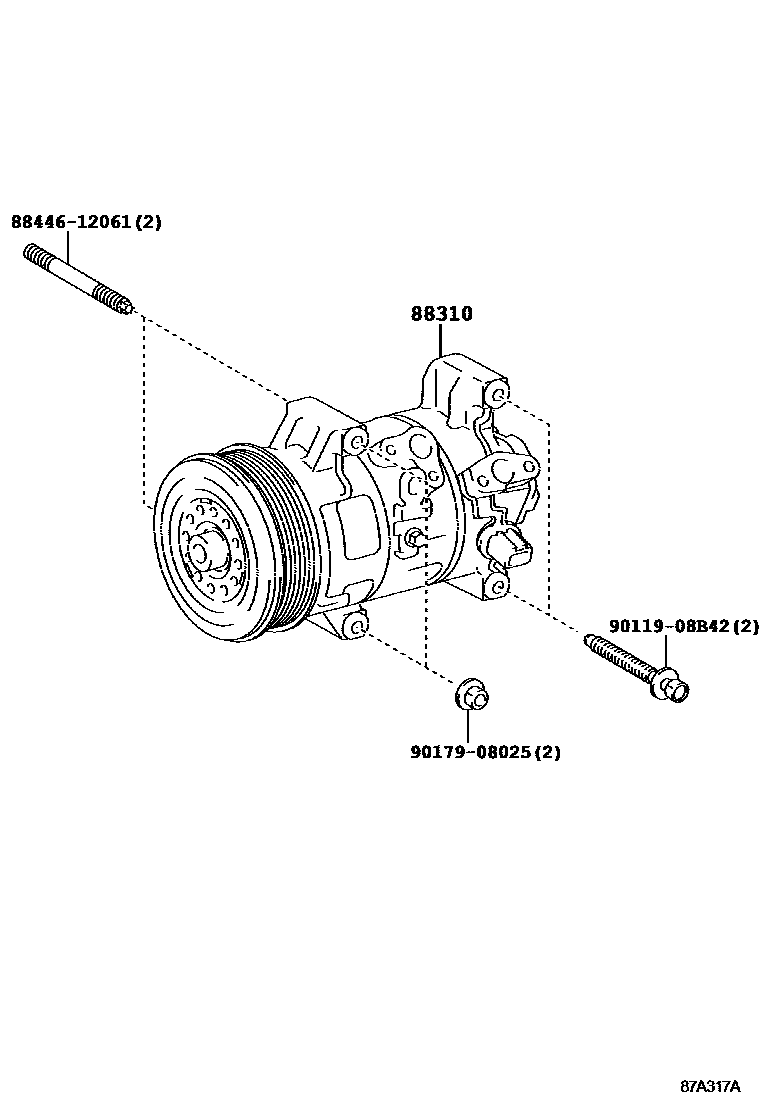

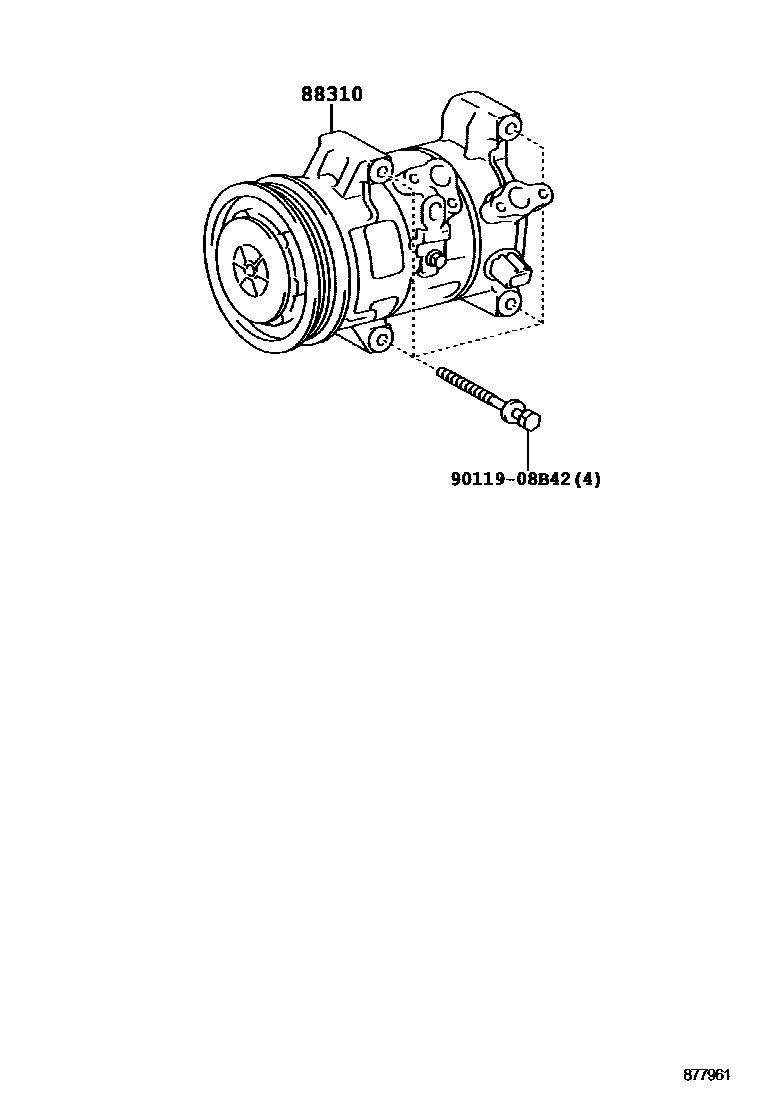

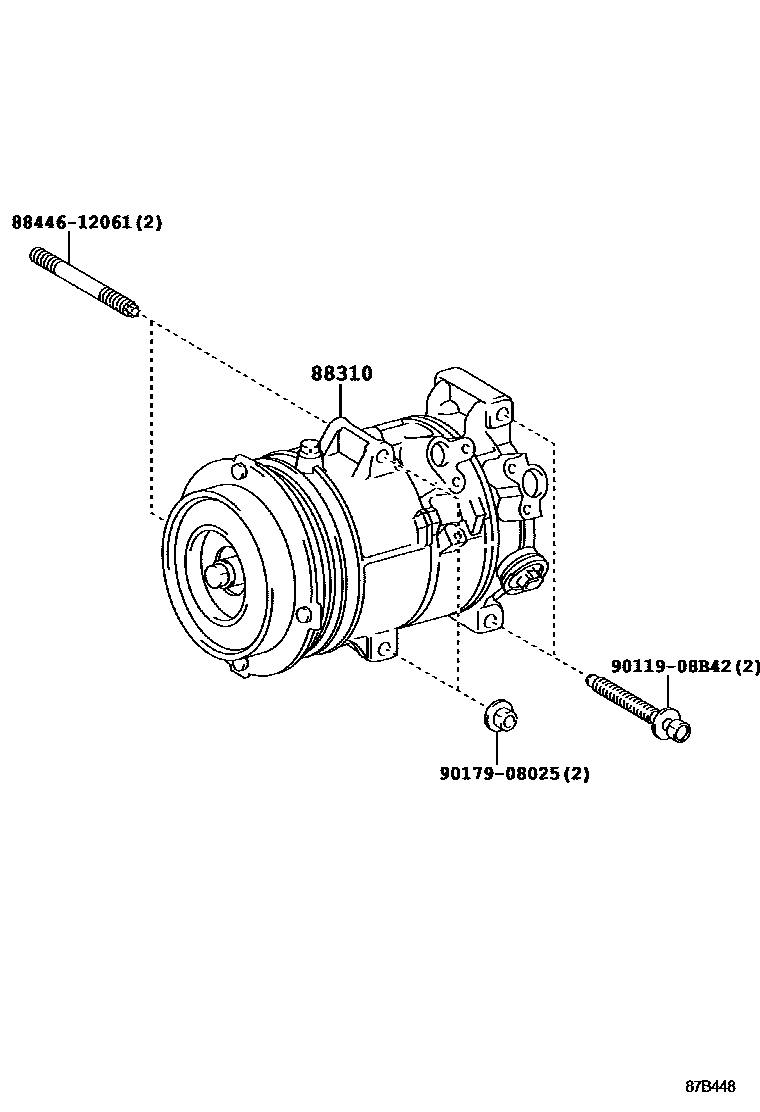

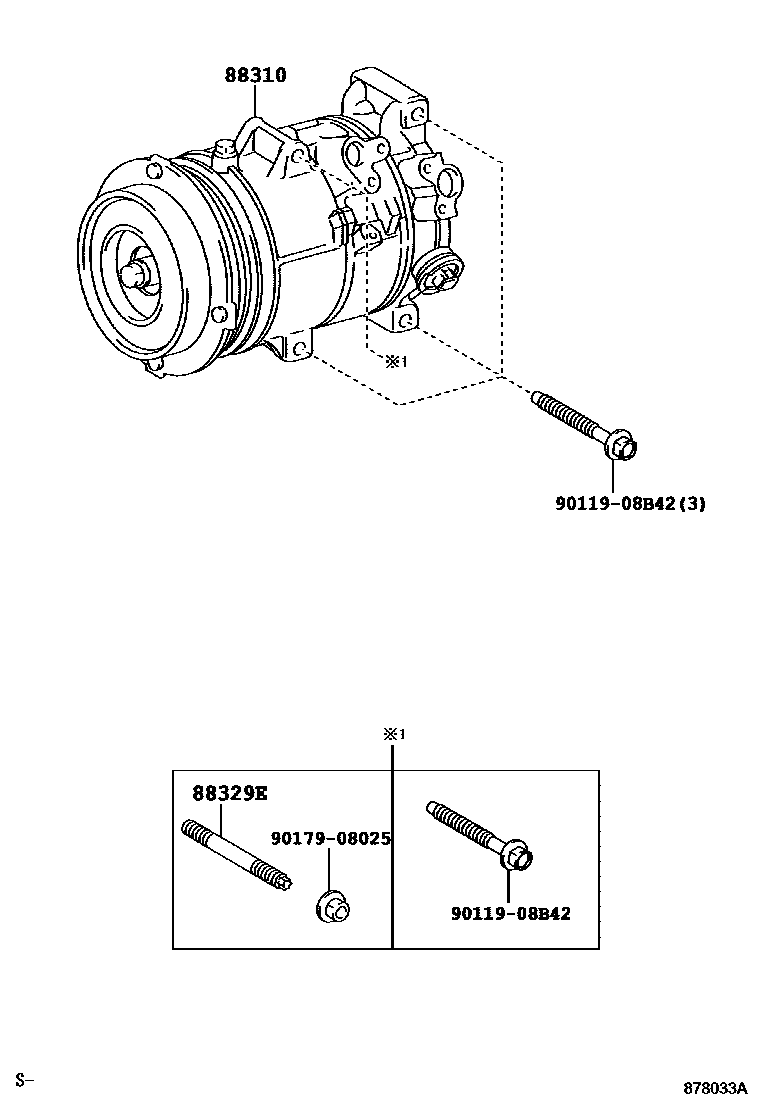

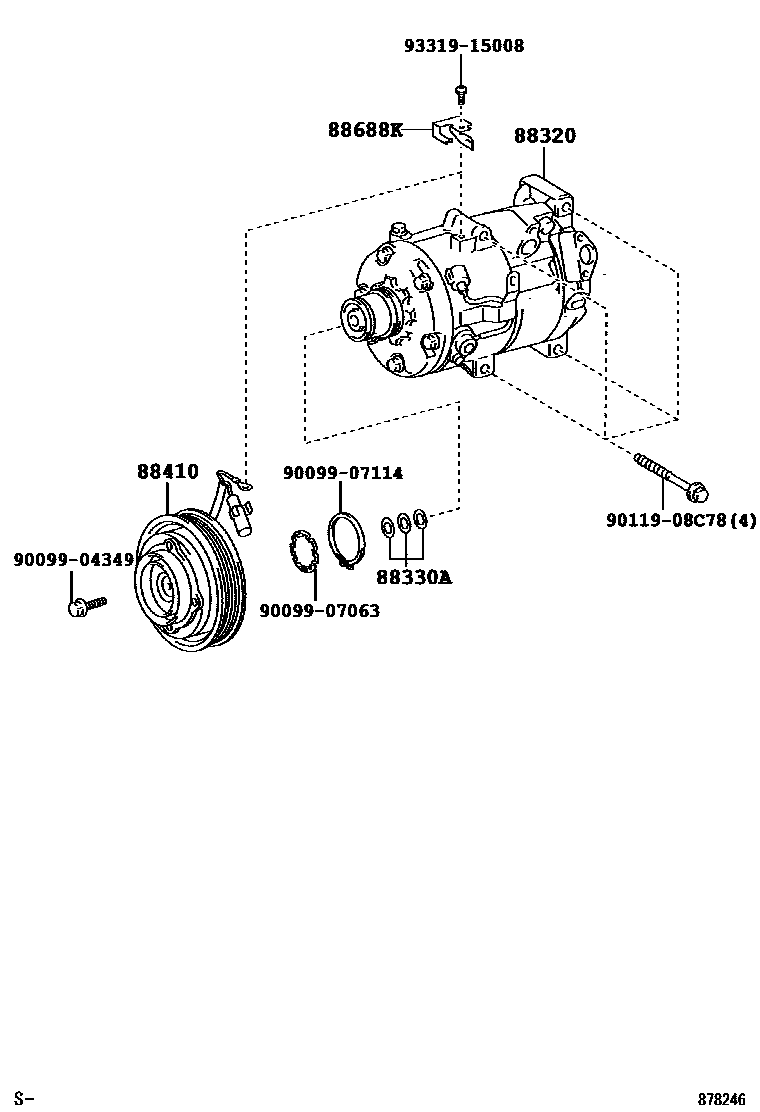

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-42220 · 88310-42270 |
| 88320 | Cooler Compressor Assembly | 88320-42120 |
| 88329E | No. 1 compressor bolt | 88446-12060 · 88446-12061 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-33150 |
| 88688K | Cooler compressor bracket | 88688-33460 · 88688-48250 |
