Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716

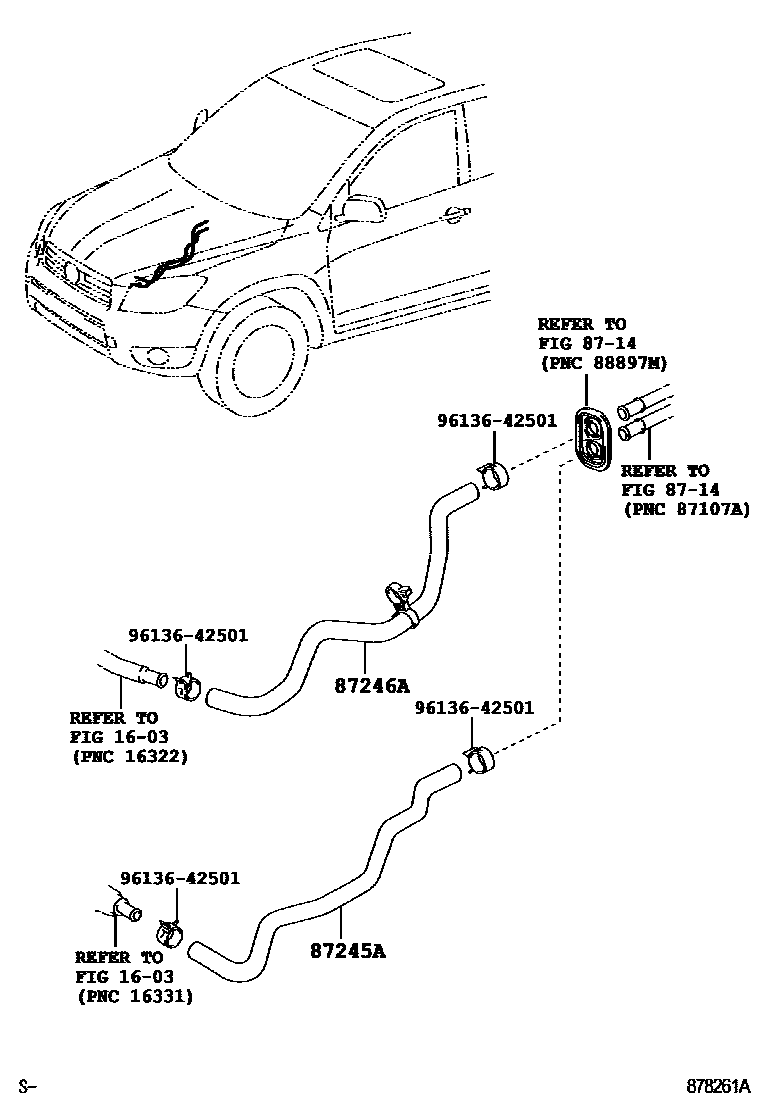

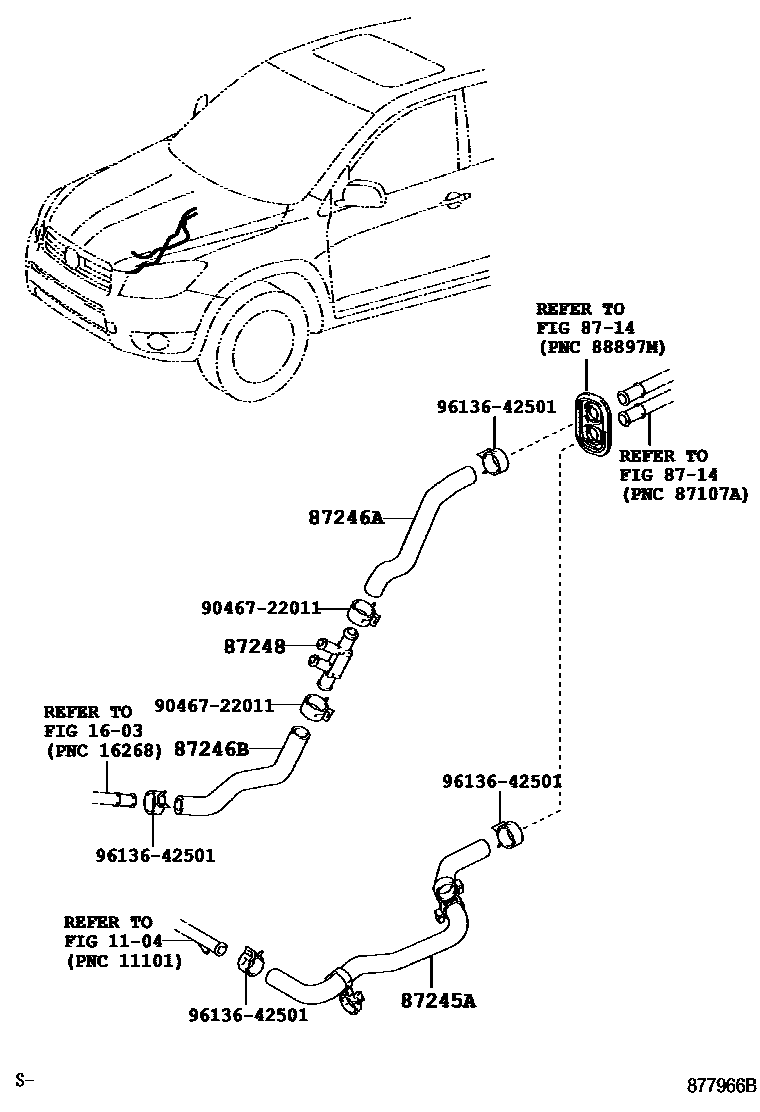

Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87209-42060 · 87245-42380 |
| 87246A | Heater outlet hose A | 87209-42070 · 87245-42360 |
| 87246B | Heater outlet hose B | 87245-42370 |
| 87248 | Water pipe sub-assembly | 87248-42010 · 87248-42040 · 87248-42041 |
