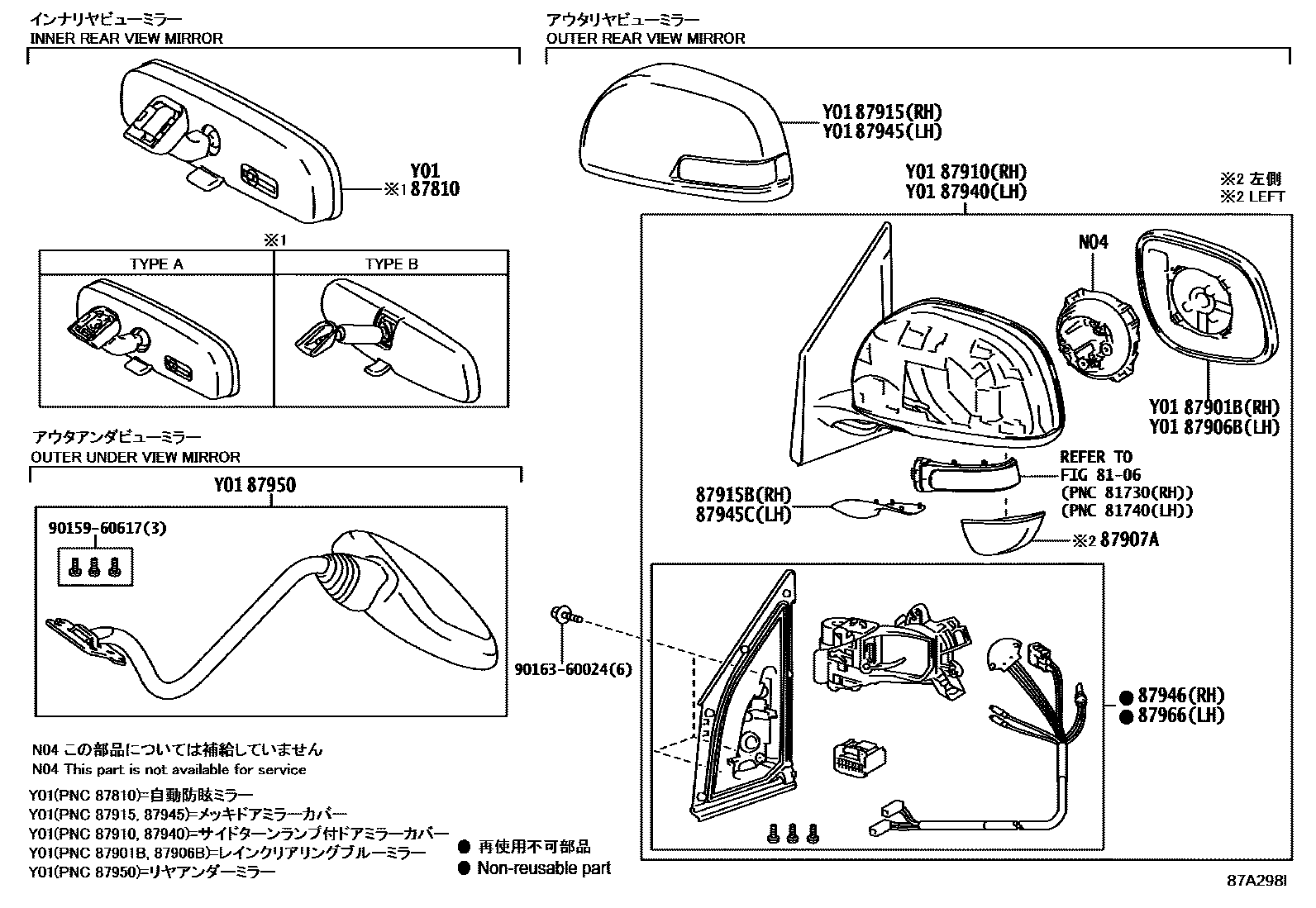

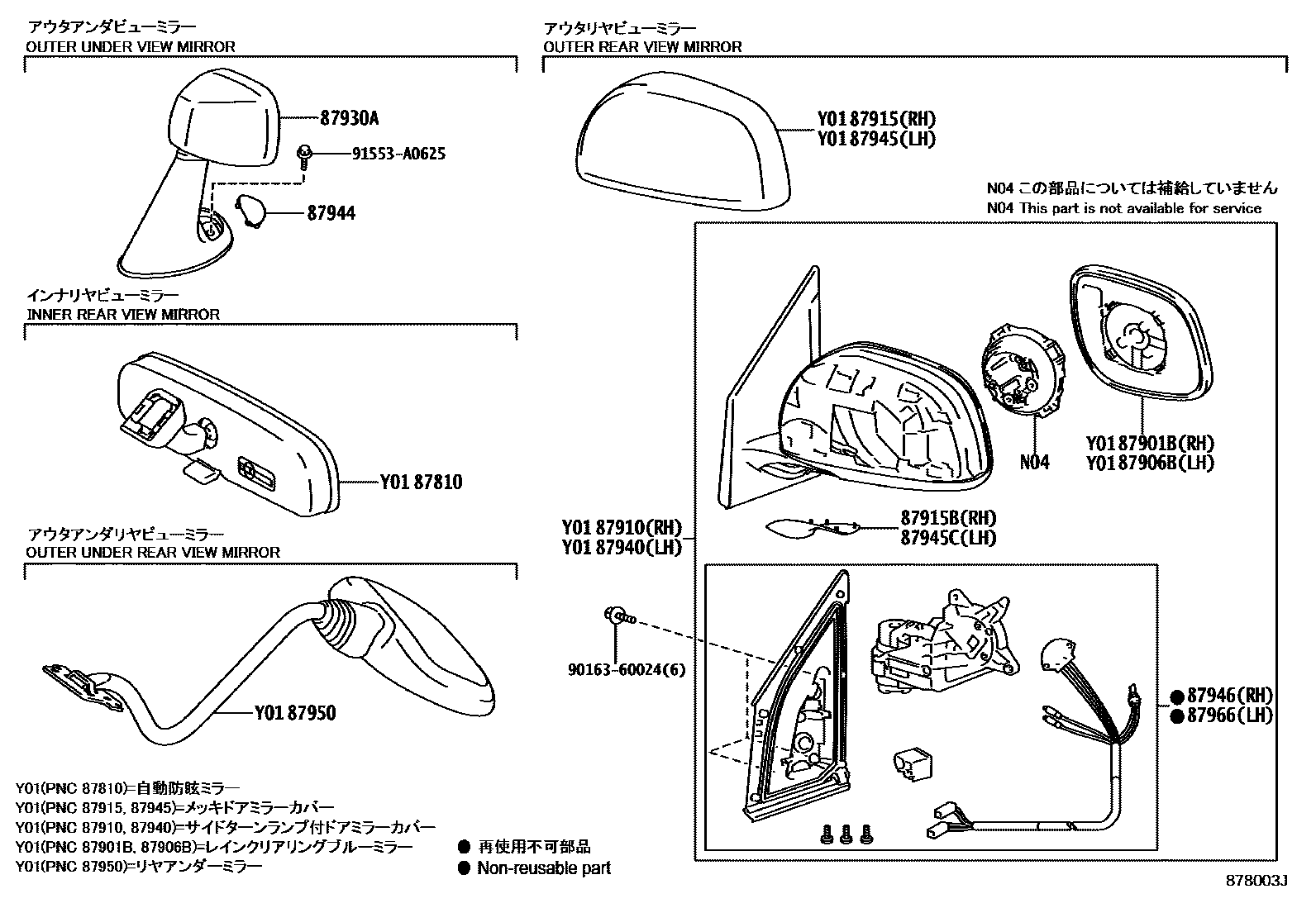

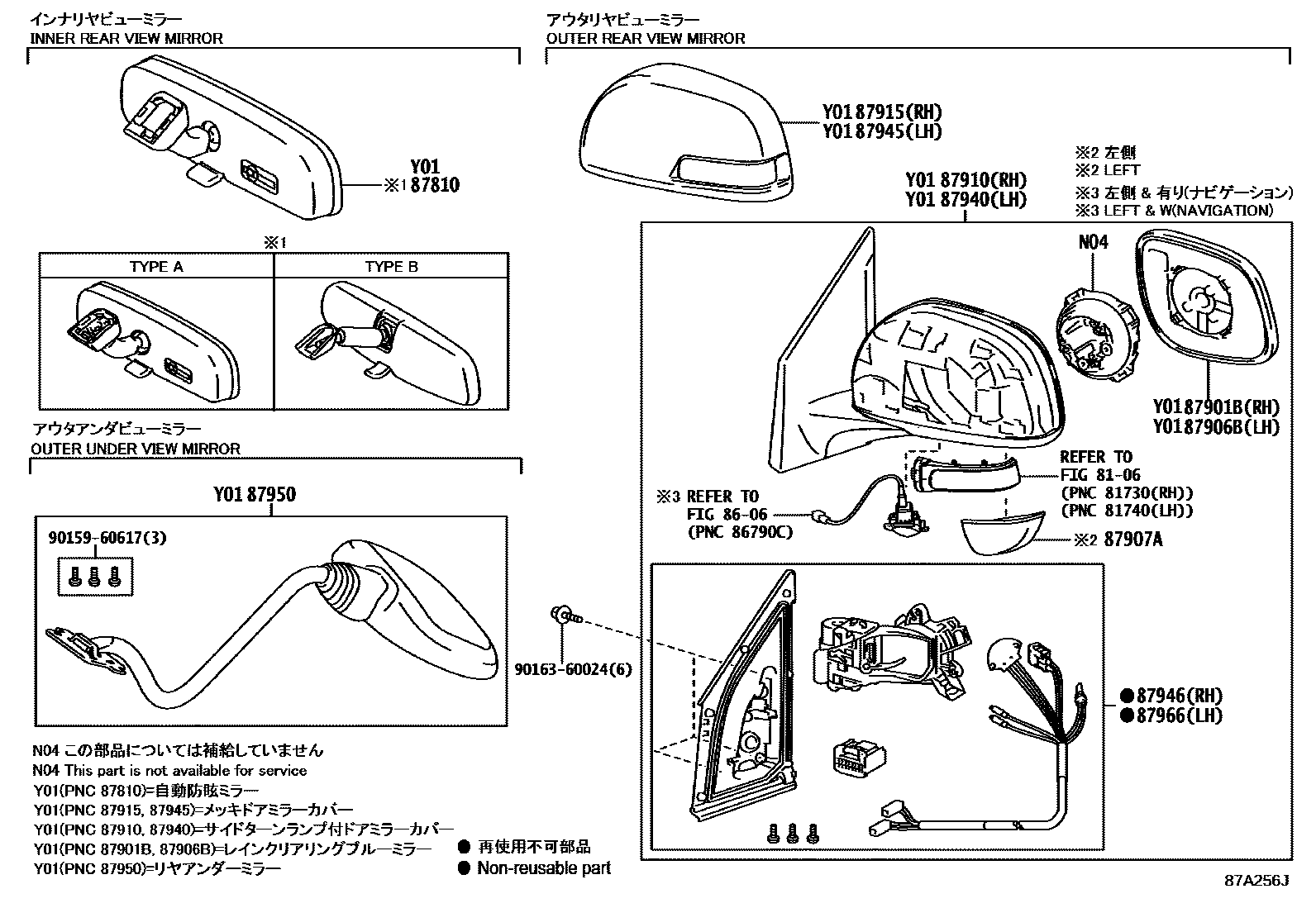

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52040 · 87810-52041 · 87810-AA011 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-28B20 · 87931-28B21 · 87931-42830 · 87931-42840 · 87931-42A00 · 87931-42A30 · 87931-42A50 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-28B30 · 87961-28B31 · 87961-42770 · 87961-42840 · 87961-42870 |
| 87907A | Exterior rear view mirror sub-assembly | 87907-28040 · 87907-42040 |
| 87910 | Right exterior rearview mirror assembly | 87910-42830 · 87910-42840 · 87910-42A30 · 87910-42A40 · 87910-42A41 · 87910-42A50 · 87910-42A60 |
| 87915B | Right exterior rearview mirror lower cover | 87915-42080 |
| 87940 | Left exterior rearview mirror assembly | 87940-42770 · 87940-42780 · 87940-42870 · 87940-42880 · 87940-42890 · 87940-42891 · 87940-42A00 · 87940-42A01 · 87940-42A10 · 87940-42A20 |
| 87945C | Left exterior rearview mirror lower cover | 87945-42080 |
| 87946 | Right exterior rearview mirror retractor | 87946-42830 · 87946-42840 · 87946-42A30 · 87946-42A40 · 87946-42A50 · 87946-42A60 |
| 87950 | Exterior rear view mirror assembly | 87950-42040 · 87950-42060 |
| 87966 | Left exterior rearview mirror retractor | 87966-42770 · 87966-42780 · 87966-42870 · 87966-42880 · 87966-42890 · 87966-42A00 · 87966-42A10 · 87966-42A20 |
