Toyota RAV4 车载电话和呼救装置 — Figure 8615

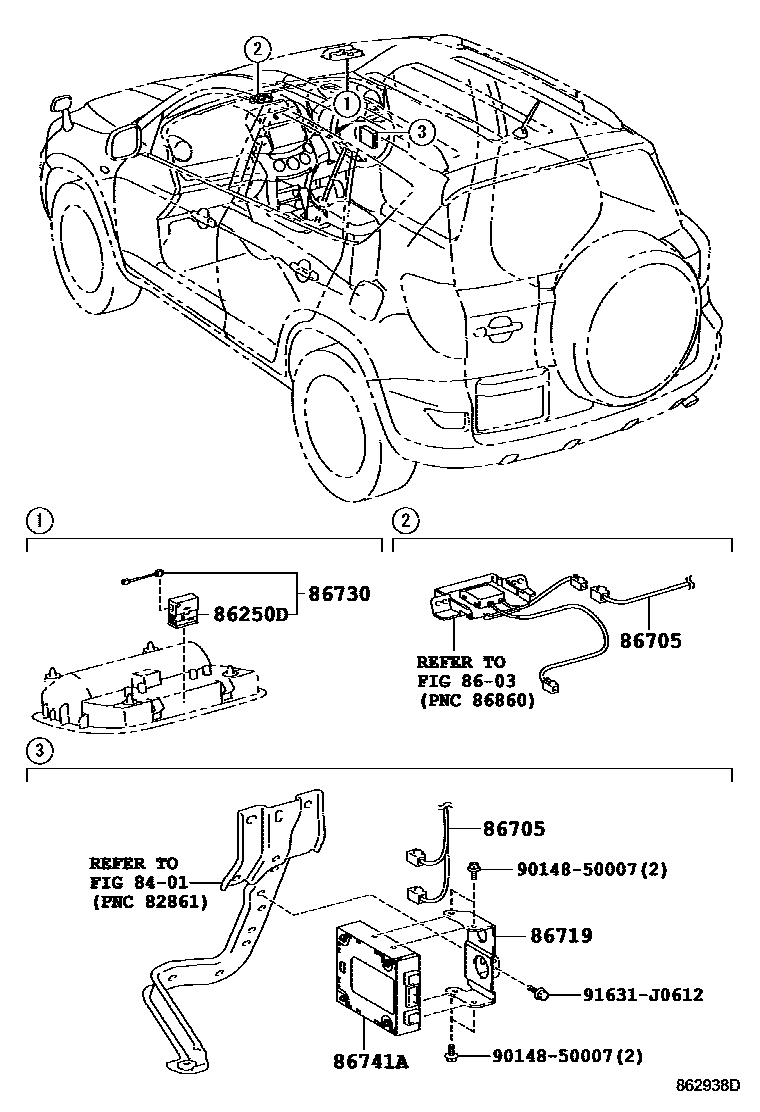

Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86250D | amplifier loudspeaker assembly | 86250-52020 |
| 86705 | Telephone antenna wire sub-assembly | 86705-42010 · 86705-42030 |
| 86719 | phone holder | 86719-42030 |
| 86730 | Telephone amplifier assembly | 86730-42010 |
| 86741A | Telecommunications transceiver | 86741-28020 · 86741-28021 |
