Toyota RAV4 倒车影像和摄像头 — Figure 8606

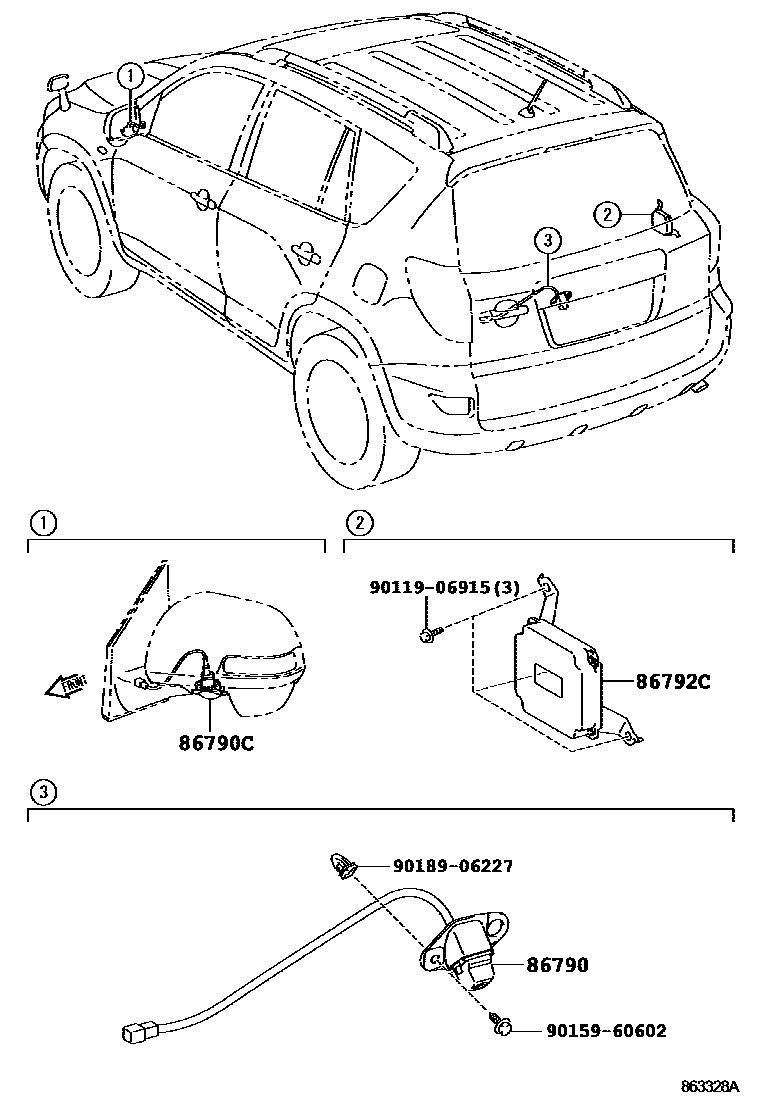

Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 86790-42010 · 86790-42011 · 86790-42040 |
| 86790C | Side image camera assembly | 86790-28290 |
| 86792C | Parking assist ECU | 86792-42010 |
