Toyota RAV4 antenna — Figure 8604

Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.

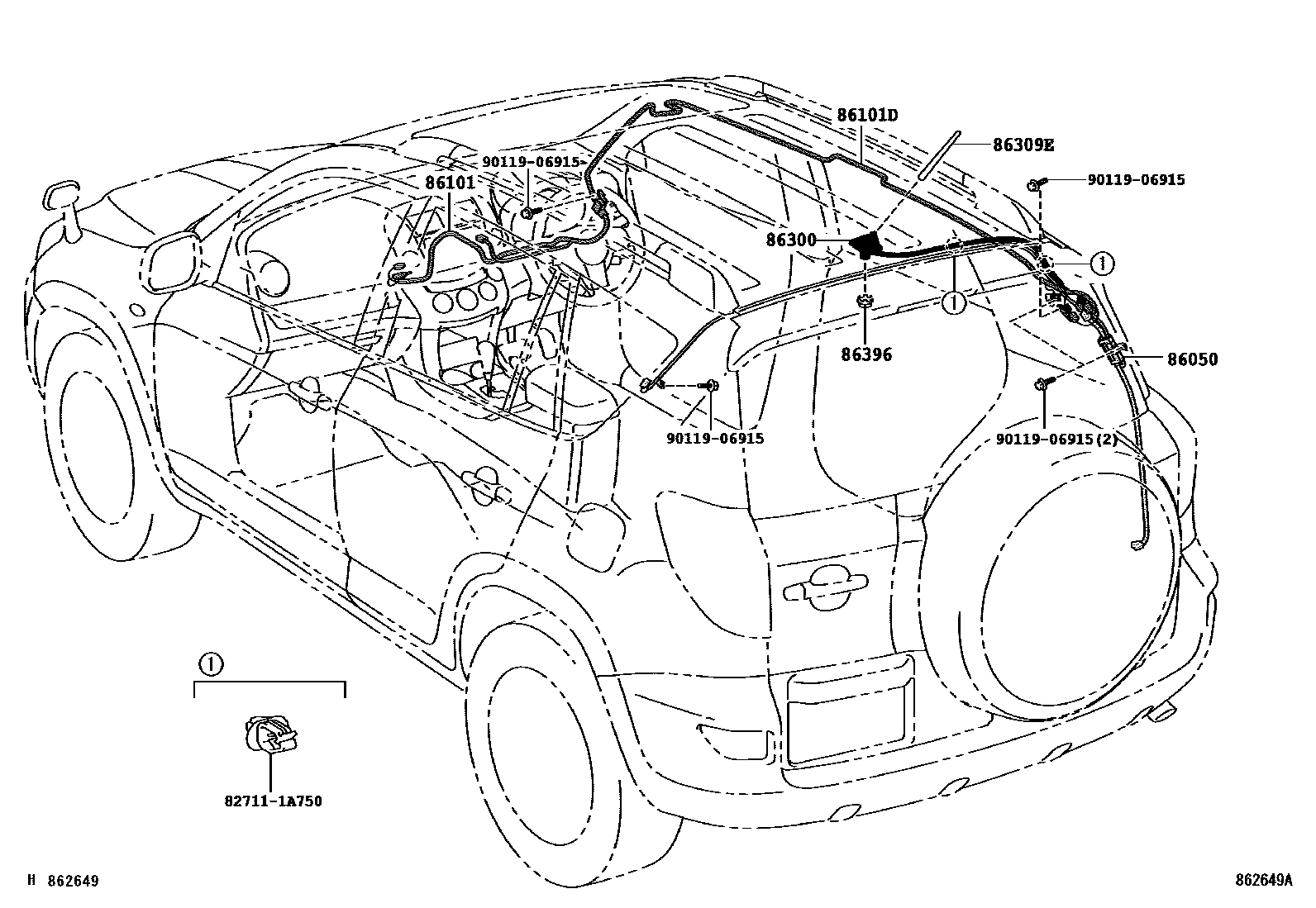

Toyota RAV4 antenna EPC diagram — 862649A
antenna — 862649A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050Monitor antenna assembly86050-42060
86101Antenna wire sub-assembly86101-42280 · 86101-42281 · 86101-42320
86101DNo. 3 antenna wire sub-assembly86101-42300 · 86101-42301 · 86101-42330 · 86101-42420 · 86101-42440 · 86101-42441
86300Antenna assembly with fixing parts86300-42120 · 86300-42160 · 86300-42190 · 86300-42200
86309ERoof antenna sub-assembly86309-42070 · 86309-52030
86396Antenna nut86396-20040 · 86396-30050 · 86396-47010
