Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

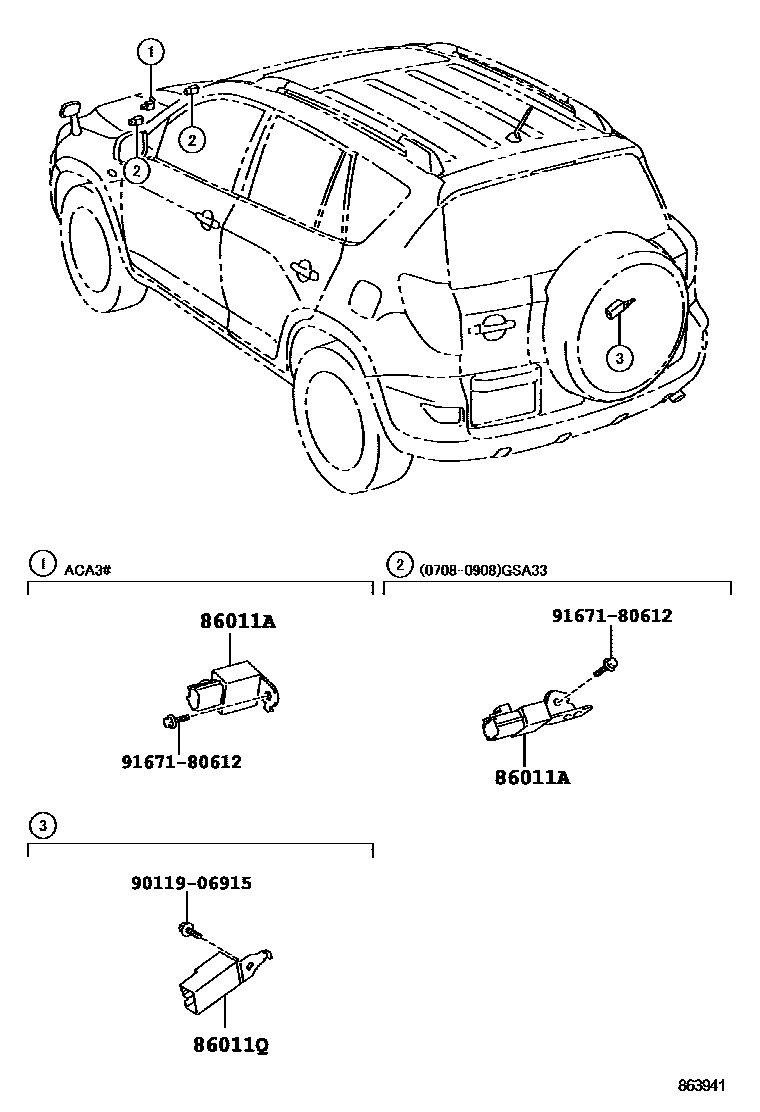

| 86011A | radio settings phase modulator | 90980-04182 · 90980-04191 · 90980-04195 |
| 86011Q | radio settings phase modulator | 90980-04197 |

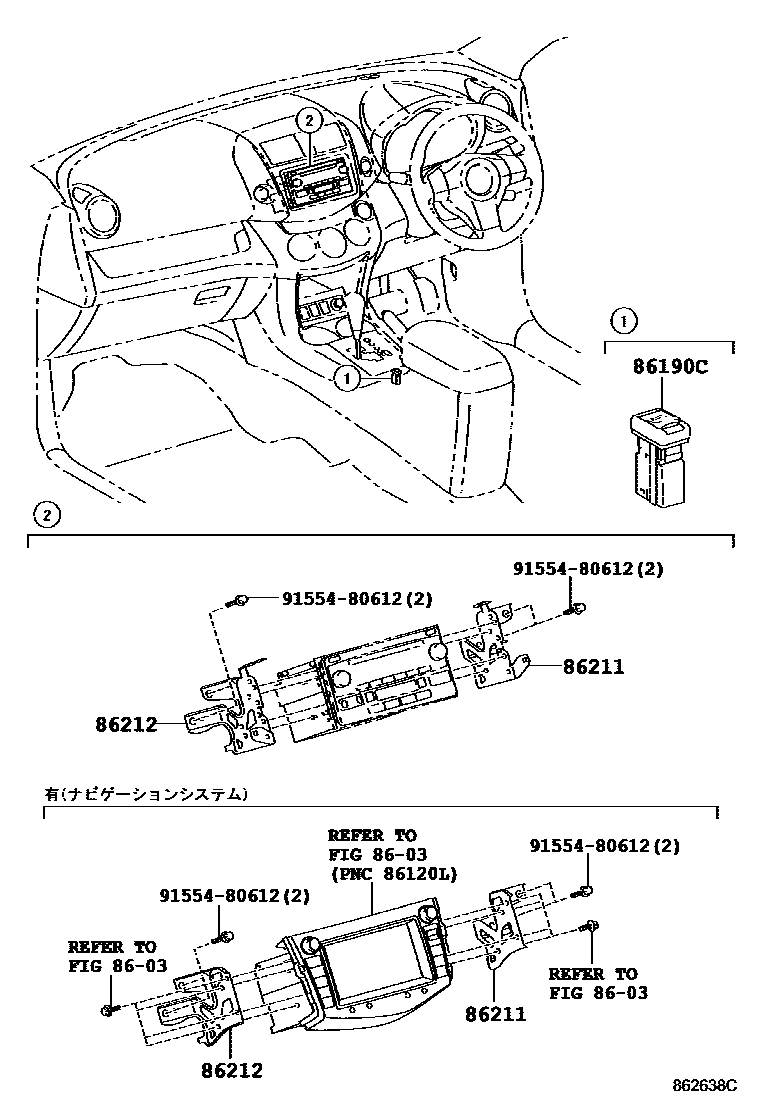

| 86190C | Stereo socket connector assembly No. 1 | 86190-12020 |
| 86211 | No. 1 radio bracket | 86211-42050 · 86211-42060 · 86211-42090 |
| 86212 | No. 2 radio bracket | 86212-42050 · 86212-42060 · 86212-42090 |
