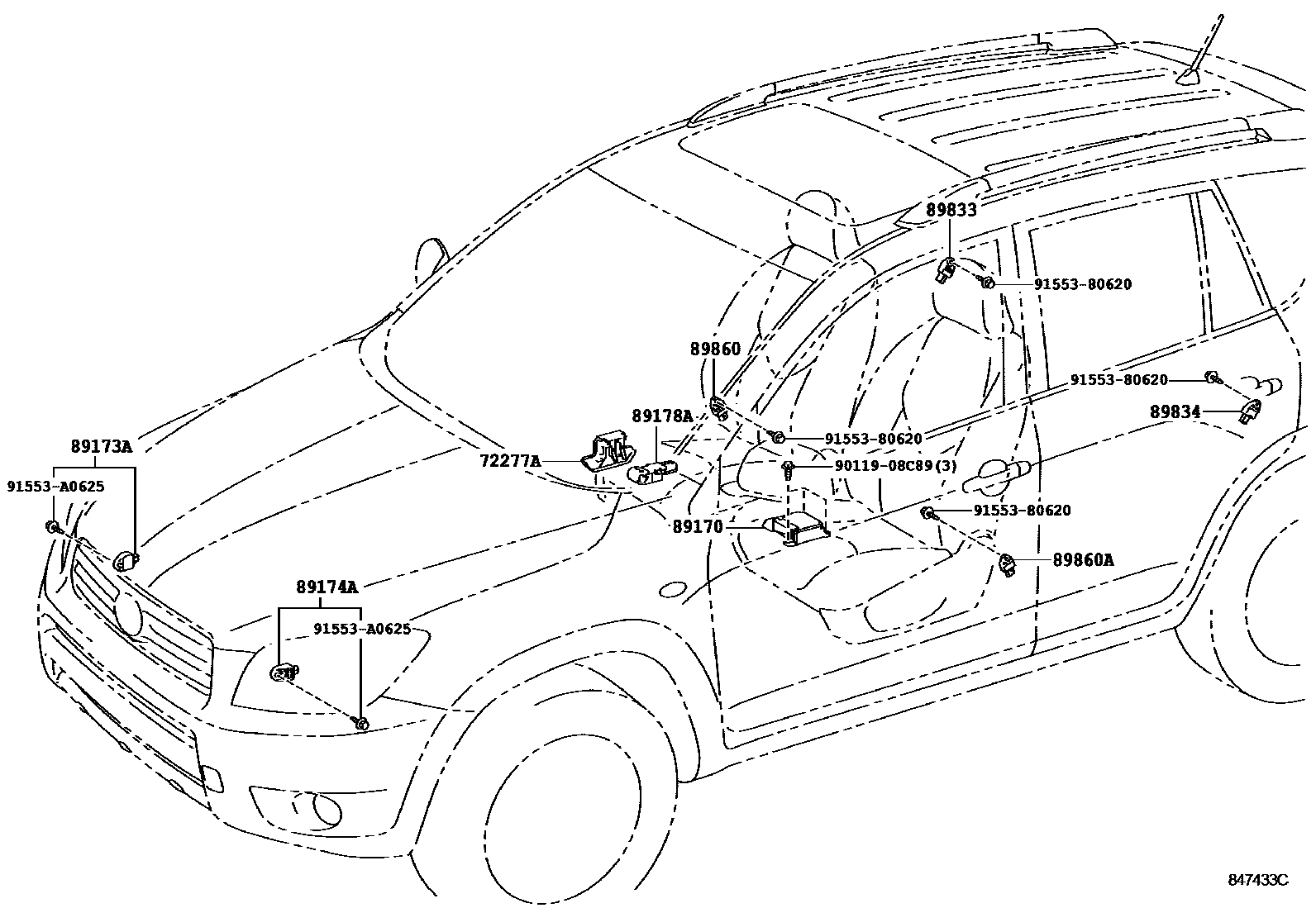

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-33010 · 72277-33021 |
| 89170 | air bag sensor assembly | 89170-42220 · 89170-42240 · 89170-42241 · 89170-42290 · 89170-42300 · 89170-42530 · 89170-42540 |
| 89173A | Right front air bag sensor | 89173-49375 |
| 89174A | Left front air bag sensor | 89173-49375 |
| 89178A | Seat position air bag sensor | 89178-33020 · 89178-33040 · 89178-33050 |
| 89833 | Right rear air bag sensor | 89831-33020 · 89831-33030 |
| 89834 | Left rear air bag sensor | 89831-33020 · 89831-33030 |
| 89860 | Right side airbag sensor assembly | 89831-28020 · 89831-42010 |
| 89860A | Left side air bag sensor assembly | 89831-28020 · 89831-42010 |
