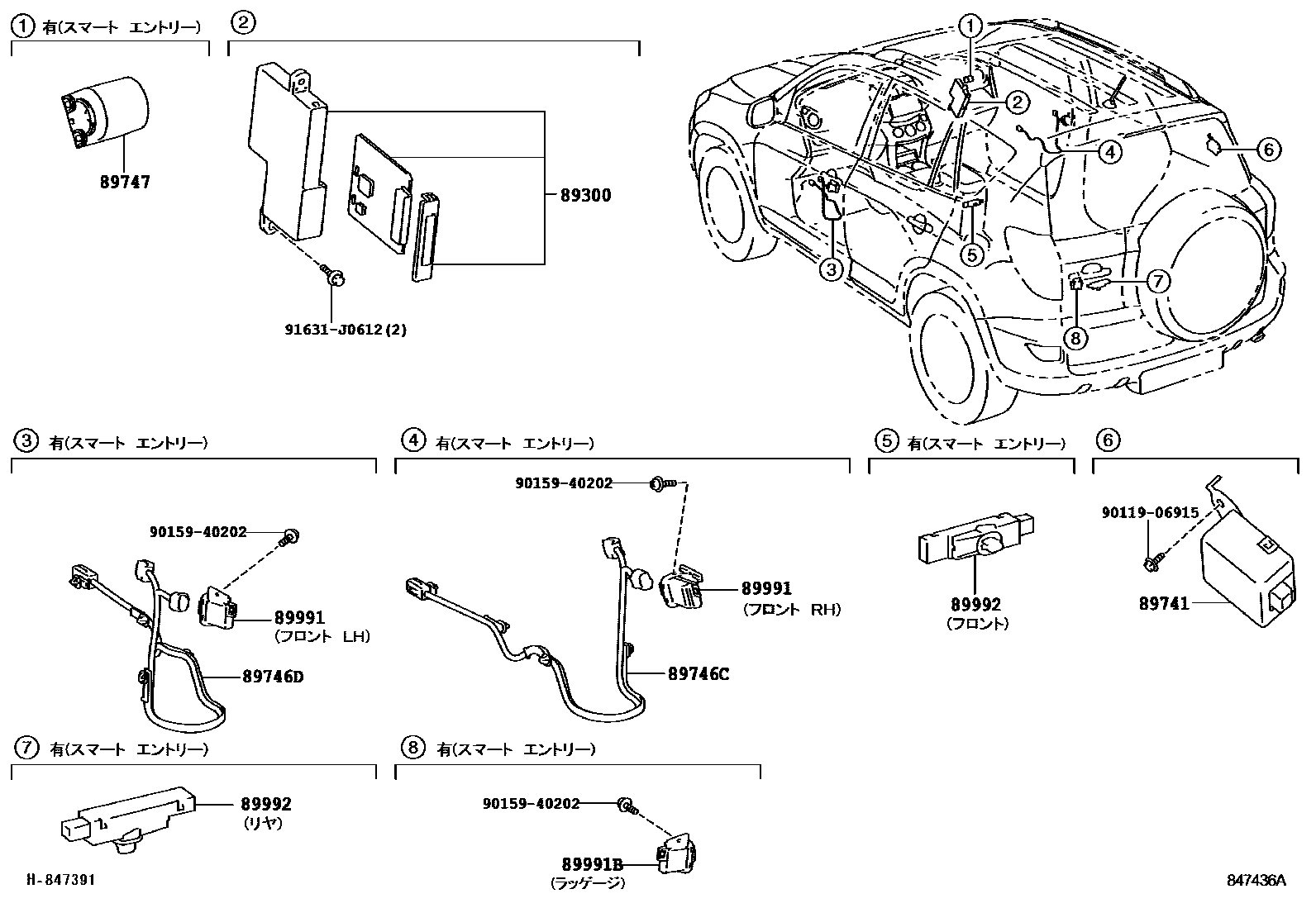

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89300 | ECU integrated box assembly | 89300-42030 · 89300-42040 · 89300-42091 |
| 89741 | door control receiver | 89740-42010 · 89740-42011 · 89740-42040 · 89741-42210 |
| 89746C | No. 1 electronic key wiring harness | 89746-42010 |
| 89746D | No. 2 electronic key wiring harness | 89746-42020 |
| 89747 | Remote door lock buzzer | 89747-48020 · 89747-52010 |
| 89991 | Door electronic key oscillator | 89991-30040 · 89991-30050 |
| 89991B | Door electronic key oscillator (for trunk) | 89991-30040 |
| 89992 | Car electronic key oscillator | 89992-42010 · 89992-42020 · 89992-52020 |
