Toyota RAV4 ABS 和 VSC — Figure 8414

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 13 PNC and OE references.

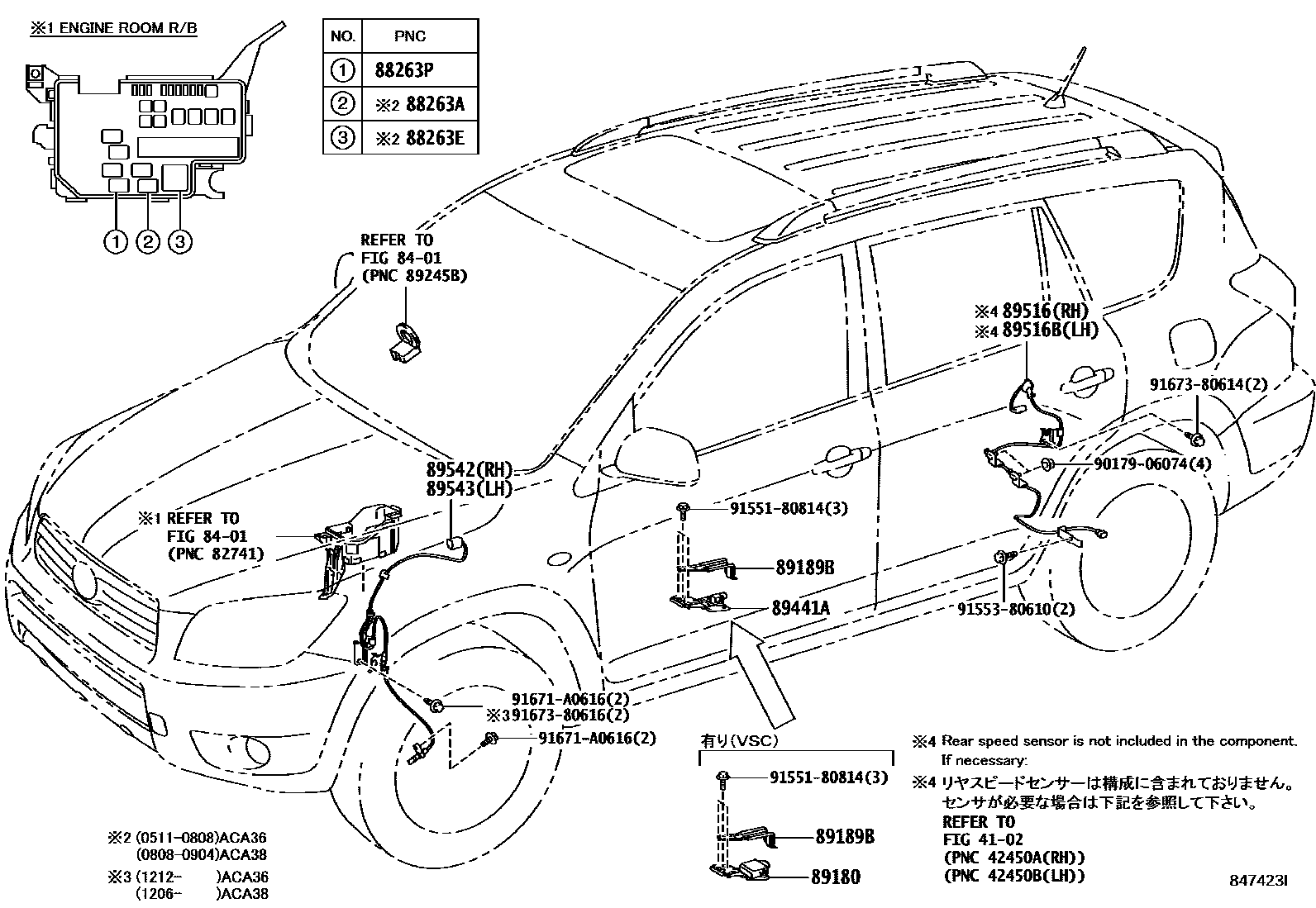

Toyota RAV4 ABS 和 VSC EPC diagram — 847423I
ABS 和 VSC — 847423I (200511 – 999999)

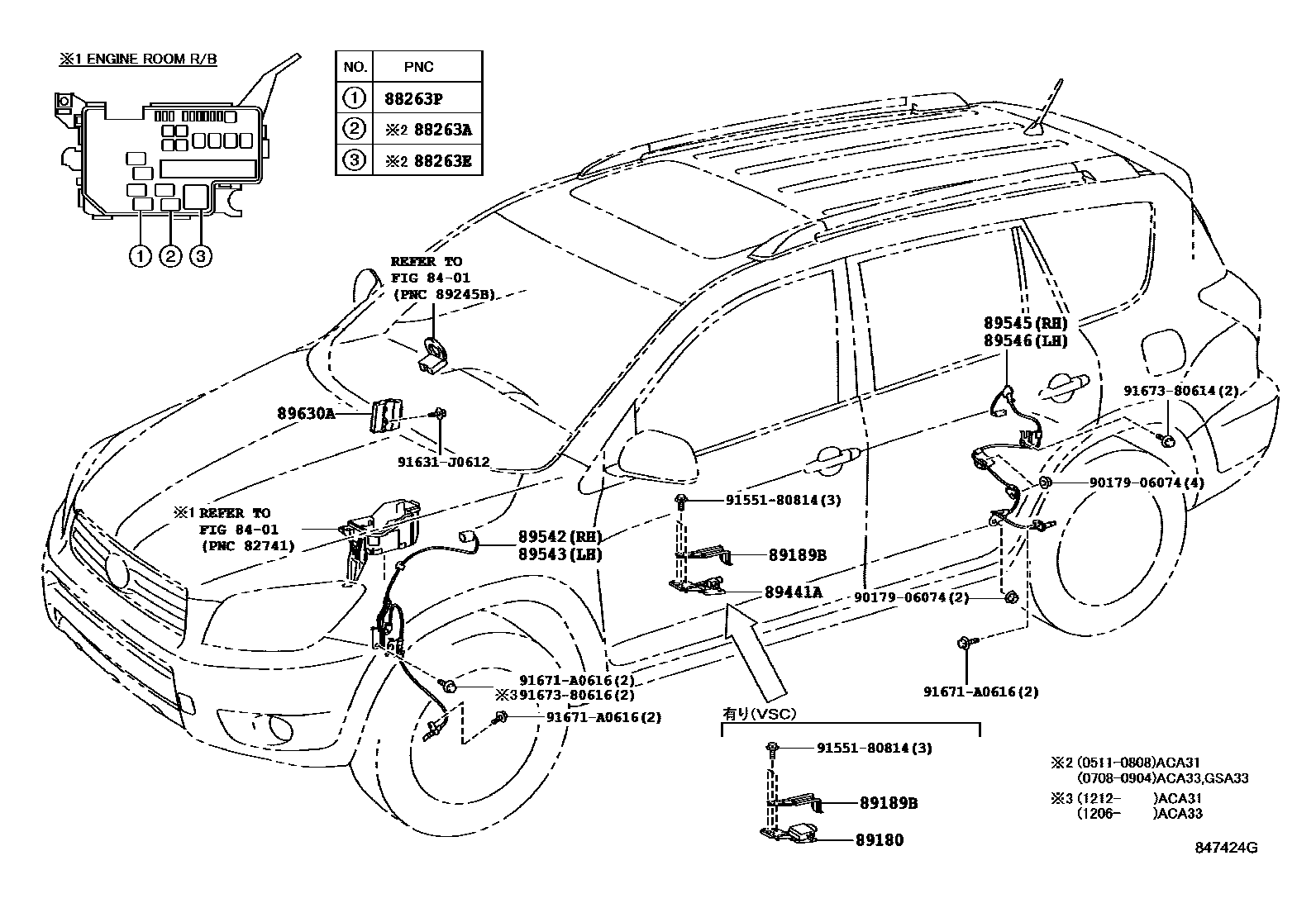

Toyota RAV4 ABS 和 VSC EPC diagram — 847424G
ABS 和 VSC — 847424G (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
88263AAnti-skid control relay88263-32070
88263ENo. 2 anti-skid control relay88263-21010
88263Pbrake light control relay90987-04004
89180Yaw rate sensor assembly89180-42020 · 89180-42030 · 89180-42040
89189BYaw rate sensor bracket89189-42010
89441Adeceleration sensor89440-42050
89516Anti-skid control sensor wiring harness89516-42050 · 89516-42070 · 89516-78050
89516BAnti-skid control sensor wiring harness89516-42060 · 89516-42080 · 89516-78060
89542Right front wheel speed sensor89542-42050
89543Left front wheel speed sensor89543-42050
89545Right rear wheel speed sensor89545-42040 · 89545-42050 · 89545-48070
89546Left rear wheel speed sensor89546-42040 · 89546-42050 · 89546-48070
89630AFour-wheel drive ECU assembly89630-42010 · 89630-42020 · 89630-42030 · 89630-42040
