Toyota RAV4 超速档和电子控制变速器 — Figure 8410

Toyota RAV4 EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 4 PNC and OE references.

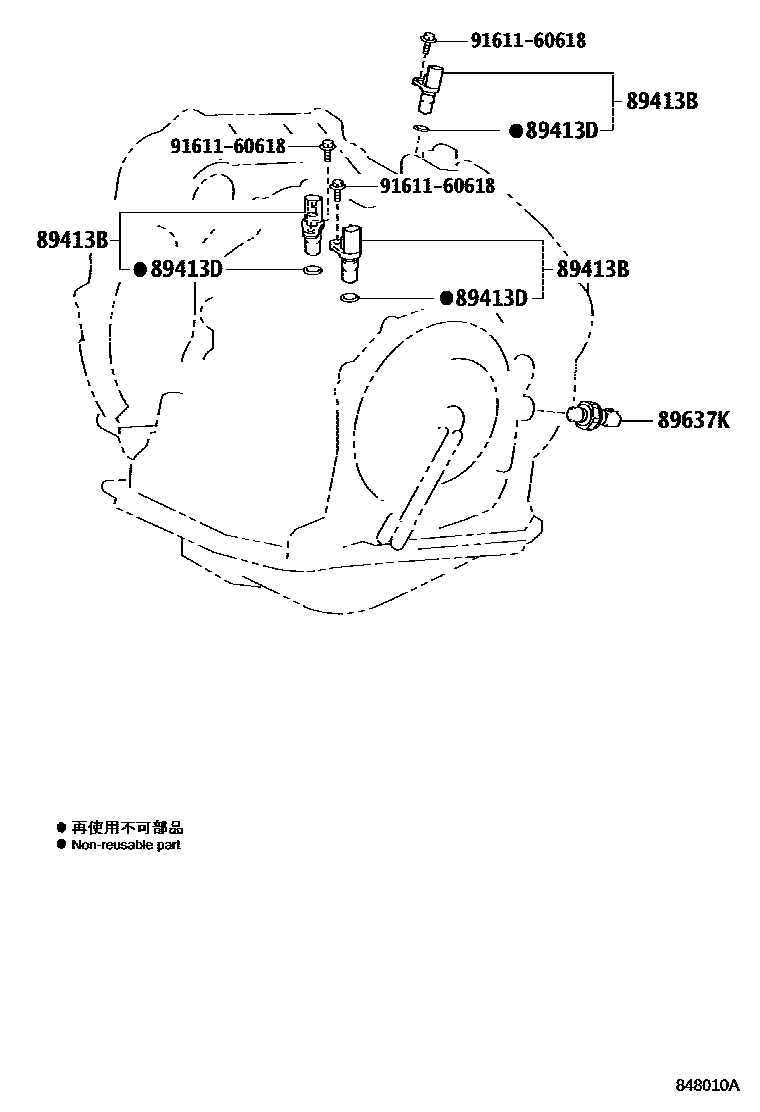

Toyota RAV4 超速档和电子控制变速器 EPC diagram — 848010A
超速档和电子控制变速器 — 848010A (200511 – 999999)

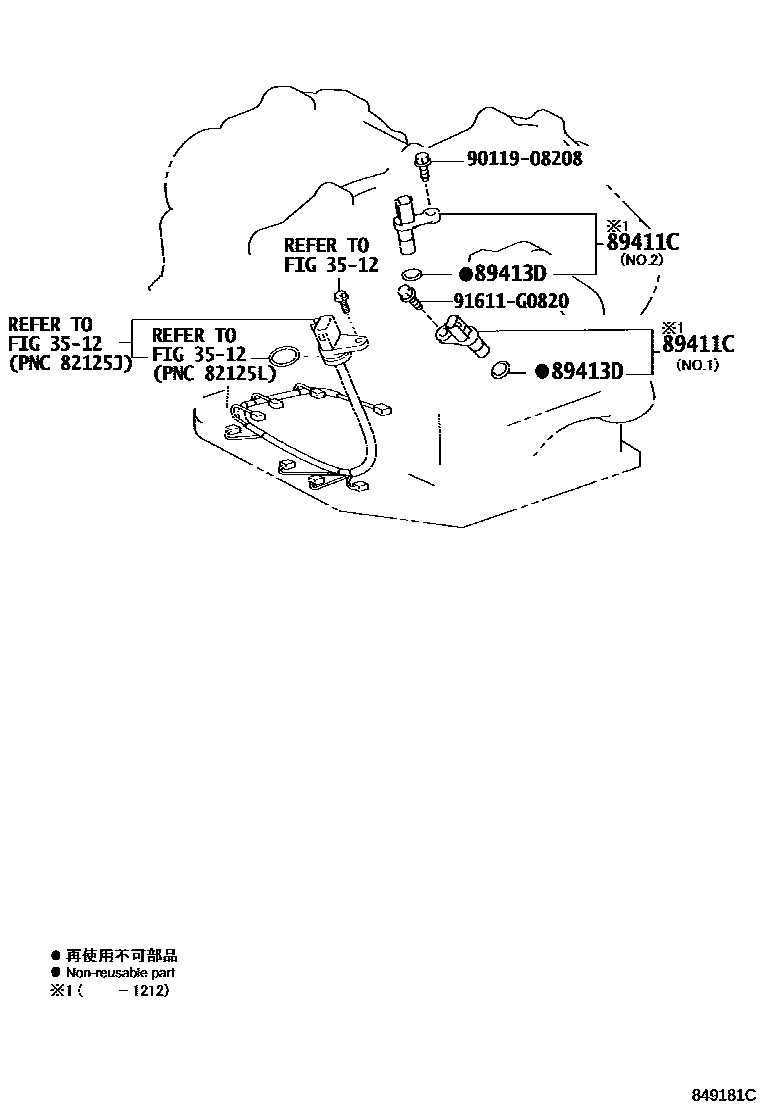

Toyota RAV4 超速档和电子控制变速器 EPC diagram — 849181C
超速档和电子控制变速器 — 849181C (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
89411CSpeed sensor89413-24010 · 89413-48010
89413BTransmission speed sensor89413-60020
89413DO-ring (for transmission speed sensor)90301-11008
89637Koil pressure sensor89637-63010
