Toyota RAV4 仪表 — Figure 8301

Toyota RAV4 EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.

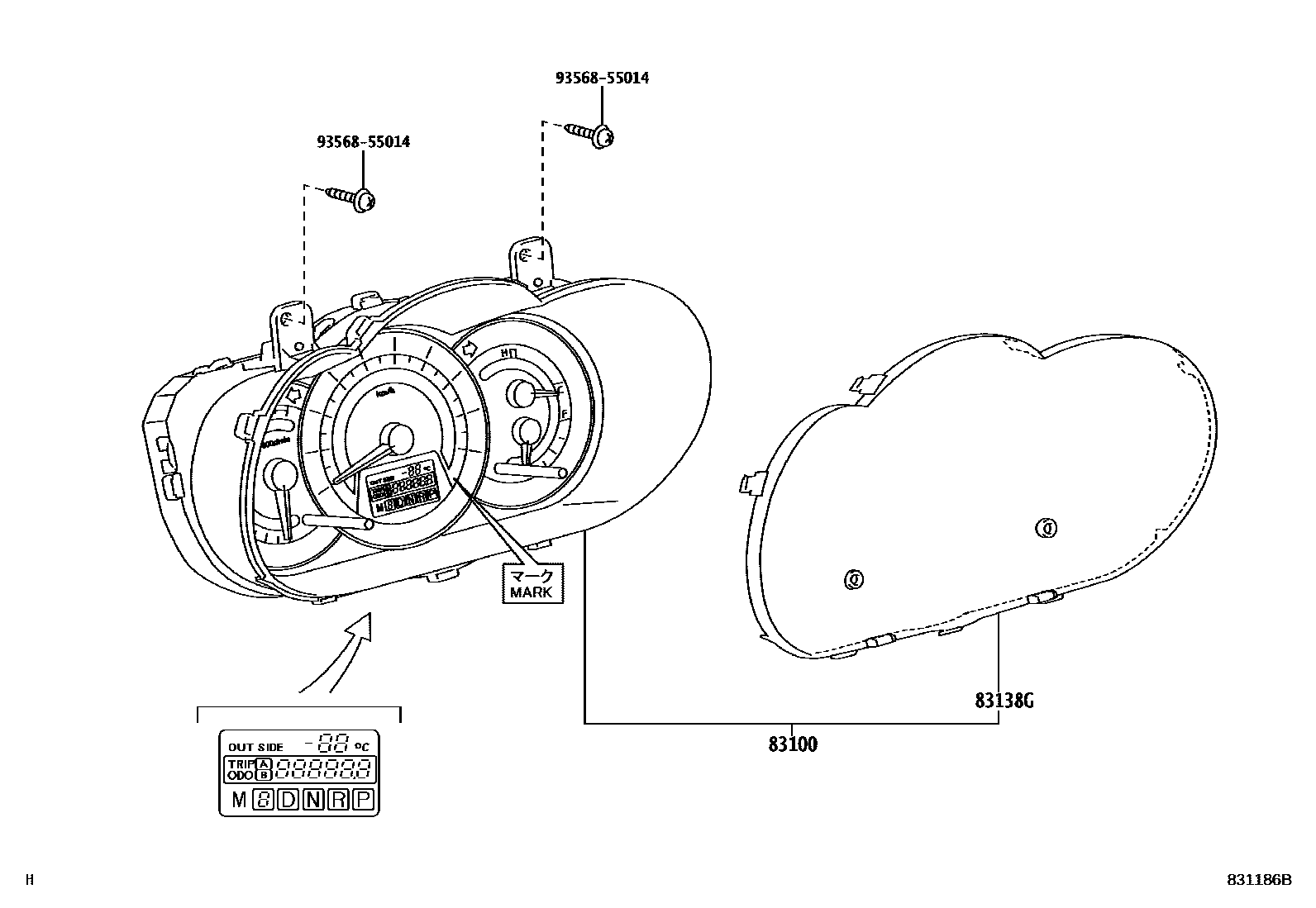

Toyota RAV4 仪表 EPC diagram — 831186B
仪表 — 831186B (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-42C20 · 83800-42F10 · 83800-42F11 · 83800-42F12 · 83800-42F13 · 83800-42F20 · 83800-42F21 · 83800-42G80 · 83800-42G81 · 83800-42G82 · 83800-42G83
83138GInstrument cluster glass83852-42C20
