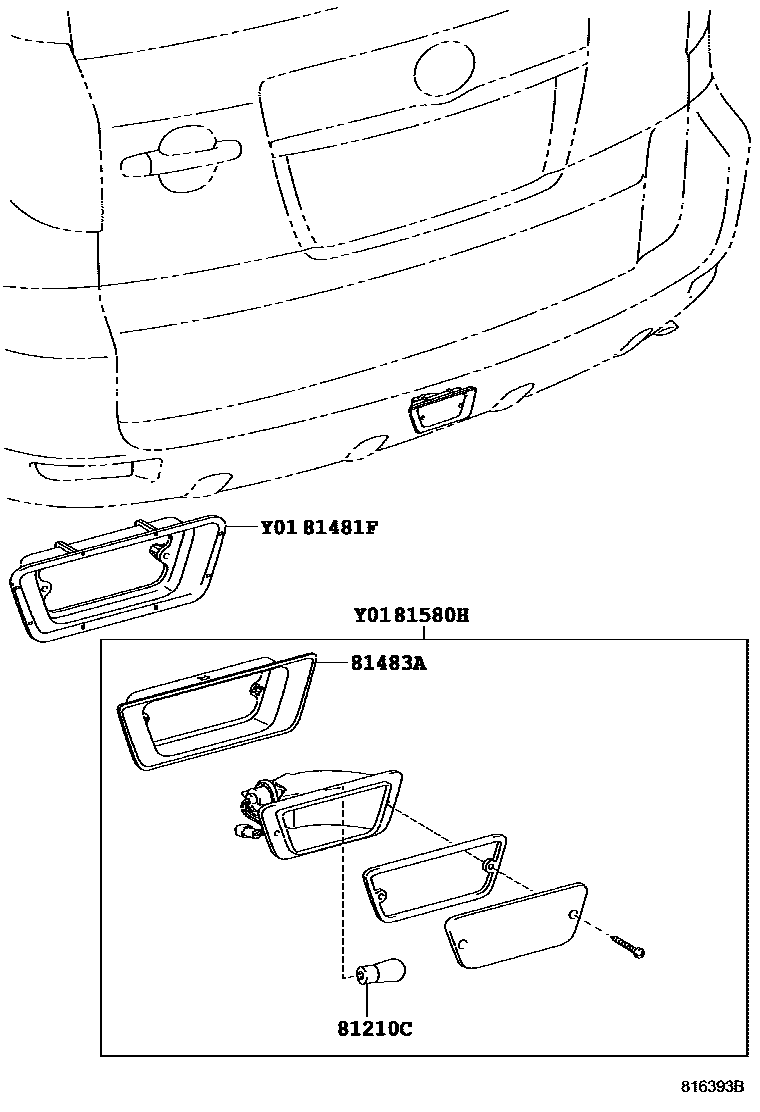

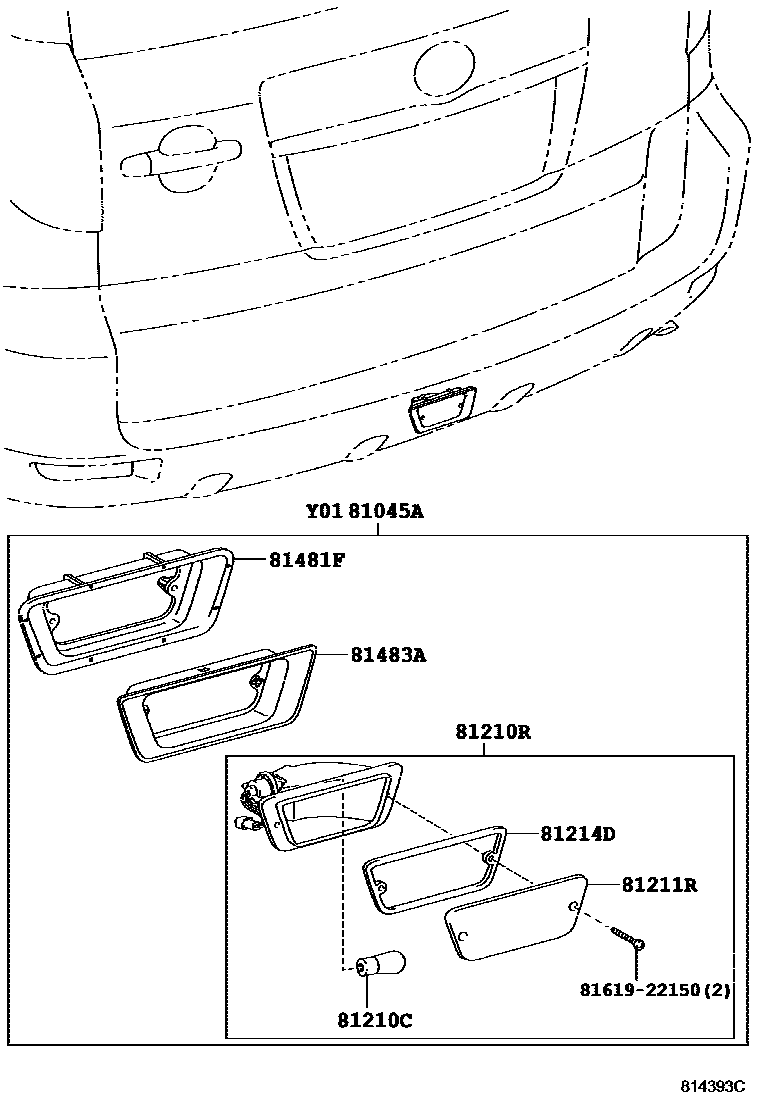

Toyota RAV4 后雾灯 — Figure 8116
Toyota RAV4 EPC diagram 8116, 后雾灯, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81045A | Rear fog light assembly | 81045-42010 |
| 81210C | Rear fog light bulb | 90981-13043 · 99132-11210 |
| 81210R | Rear fog light assembly | 81480-42010 · 81480-52020 · 81490-42010 |
| 81211R | Rear fog light cover | 81456-42010 · 81457-42010 · 81581-52060 |
| 81214D | Rear fog light body gasket | 81584-20250 |
| 81215R | Rear fog light lamp holder and wiring harness | 81515-52270 |
| 81481F | Right fog light bracket | 81481-42010 |
| 81483A | Fog light protective cover | 81483-42010 |
| 81580H | Right rear fog light assembly | 81580-42020 |
