Toyota RAV4 Side Turn Signal & Outer Mirror Lamp — Figure 8106

Toyota RAV4 EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 2 images and 2 PNC and OE references.

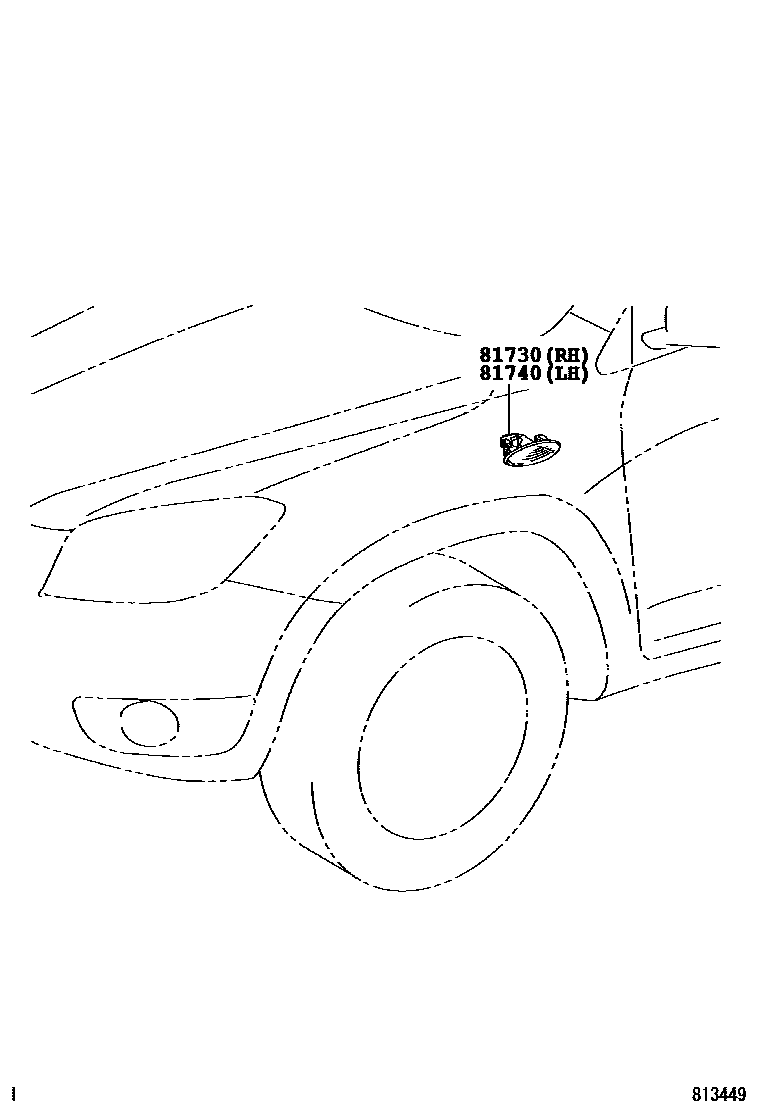

Toyota RAV4 Side Turn Signal & Outer Mirror Lamp EPC diagram — 813449
Side Turn Signal & Outer Mirror Lamp — 813449 (200511 – 200808)

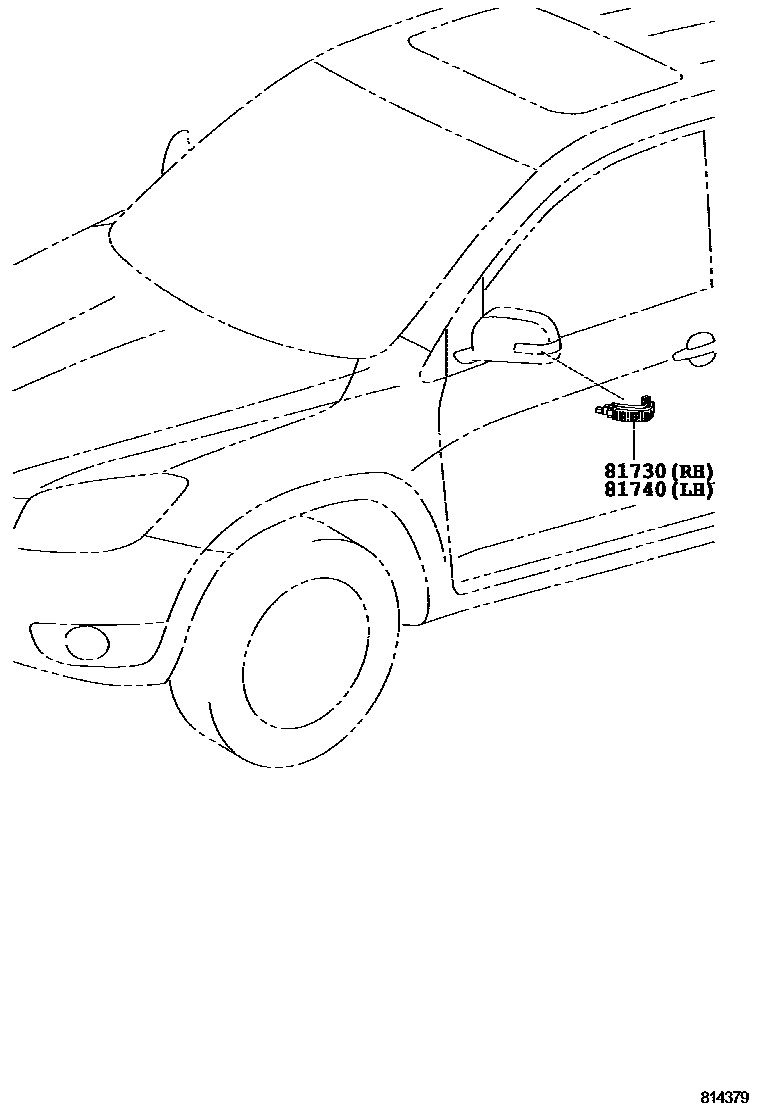

Toyota RAV4 Side Turn Signal & Outer Mirror Lamp EPC diagram — 814379
Side Turn Signal & Outer Mirror Lamp — 814379 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
81730Right side turn signal light assembly81730-0D030 · 81730-0D032 · 81730-52071
81740Left side turn signal light assembly81730-0D030 · 81730-0D032 · 81740-52031
