Toyota RAV4 Headlamp — Figure 8101

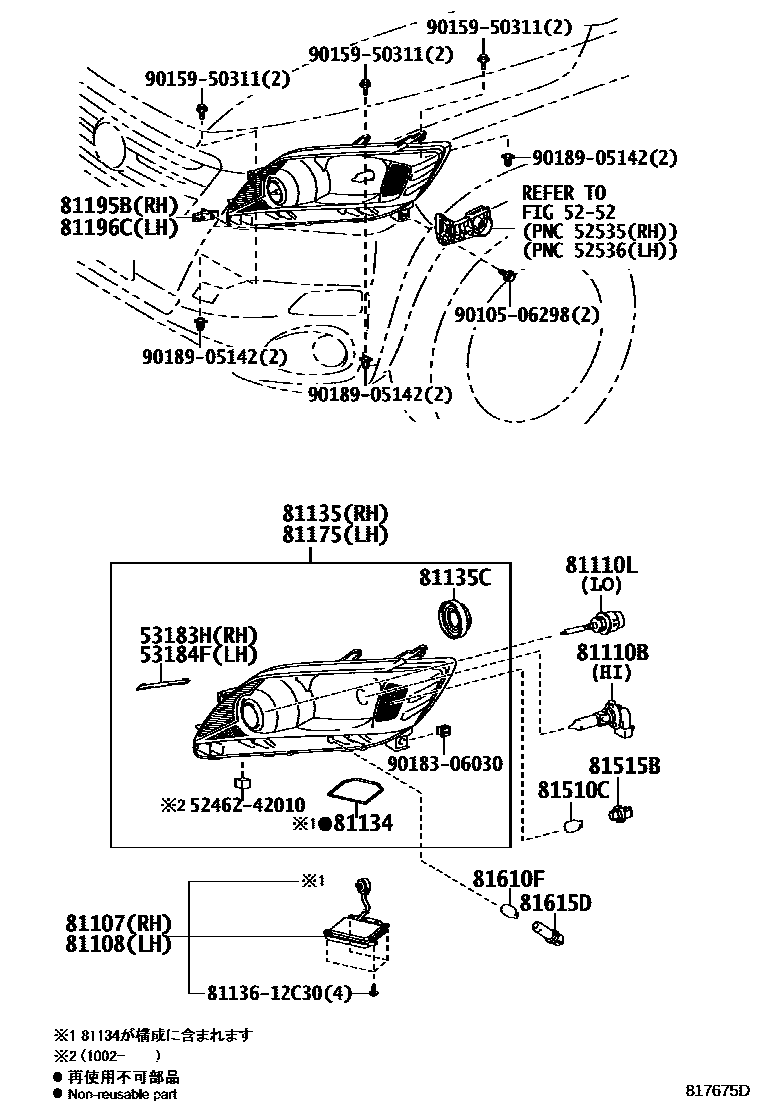

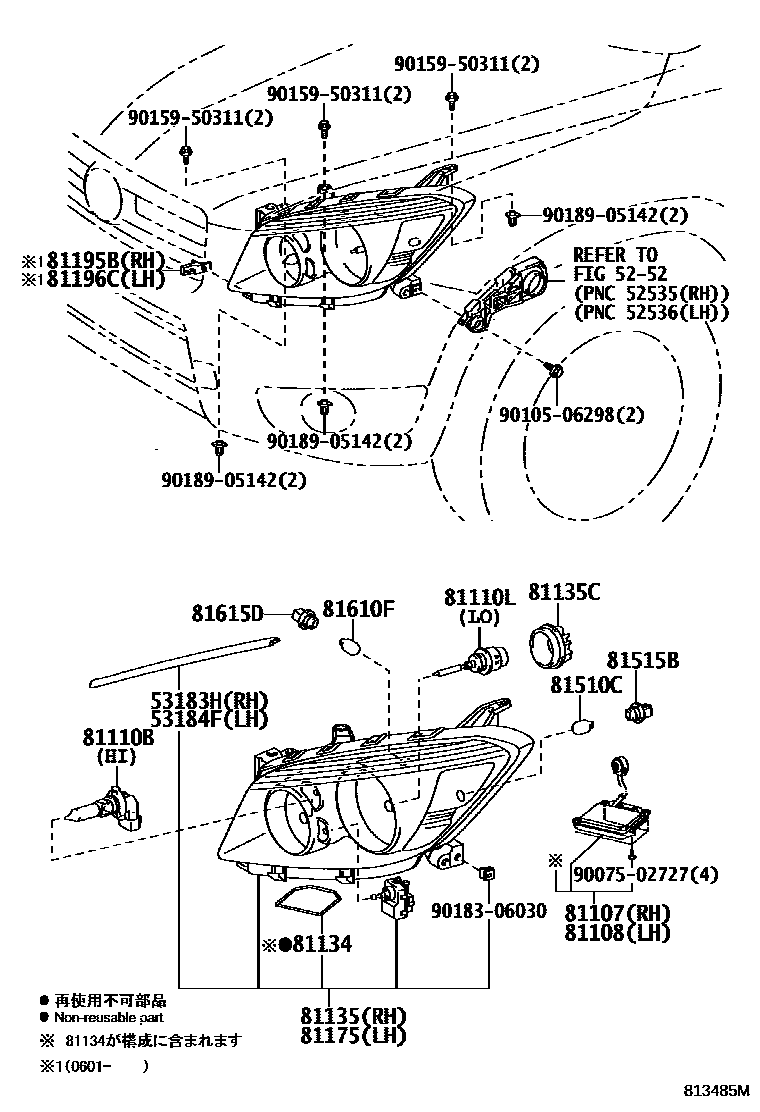

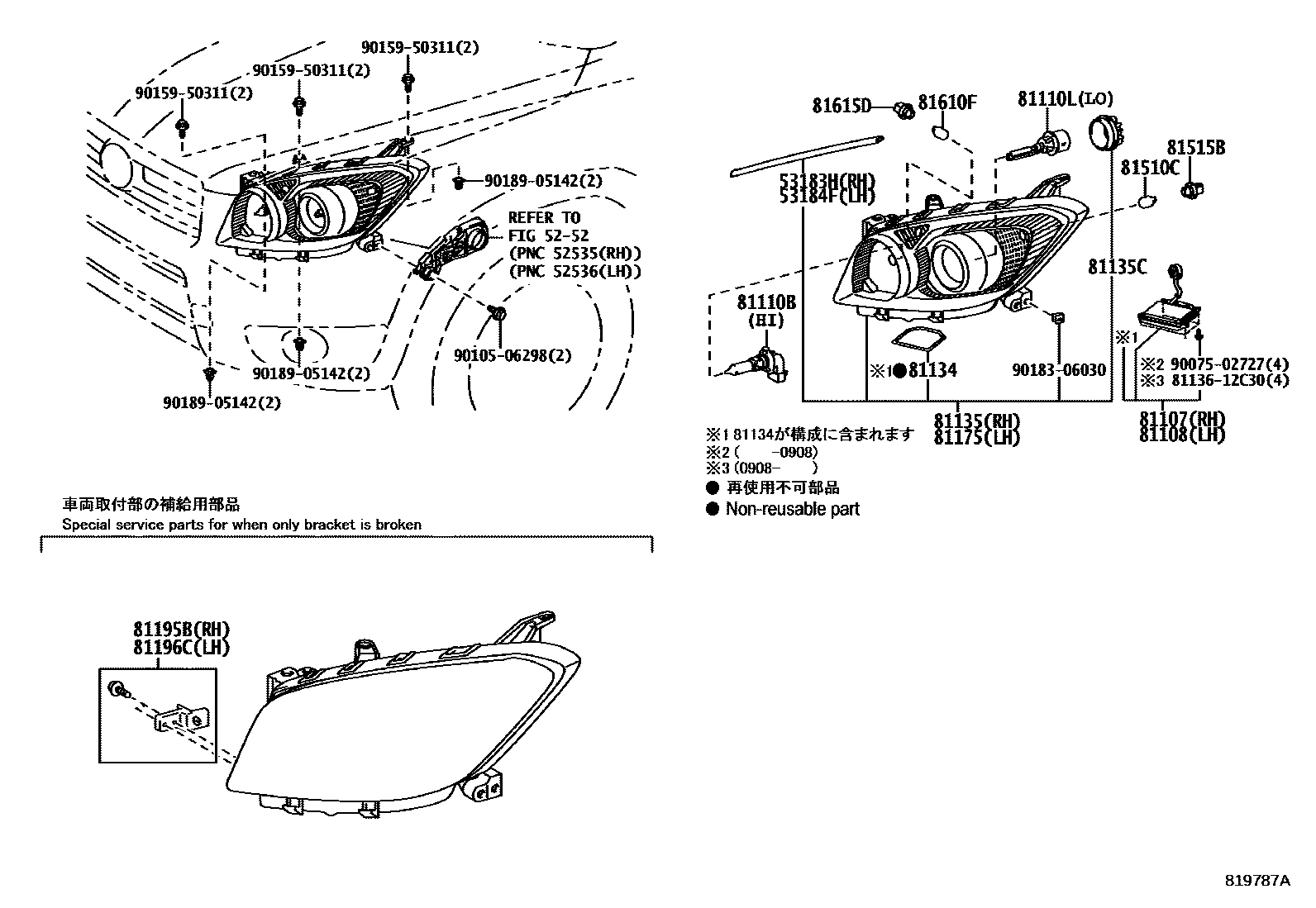

Toyota RAV4 EPC diagram 8101, Headlamp, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-42030 · 53183-42040 · 53183-42050 |
| 53184F | Left headlight cover seal | 53184-42030 · 53184-42040 · 53184-42050 |
| 81107 | Right headlight control ECU sub-assembly | 81107-52680 · 81107-52681 |
| 81108 | Left headlight control ECU sub-assembly | 81107-52680 · 81107-52681 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110L | Discharge headlight bulb | 90981-20018 · 90981-20028 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly | 81145-42340 · 81145-42380 · 81145-42381 · 81145-42390 · 81145-42460 · 81145-42610 |
| 81135C | No. 1 headlight rear cover | 81135-12A40 · 81135-52480 |
| 81175 | Left headlight assembly | 81185-42340 · 81185-42380 · 81185-42381 · 81185-42390 · 81185-42460 · 81185-42610 |
| 81195B | Right headlight lower right protection piece | 81195-42020 |
| 81196C | Left headlight lower left protection piece | 81196-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-1E480 · 81138-52570 · 90075-60046 · 90075-60077 |
