Toyota RAV4 accelerator pedal connecting rod — Figure 7851

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 1 images and 2 PNC and OE references.

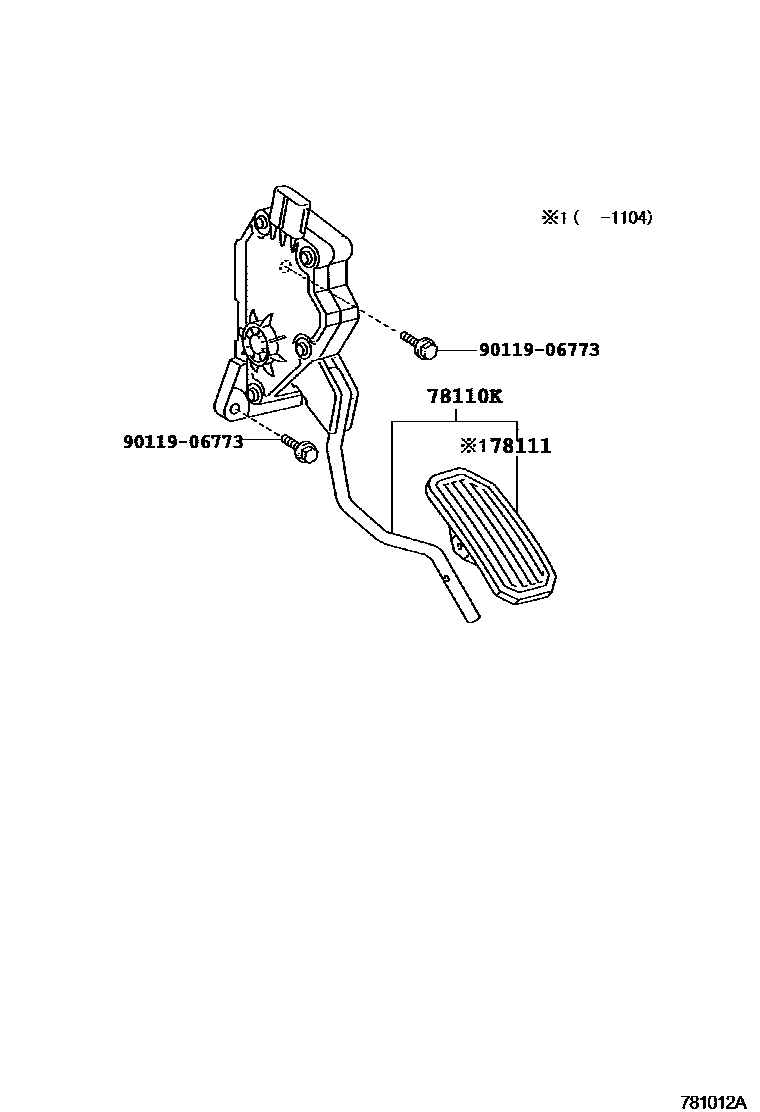

Toyota RAV4 accelerator pedal connecting rod EPC diagram — 781012A
accelerator pedal connecting rod — 781012A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-42030 · 78110-42031 · 78110-42050 · 78110-42051
78111accelerator pedal78111-42010
