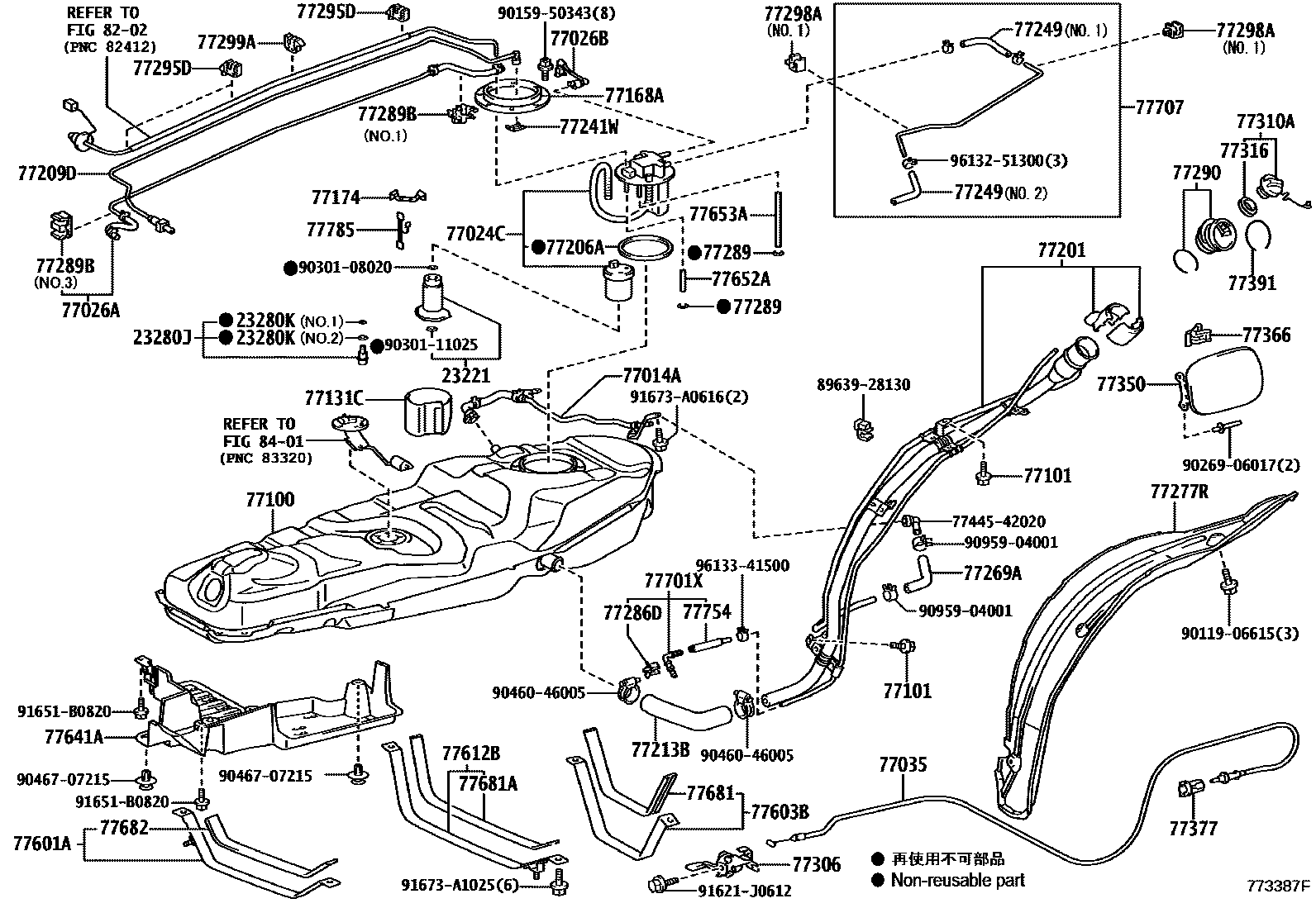

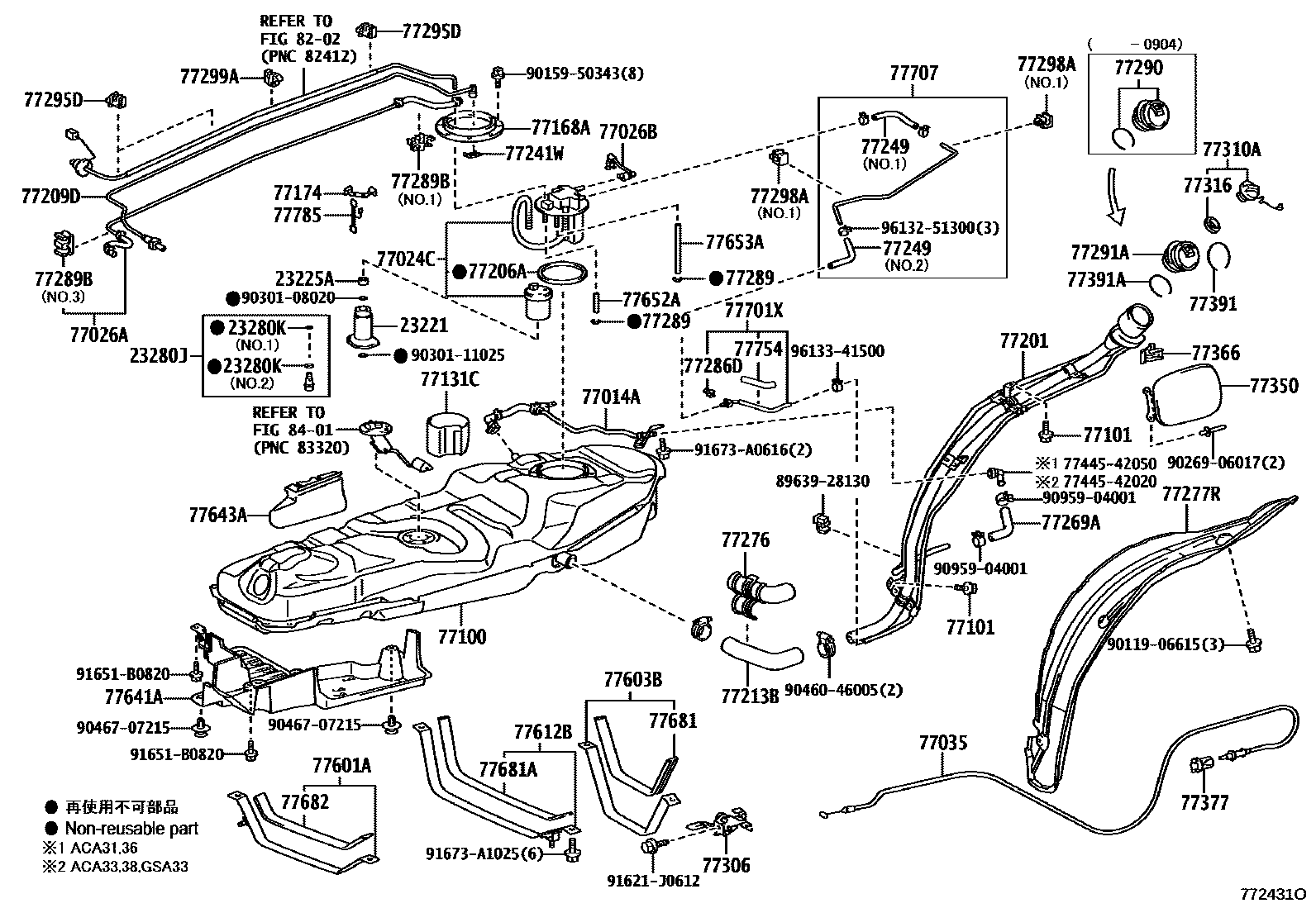

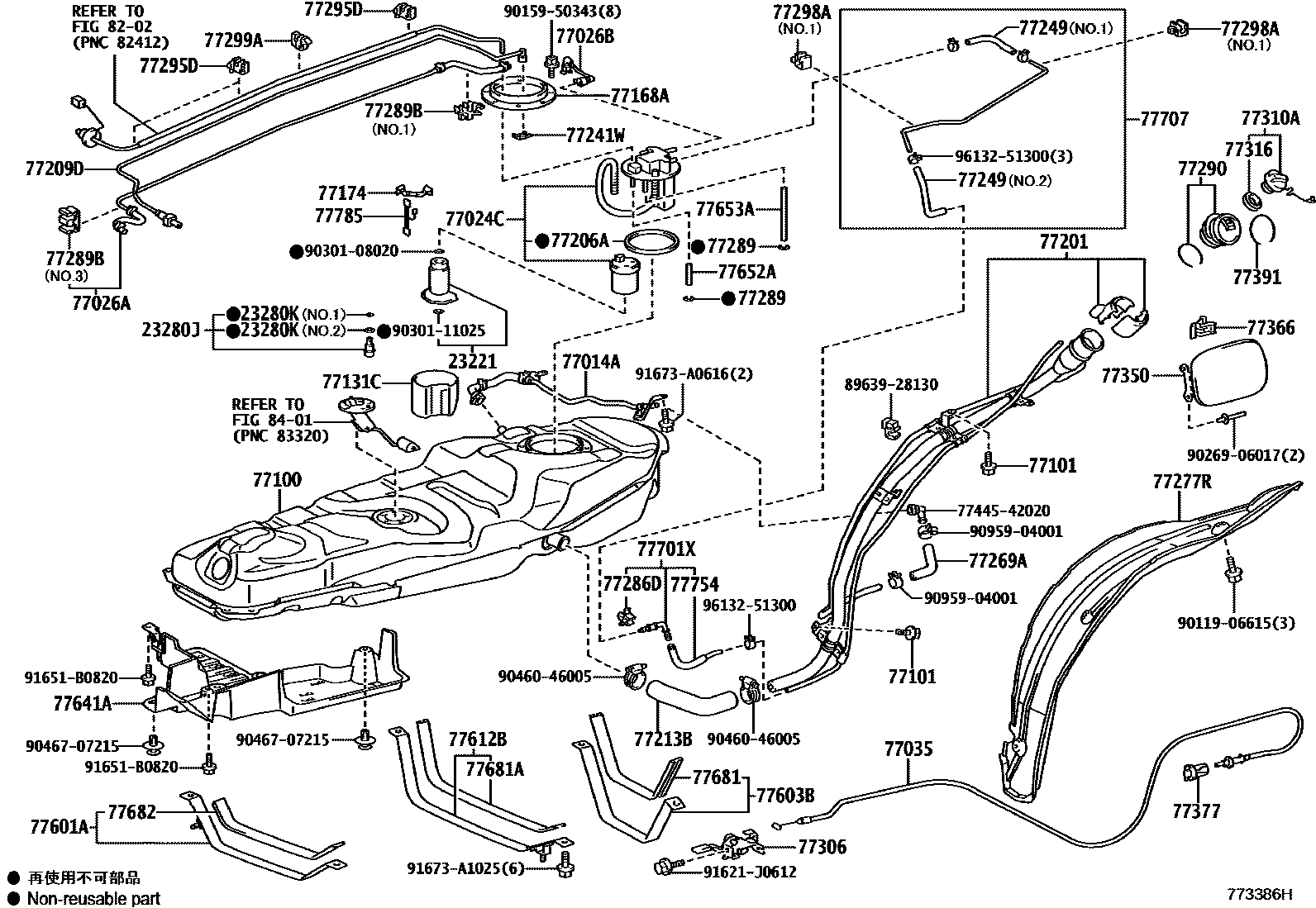

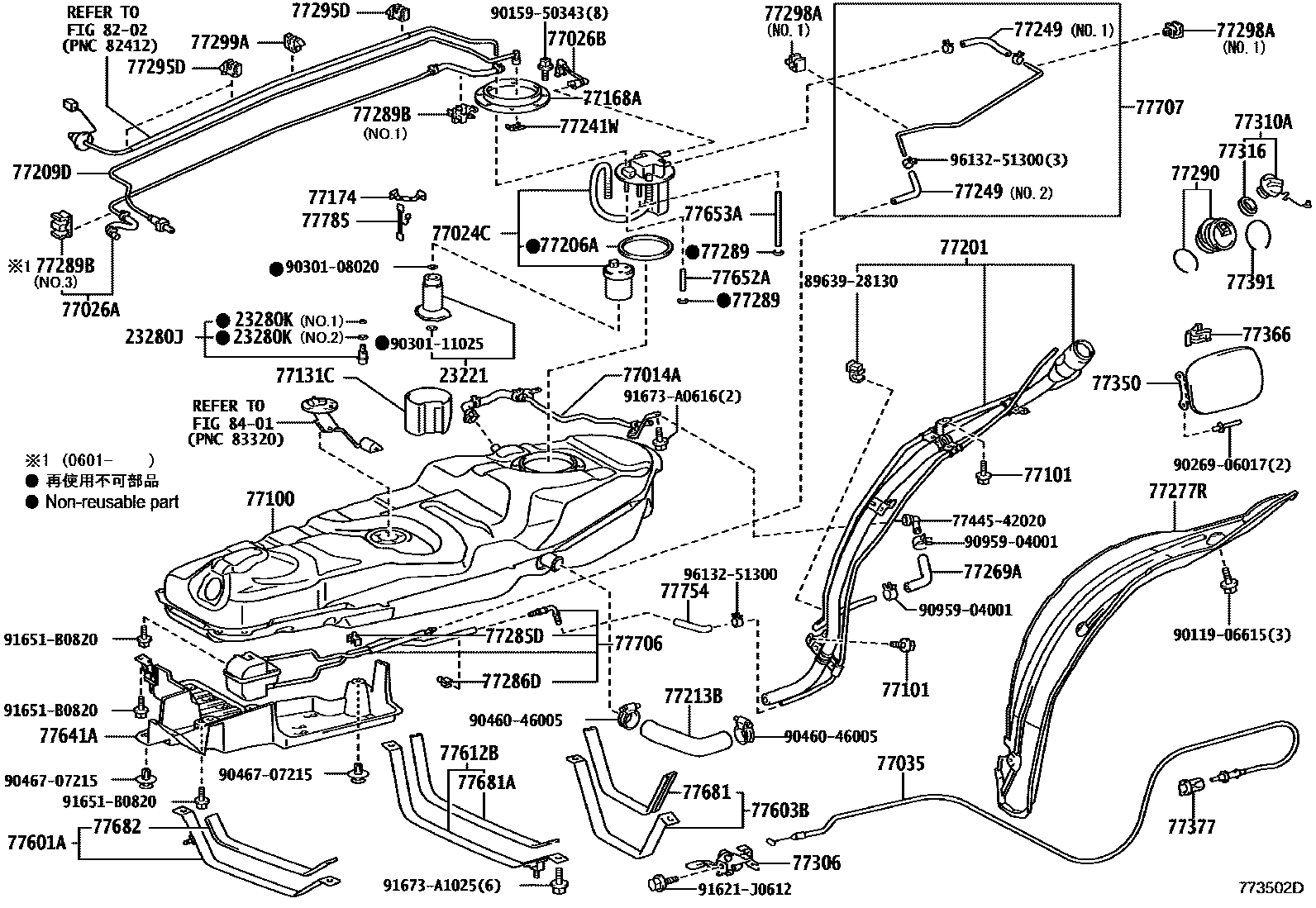

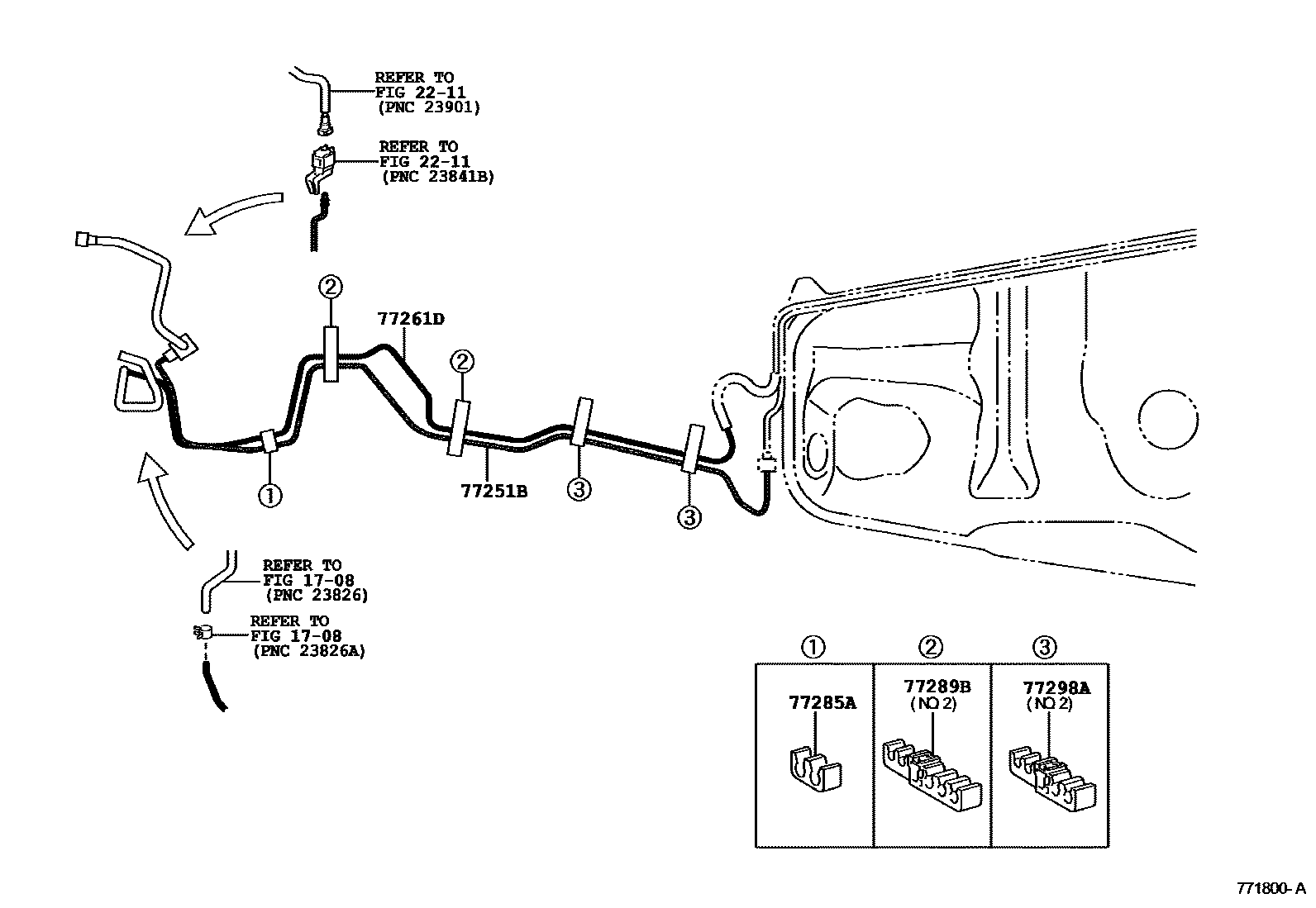

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 5 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-28090 · 23220-31120 · 23220-36010 · 23220-36011 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-42010 · 77014-42020 |
| 77024C | Toyota part | 77024-42060 · 77024-42061 · 77024-42080 · 77024-42110 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-42020 |
| 77026B | No. 1 fuel evaporation pipe sub-assembly | 77026-42030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-42130 · 77035-42141 |
| 77100 | fuel tank assembly | 77001-42200 · 77001-42201 · 77001-42221 · 77001-42250 |
| 77101 | Connector (for auxiliary fuel tank) | 90105-08158 |
| 77131C | No. 1 auxiliary fuel tank | 77131-52081 · 77131-52082 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52050 · 77174-52070 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-42180 · 77201-42181 · 77201-42182 · 77201-42183 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-52010 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-42090 · 77209-42190 |
| 77213B | Fuel tank to filler pipe hose | 77213-42080 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77249 | fuel drain hose | 77249-42050 · 77249-42060 · 77249-42070 |
| 77251B | main fuel pipe | 77251-42170 · 77251-42180 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-42060 · 77261-42070 |
| 77269A | fuel tank breather hose | 77269-42030 |
| 77276 | Fuel hose protector | 77276-42020 |
| 77277R | Fuel tank filler pipe protection device | 77277-42070 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-42100 |
| 77286D | No. 2 fuel pipe clamp | 77286-42060 |
| 77289 | Fuel tank pipe holder | 77289-52110 |
| 77289B | No. 3 fuel pipe clamp | 77289-42020 · 77298-42020 · 77298-42030 · 77298-68010 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-42020 |
| 77291A | Fuel tank filler pipe cover | 77291-42040 |
| 77295D | Fuel pipe retaining ring | 77295-42110 |
| 77298A | No. 4 fuel pipe clamp | 77298-30170 · 77298-48050 · 77298-52070 |
| 77299A | No. 5 fuel pipe clamp | 77299-42010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-32010 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52020 · 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-42070 · 77350-42080 |
| 77366 | Fuel filler cap hinge spring | 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12030 · 77391-42010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-42060 · 77601-42070 · 77601-42071 · 77601-42080 |
| 77603B | No. 2 fuel tank right side band sub-assembly | 77603-42010 · 77603-42020 |
| 77612B | No. 2 fuel tank strap | 77602-42010 · 77602-42020 |
| 77641A | No. 1 fuel tank protective shell | 77641-42040 |
| 77643A | No. 3 fuel tank protective shell | 77643-42050 |
| 77652A | No. 2 fuel tank liner | 77652-42020 |
| 77653A | No. 3 fuel tank liner | 77652-42030 |
| 77681 | Fuel tank right side strap seat | 77681-42010 |
| 77681A | Fuel tank strap seat | 77681-21010 |
| 77682 | Fuel tank left side strap seat | 77681-42010 · 77681-42020 |
| 77701X | No. 1 carbon canister outlet hose sub-assembly | 77701-42030 · 77701-42040 |
| 77706 | Carbon canister filter sub-assembly | 77706-42030 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-42020 · 77707-42030 |
| 77754 | No. 1 carbon canister outlet hose | 77754-42050 · 77754-42070 |
| 77785 | fuel pump wiring harness | 77785-42020 · 77785-42050 |
