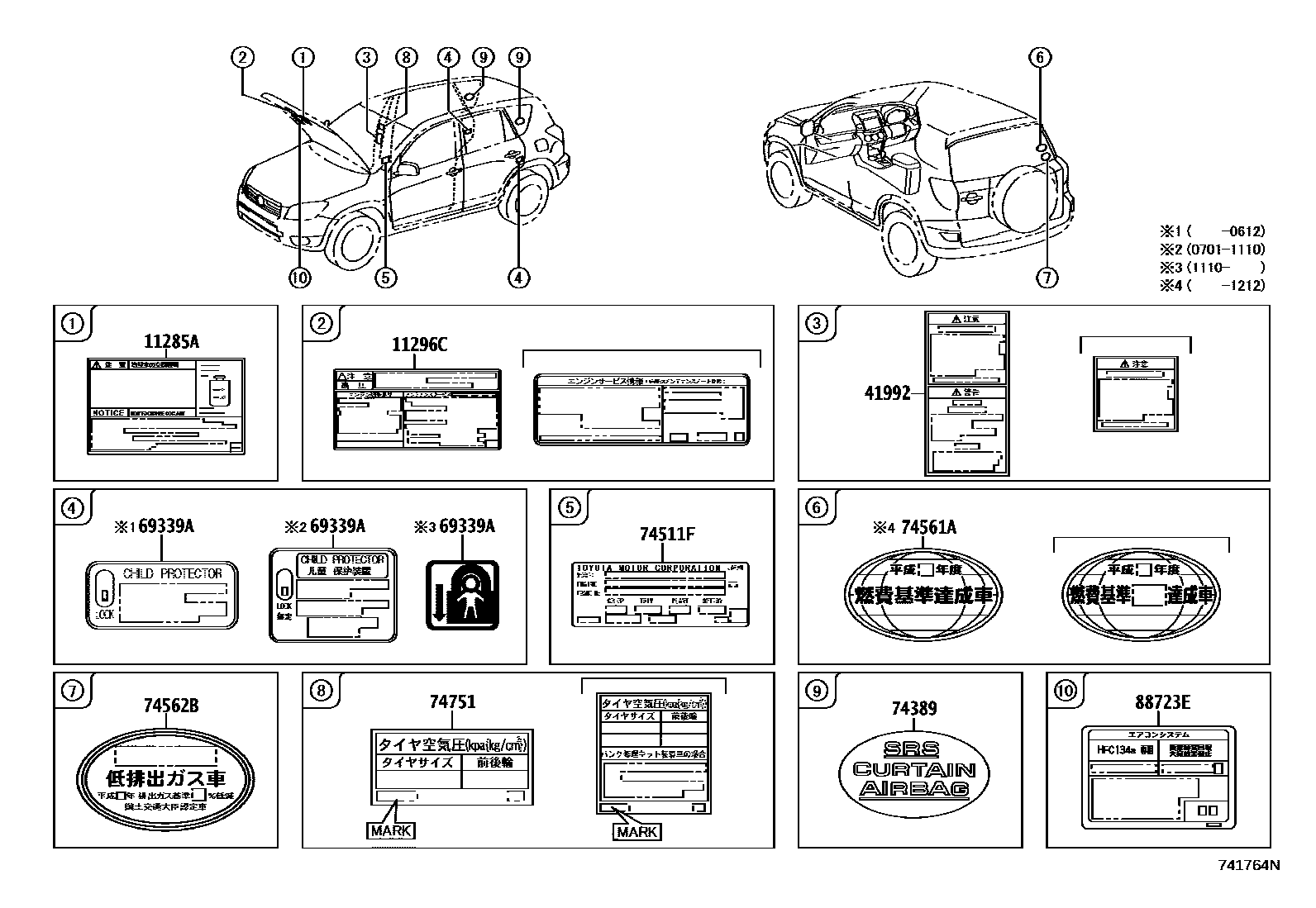

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-28010 · 11285-28050 |

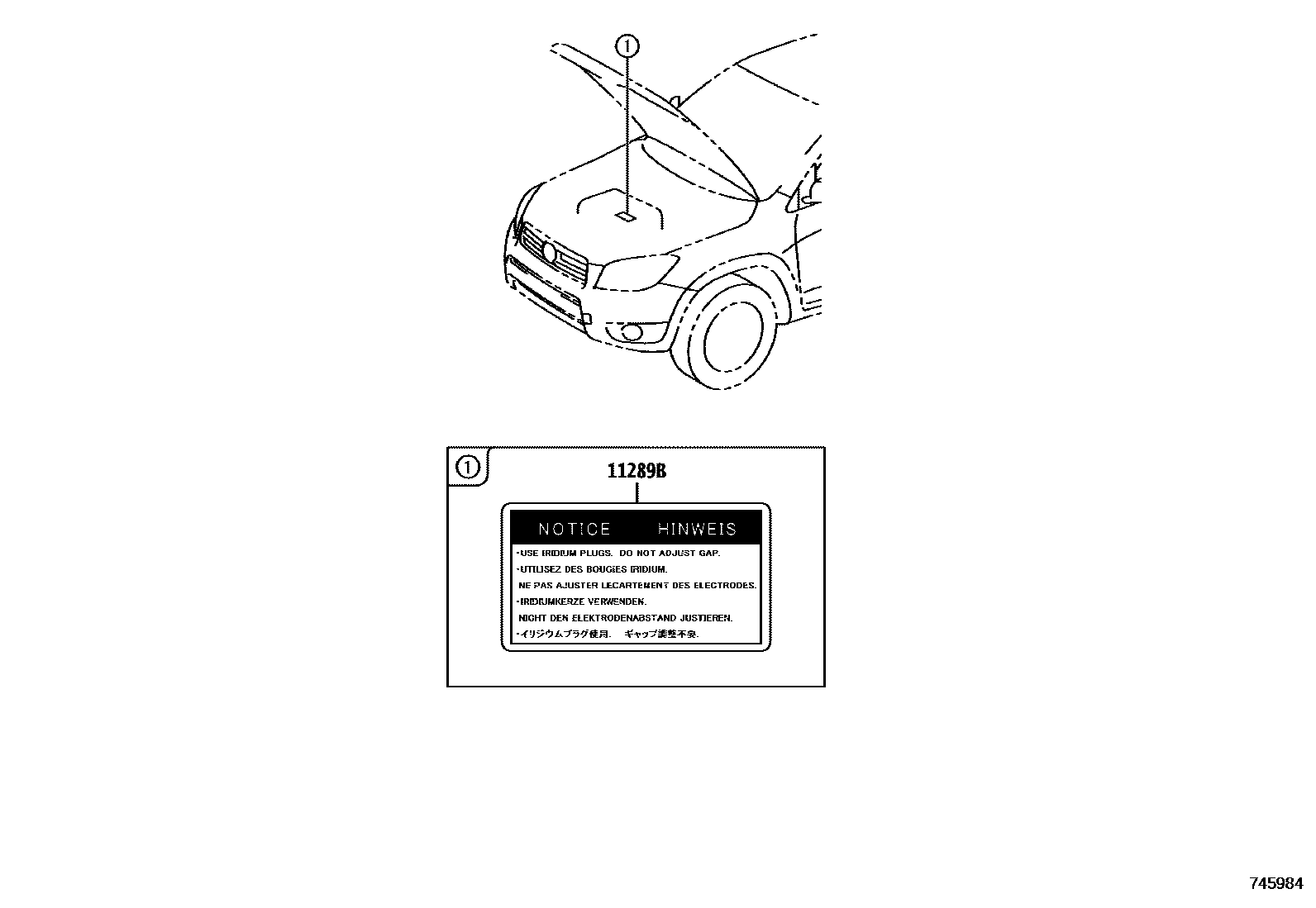

| 11289B | spark plug caution label | 11289-28010 |
| 11296C | Engine maintenance information label | 11296-28050 · 11296-28110 · 11296-31080 |

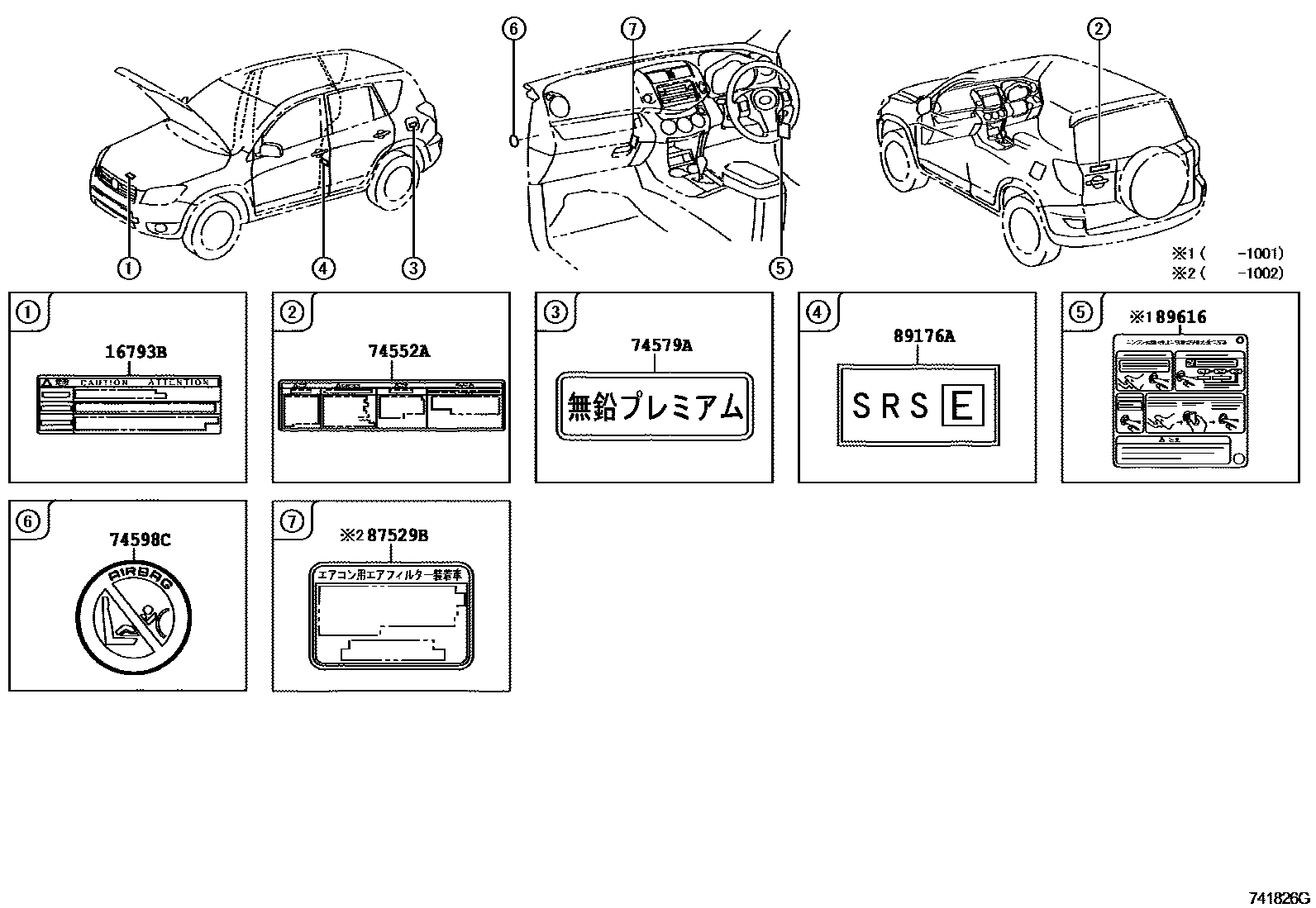

| 16793B | Cooling fan information label | 16793-28020 |
| 41992 | Differential attention label | 41992-33010 · 41992-42020 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-12010 · 69339-33040 · 69339-48010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74552A | Safety warning label | 74552-42010 |
| 74561A | fuel consumption information label | 74561-28020 · 74561-52010 · 74561-52020 · 74561-52040 |
| 74562B | Emission information label | 74562-47010 |
| 74579A | Unleaded Fuel Information Label | 74579-24010 |
| 74598C | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-42220 · 42661-42360 · 42661-42440 · 42661-42450 · 42661-42460 · 42661-42470 · 42661-42840 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723E | Cooler maintenance warning label | 88733-12010 · 88733-12011 |
| 89176A | Air bag deployment information label | 89176-20010 |
| 89616 | Button start information label | 89616-52010 |
