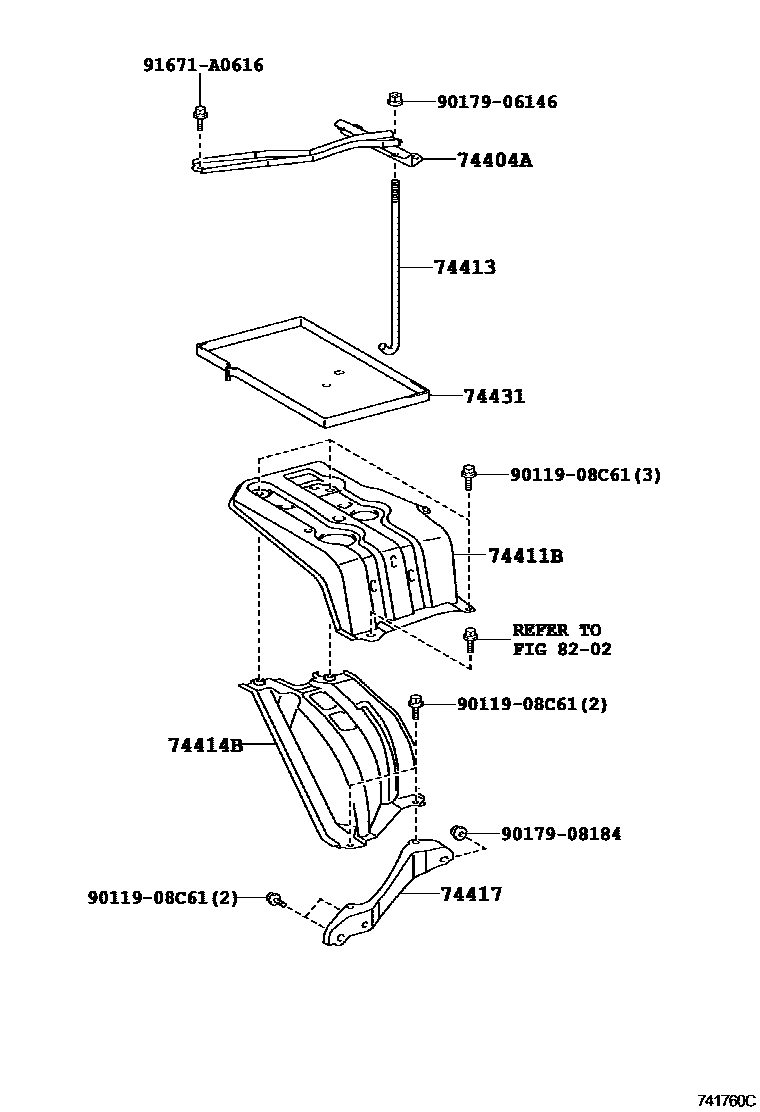

Toyota RAV4 battery holder — Figure 7454
Toyota RAV4 EPC diagram 7454, battery holder, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-42150 |
| 74411B | Battery front side bracket | 74411-42020 · 74411-42021 · 74411-42040 |
| 74413 | Battery clamp bolt | 74451-10060 · 74451-10061 |
| 74414B | Battery bracket reinforcement | 74414-42010 · 74414-42011 |
| 74417 | battery holder bracket | 74417-42030 |
| 74431 | battery tray | 74431-42090 |
