Toyota RAV4 扶手和遮阳板 — Figure 7451
Toyota RAV4 EPC diagram 7451, 扶手和遮阳板, with 2 images and 4 PNC and OE references.

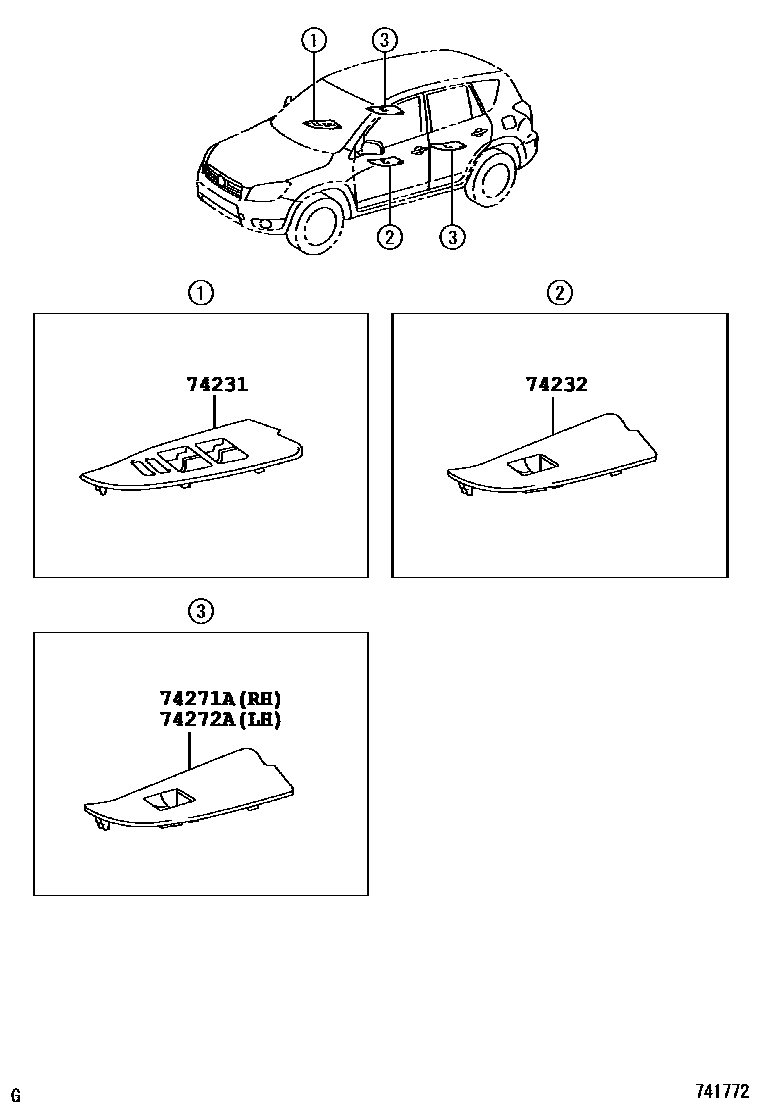

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-42160 · 74231-42200 |
| 74232 | Left front armrest upper panel | 74232-42110 · 74232-42140 |
| 74271A | Right rear door armrest upper panel | 74271-42020 · 74271-42040 |
| 74272A | Left rear door armrest upper panel | 74272-42020 · 74272-42040 |
