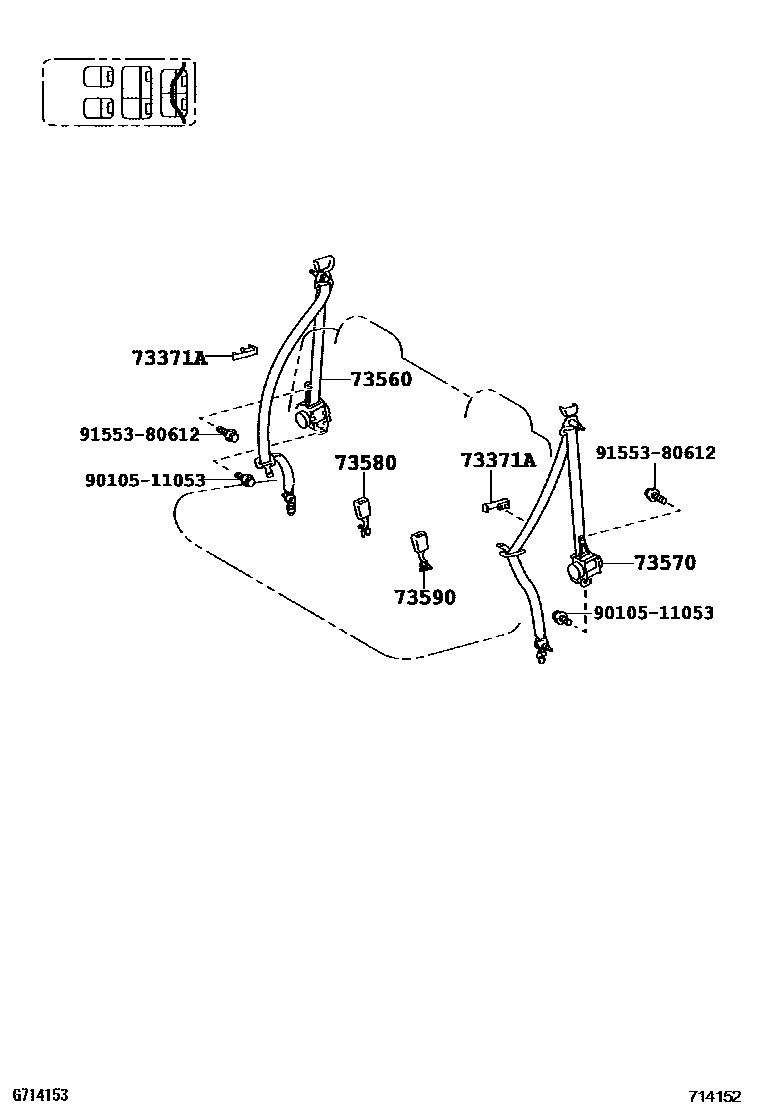

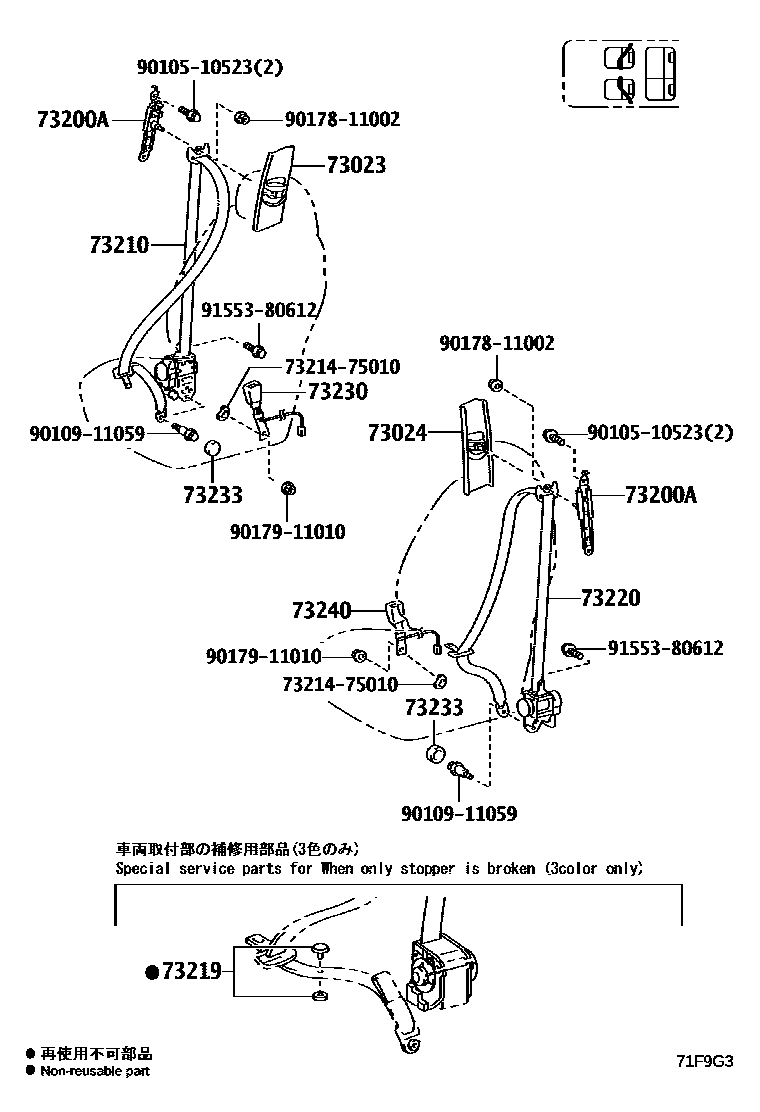

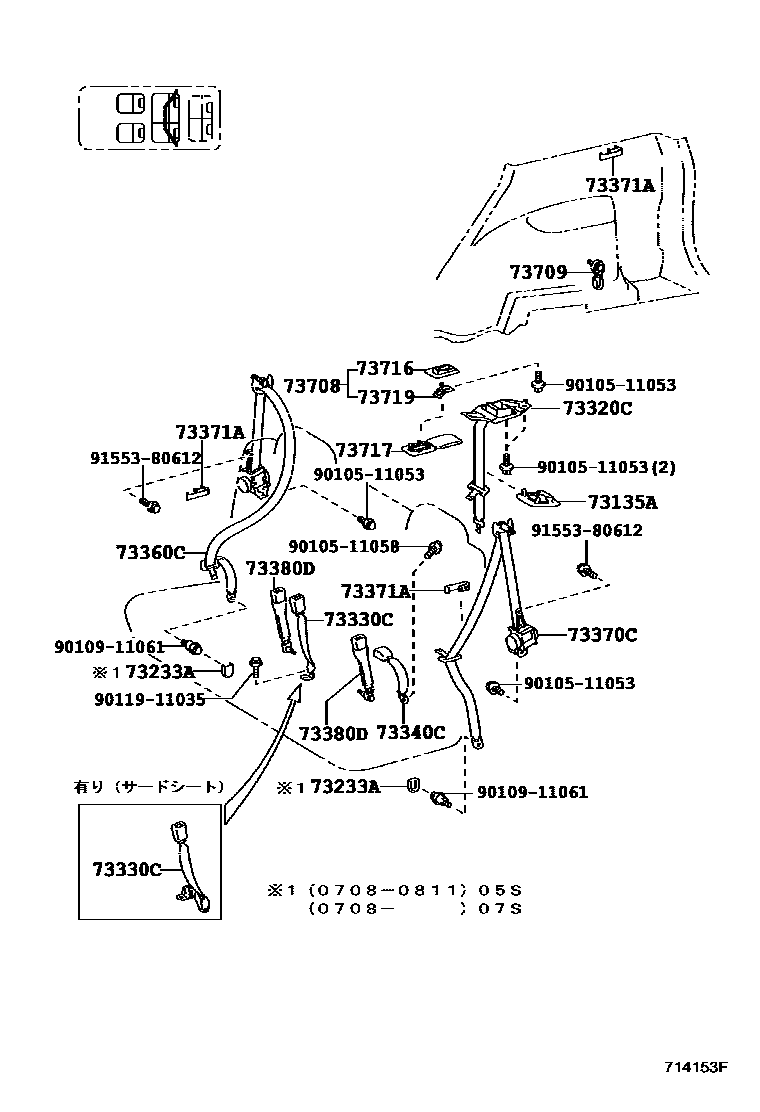

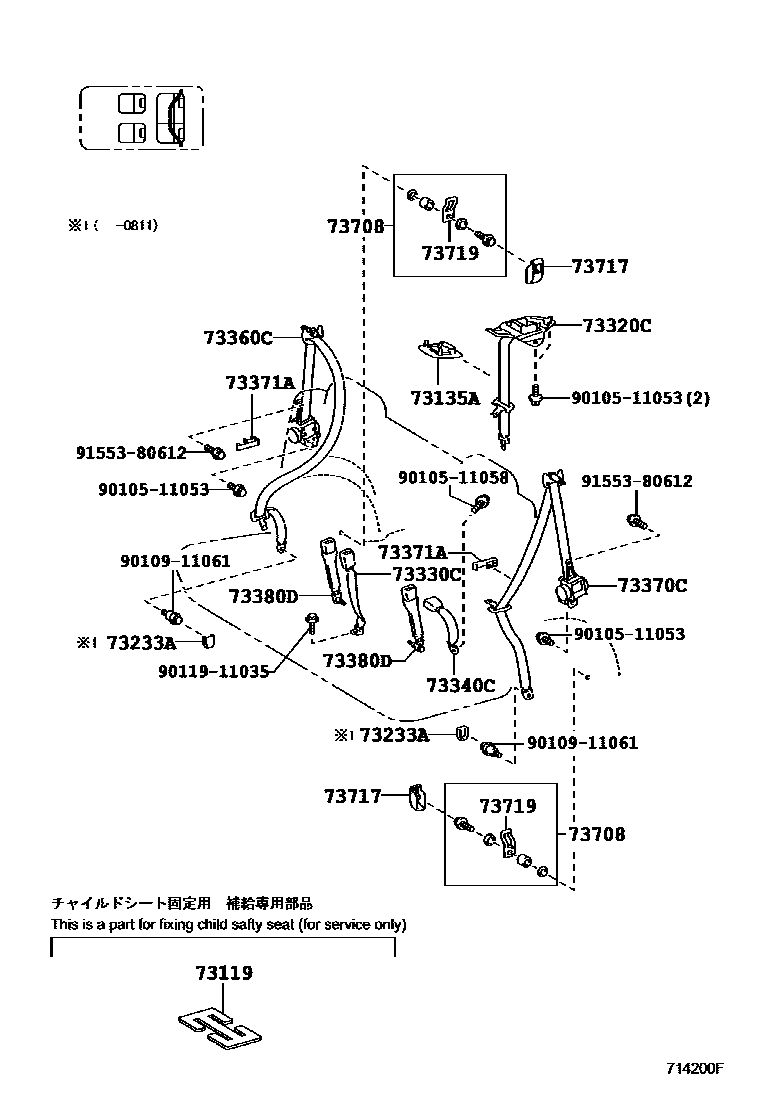

Toyota RAV4 seat belt — Figure 7152
Toyota RAV4 EPC diagram 7152, seat belt, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-12070 · 73200-53010 |
| 73210 | Front right seat outer seat belt assembly | 73210-42331 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73220 | Front left seat outer seat belt assembly | 73220-42301 |
| 73233 | Lap belt outer anchor cover | 73233-42030 |
| 73233A | Rear seat No. 1 lap belt outer anchor cover | 73233-42030 |
| 73340C | Rear left center seat waist seat belt assembly | 73340-42070 |
| 73360C | Rear right seat No. 1 outer seat belt assembly | 73360-42281 |
| 73370C | Rear left seat No. 1 outer seat belt assembly | 73370-42171 |
| 73708 | Tie anchor bracket assembly | 73708-42040 |
| 73719 | Child restraint seat tether anchor bracket | 73719-42010 · 73719-42020 |
