Toyota RAV4 锁芯组件 — Figure 6765

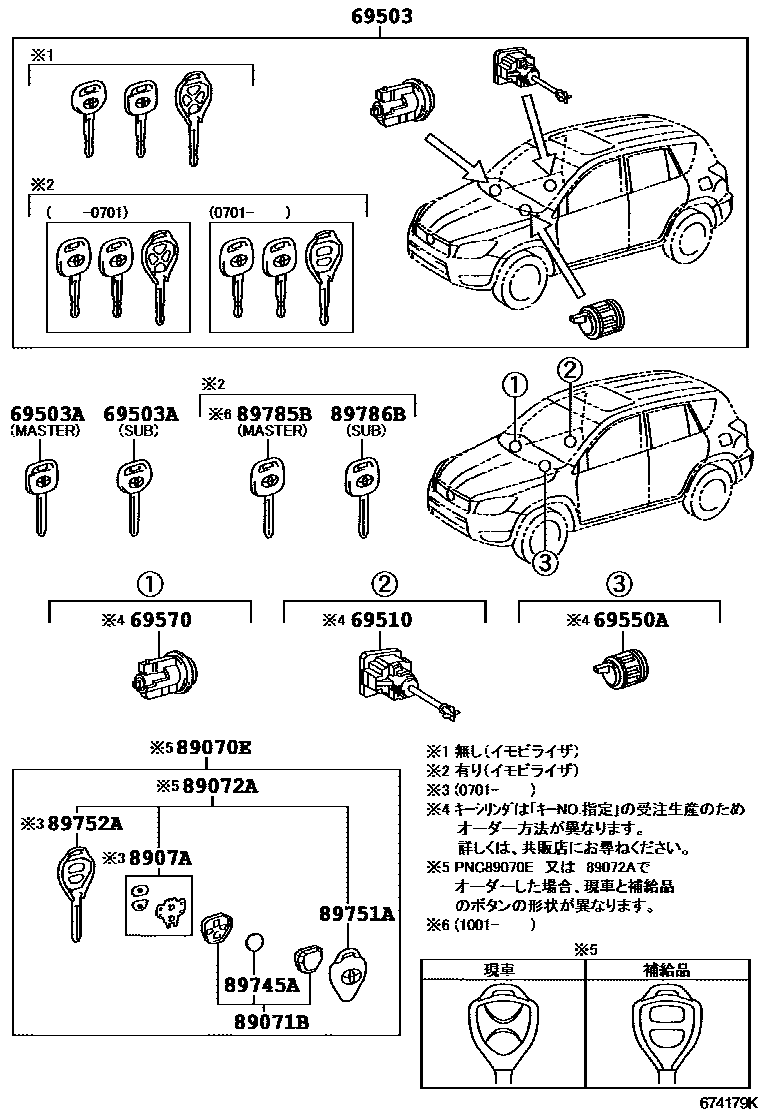

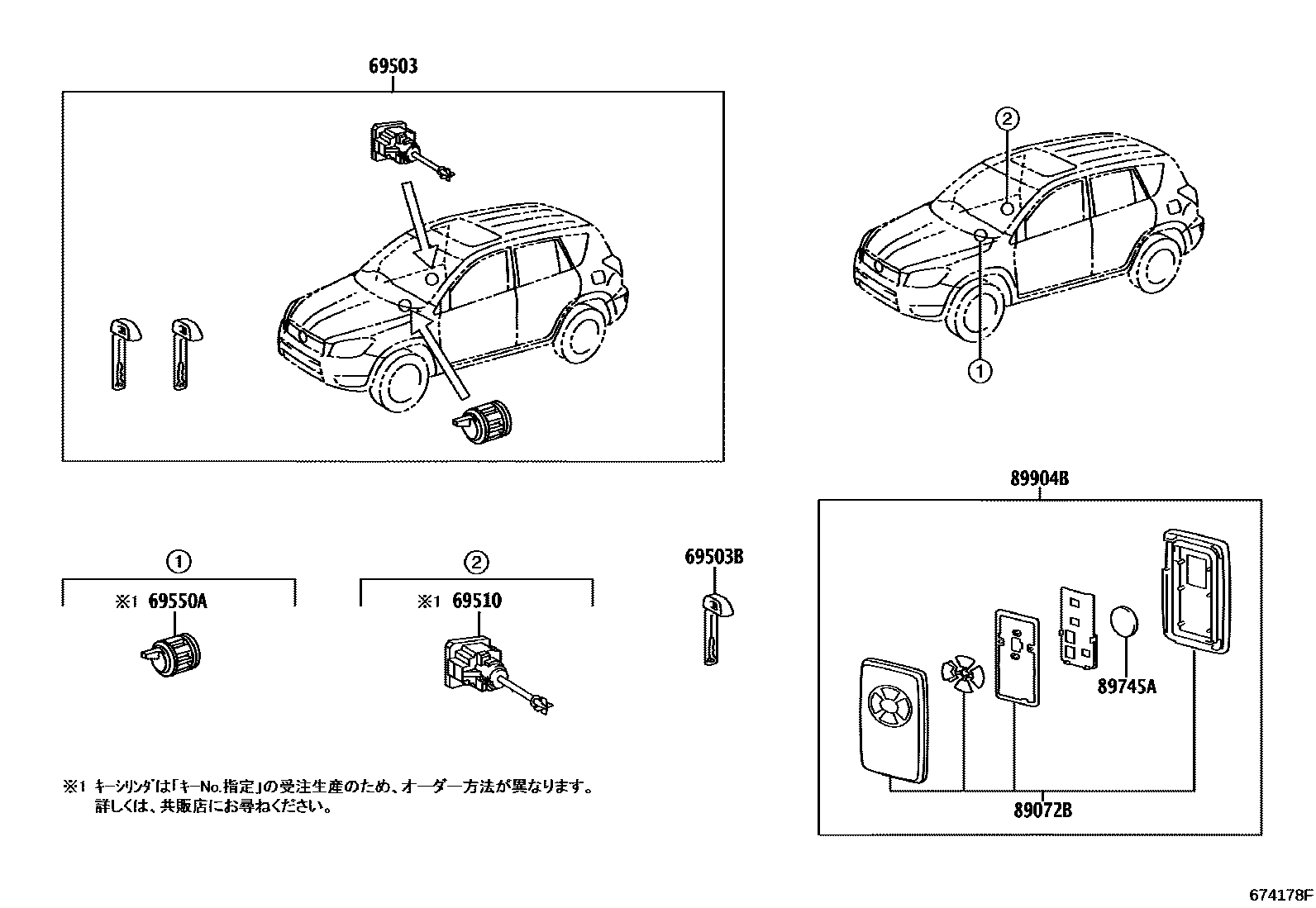

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-42410 · 69005-42420 · 69005-42540 · 69005-42541 · 69005-42542 · 69005-42543 |
| 69503A | external tooth key | 90999-00199 · 90999-00200 |
| 69503B | internal tooth key | 69515-52110 |
| 69510 | Right front door lock cylinder assembly | 69510-52220 · 69510-52230 |
| 69550A | Glove box cover lock cylinder assembly | 69550-21030 · 69550-30150 |
| 69570 | Ignition switch lock cylinder assembly | 69570-22130 · 69570-52100 |
| 89070E | Remote key assembly | 89070-42520 · 89070-42610 · 89070-42650 · 89070-42710 |
| 89071B | Remote key sub-assembly module assembly | 89071-28150 |
| 89072A | Remote key shell assembly | 89072-12100 · 89072-12181 · 89072-28300 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12450 · 89072-28550 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-48030 · 89745-52020 |
| 89751A | Transmitter housing cover | 89751-22050 · 89751-28070 · 89751-52140 |
| 89752A | transmitter housing | 89752-12140 · 89752-28050 |
| 89785B | transceiver key master transmitter | 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12080 · 89904-12160 · 89904-12410 · 89904-42040 |
