Toyota RAV4 前门锁和车门把手 — Figure 6753

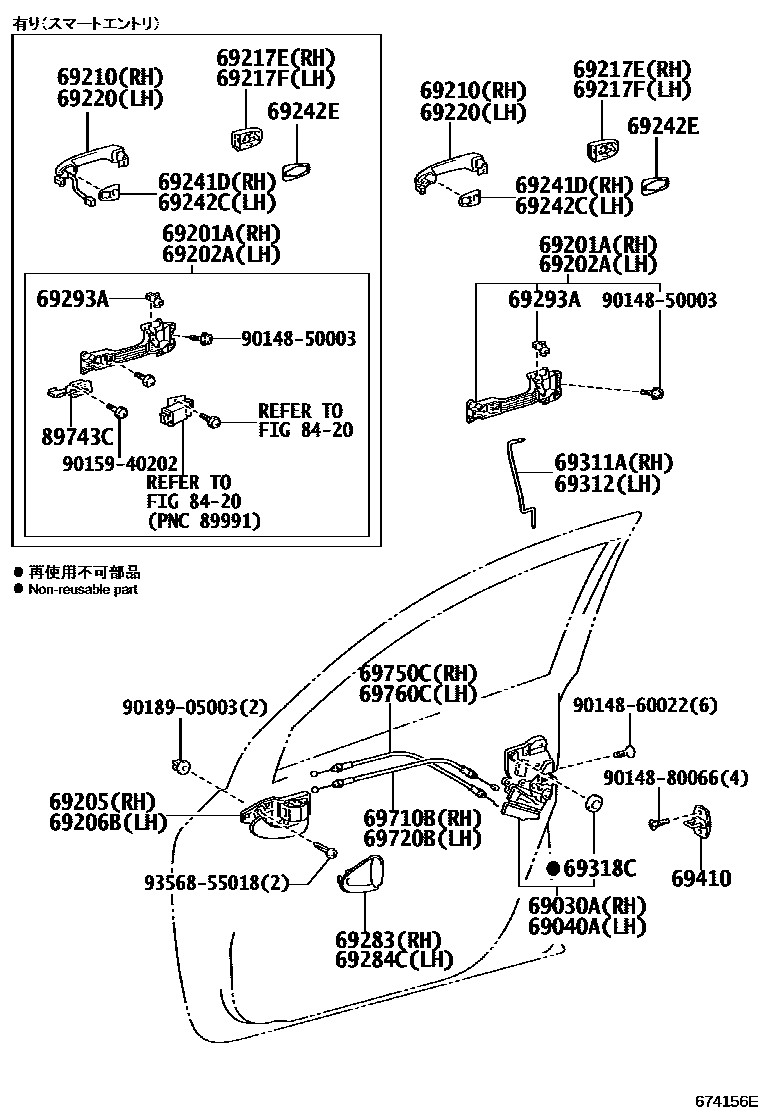

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-42210 |
| 69040A | Left front door door lock assembly with motor | 69040-42230 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-52040 · 69201-52060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-52020 · 69202-52040 |
| 69241D | Right front door outer handle pad | 69241-42020 |
| 69242C | Left front door outer handle pad | 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-42010 · 69242-52020 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69311A | Right front door lock opening lever | 69311-42030 |
| 69312 | Left front door lock opening lever | 69312-42030 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710B | Right front door lock remote control cable assembly | 69710-42050 |
| 69720B | Left front door lock remote control cable assembly | 69710-42050 |
| 69750C | Right front door inner lock cable assembly | 69750-42030 · 69750-42031 |
| 69760C | Left front door inner lock cable assembly | 69750-42030 · 69750-42031 |
| 89743C | Electronic key harness bracket | 89743-47010 · 89743-47020 |
