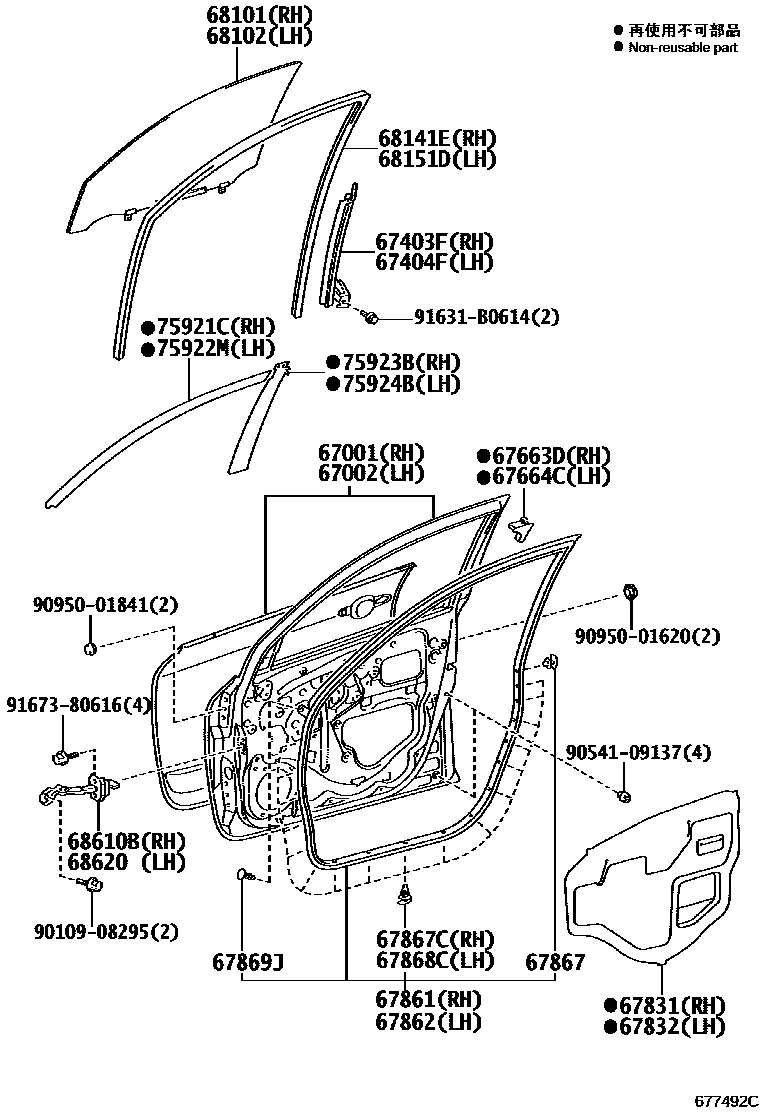

Toyota RAV4 前门板和前门玻璃 — Figure 6751
Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-42120 · 67001-42130 |
| 67002 | Left front door panel sub-assembly | 67002-42120 · 67002-42130 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-42030 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-42030 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-42050 · 67491-42051 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-42050 · 67492-42051 |
| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-09238 · 90467-10161 |
| 67663D | Right door frame decorative strip | 67663-42020 |
| 67664C | Left door frame decorative strip | 67664-42020 |
| 67831 | Right front door access hole cover | 67831-42070 |
| 67832 | Left front door access hole cover | 67832-42020 |
| 67861 | Right front door seal | 67861-42050 · 67861-42060 · 67861-42070 · 67861-42080 · 67861-42100 · 67861-42110 |
| 67862 | Left front door seal | 67862-42050 · 67862-42060 · 67862-42070 · 67862-42080 · 67862-42100 · 67862-42110 |
| 67867 | Car door seal strip clip | 67867-32060 · 90467-04034 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-42170 |
| 68102 | Left front door glass sub-assembly | 68102-42170 |
| 68141E | Right front door glass lift channel | 68141-42090 · 68141-42110 |
| 68151D | Left front door glass lift channel | 68151-42090 · 68151-42110 |
| 68170 | Front door glass inner sealing strip assembly | 68171-42050 · 68172-42050 |
| 68610B | Right front door opening limiter assembly | 68610-42020 |
| 68620 | Left front door opening limiter assembly | 68620-42020 |
| 75921C | No. 1 right side light-shielding film | 75921-42030 |
| 75922M | No. 1 left shading film | 75922-42030 |
| 75923B | No. 2 right side light-shielding film | 75923-42010 · 75923-42030 |
| 75924B | No. 2 left shading film | 75924-42010 · 75924-42030 |
