Toyota RAV4 底板和底板装饰罩 — Figure 6455

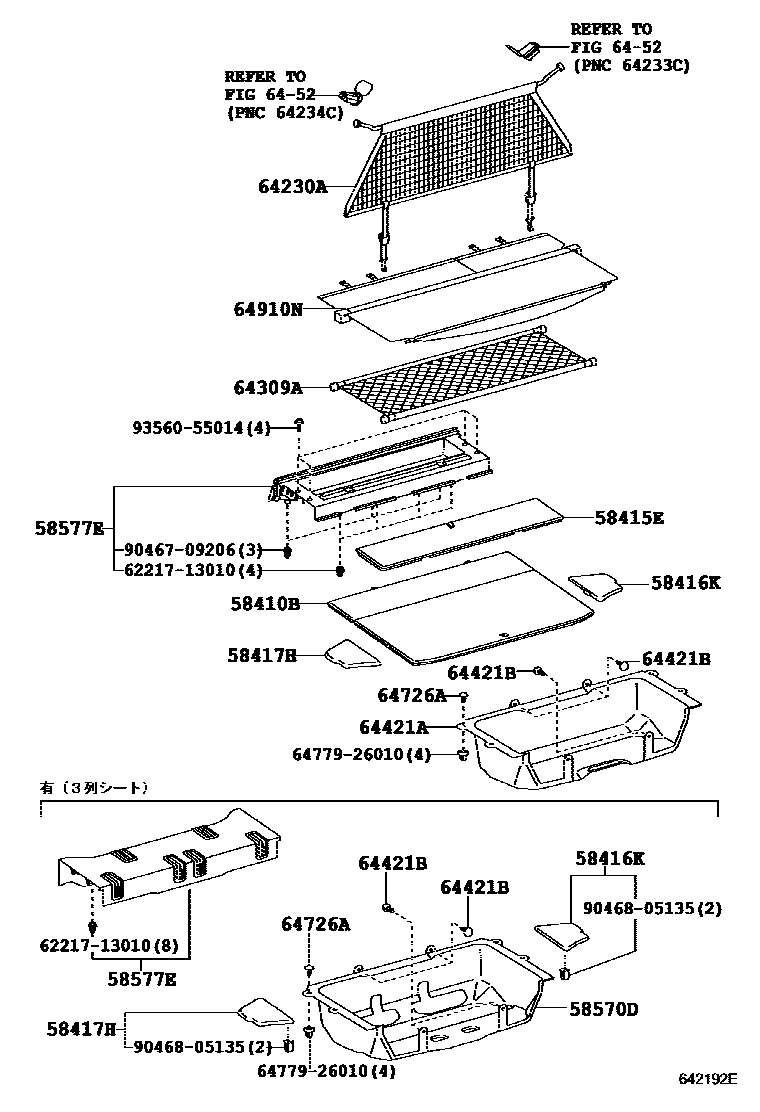

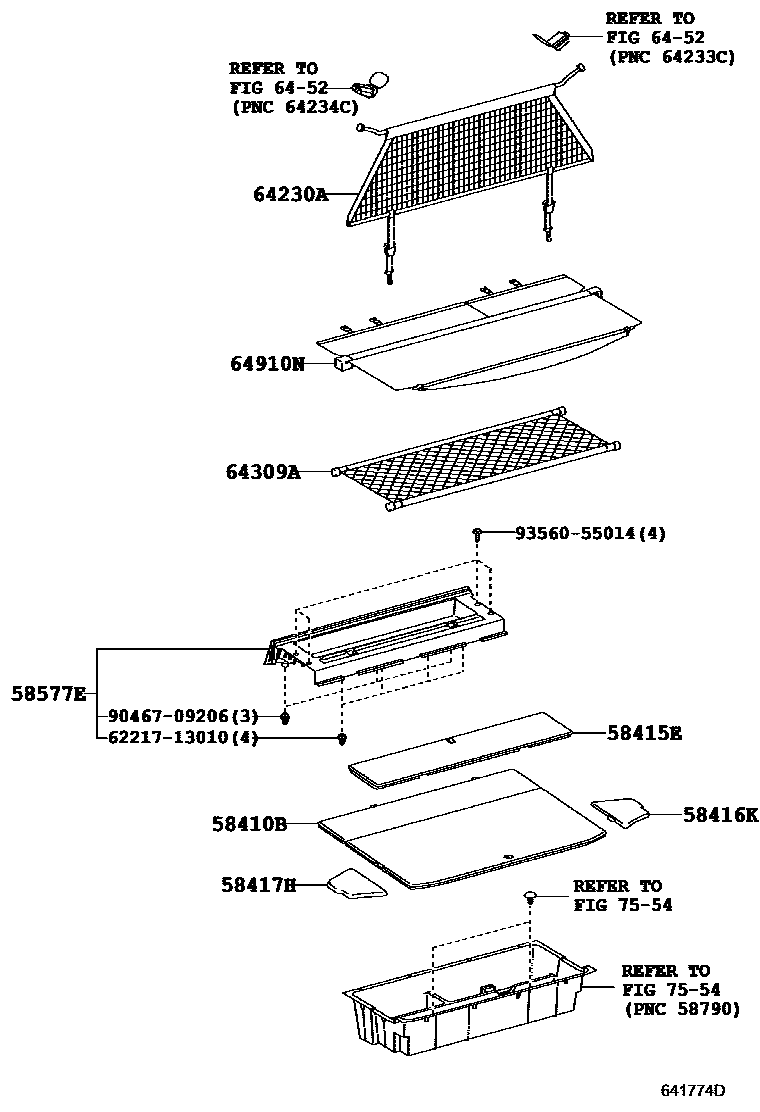

Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64230A | Car partition net assembly | 64230-42020 |
| 64421A | luggage carrier | 58571-42090 |
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 2 images and 2 PNC and OE references.
| PNC | Part name | OE numbers |
|---|---|---|
| 64230A | Car partition net assembly | 64230-42020 |
| 64421A | luggage carrier | 58571-42090 |
