Toyota RAV4 前围板和挡风玻璃 — Figure 5553

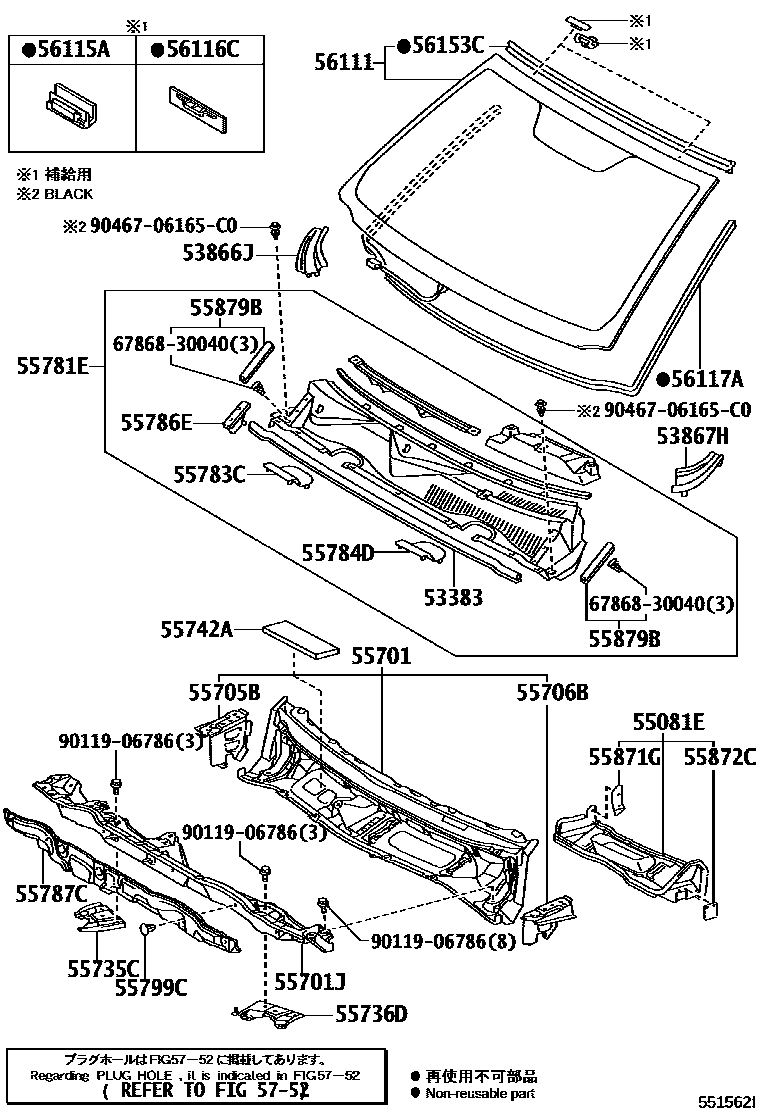

Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-42030 |
| 53866J | Right front fender to cowl side seal | 53866-42010 · 53866-42012 |
| 53867H | Left front fender to cowl side seal | 53867-42010 · 53867-42012 |
| 55081E | Front ventilation device shell sub-assembly | 55081-42020 |
| 55701 | Front apron sub-assembly | 55700-42470 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-42380 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-42060 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-42040 |
| 55735C | Right front wall body-mounted reinforcement | 55735-42010 |
| 55736D | Left front wall body mounting reinforcement | 55736-42030 |
| 55742A | Heat insulation panel on front wall | 55742-42030 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-42160 · 55708-42161 · 55708-42162 · 55708-42170 · 55708-42171 · 55708-42172 · 55708-42210 · 55708-42220 |
| 55783C | Ventilation grille bracket on right front apron | 55784-42030 |
| 55784D | Ventilation grille bracket on left front apron | 55783-42040 |
| 55786E | Ventilation grille connection plate on front apron | 55786-42020 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-42040 |
| 55799C | Ventilation grille clips on front apron | 90467-09050 |
| 55871G | No. 1 air duct seal | 55871-42030 |
| 55872C | No. 2 air duct seal | 55872-42020 |
| 55879B | cowl vent seal | 55879-42010 · 55879-42011 · 55879-42012 |
| 56111 | windshield | 56101-42080 · 56101-42081 · 56101-42082 · 56101-42083 · 56101-42091 · 56101-42092 · 56101-42093 · 56101-42130 · 56101-42131 · 56101-42132 · 56101-42133 · 56101-42134 · 56101-42135 · 56101-42180 · 56101-42181 · 56101-42182 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-42050 |
| 56153C | Front center window inner protective strip | 56153-42010 |
