Toyota RAV4 仪表板和手套箱 — Figure 5551

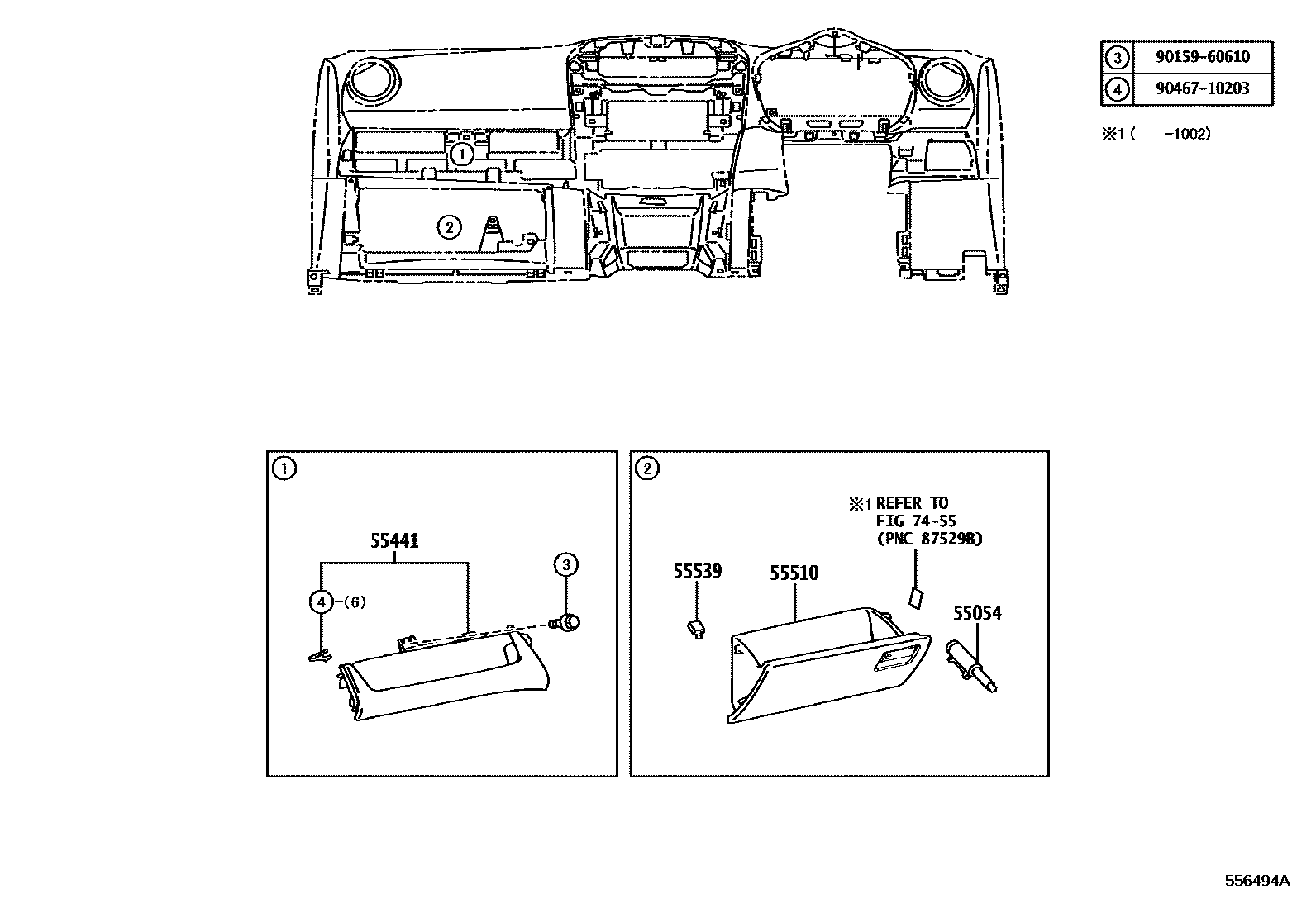

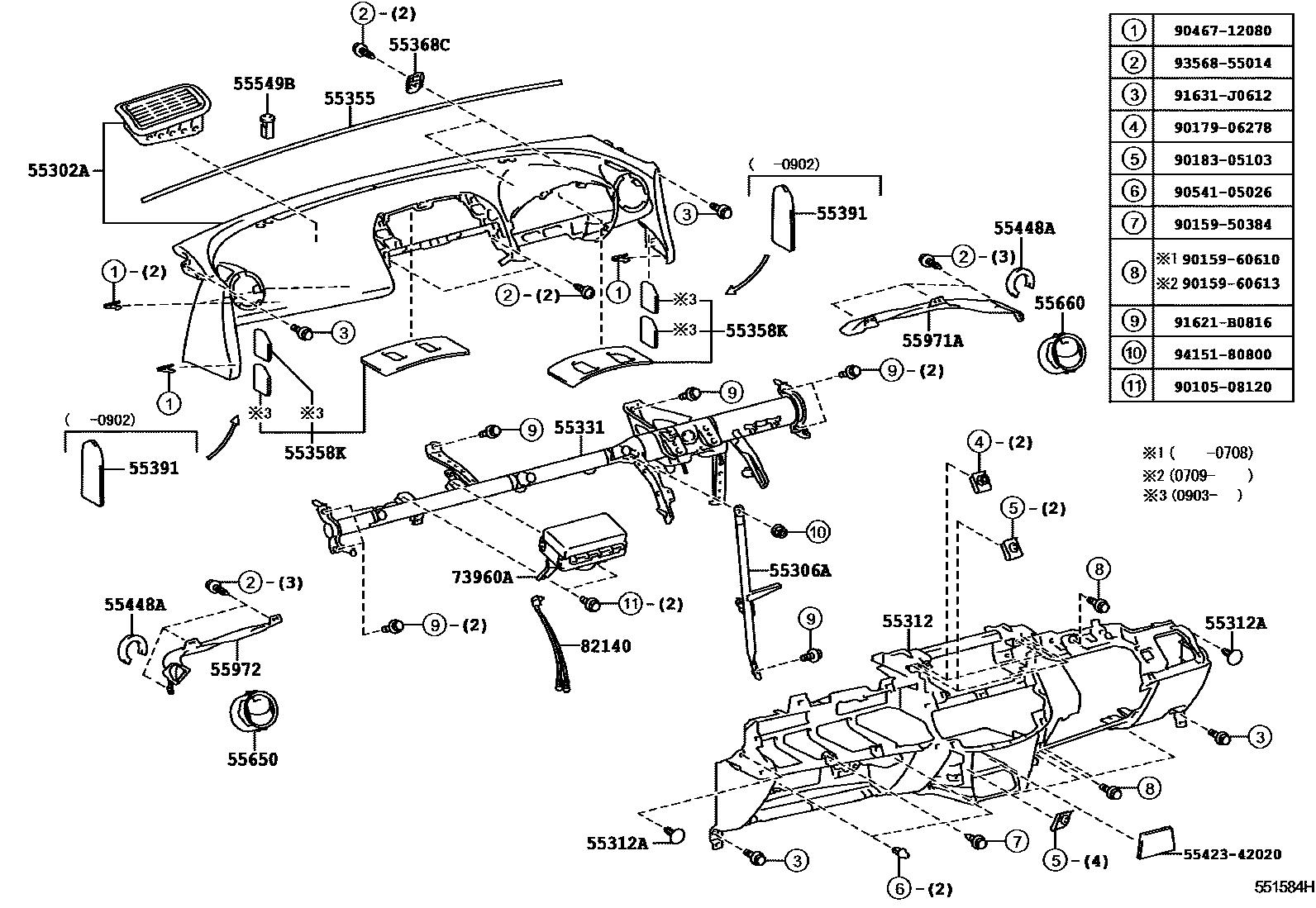

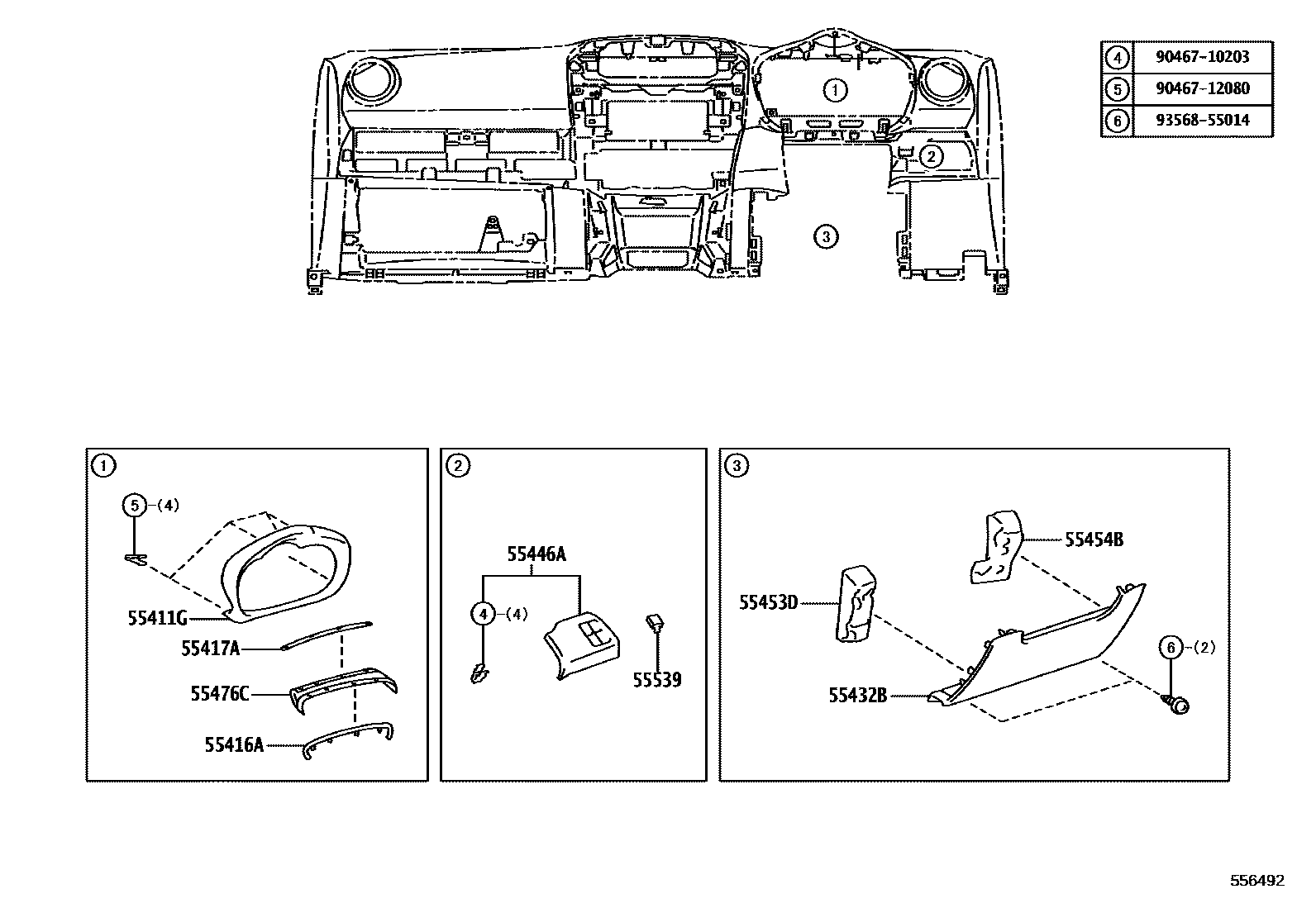

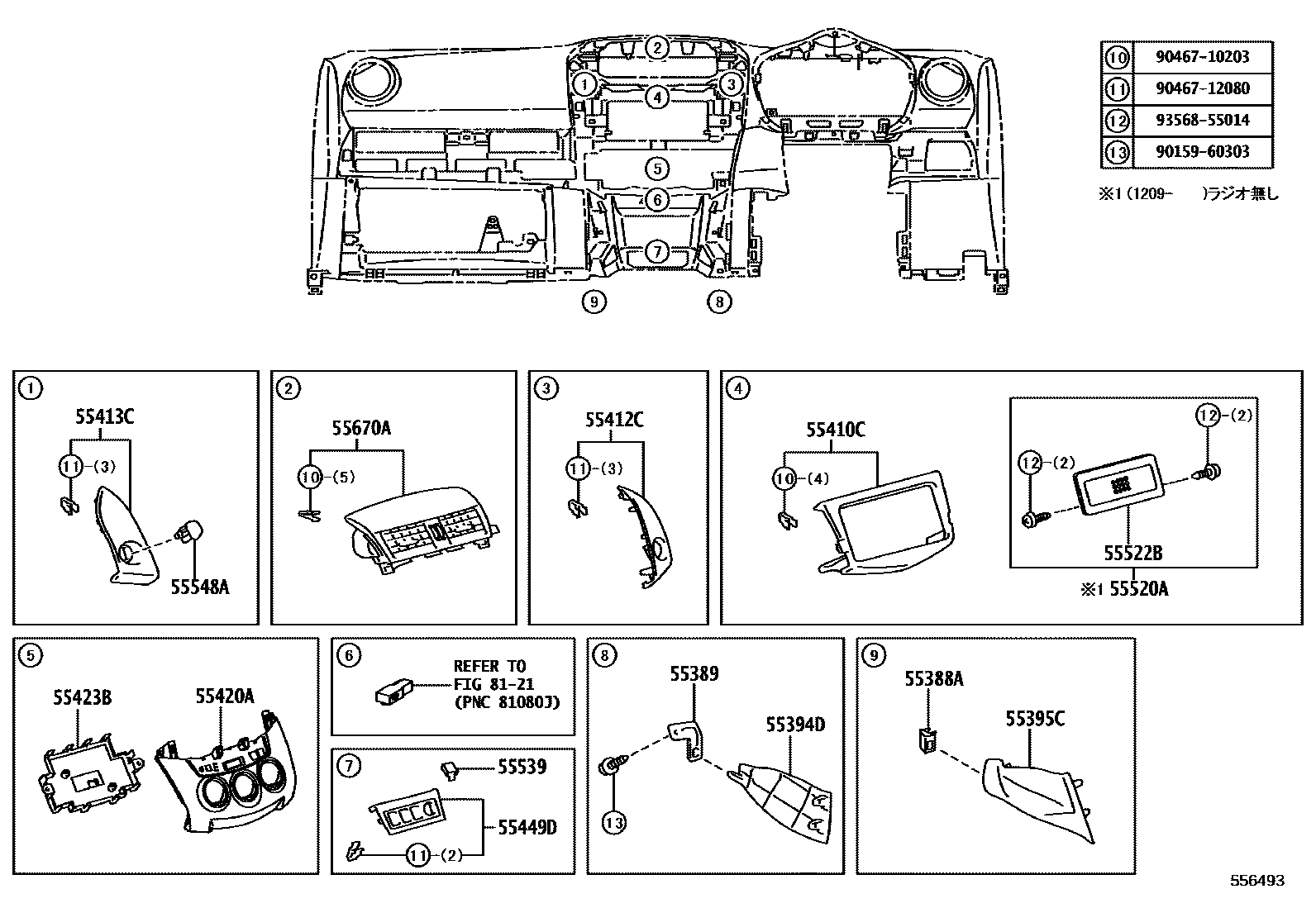

Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-42110 |
| 55331 | Dashboard reinforcement | 55330-42240 · 55330-42241 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-42020 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-42050 · 55358-42051 |
| 55368C | Instrument mounting bracket | 55368-42010 |
| 55388A | Mounting bracket on the right side of the console | 55388-42020 |
| 55389 | Console left side mounting bracket | 55389-42020 |
| 55391 | Dashboard No. 1 lower cushion | 55391-42020 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-42060 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-42070 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-42010 |
| 55417A | Instrument cover No.2 fixing piece | 55417-42020 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-42040 · 55420-42060 |
| 55423B | Instrument cluster decorative panel cover | 55423-42040 |
| 55448A | Instrument panel decorative cushion No. 1 | 55448-42020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-42030 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-42020 |
| 55476C | Dashboard decorative panel trim parts | 55476-42020 · 55476-42021 |
| 55510 | Glove box cover assembly | 55550-42190 |
| 55520A | Stereo system hole cover assembly | 55520-47020 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55549B | Instrument panel hole cover No. 2 | 55549-42020 |
| 55971A | Side defroster No. 1 nozzle air duct | 55971-42040 |
| 55972 | Side defroster No. 2 nozzle air duct | 55972-42040 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-42010 |
| 82140 | Instrument panel wiring harness assembly | 82140-47010 |
