Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

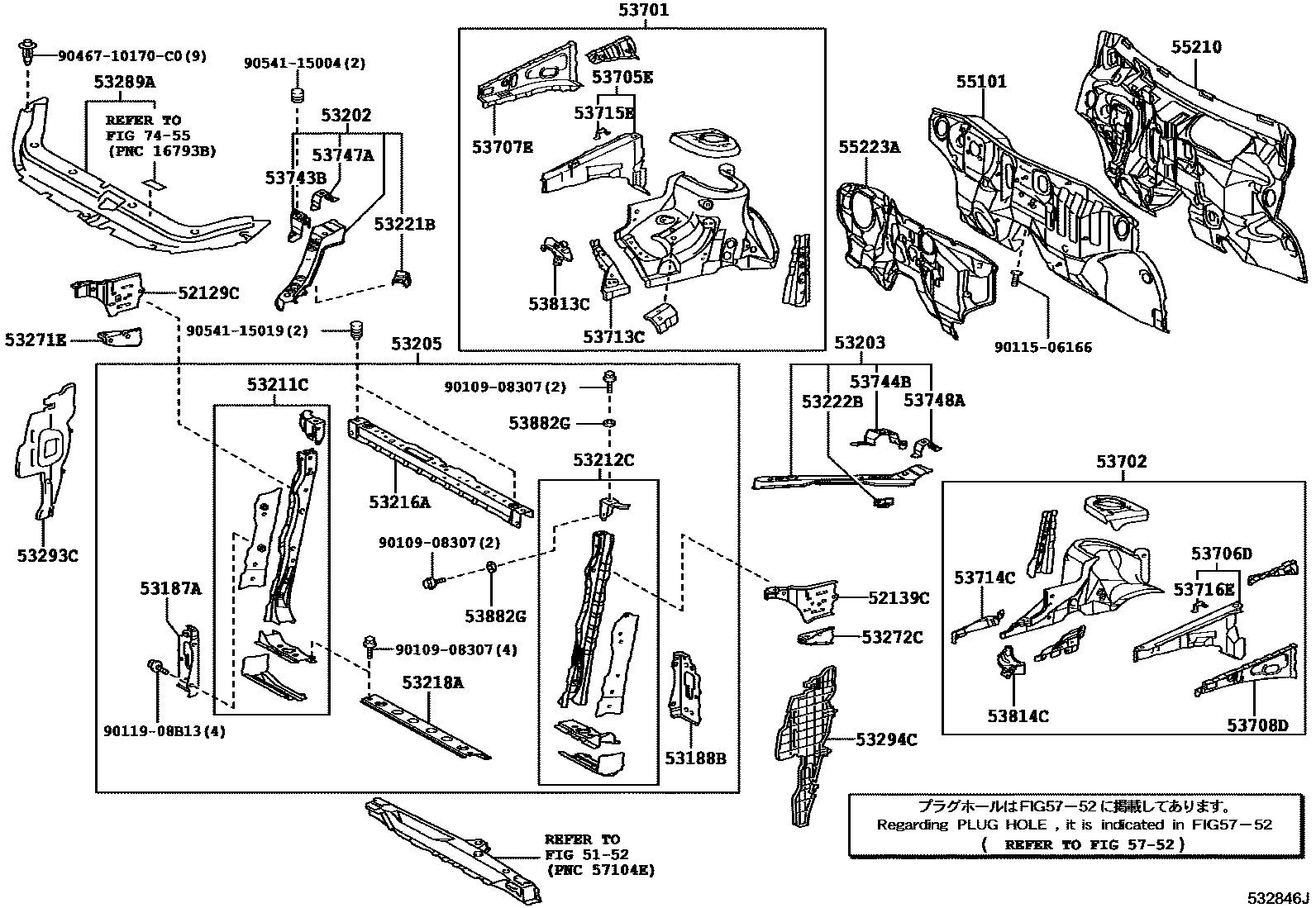

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 1 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52129C | Front bumper No. 2 upper right arm | 52129-42010 |
| 52139C | Front bumper No. 2 left upper arm | 52139-42010 |
| 53187A | Radiator right side bracket stay | 53187-42010 |
| 53188B | Radiator left bracket stay | 53188-42010 |
| 53202 | Radiator right side bracket sub-assembly | 53202-42010 · 53202-42020 |
| 53203 | Radiator left bracket sub-assembly | 53203-42010 · 53203-42011 · 53203-42020 · 53203-42021 |
| 53205 | Radiator upper bracket sub-assembly | 53205-42070 |
| 53211C | Radiator right side support | 53211-42902 |
| 53212C | Radiator left support | 53212-42902 |
| 53216A | Radiator upper bracket | 53216-42901 |
| 53218A | Radiator lower support | 53218-42020 |
| 53221B | Radiator right side bracket baffle stay | 53221-42010 |
| 53222B | Radiator left bracket baffle stay | 53222-42010 |
| 53271E | Right headlight mounting bracket | 53271-42010 |
| 53272C | Left headlight mounting bracket | 53272-42010 · 53272-42011 |
| 53289A | Radiator bracket opening cover | 53289-42010 · 53289-42030 · 53289-42031 |
| 53293C | Radiator right baffle | 53293-42010 · 53293-42060 · 53293-42061 · 53293-42070 |
| 53294C | Radiator left baffle | 53294-42010 · 53294-42040 · 53294-42060 · 53294-42061 |
| 53701 | Right front fender fender sub-assembly | 53701-42140 |
| 53702 | Left front fender fender sub-assembly | 53702-42150 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-42010 · 53705-42011 · 53705-42012 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-42010 · 53706-42011 · 53706-42012 |
| 53707E | Fender right fender sub-assembly | 53707-42010 |
| 53708D | Fender left fender sub-assembly | 53708-42010 |
| 53713C | Right front fender fender front extension | 53713-42040 |
| 53714C | Left front fender fender front extension | 53714-42040 · 53714-42041 |
| 53715E | Right front fender fender rear extension | 53715-42010 |
| 53716E | Left front fender fender rear extension | 53715-42010 |
| 53743B | Right front fender fender front reinforcement | 53743-42020 · 53743-42030 |
| 53744B | Left front fender fender front reinforcement | 53744-42010 · 53744-42030 |
| 53747A | Fender fender right extension | 53747-42010 · 53747-42020 |
| 53748A | Fender fender left extension | 53748-42010 · 53748-42020 |
| 53813C | Right front fender extension | 53813-42020 |
| 53814C | Left front fender extension | 53814-42020 |
| 53882G | front fender seal | 53882-30040 |
| 55101 | Front apron sub-assembly | 55101-42470 · 55101-42901 |
| 55210 | Front wall insulation pad assembly | 55210-42130 · 55210-42140 · 55210-42150 |
| 55223A | Front wall outer heat insulation pad | 55223-42060 · 55223-42061 |
