Toyota RAV4 发动机盖锁和铰链 — Figure 5354

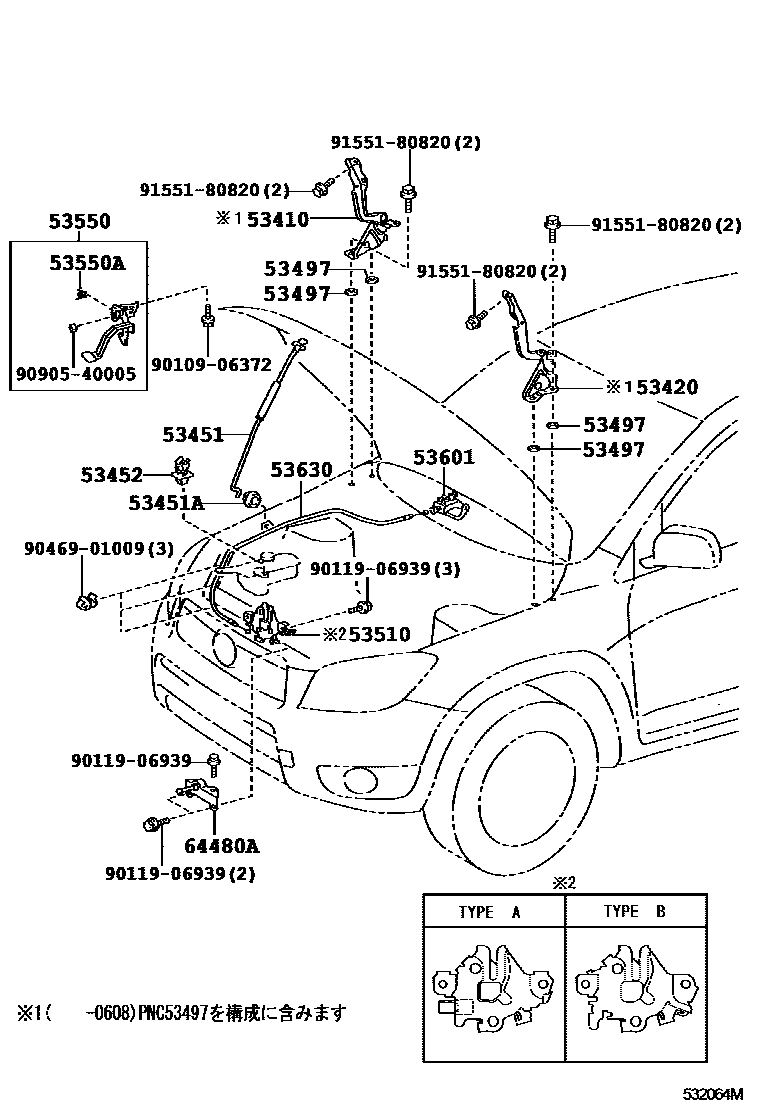

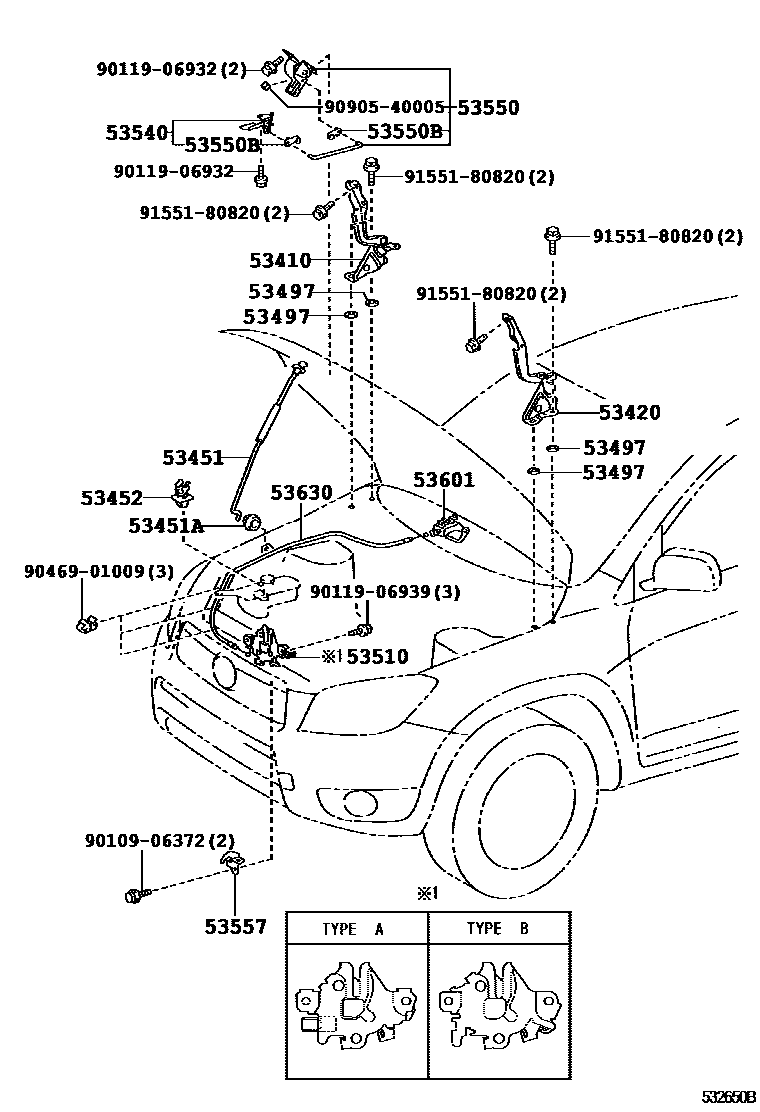

Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-42040 · 53410-42060 · 53410-42090 |
| 53420 | Engine cover left hinge assembly | 53420-42040 · 53420-42060 · 53420-42090 |
| 53451 | Engine cover support rod | 53440-42030 · 53440-42040 · 53440-42050 |
| 53451A | Gasket (for engine cover support rod) | 53454-42010 · 90480-15025 |
| 53452 | Engine cover stay rod fixing | 53452-42010 · 53452-42020 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-42070 · 53510-42090 |
| 53540 | Auxiliary buckle release lever assembly | 53540-42020 |
| 53550 | Engine cover auxiliary buckle assembly | 53550-42020 · 53550-42030 · 53550-42031 |
| 53550A | Torsion spring (for hood latch) | 90508-18102 · 90508-18120 |
| 53550B | Engine cover auxiliary buckle control link buckle | 69759-24050 |
| 53557 | Engine cover auxiliary buckle | 53557-42010 |
| 53630 | Engine hood lock control cable assembly | 53630-42090 |
| 64480A | Engine cover lock assembly | 64480-42010 |
