Toyota RAV4 radiator grille — Figure 5351

Toyota RAV4 EPC diagram 5351, radiator grille, with 6 images and 10 PNC and OE references.

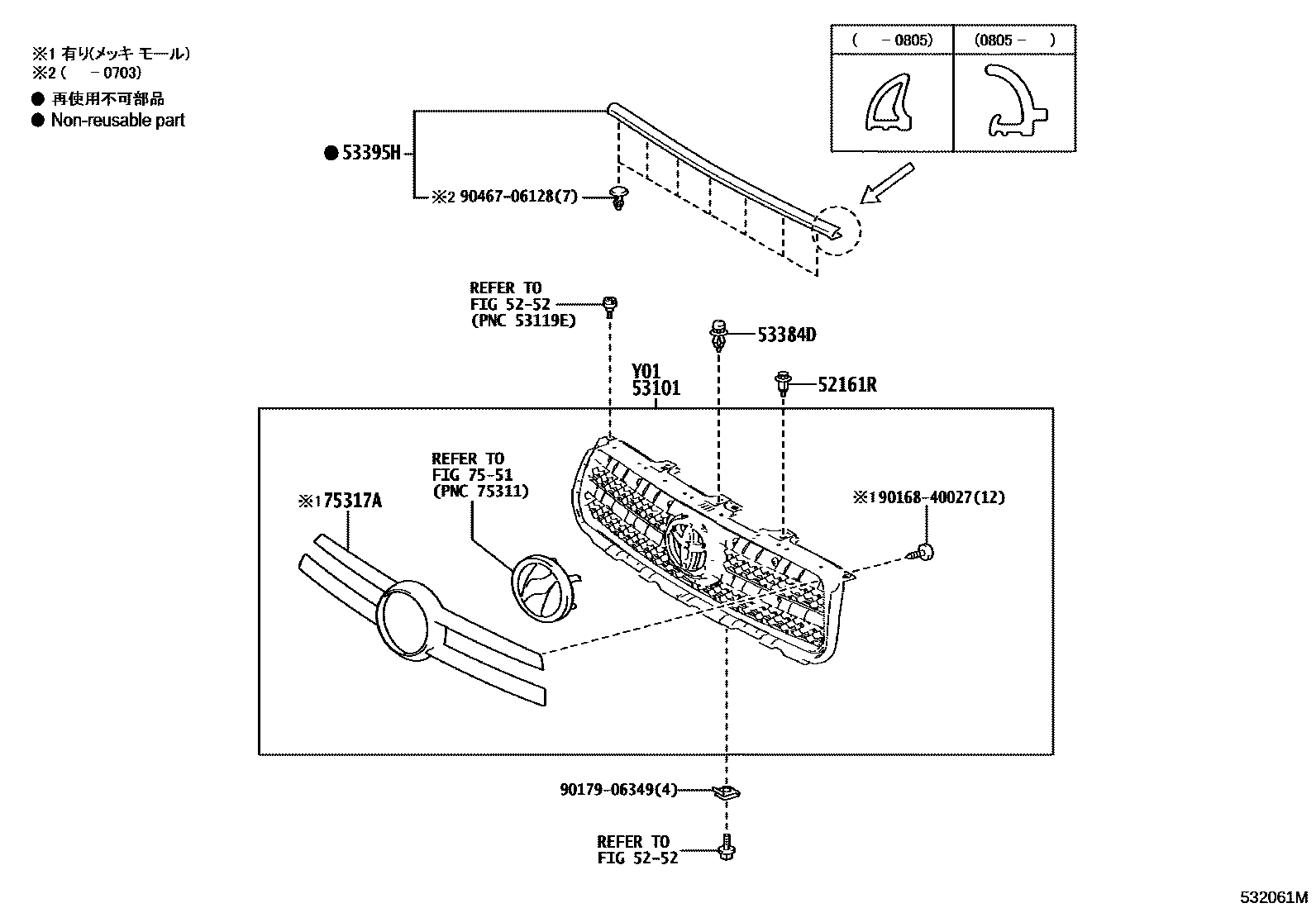

Toyota RAV4 radiator grille EPC diagram — 532061M
radiator grille — 532061M (200511 – 200808)

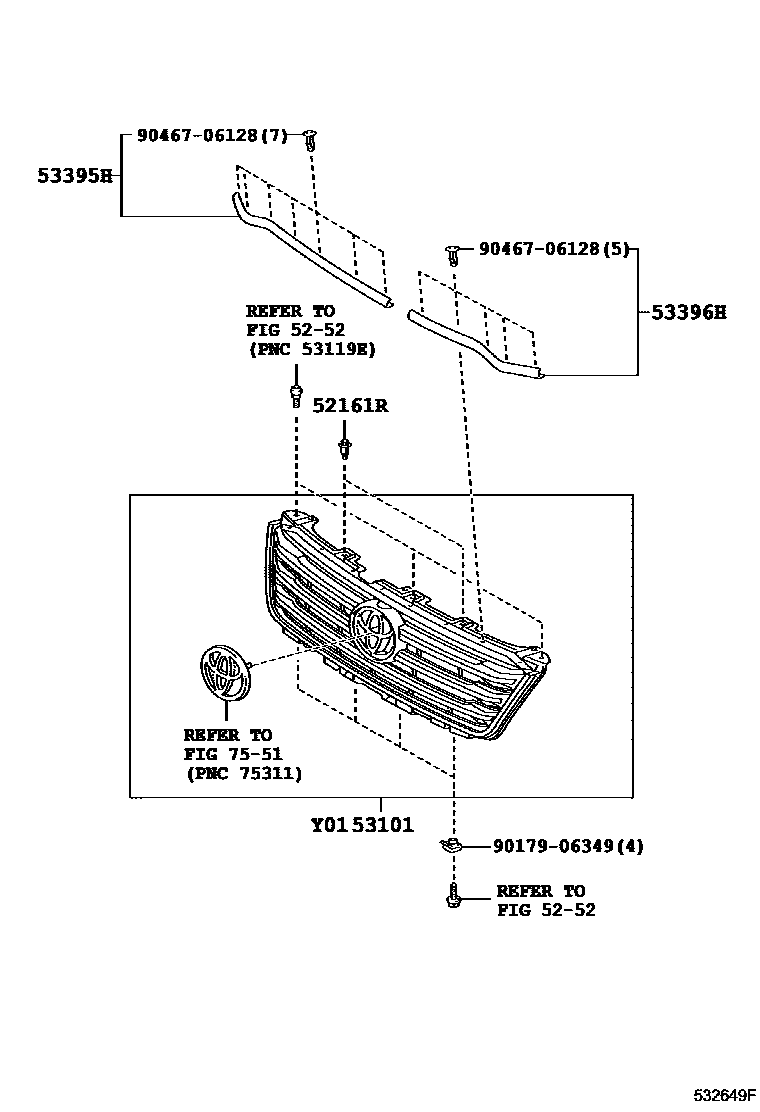

Toyota RAV4 radiator grille EPC diagram — 532649F
radiator grille — 532649F (200708 – 201002)

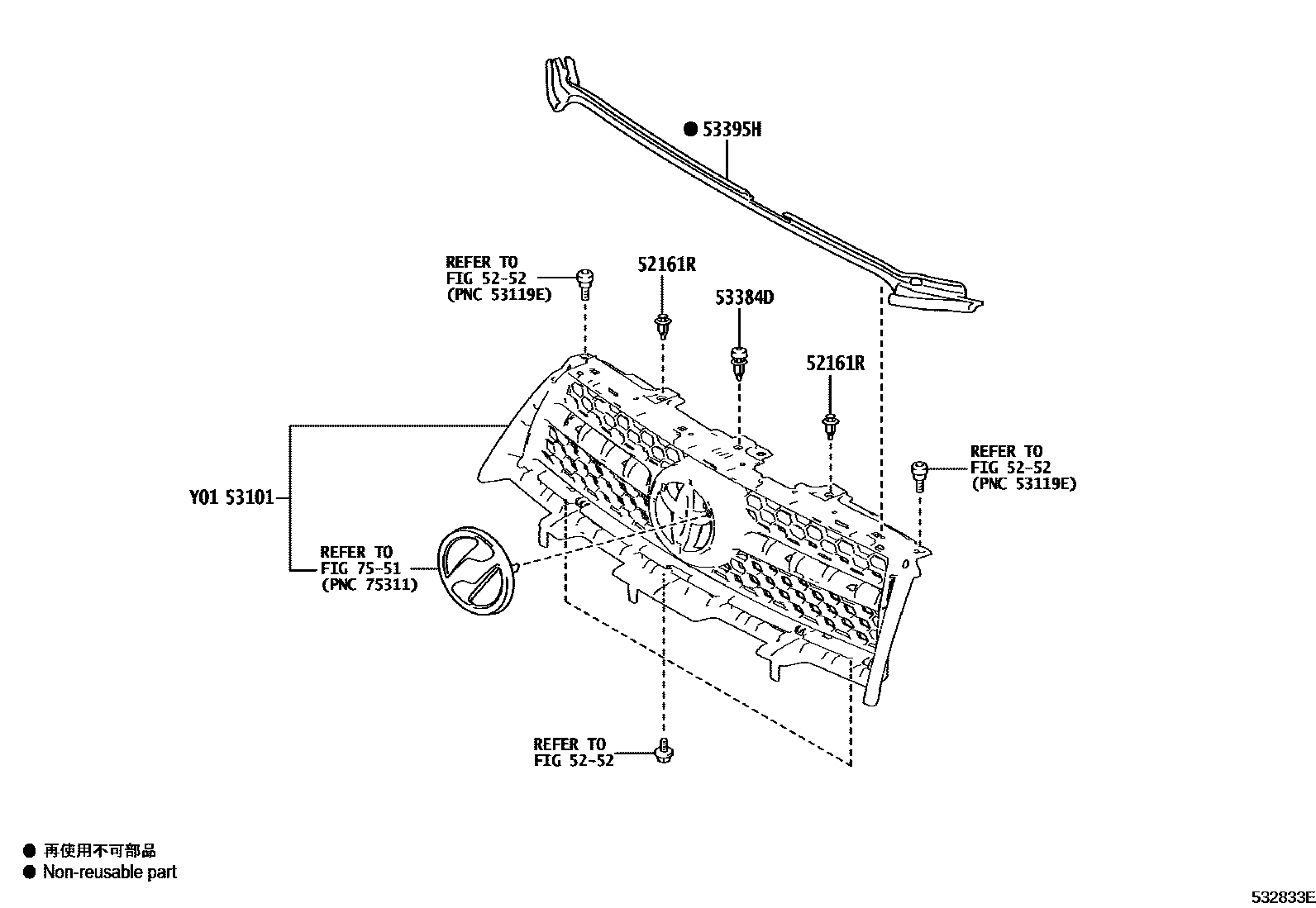

Toyota RAV4 radiator grille EPC diagram — 532833E
radiator grille — 532833E (200808 – 999999)

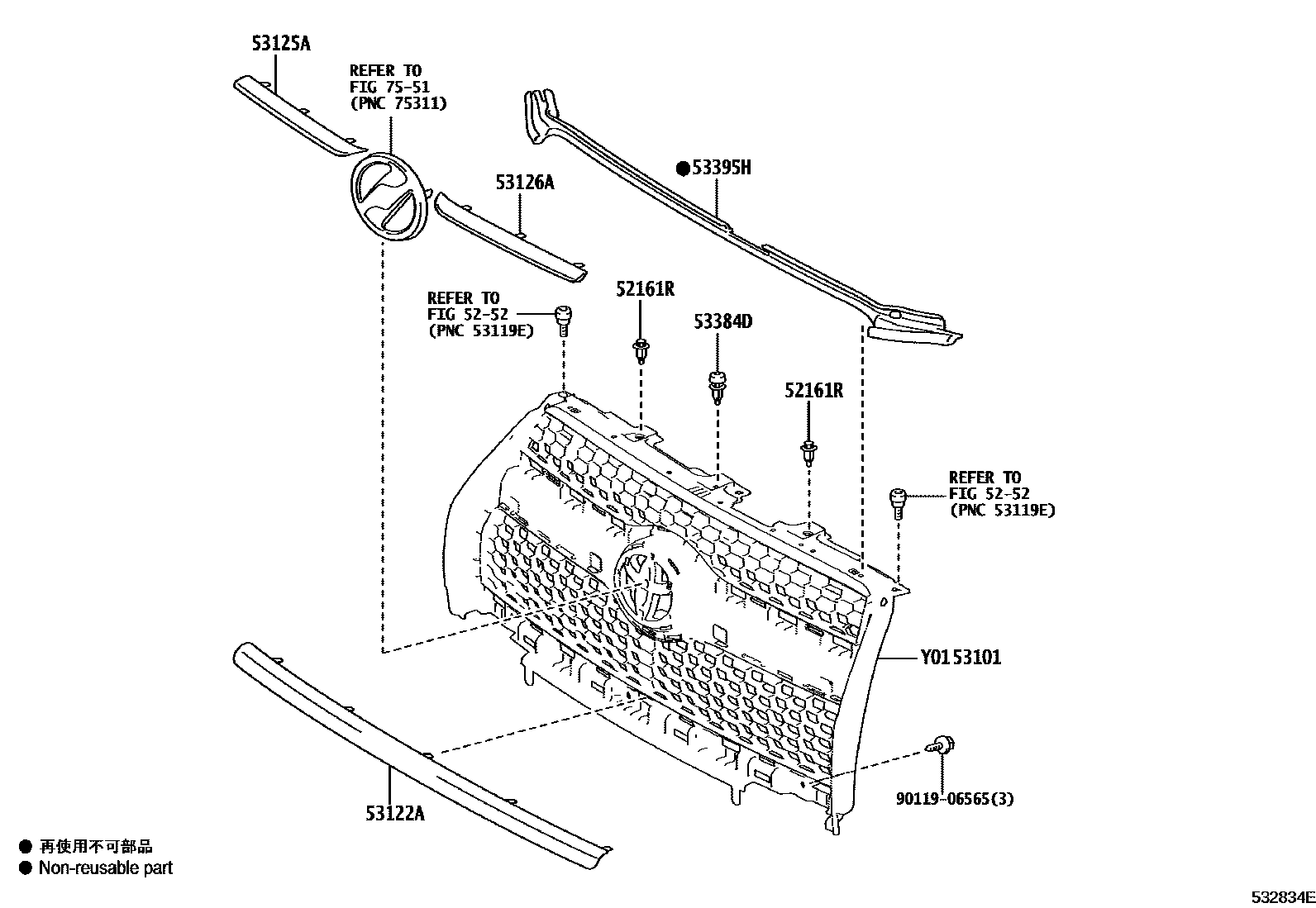

Toyota RAV4 radiator grille EPC diagram — 532834E
radiator grille — 532834E (200808 – 999999)

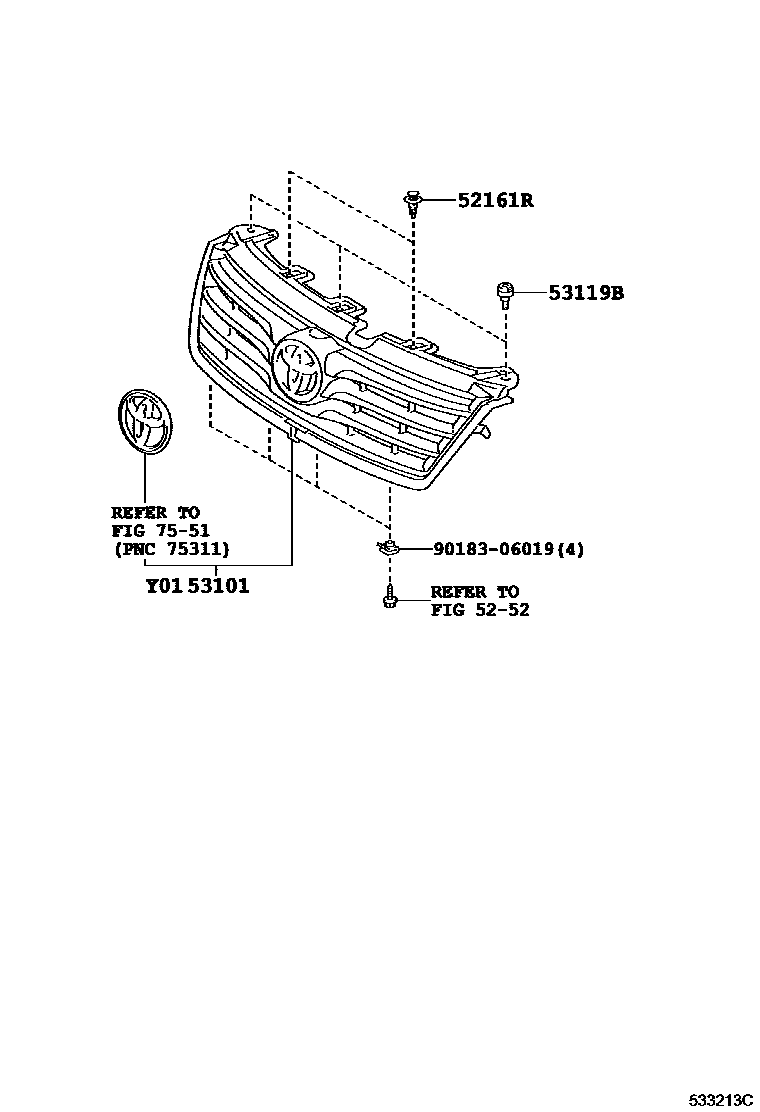

Toyota RAV4 radiator grille EPC diagram — 533213C
radiator grille — 533213C (201002 – 999999)

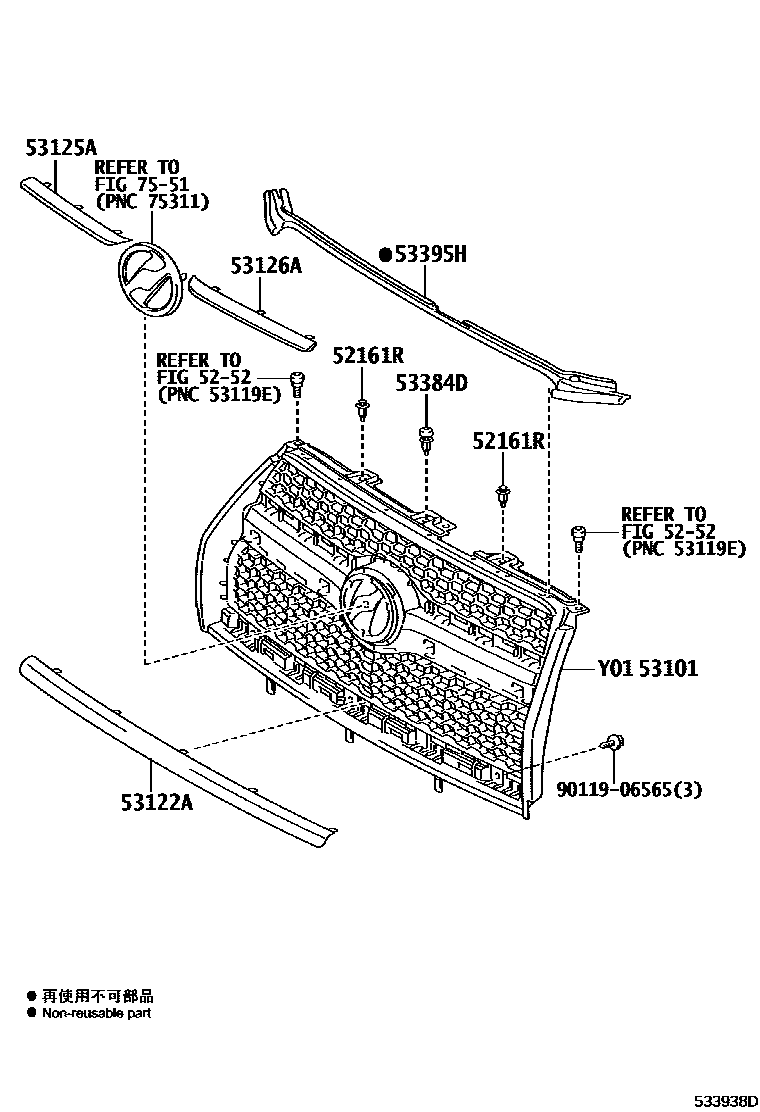

Toyota RAV4 radiator grille EPC diagram — 533938D
radiator grille — 533938D (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Rfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-42170 · 53101-42200 · 53101-42210 · 53101-42240 · 53101-42270 · 53101-42290 · 53101-42360 · 53101-42361 · 53101-42400
53119BRadiator grille protector53119-42020
53122ARadiator grille lower protective strip53122-42030
53125ARadiator grille right center protective strip53125-42040
53126ARadiator grille left middle protective strip53126-42030
53384DEngine cover center cushion53384-68010
53395HEngine cover to radiator grille seal53395-42030 · 53395-42031 · 53395-42032 · 53395-42040 · 53395-42050 · 53395-42051
53396HNo. 2 seal from engine cover to front end plate53396-42030
75317ARadiator grille decorative panel75317-42010
