Toyota RAV4 后保险杠及附件 — Figure 5253

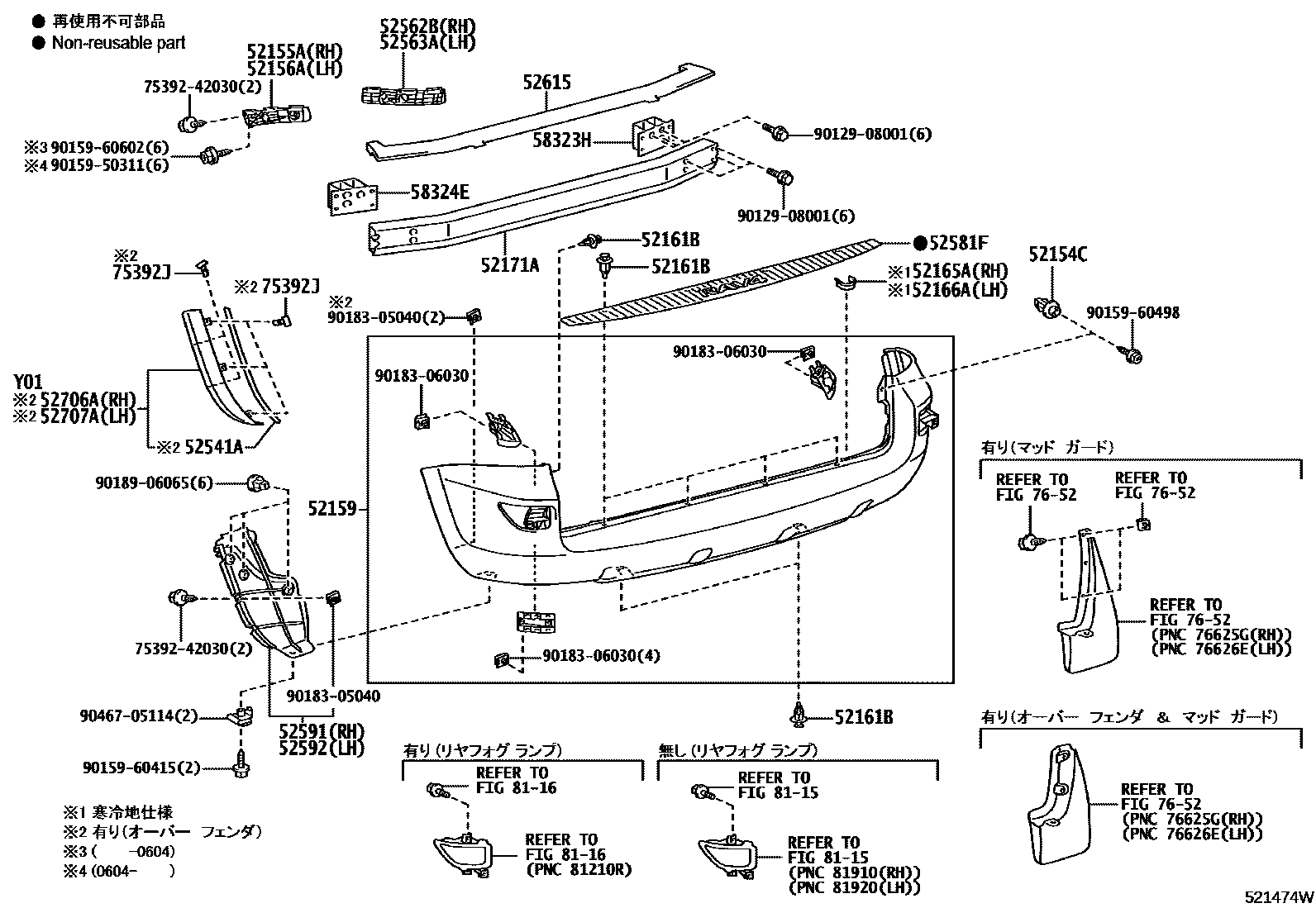

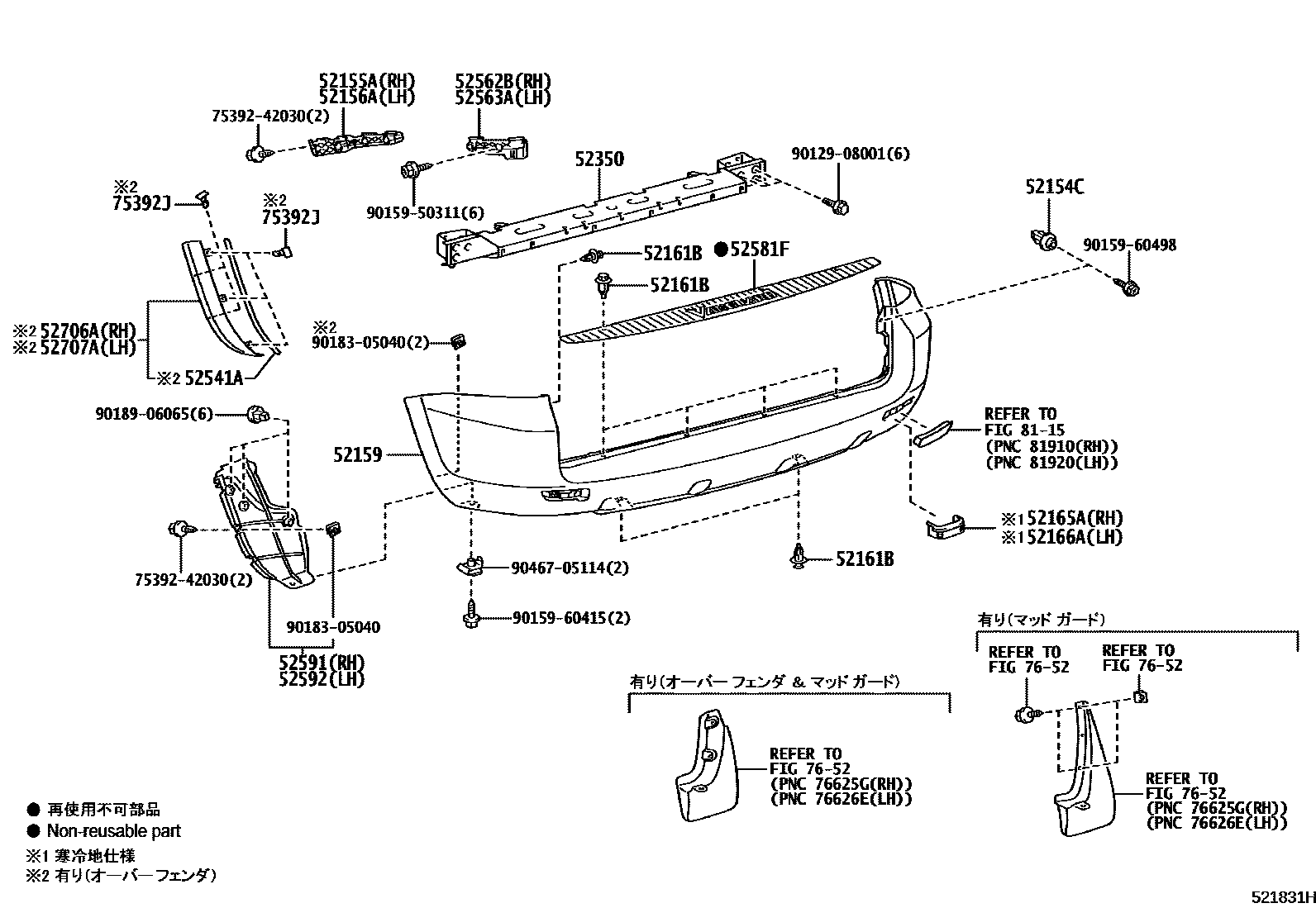

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52154C | Rear bumper bracket No. 1 | 52154-42010 |
| 52155A | Rear bumper right side bracket | 52155-42010 · 52155-42011 · 52155-42021 |
| 52156A | Rear bumper left bracket | 52156-42030 · 52156-42031 · 52156-42041 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52165A | Rear bumper right upper cover | 52165-42010 · 52165-42020 |
| 52166A | Rear bumper left upper cover | 52166-42010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-42020 |
| 52350 | Rear bumper running board assembly | 52350-42010 |
| 52541A | rear bumper protector | 52541-42020 · 52541-42040 |
| 52562B | Rear bumper upper right fixing bracket | 52562-42030 · 52562-42031 · 52562-42041 |
| 52563A | Rear bumper upper left fixing bracket | 52563-42010 · 52563-42011 · 52563-42021 |
| 52581F | rear bumper protector | 52581-42030 · 52581-42040 · 52581-42041 · 52581-42050 · 52581-42060 |
| 52591 | Rear bumper right seal | 52591-42060 · 52591-42070 |
| 52592 | Rear bumper left seal | 52592-42060 · 52592-42070 |
| 52615 | Rear bumper energy absorber | 52615-42010 · 52615-42011 |
| 58323H | Rear bumper arm right bracket reinforcement | 58323-42010 |
| 58324E | Rear bumper arm left bracket reinforcement | 58324-42010 |
| 75392J | External protective strip fixings | 75392-35200 |
