Toyota RAV4 前保险杠及附件 — Figure 5252

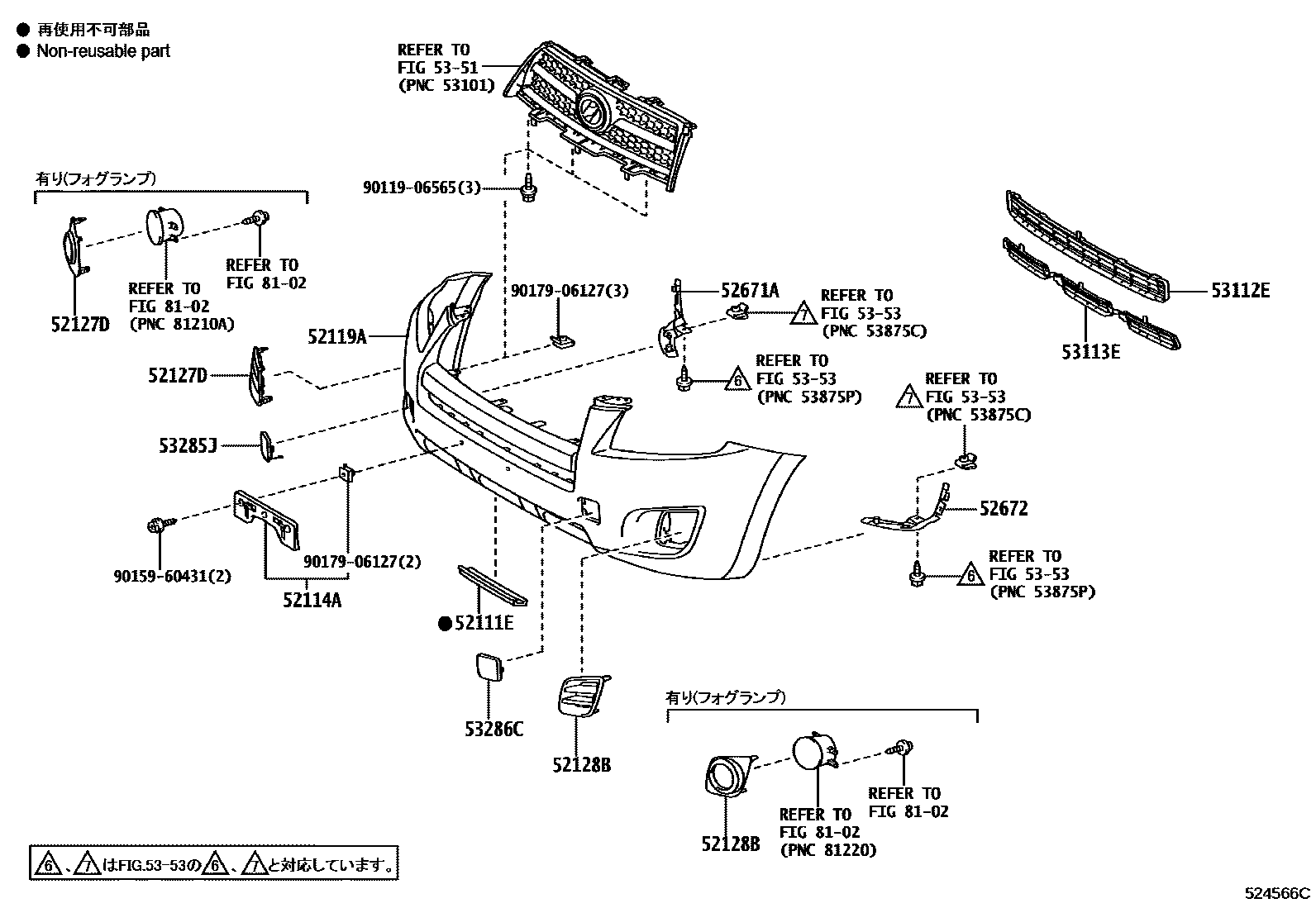

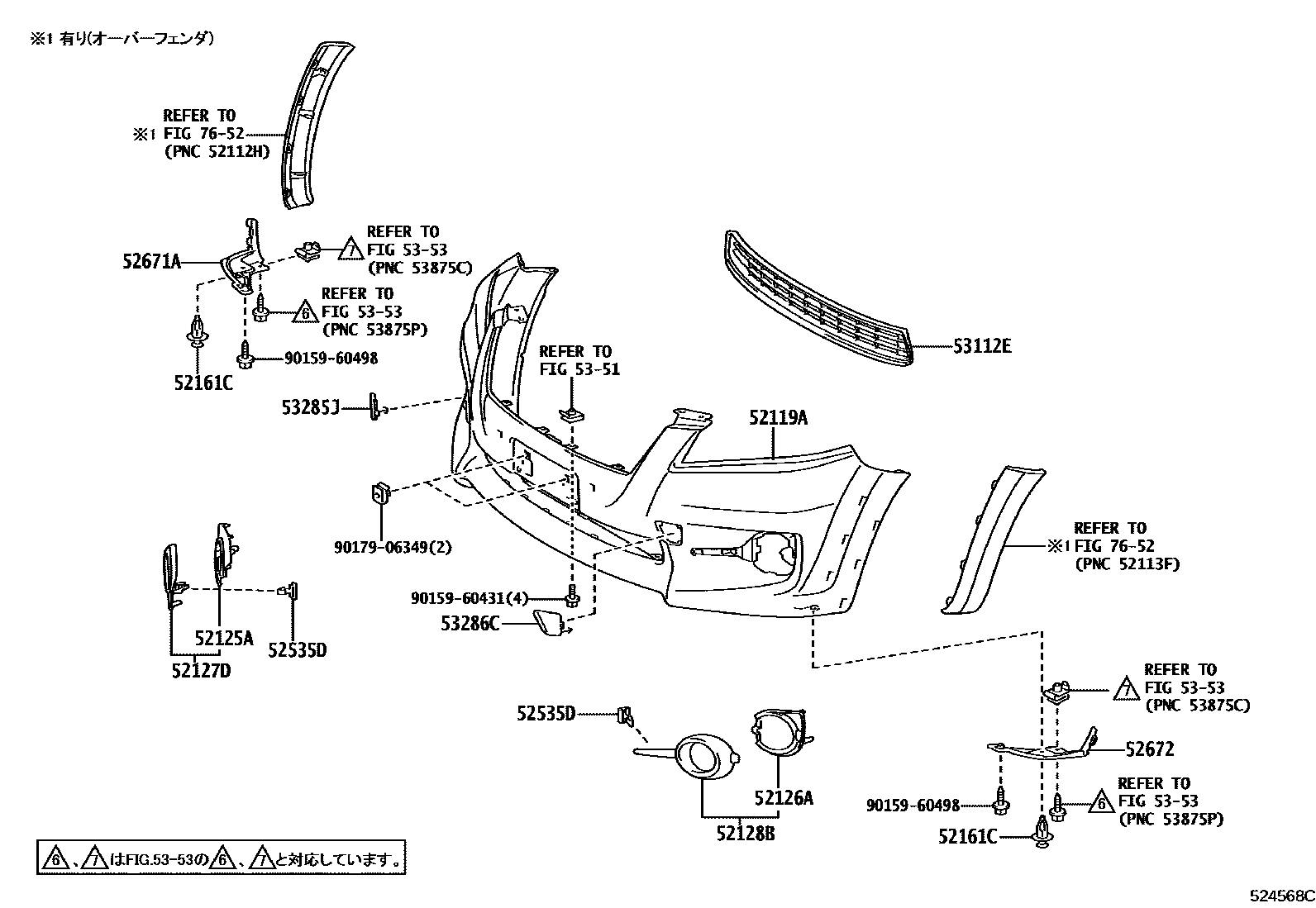

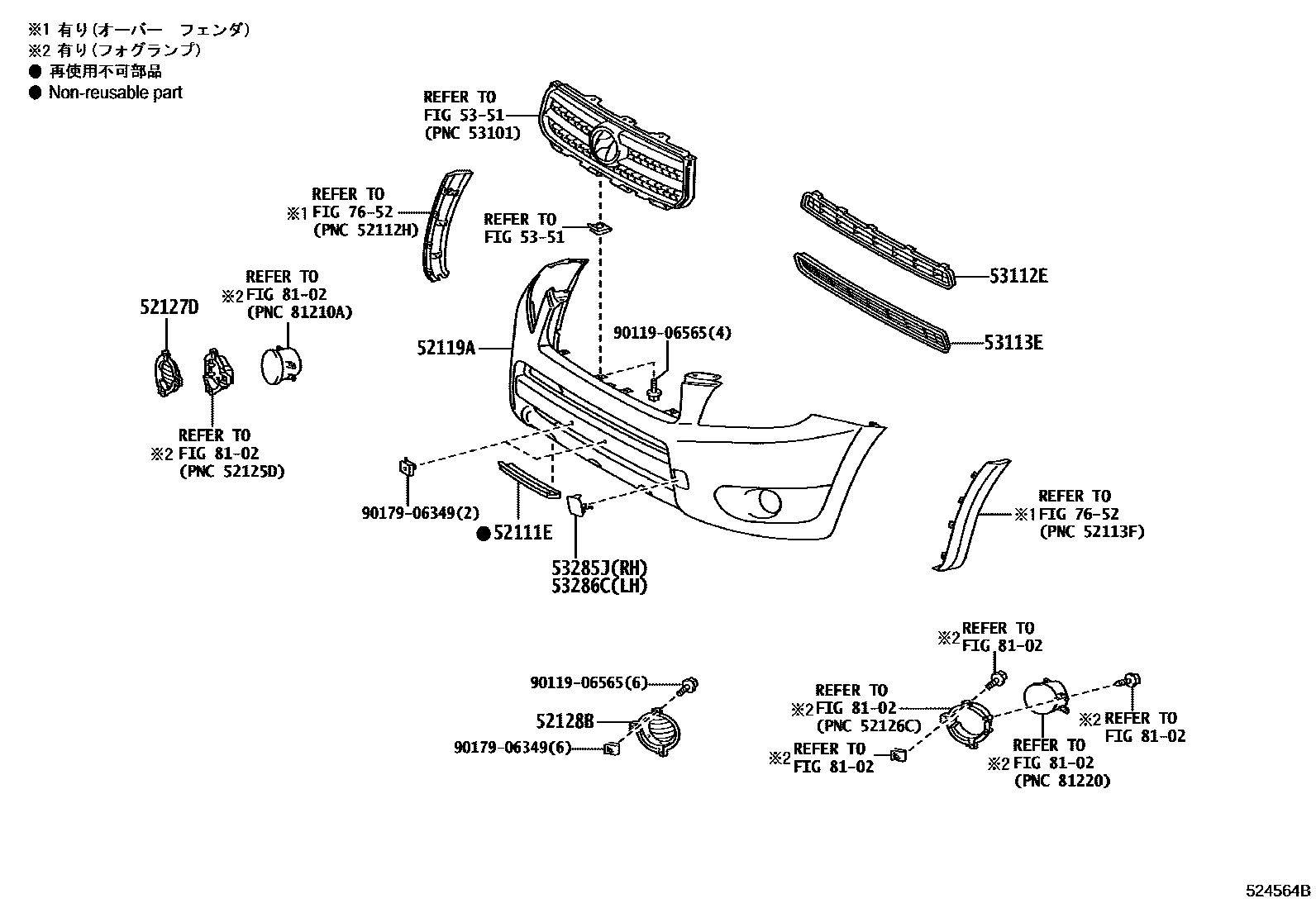

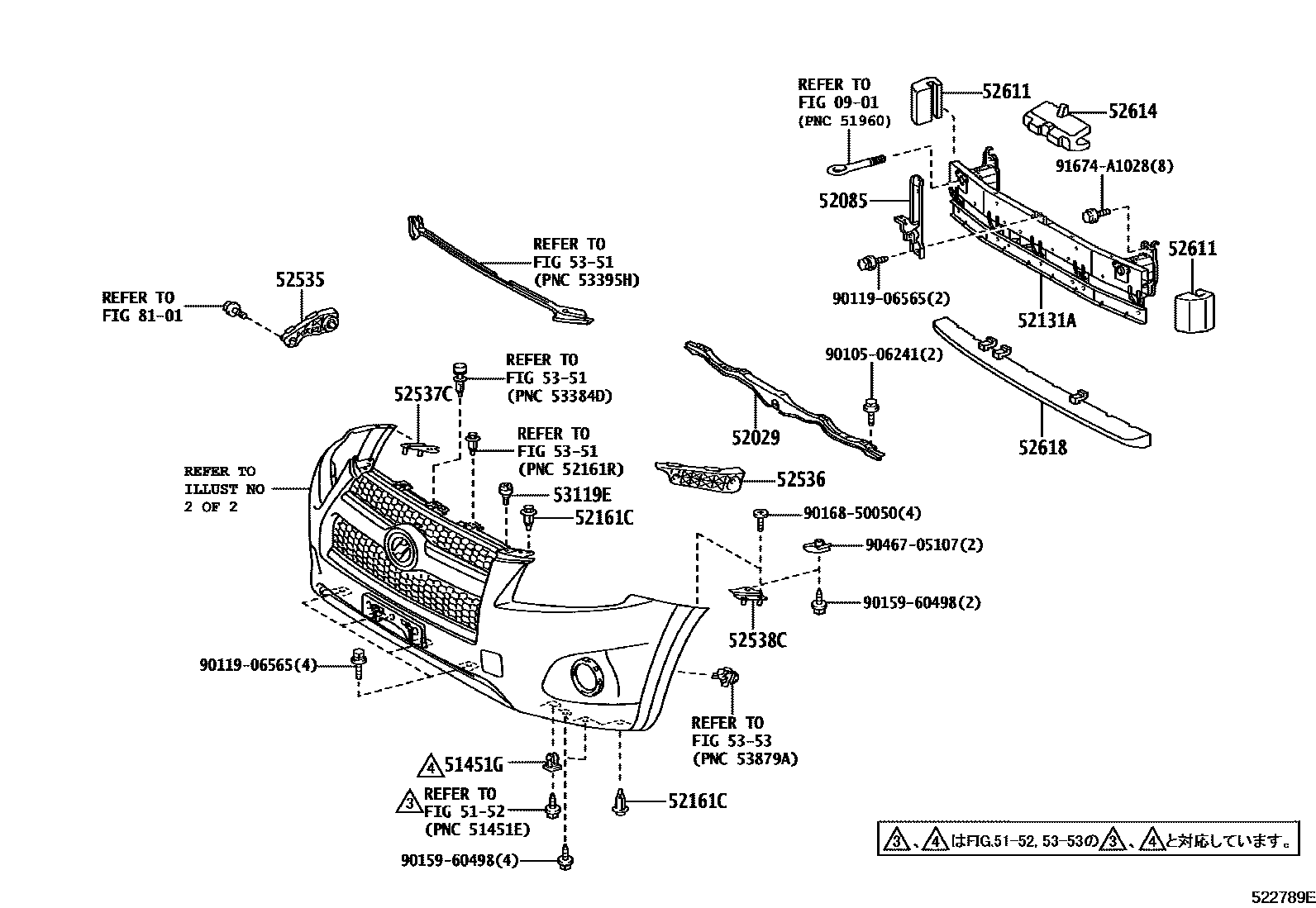

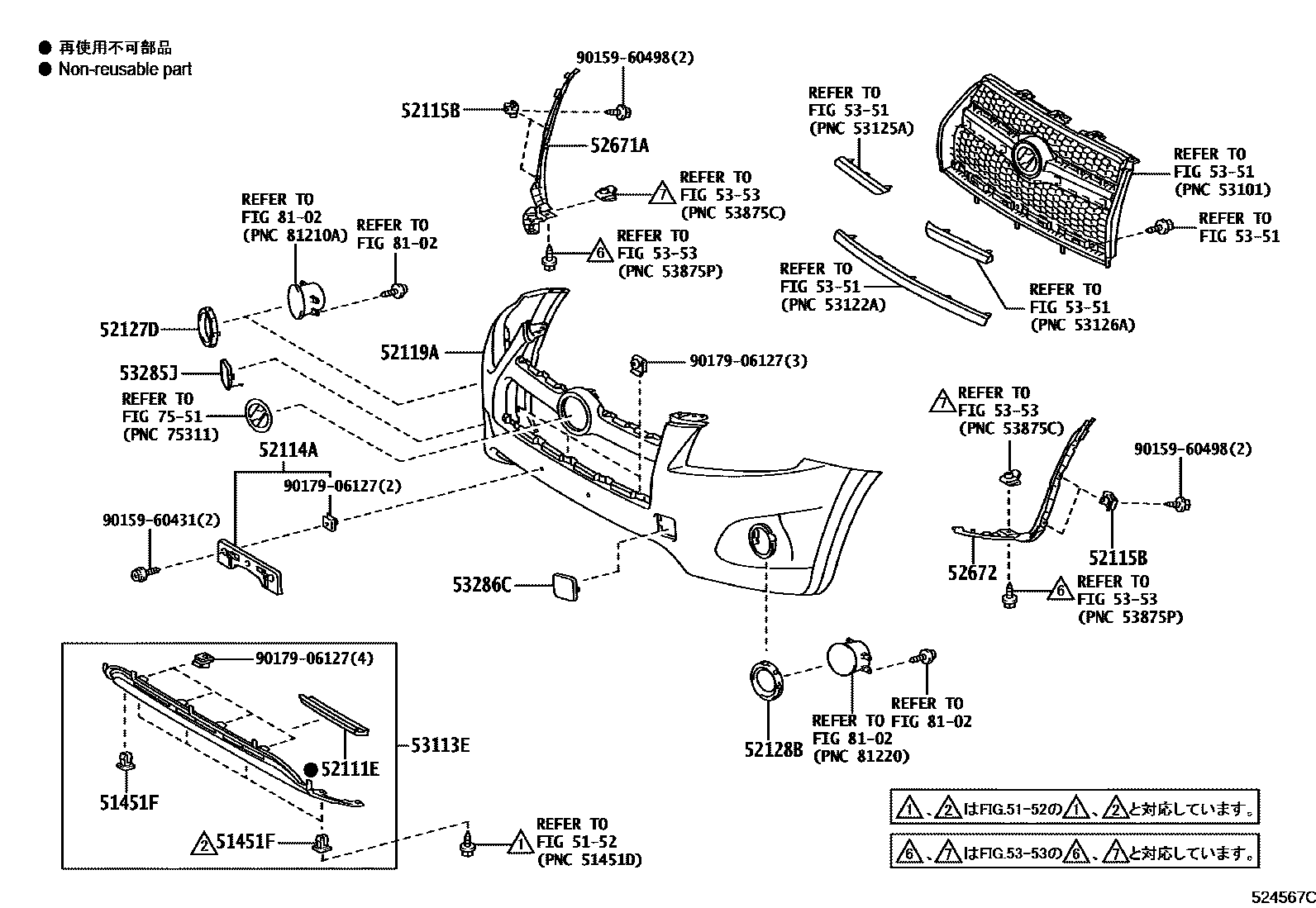

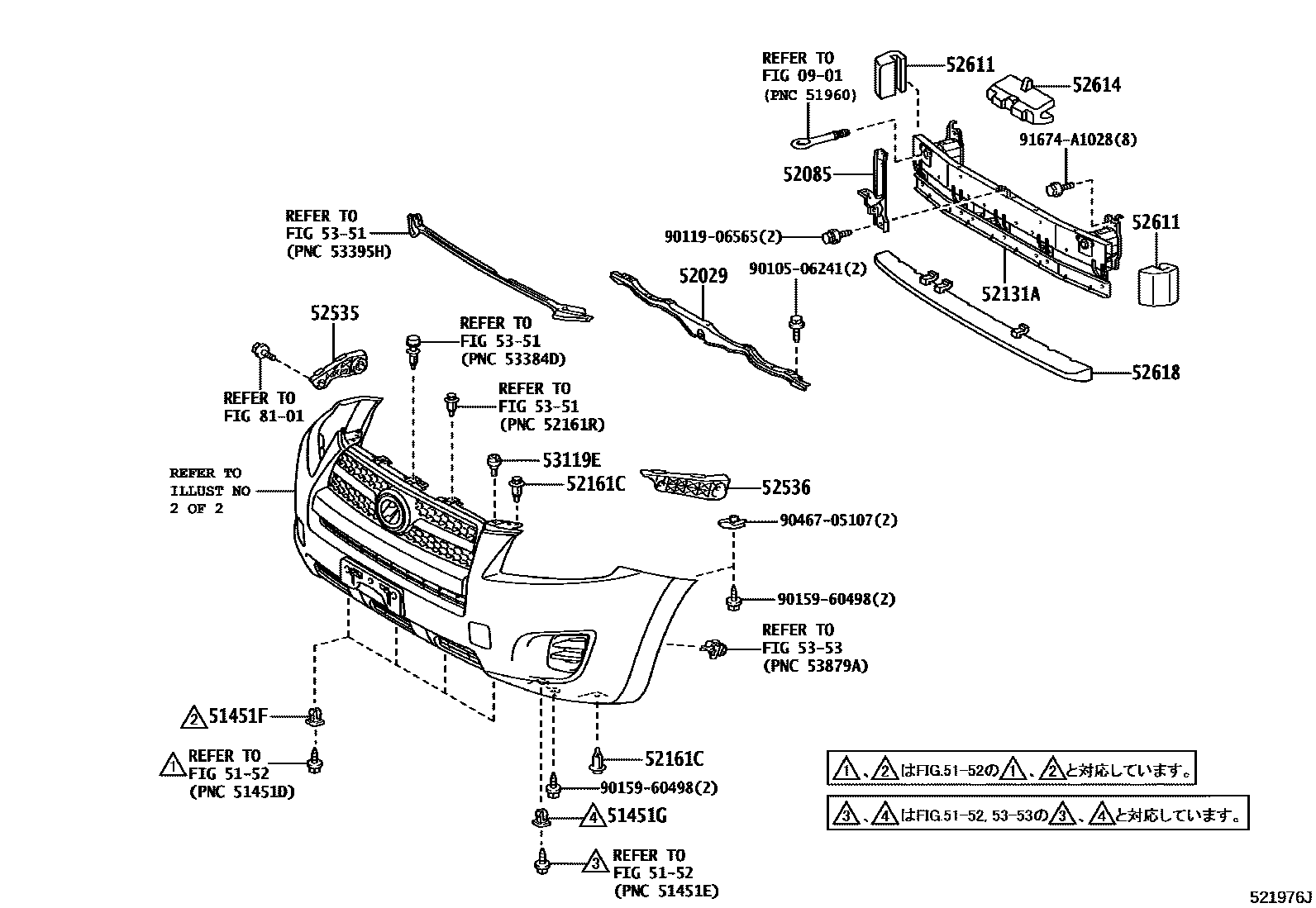

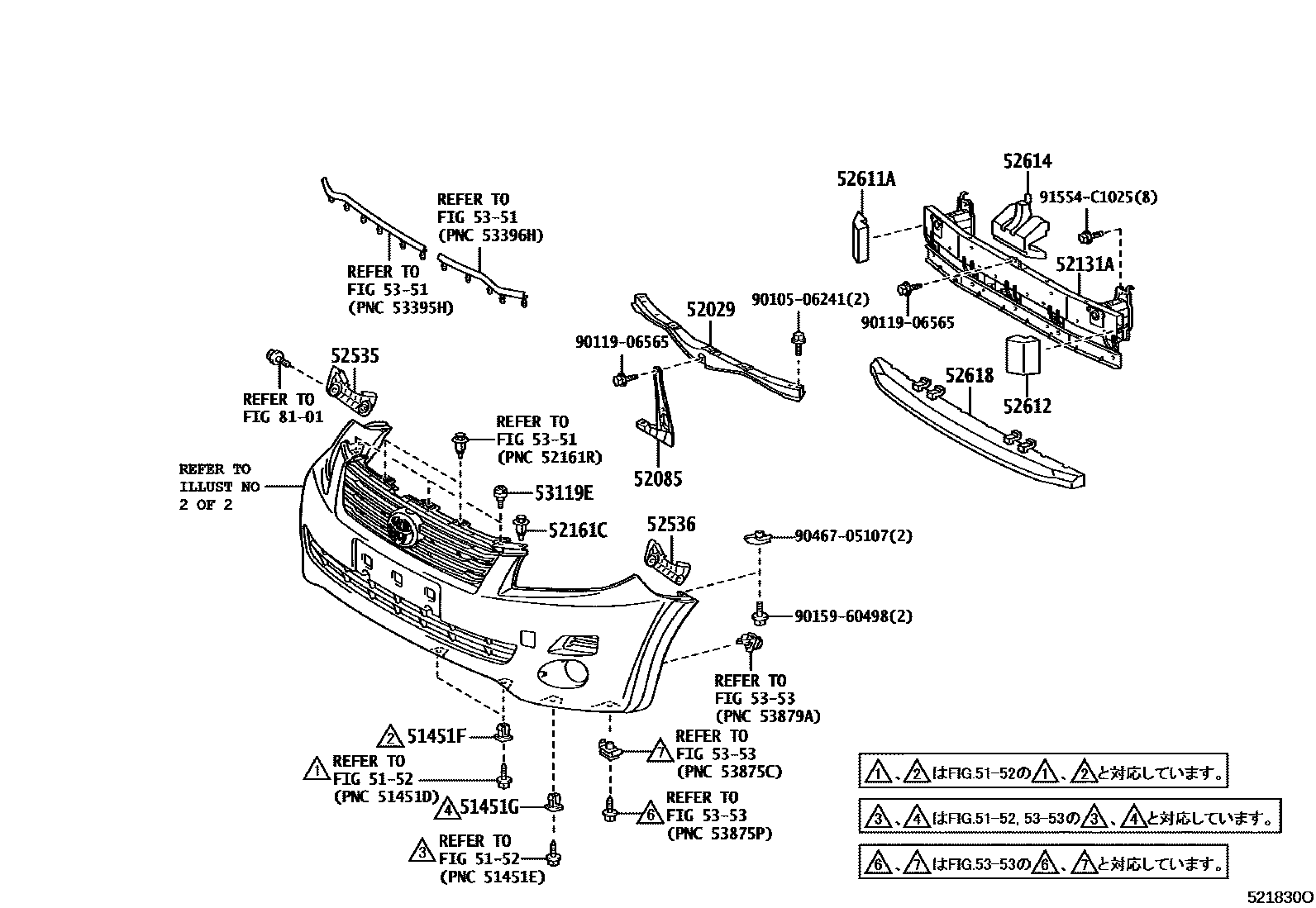

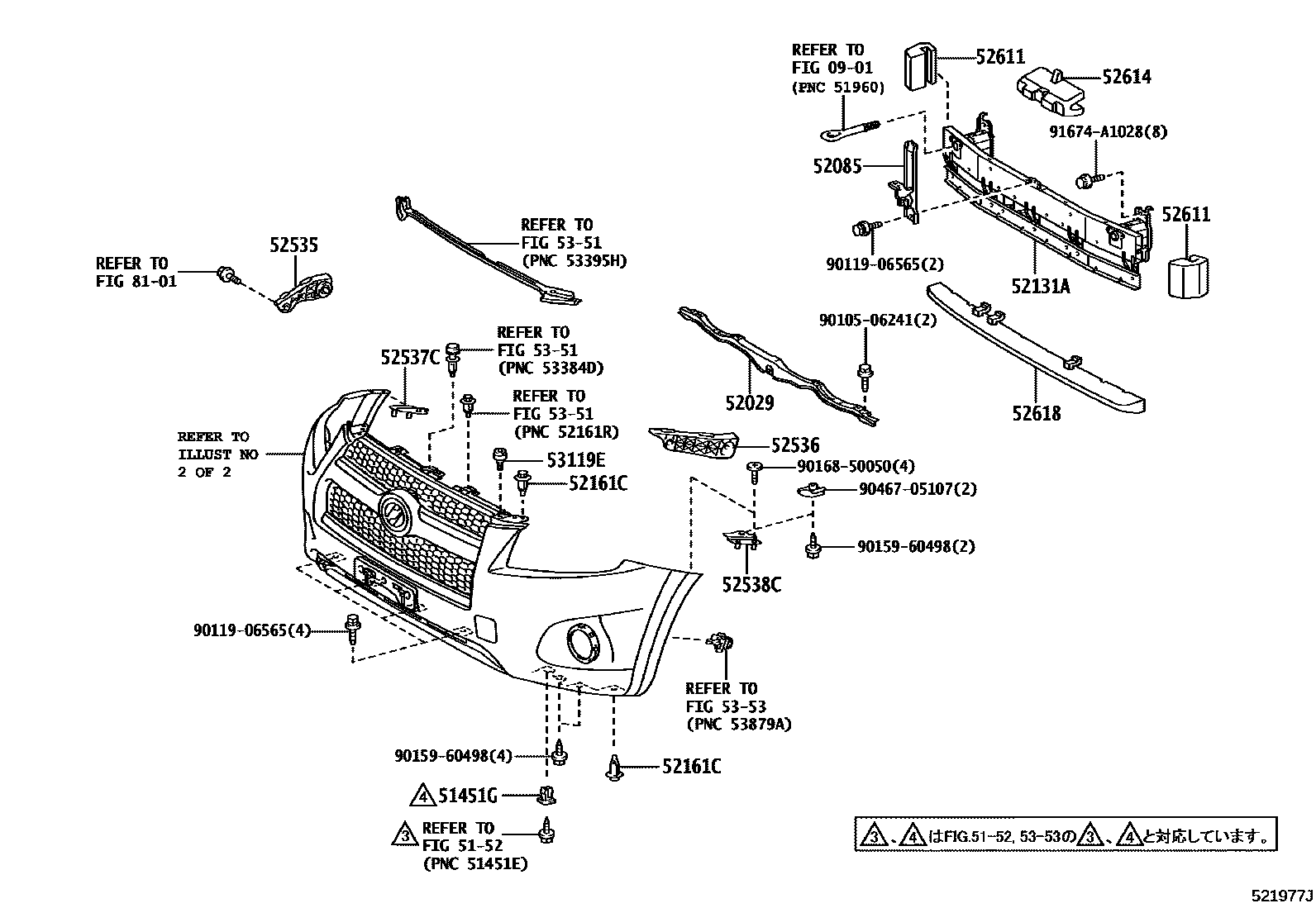

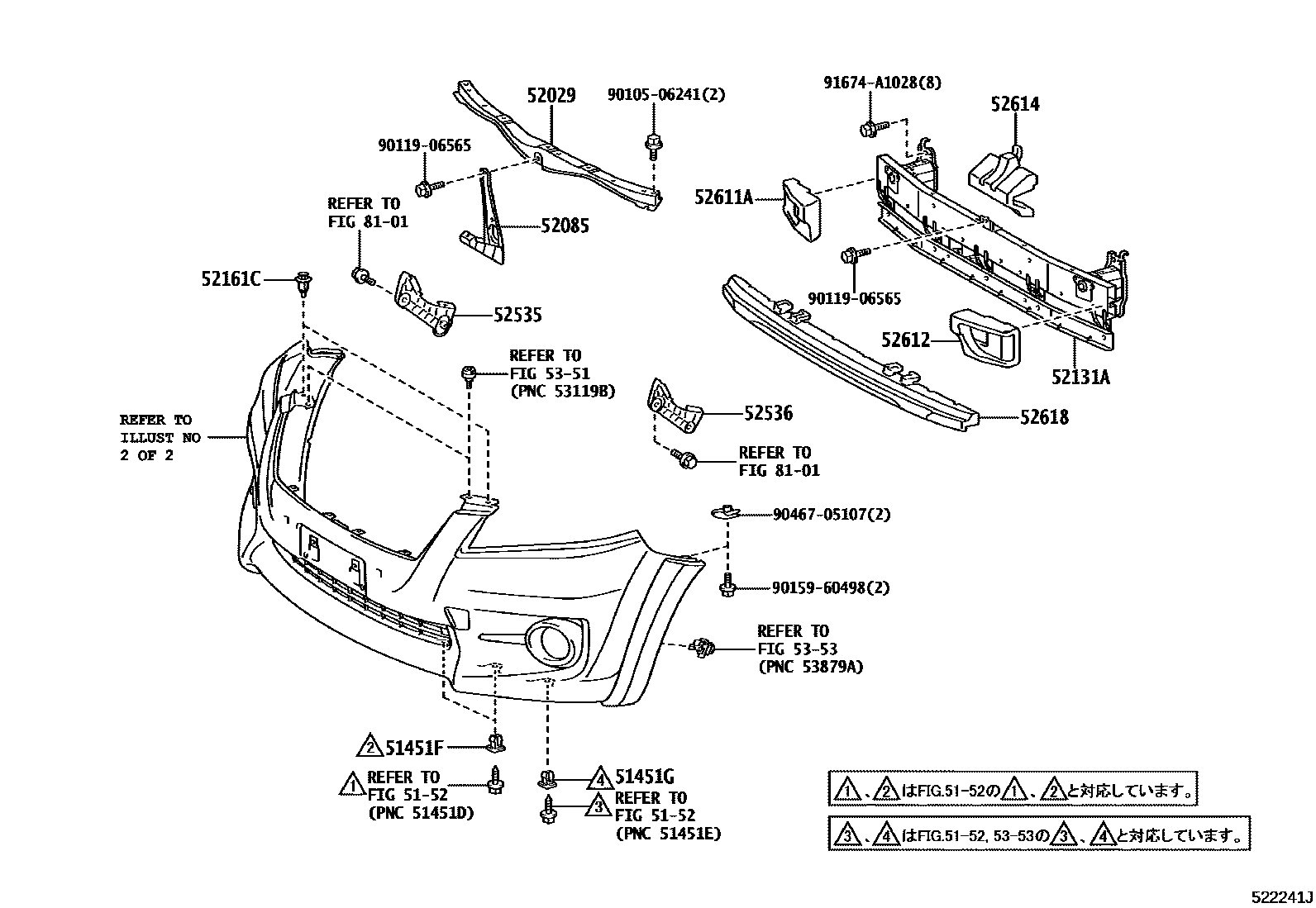

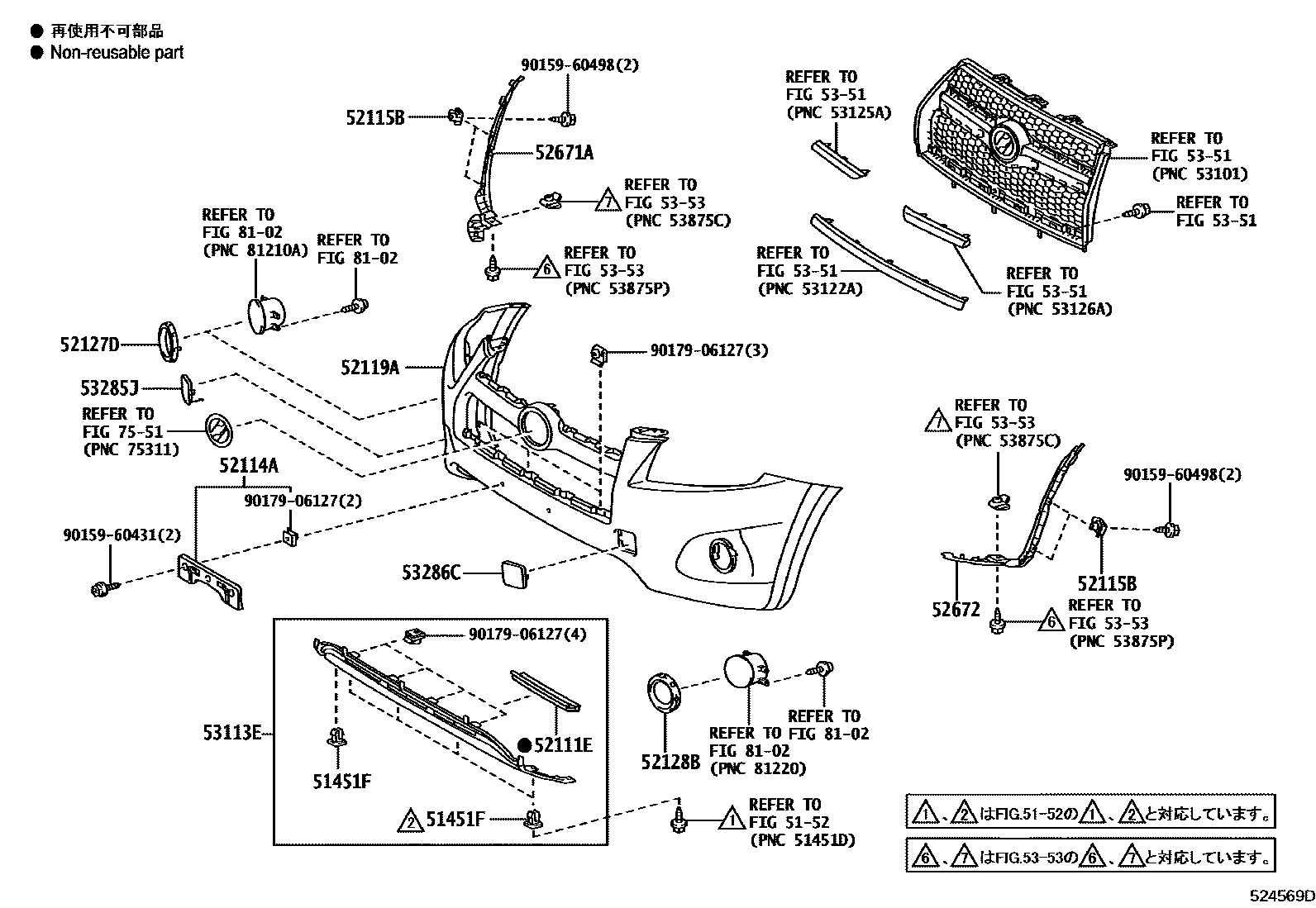

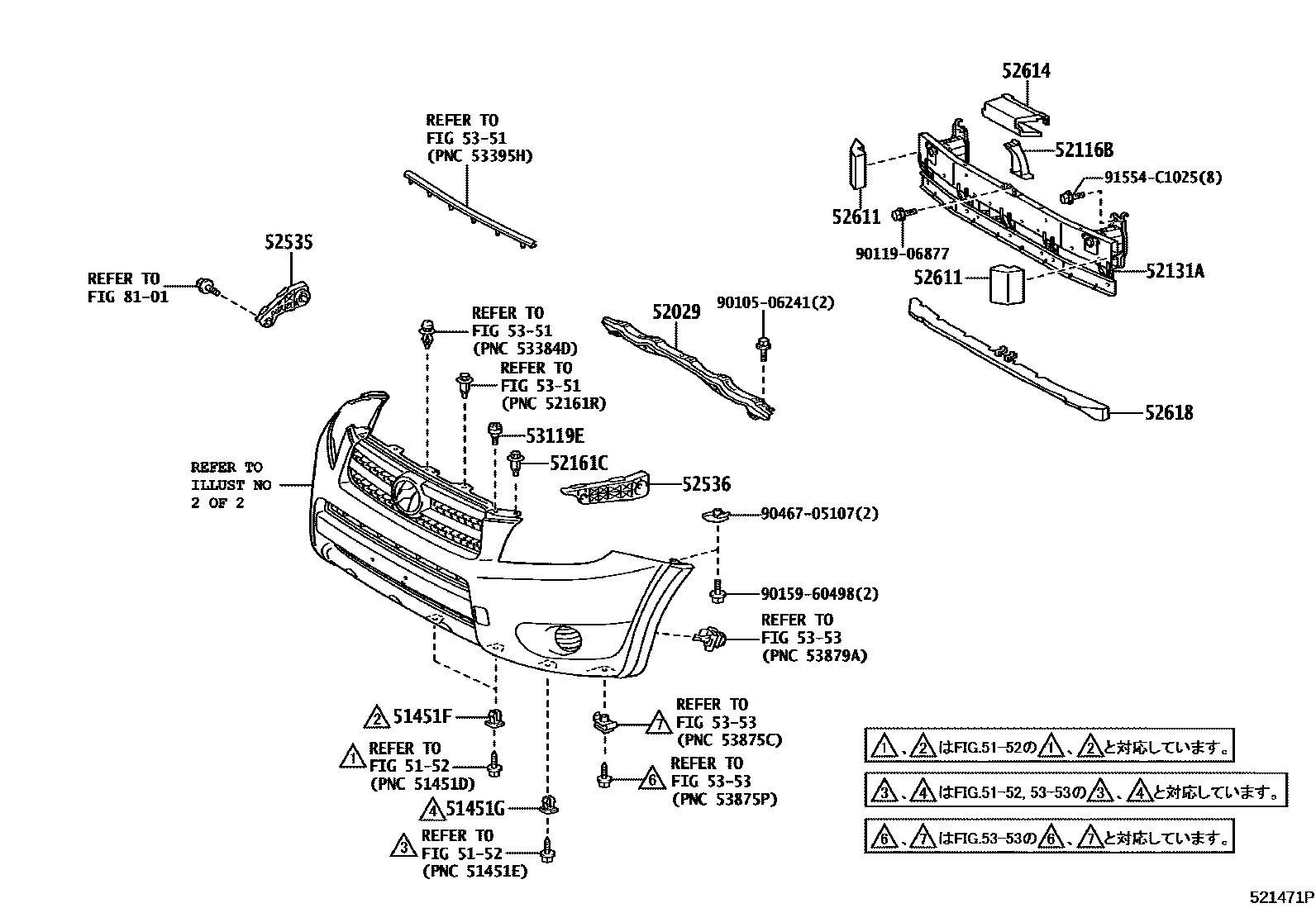

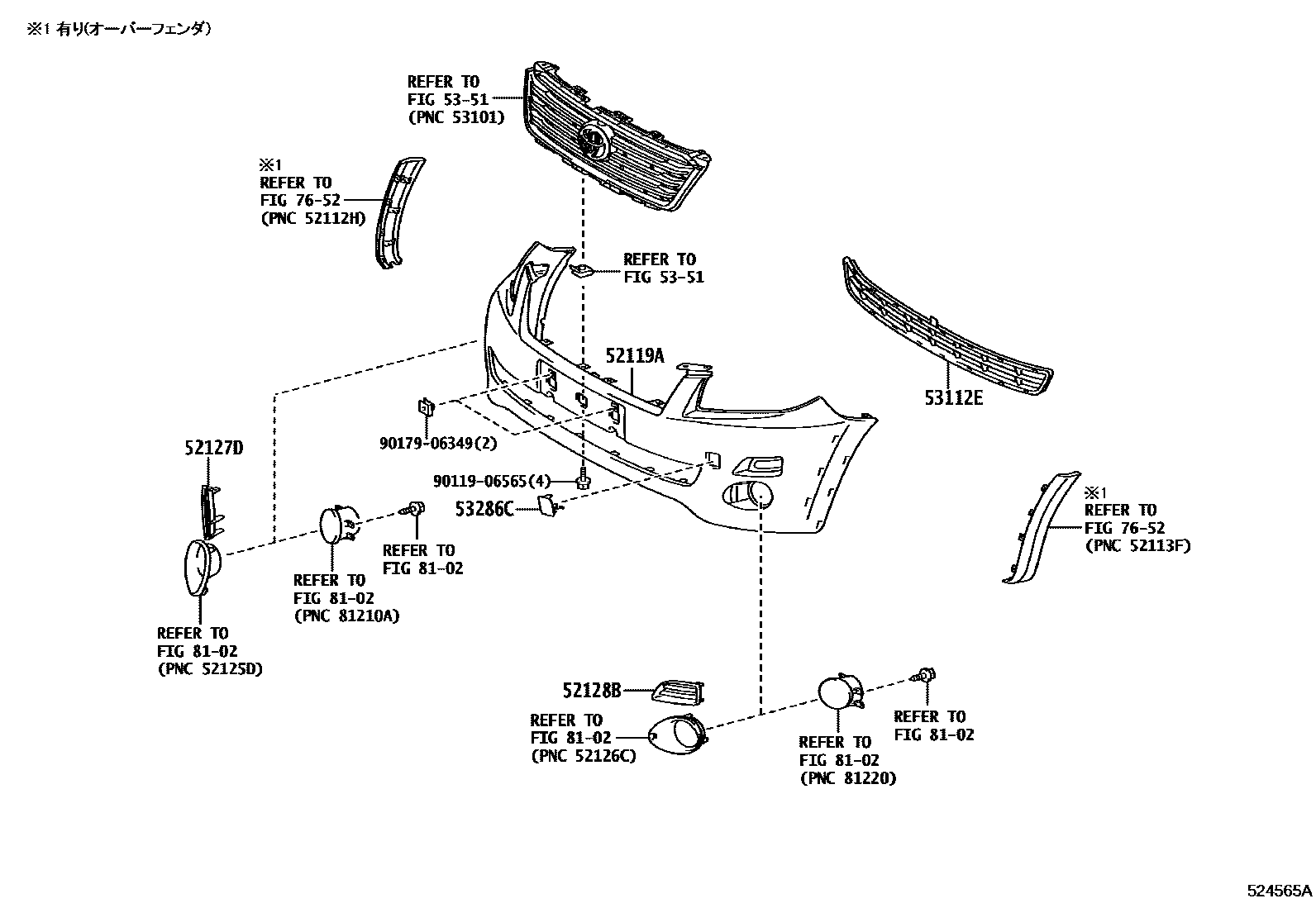

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 12 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Toyota part | 90189-06193 |
| 51451G | Toyota part | 90189-06193 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-42060 · 52029-42070 · 52029-42080 · 52029-42090 |
| 52085 | Front bumper center stay sub-assembly | 52085-42010 · 52085-42020 |
| 52111E | front bumper stay | 52111-42010 · 52111-42020 |
| 52114A | Front bumper extension mounting bracket | 52114-42050 · 52114-42060 |
| 52115B | Front bumper extension section No. 1 fixing piece | 52115-30120 |
| 52116B | front bumper fixings | 52116-42010 |
| 52125A | Right fog light mounting bracket | 52125-42040 |
| 52126A | Left fog light mounting bracket | 52126-42040 |
| 52127D | Front bumper right hole cover | 52030-42010 · 52030-42030 · 52127-42040 · 52127-42050 · 52127-42060 · 52127-42070 · 52127-42080 |
| 52128B | Front bumper left hole cover | 52040-42010 · 52040-42030 · 52128-42040 · 52128-42050 · 52128-42060 · 52128-42070 · 52128-42080 |
| 52131A | Front bumper reinforcement | 52021-42090 · 52021-42091 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-42020 · 52535-42021 · 52535-42030 |
| 52535D | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-42020 · 52536-42021 · 52536-42030 |
| 52537C | Front bumper No. 2 right side fixing bracket | 52537-42010 |
| 52538C | Front bumper No. 2 left side fixing bracket | 52538-42010 |
| 52611 | front bumper energy absorber | 52611-42010 |
| 52611A | Energy absorber on the right side of the front bumper | 52611-42020 · 52611-42030 |
| 52612 | Front bumper left energy absorber | 52612-42030 · 52612-42040 |
| 52614 | No. 2 energy absorber for front bumper | 52614-42010 · 52614-42030 · 52614-42040 · 52614-42060 |
| 52618 | Front bumper lower shock absorber | 52618-42010 · 52618-42020 · 52618-42030 · 52618-42040 |
| 52671A | Front bumper arm right extension section | 52671-42010 · 52671-42020 · 52671-42030 |
| 52672 | Front bumper arm left extension | 52672-42010 · 52672-42020 · 52672-42030 |
| 53112E | No. 1 radiator lower grille | 53112-42050 · 53112-42060 · 53112-42070 · 53112-42080 |
| 53113E | No. 2 radiator lower grille | 53113-42040 · 53113-42050 · 53113-42060 |
| 53119E | Radiator grille protector | 53119-20120 · 53119-42020 |
