Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

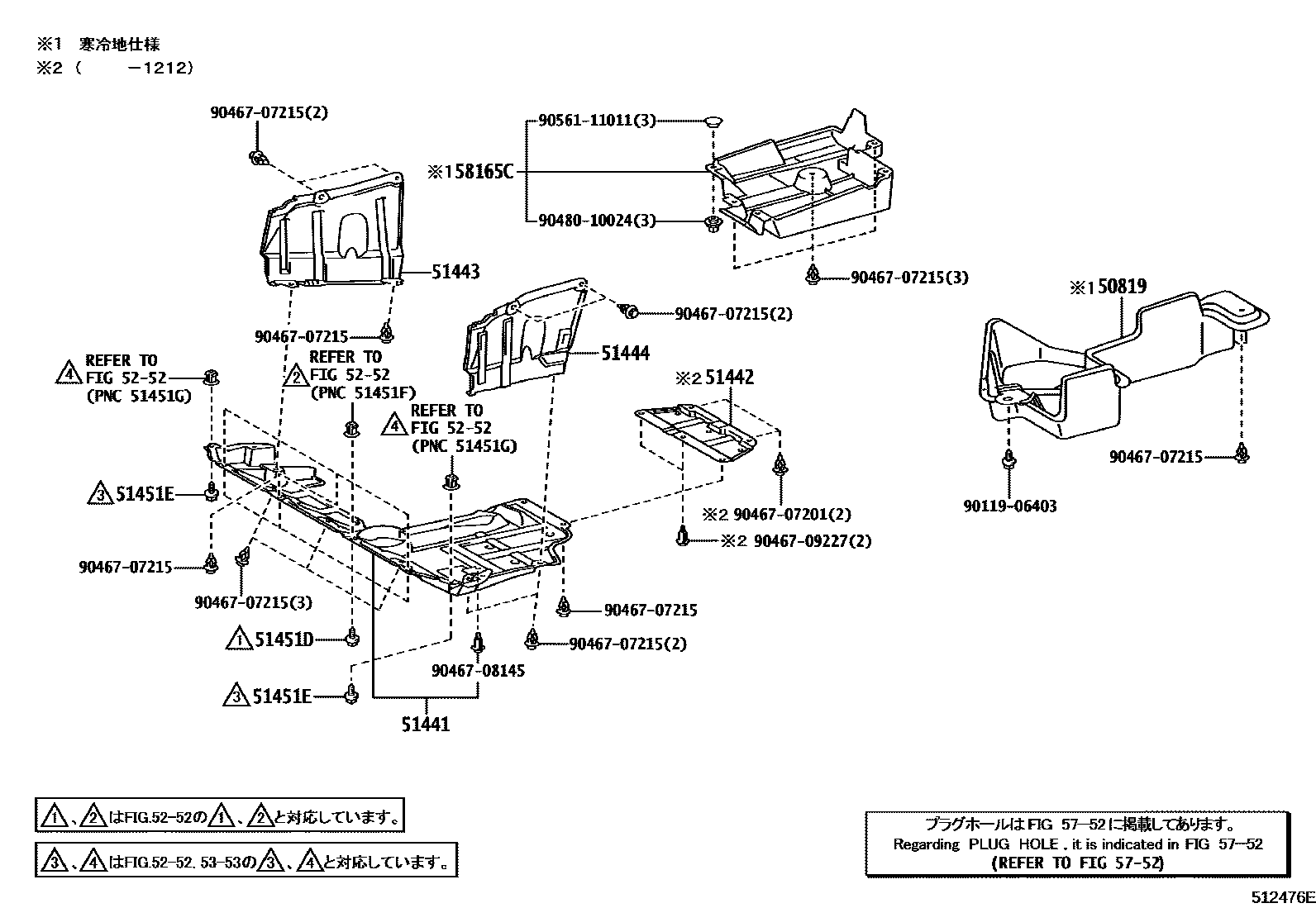

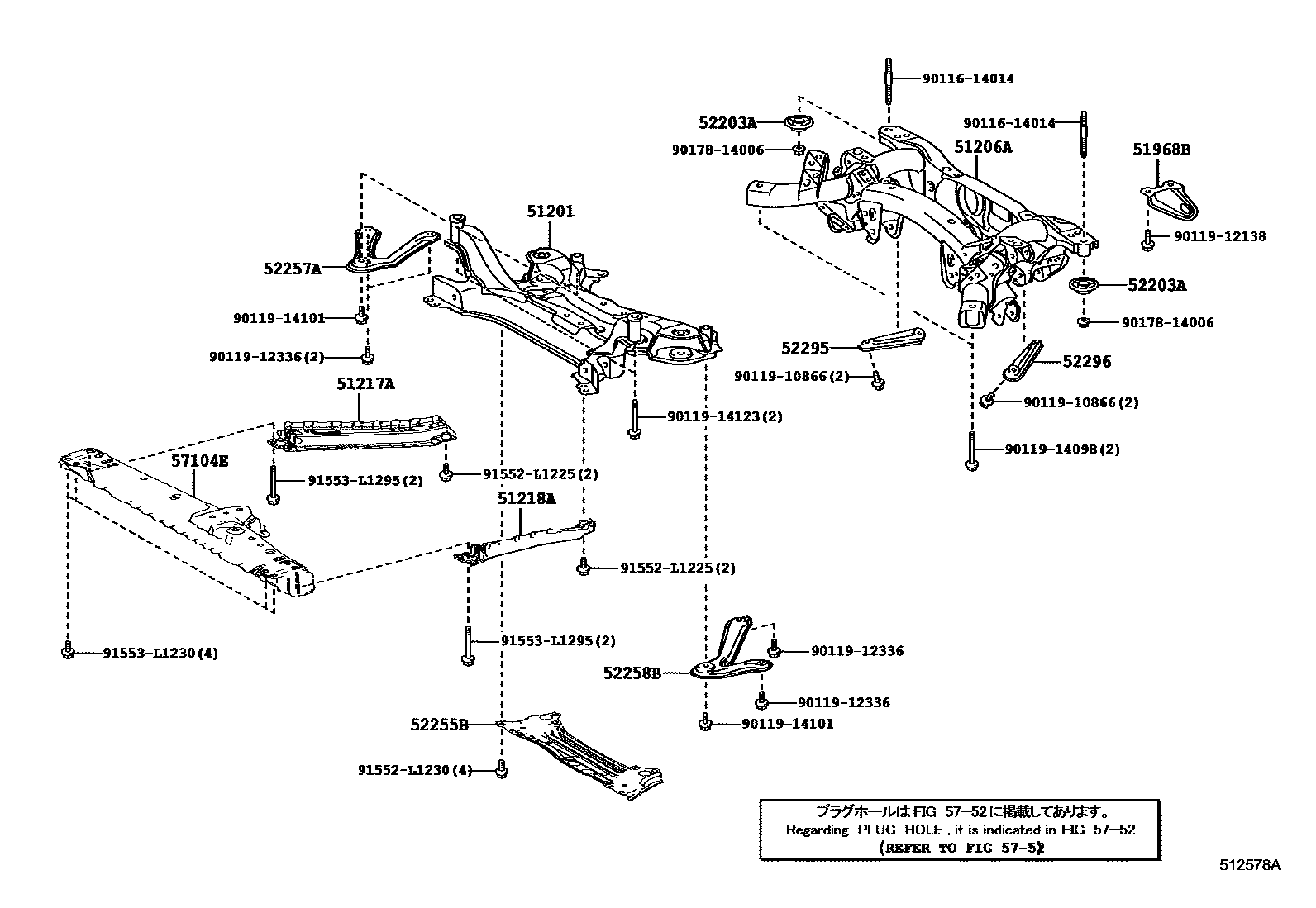

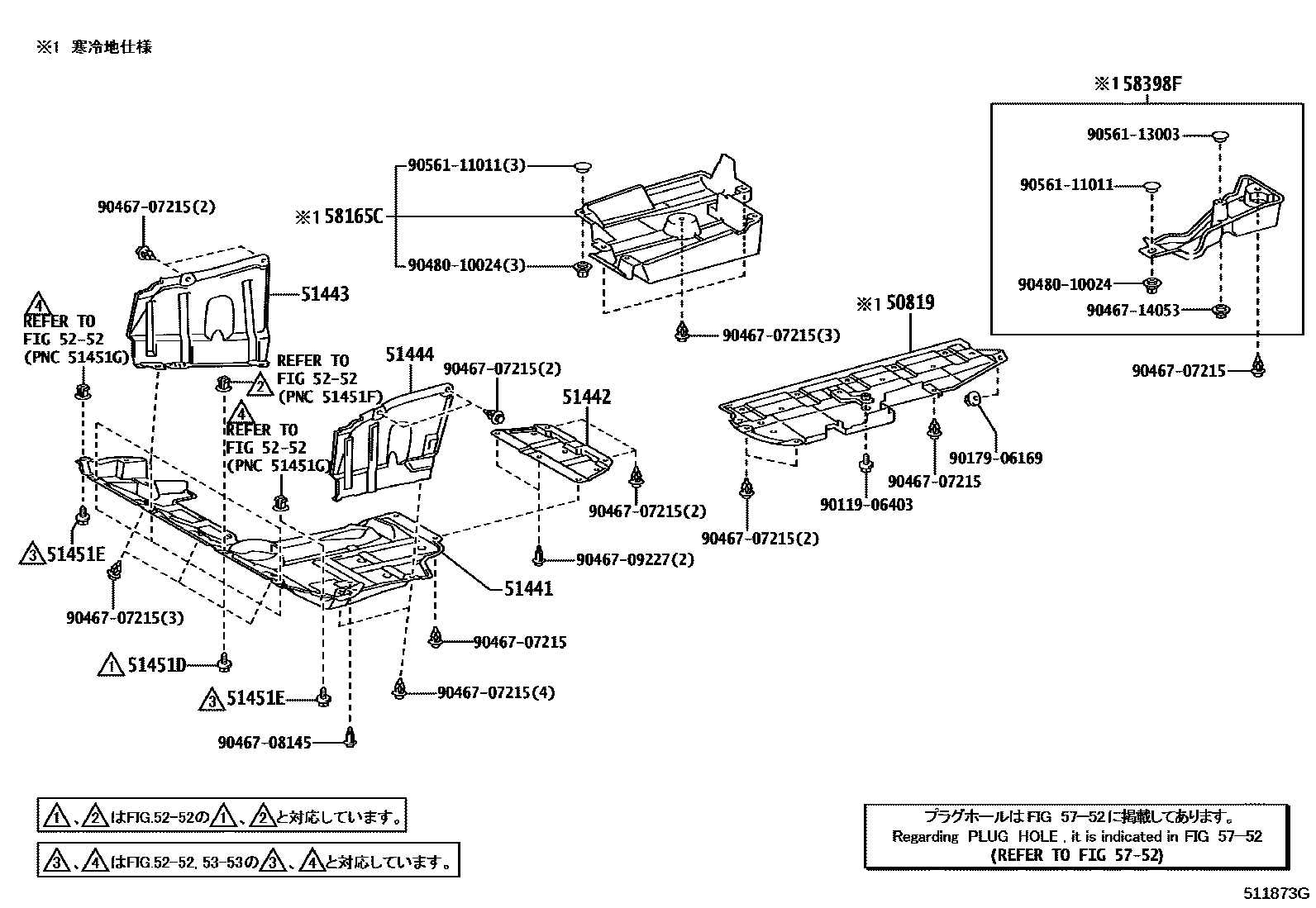

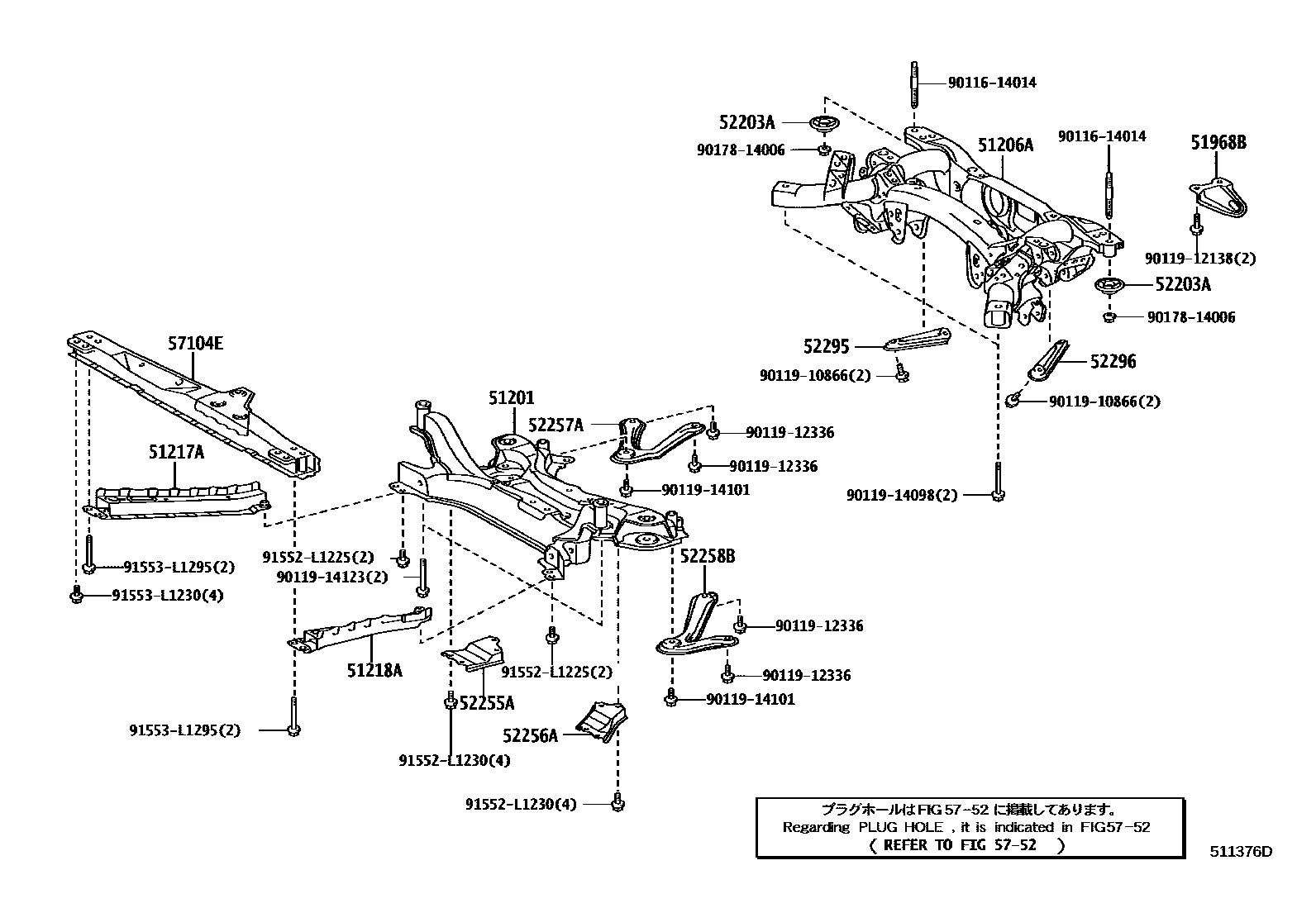

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 50819 | front floor cover | 50819-42010 · 50819-42020 |
| 51201 | Front suspension cross member sub-assembly | 51201-12441 · 51201-12442 · 51201-42070 · 51201-42071 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42050 · 51206-42051 · 51206-42061 · 51206-42062 · 51206-42063 · 51206-78010 |
| 51217A | Right front suspension cross member reinforcement | 51107-42010 · 51107-42020 |
| 51218A | Left front suspension cross member reinforcement | 51108-42010 · 51108-42020 |
| 51441 | No. 1 engine bottom cover | 51410-42020 · 51410-42050 |
| 51442 | No. 2 engine bottom cover | 51442-42080 |
| 51443 | Engine right rear bottom cover | 51443-42010 |
| 51444 | Engine left rear bottom cover | 51444-42010 · 51444-42020 · 51444-42030 |
| 51451D | Toyota part | 90159-60498 |
| 51451E | Toyota part | 90159-60498 |
| 51968B | Left rear transport hook | 51968-42010 |
| 52203A | Rear body fixed cushion pad sub-assembly | 52203-42010 · 52203-42020 |
| 52255A | Right front suspension cross member front bracket | 52255-12010 |
| 52255B | Front suspension cross member front bracket | 52255-76010 |
| 52256A | Left front suspension cross member front bracket | 52256-12010 |
| 52257A | Right front suspension cross member rear bracket | 52257-42010 |
| 52258B | Left front suspension cross member rear bracket | 52258-42010 |
| 52295 | Right rear suspension cross member bracket | 52295-12040 · 52295-42010 |
| 52296 | Left rear suspension cross member bracket | 52296-12010 · 52296-42010 |
| 57104E | Front cross member sub-assembly | 57104-42061 · 57104-42070 |
| 58165C | Front floor right cover | 58165-42010 |
| 58398F | No. 1 floor under cover | 58398-42020 · 58398-42021 · 58398-42022 |
