Toyota RAV4 Front Spring & Shock Absorber — Figure 4803

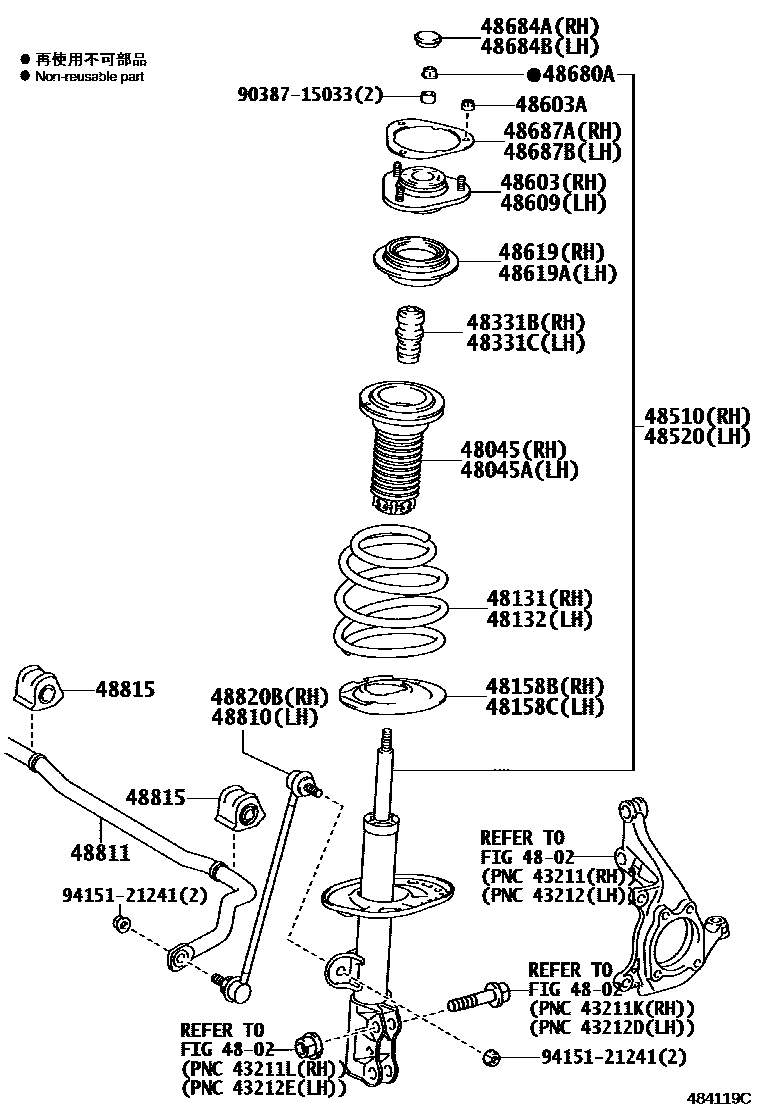

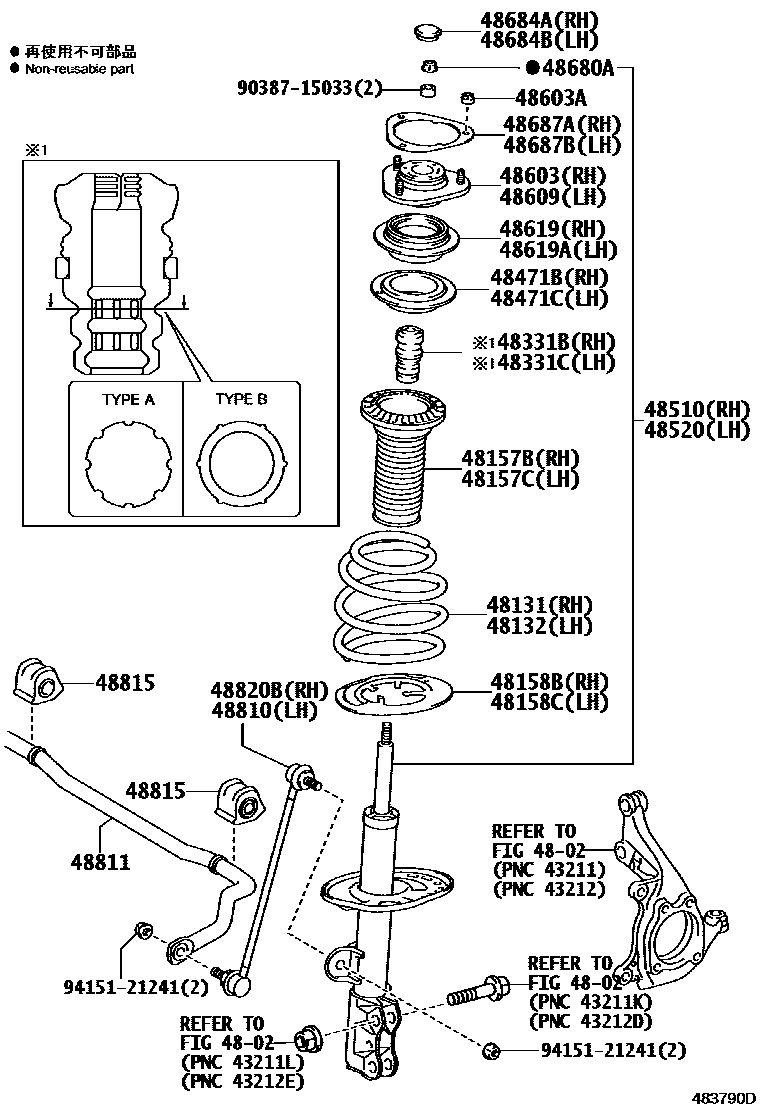

Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48045 | Toyota part | 48045-42010 |
| 48045A | Toyota part | 48045-42010 |
| 48131 | Right front coil spring | 48131-42540 · 48131-42541 · 48131-42560 · 48131-42561 · 48131-42610 · 48131-42690 |
| 48132 | Left front coil spring | 48131-42540 · 48131-42541 · 48131-42560 · 48131-42561 · 48131-42610 · 48131-42690 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-42020 · 48157-58010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-42020 · 48157-58010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-21010 · 48158-42010 · 48158-48050 · 48158-78010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-21010 · 48158-42010 · 48158-48050 · 48158-78010 |
| 48331B | Right front spring buffer block | 48331-42030 · 48331-42060 · 48331-42080 · 48331-42120 |
| 48331C | Left front spring buffer block | 48331-42030 · 48331-42060 · 48331-42080 · 48331-42120 |
| 48471B | Front coil spring upper right seat | 48471-42010 |
| 48471C | Front coil spring upper left seat | 48471-42010 |
| 48510 | Right front shock absorber assembly | 48510-80284 · 48510-80366 · 48510-80607 · 48510-80613 · 48510-80639 · 48510-80696 · 48510-80767 |
| 48520 | Left front shock absorber assembly | 48520-80071 · 48520-80130 · 48520-80321 · 48520-80327 · 48520-80342 · 48520-80390 · 48520-80444 |
| 48603 | Right front suspension bearing sub-assembly | 48609-42020 · 48609-42040 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48609 | Left front suspension bearing sub-assembly | 48609-42020 · 48609-42040 |
| 48619 | Bearing installed on the right sliding column | 48619-28010 · 48619-42010 |
| 48619A | Bearing installed on the left sliding column | 48619-28010 · 48619-42010 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-14005 |
| 48684A | Right front suspension support dust cover | 48684-42010 · 48684-42020 |
| 48684B | Left front suspension support dust cover | 48684-42010 · 48684-42020 |
| 48687A | Right front suspension support plate | 48687-28010 |
| 48687B | Left front suspension support plate | 48687-28010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42030 |
| 48811 | front stabilizer bar | 48811-42070 · 48811-42071 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-42090 · 48815-42100 · 48815-42130 · 48815-42140 · 48815-48080 · 48815-48090 |
| 48820B | Right front stabilizer bar link assembly | 48820-42030 |
