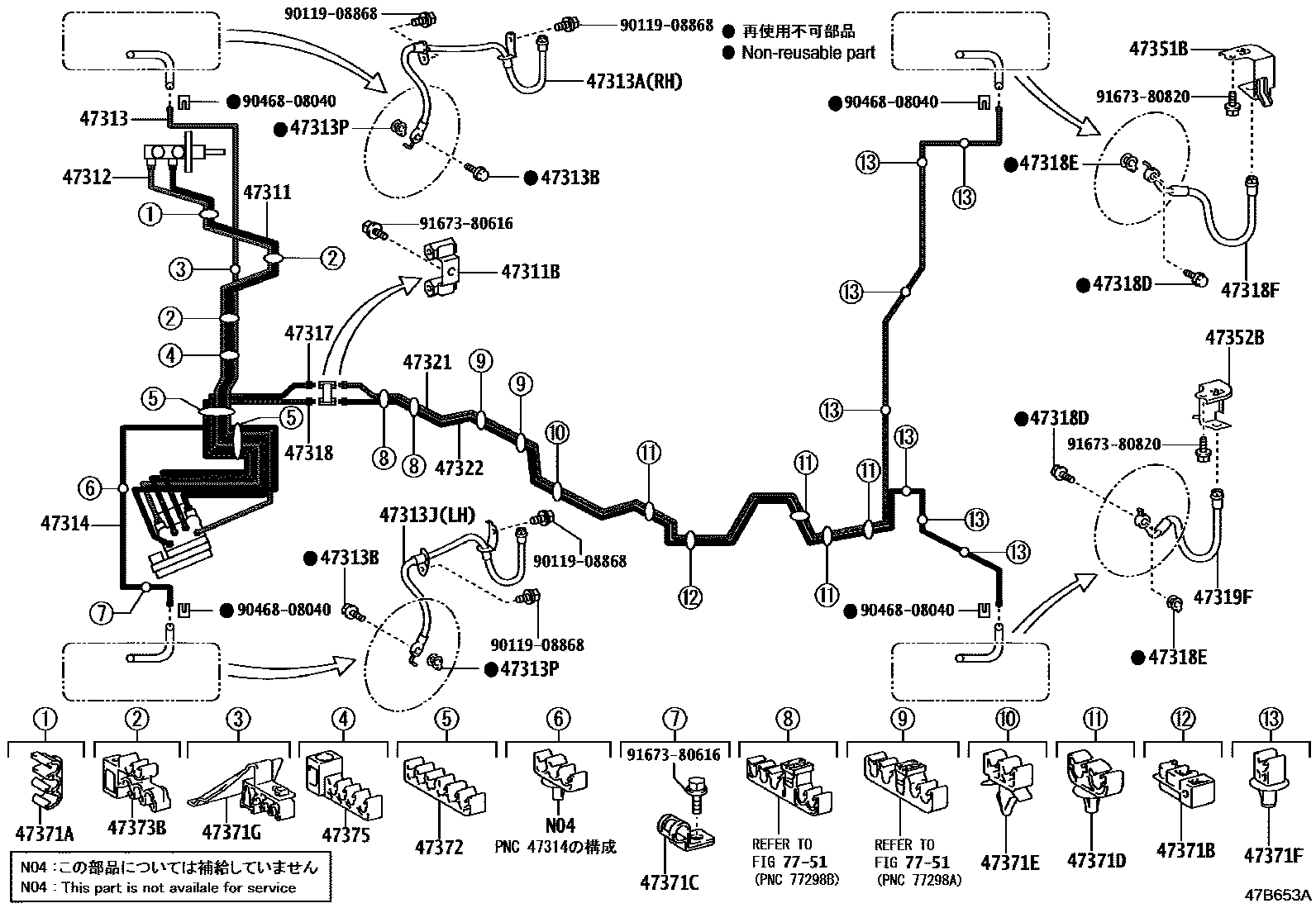

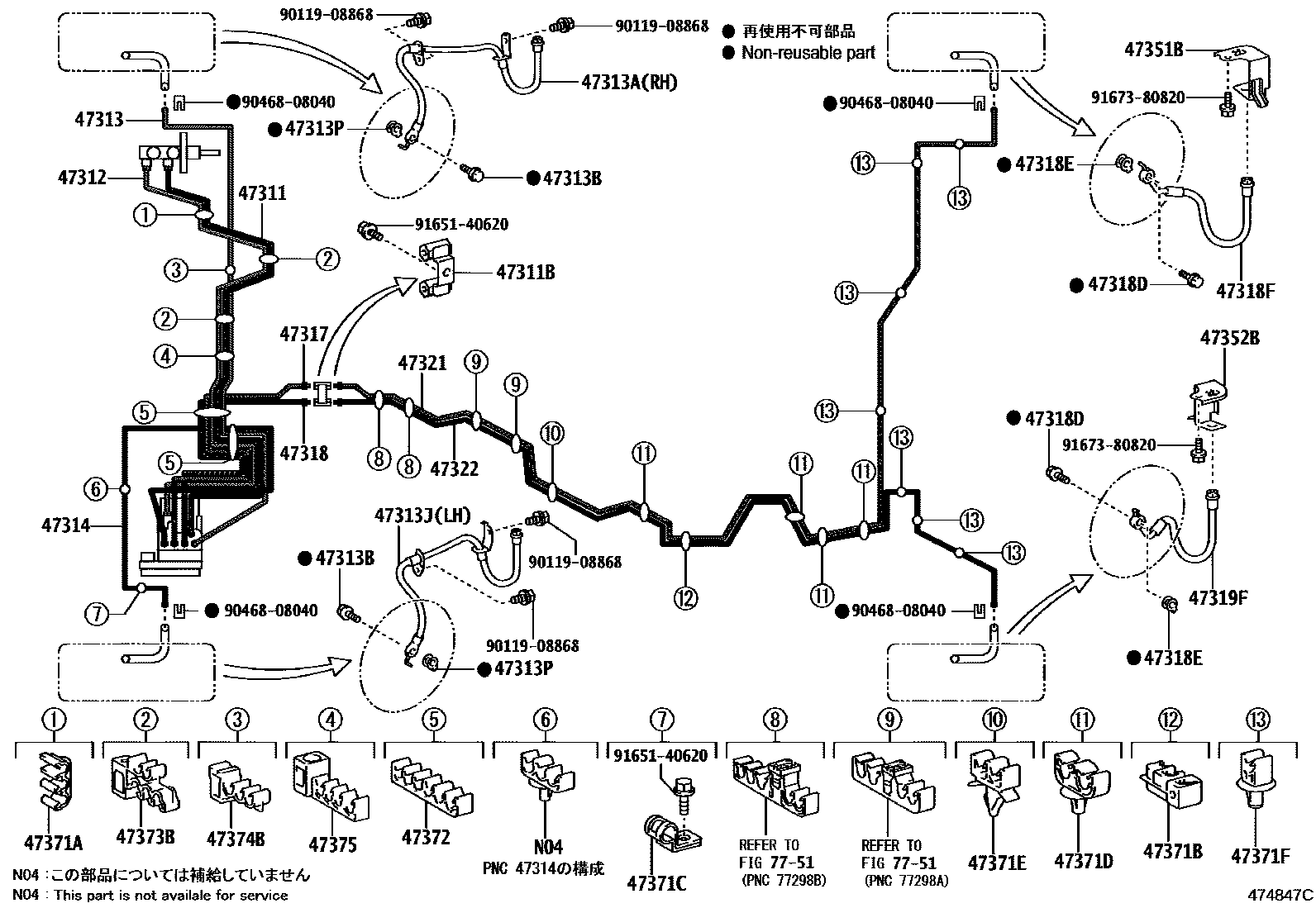

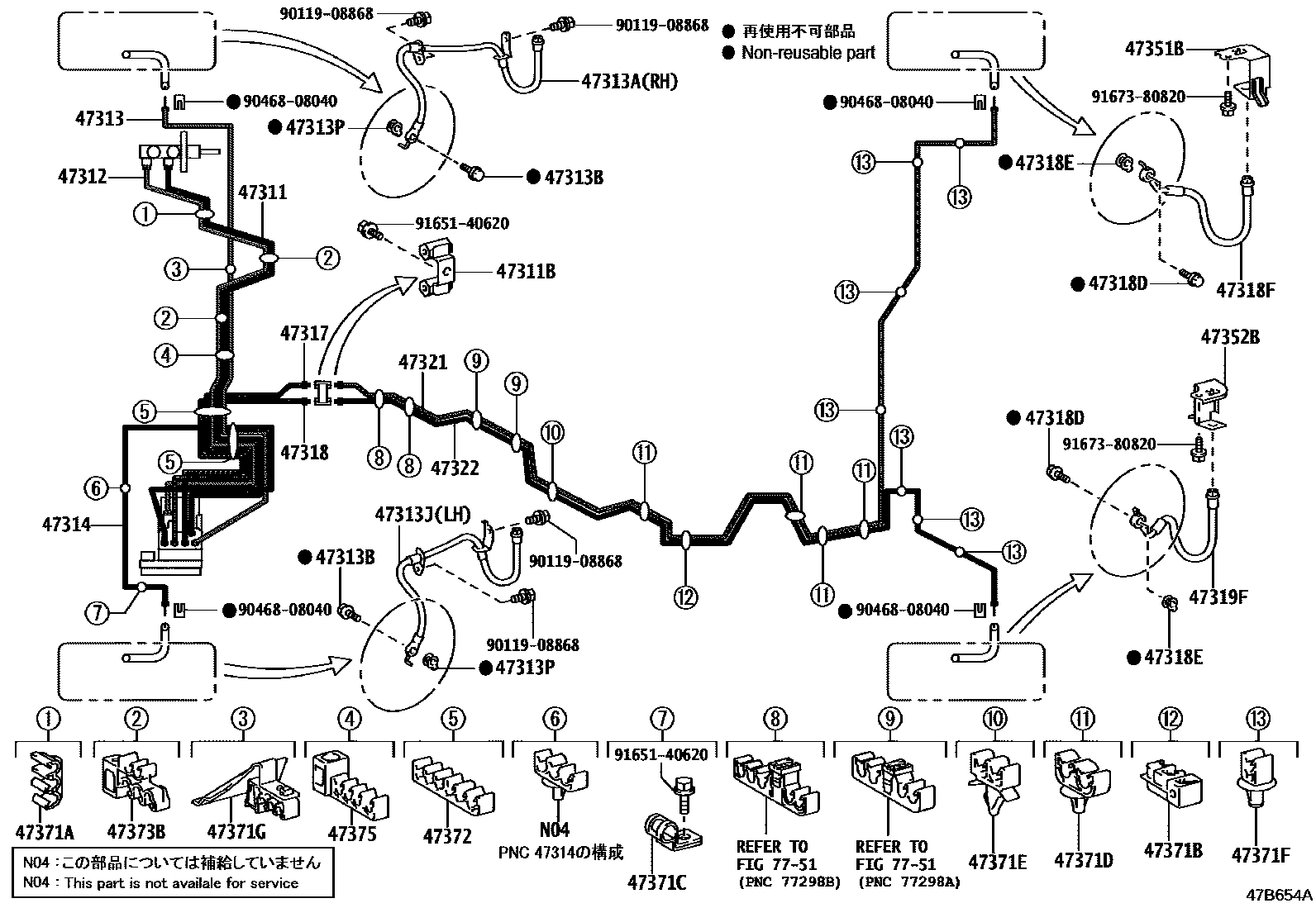

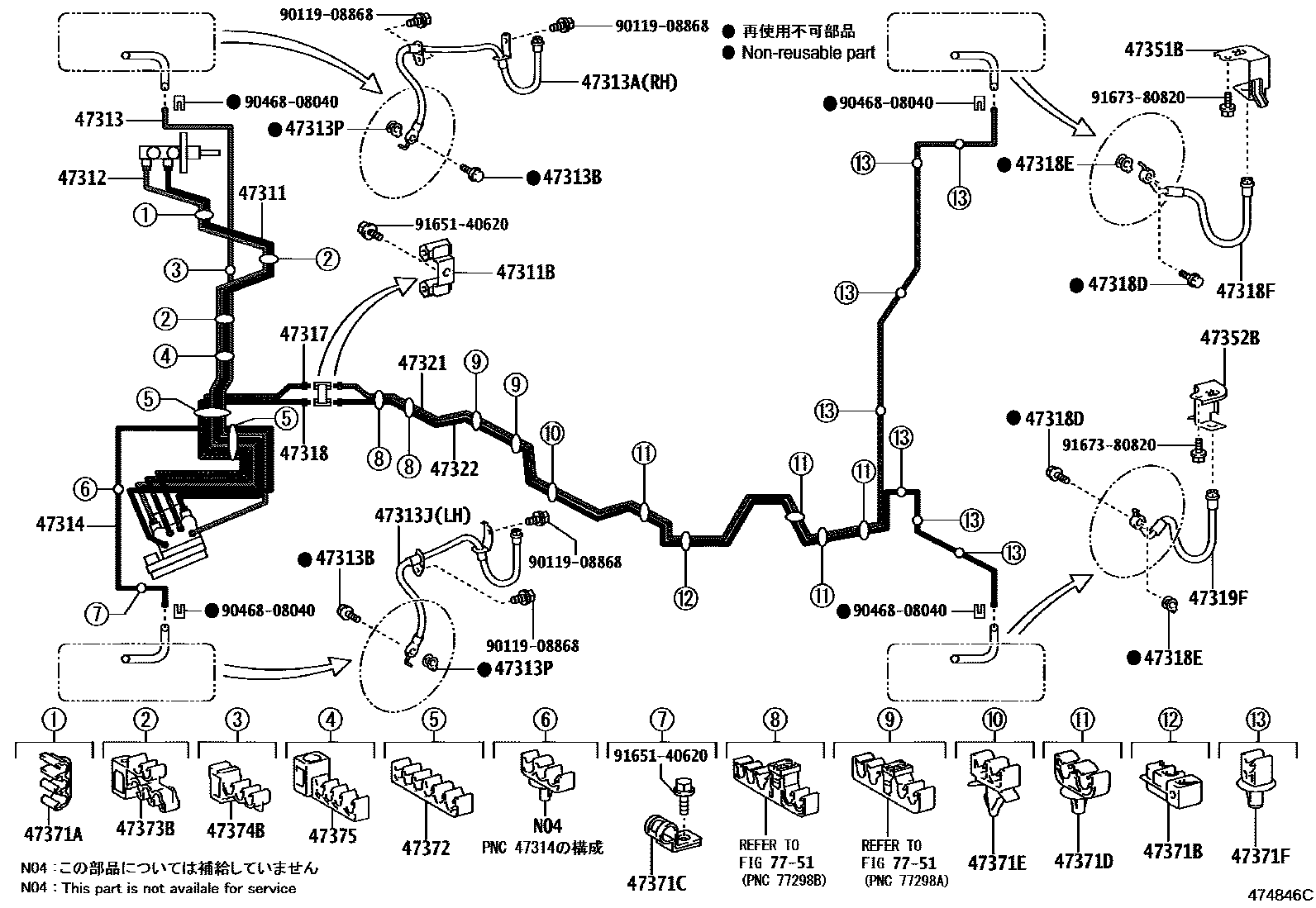

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 7 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

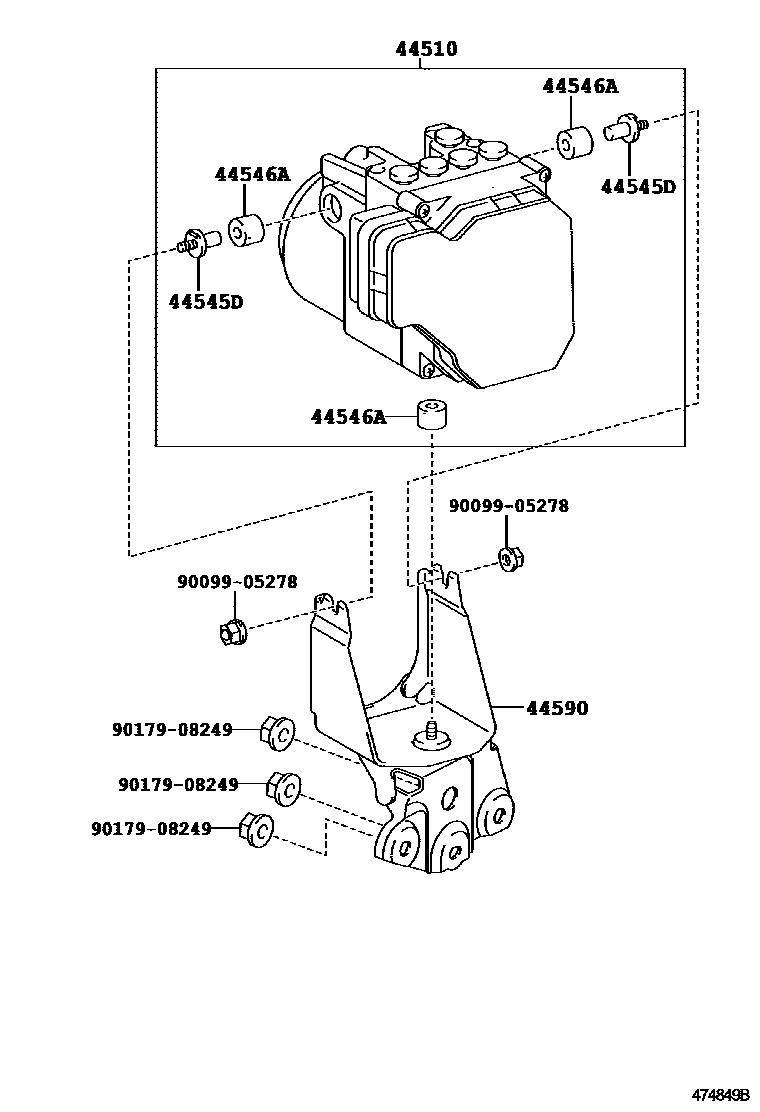

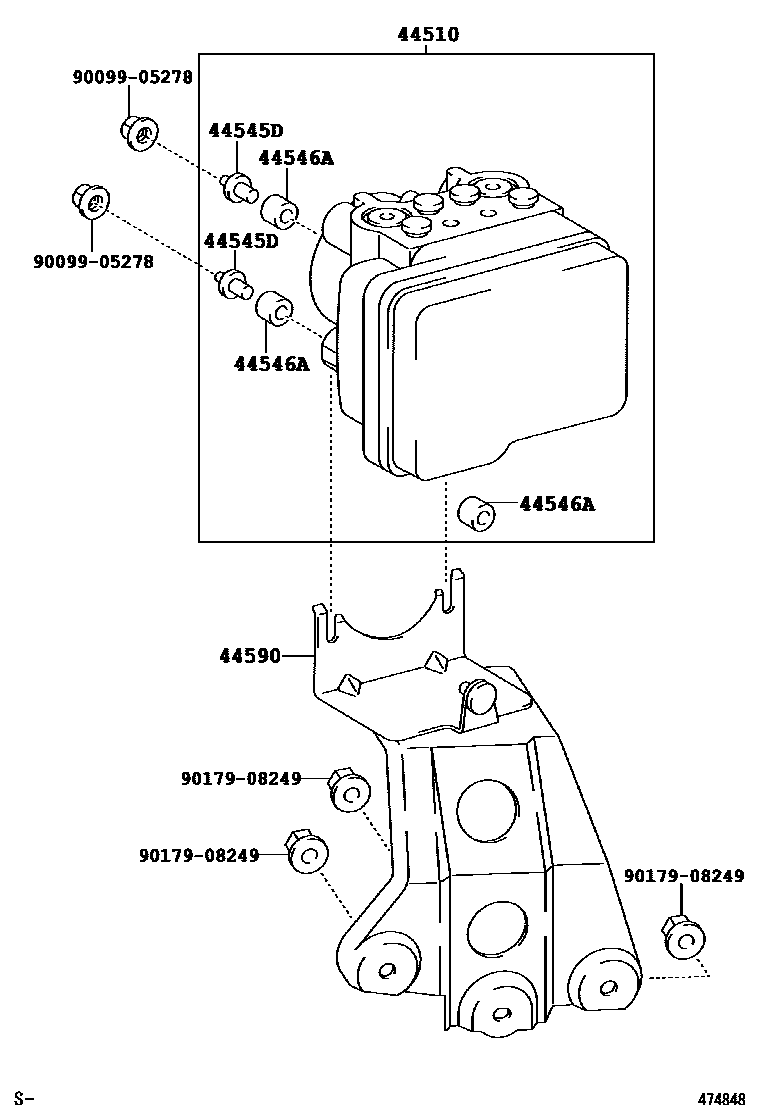

| 44510 | brake actuator assembly | 44050-42170 · 44050-42180 · 44050-42200 · 44050-42240 · 44050-42290 · 44050-42320 · 44050-42321 · 44050-42322 · 44050-42350 · 44050-42351 · 44050-42440 · 44050-42441 · 44050-42450 · 44050-42451 · 44050-42620 · 44050-42630 · 44050-42710 · 44050-42720 |
| 44545D | Brake actuator bolt mount | 44545-42070 · 44545-42090 |
| 44546A | Brake actuator bolt cushion | 44546-12110 · 44546-42090 · 44546-42130 |
| 44590 | Brake actuator bracket assembly | 44590-42100 · 44590-42110 |

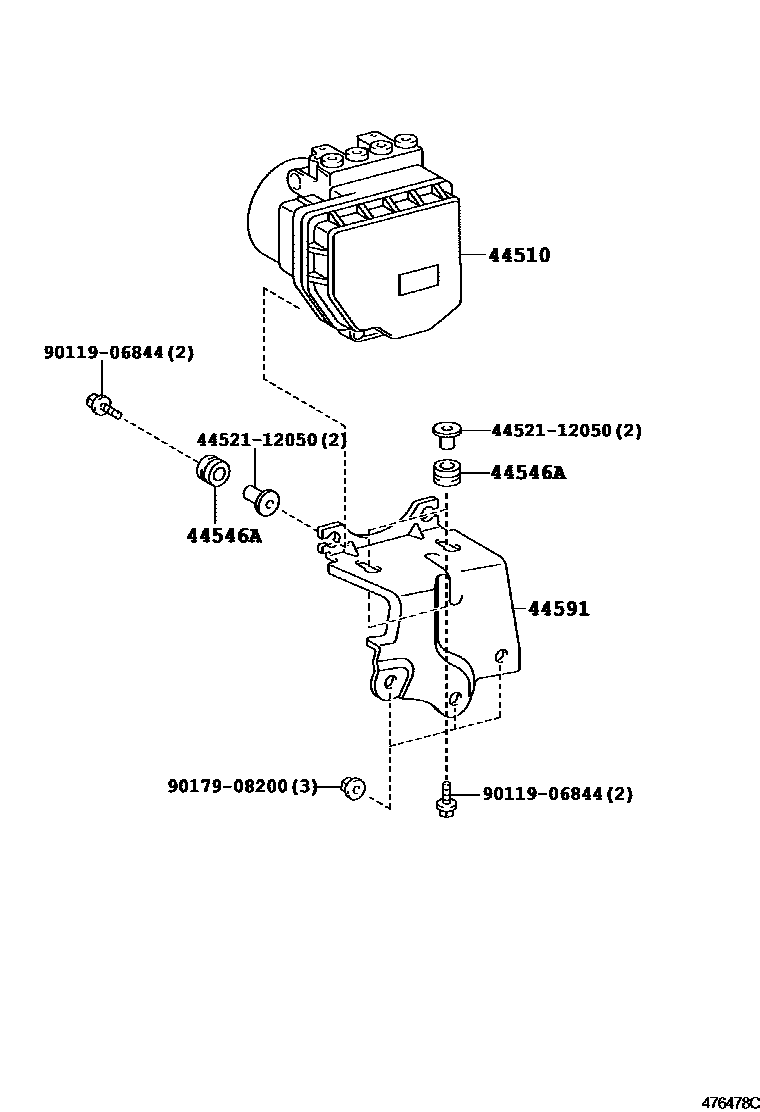

| 44591 | No. 1 brake actuator bracket | 44591-42060 |
| 47311 | No. 1 front brake pipe | 47311-42130 · 47311-42140 · 47311-42170 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-42300 · 47312-42310 · 47312-42340 |
| 47313 | No. 3 front brake pipe | 47313-42300 · 47313-42310 · 47313-42340 |
| 47313A | No. 1 front flexible hose | 90947-02E26 · 90947-02F47 · 90947-02F49 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E27 · 90947-02F48 · 90947-02F50 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-42161 · 47314-42171 · 47314-42180 |
| 47317 | No. 7 front brake pipe | 47317-42190 · 47317-42200 · 47317-42210 |
| 47318 | No. 8 front brake pipe | 47318-42190 · 47318-42200 · 47318-42210 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E58 · 90947-02F51 · 90947-02G79 |
| 47319F | Left rear flexible hose | 90947-02E59 · 90947-02F52 · 90947-02G80 |
| 47321 | No. 1 rear brake pipe | 47321-42140 · 47321-42150 |
| 47322 | No. 2 rear brake pipe | 47322-42130 · 47322-42140 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-42071 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-42071 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371B | No. 6 brake pipe clamp | 77299-32030 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 |
| 47371D | No. 8 brake pipe clamp | 90469-07020 |
| 47371E | No. 9 brake pipe clamp | 90469-07019 |
| 47371F | No. 10 brake pipe clamp | 90949-01D29 |
| 47371G | No. 11 brake pipe clamp | 47371-42110 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 |
| 47373B | No. 3 brake pipe clamp | 90949-01C19 |
| 47374B | No. 4 brake pipe clamp | 90949-01D05 |
| 47375 | No. 5 brake pipe clamp | 90949-01D44 |
