Toyota RAV4 Brake Pedal & Bracket — Figure 4701

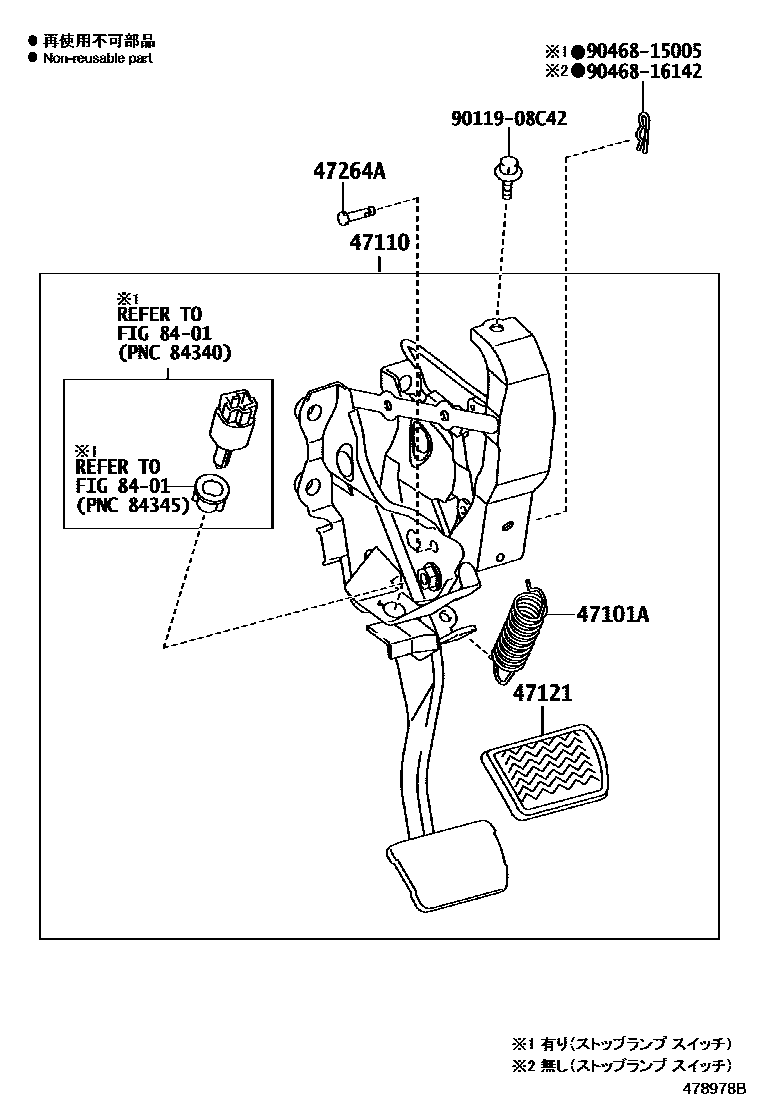

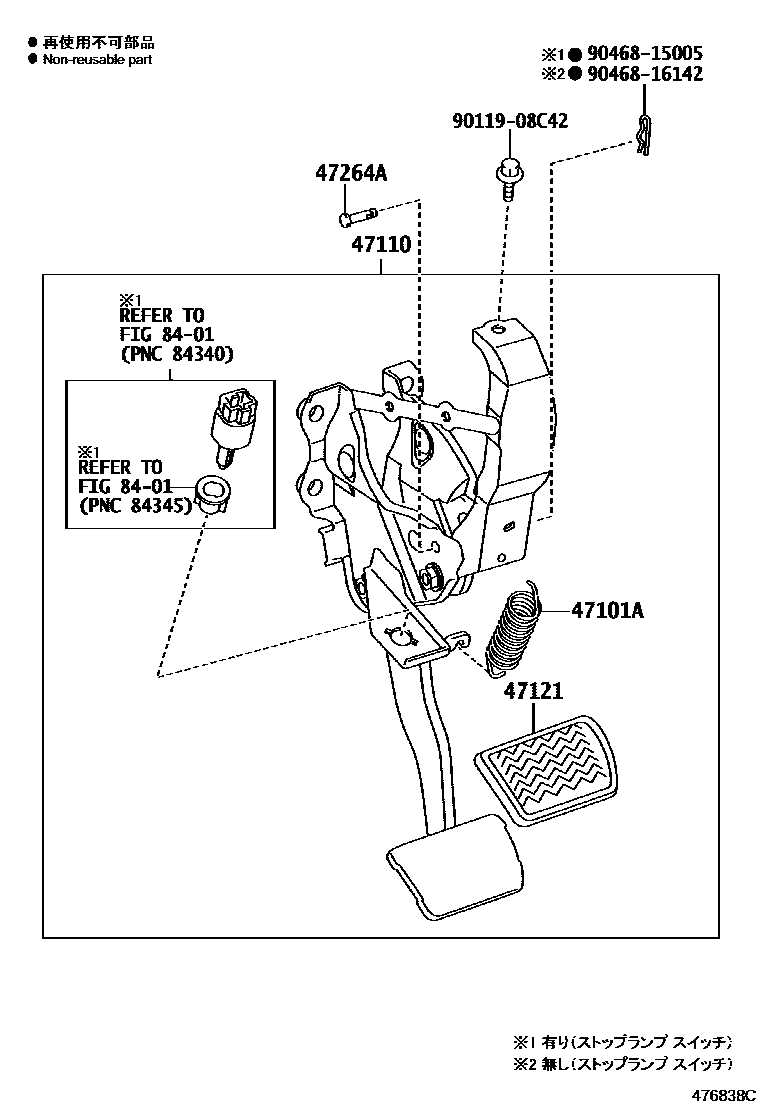

Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 47146-42010 · 47146-42030 · 47146-78010 |
| 47110 | Brake pedal bracket assembly | 47110-42150 · 47110-42151 · 47110-42160 · 47110-42161 · 47110-42162 · 47110-42163 |
| 47121 | brake pedal pad | 47121-42010 |
| 47264A | Pin (for push rod) | 90249-06180 · 90249-08051 · 90249-08256 |
