Toyota RAV4 Steering Wheel — Figure 4504

Toyota RAV4 EPC diagram 4504, Steering Wheel, with 3 images and 5 PNC and OE references.

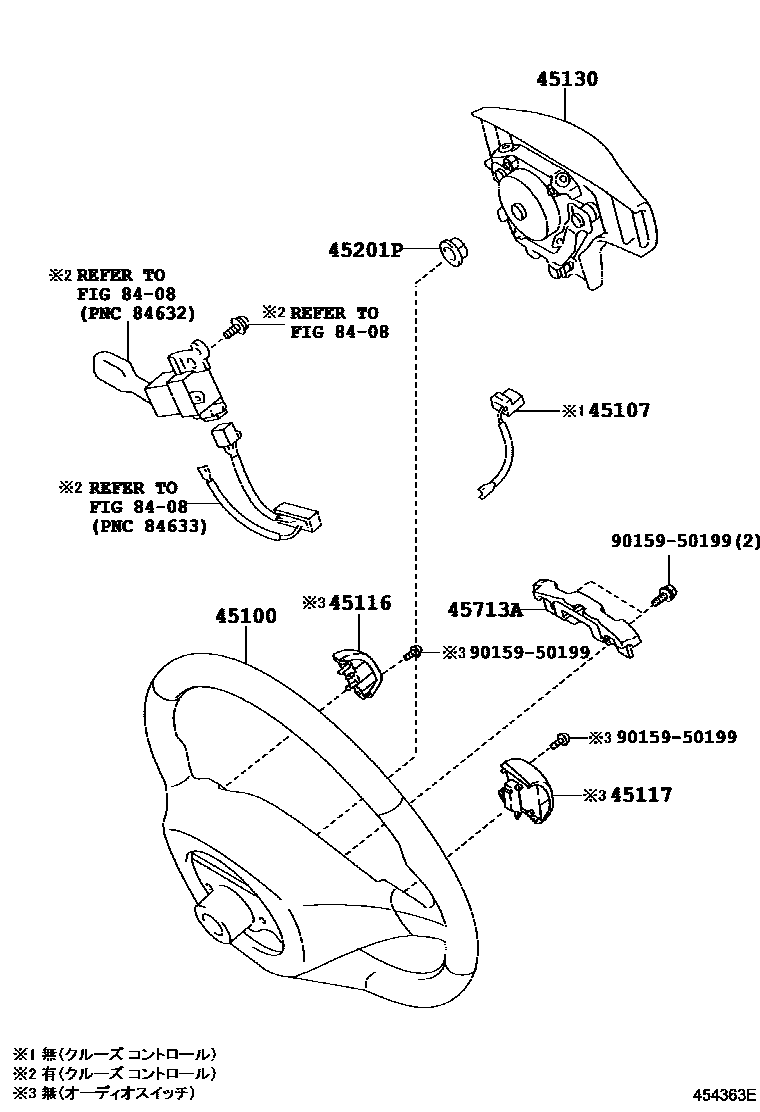

Toyota RAV4 Steering Wheel EPC diagram — 454363E
Steering Wheel — 454363E (200511 – 999999)

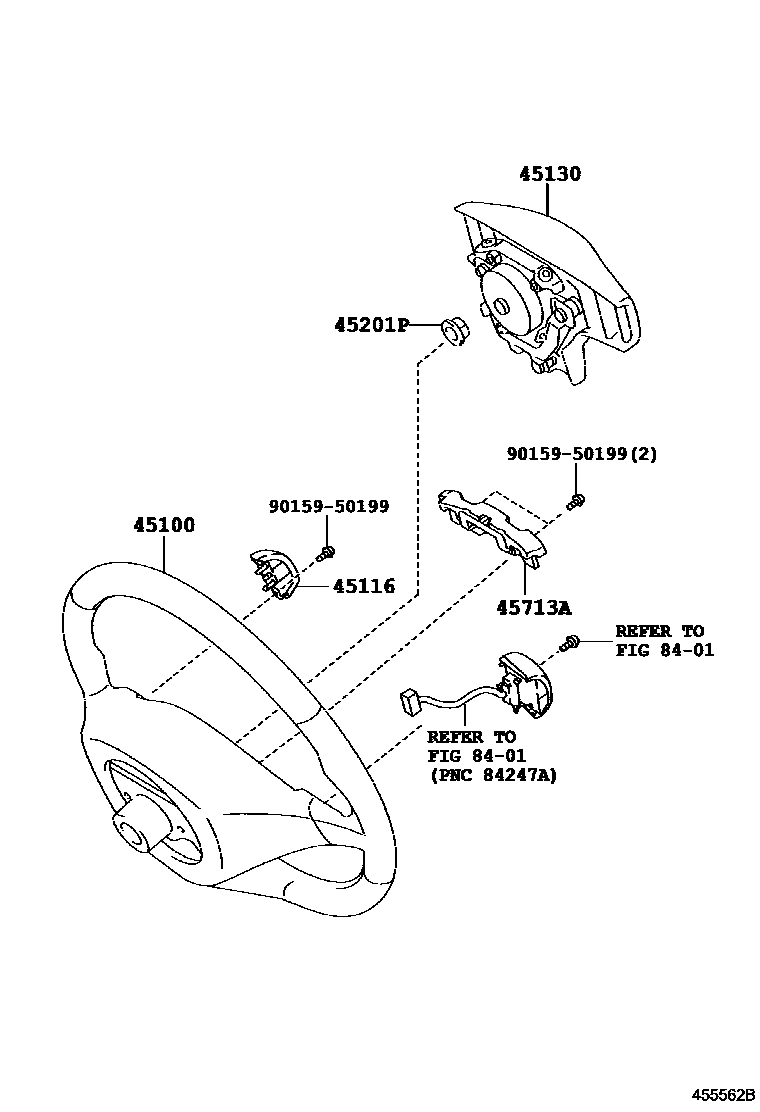

Toyota RAV4 Steering Wheel EPC diagram — 455562B
Steering Wheel — 455562B (201002 – 999999)

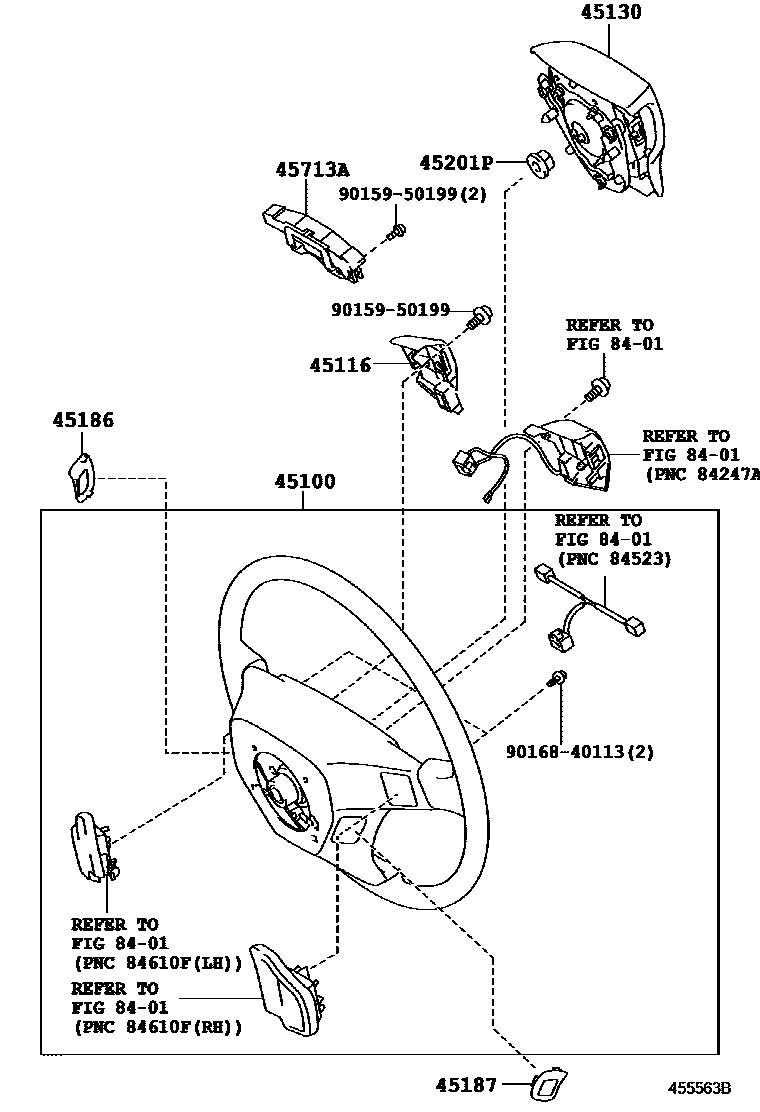

Toyota RAV4 Steering Wheel EPC diagram — 455563B
Steering Wheel — 455563B (201002 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-52010
45116No. 1 steering wheel decorative parts45116-42020
45117No. 2 steering wheel decorative parts45117-42020
45201PSteering wheel fixing nut90179-12071
45713Asteering damper45713-12110 · 45713-33190
