Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 4 images and 6 PNC and OE references.
PNC and OE references

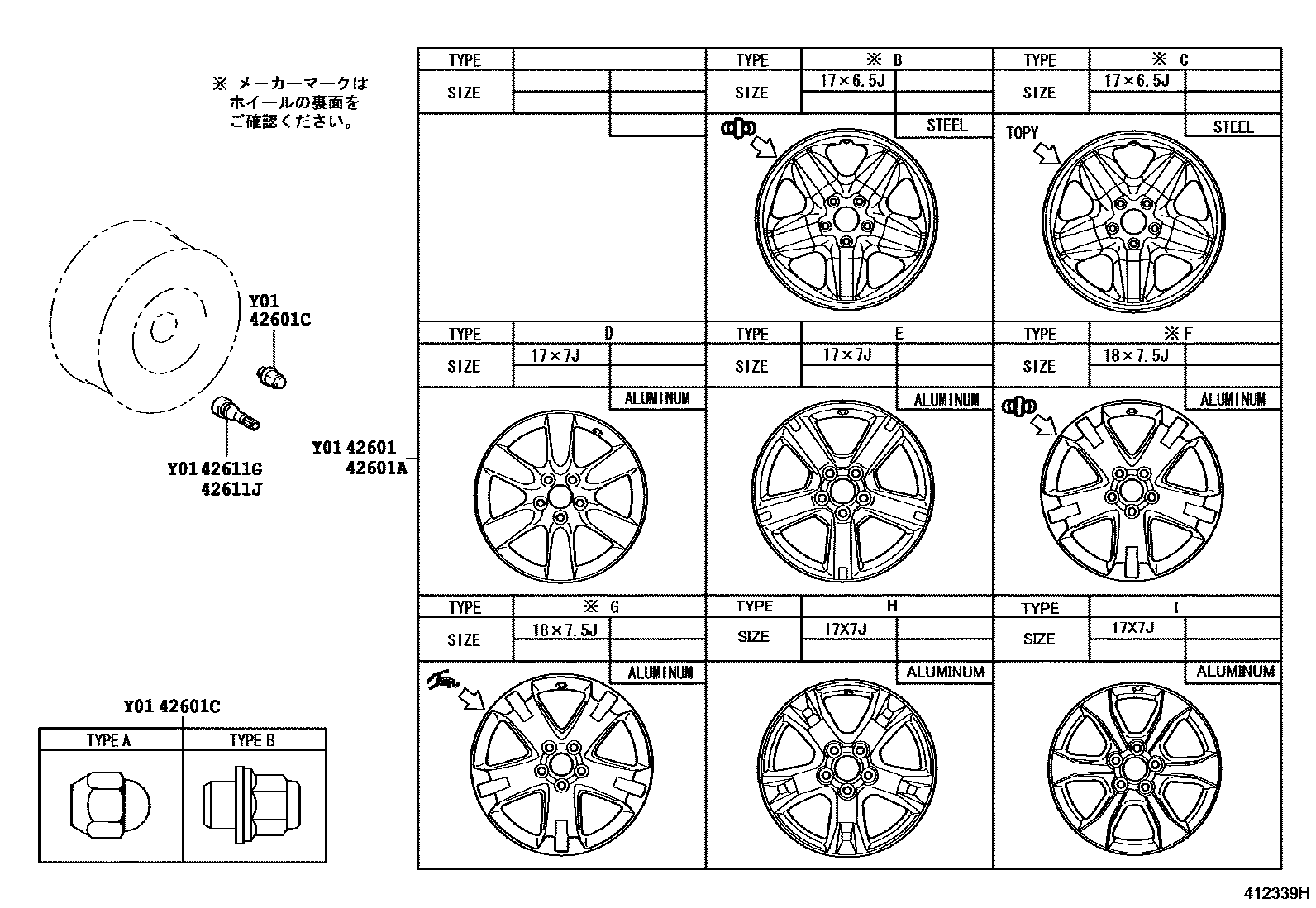

| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-42190 · 42611-42191 · 42611-42200 · 42611-42210 · 42611-42220 · 42611-42230 · 42611-42240 · 42611-42320 · 42611-42330 · 42611-42370 · 42611-42390 · 42611-42400 · 42611-42480 · 42611-42490 |
| 42601A | Spoke wheel (for spare tire) | 42611-42190 · 42611-42200 · 42611-42210 · 42611-42220 · 42611-42230 · 42611-42240 · 42611-42320 · 42611-42330 · 42611-42370 · 42611-42390 · 42611-42400 · 42611-42480 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 |

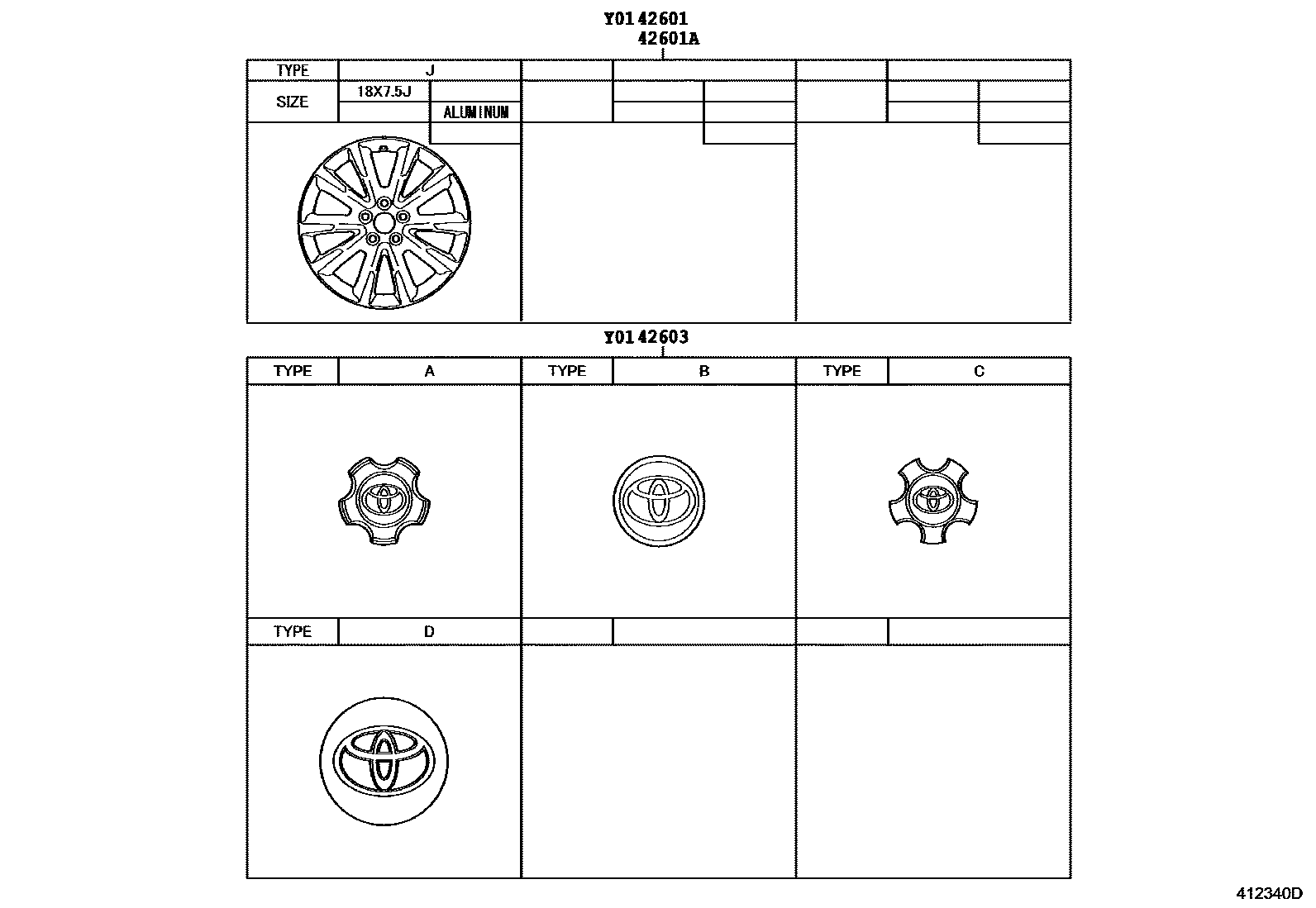

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12730 · 42603-42100 · 42603-42110 · 42603-42120 · 4260B-42010 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
