Toyota RAV4 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

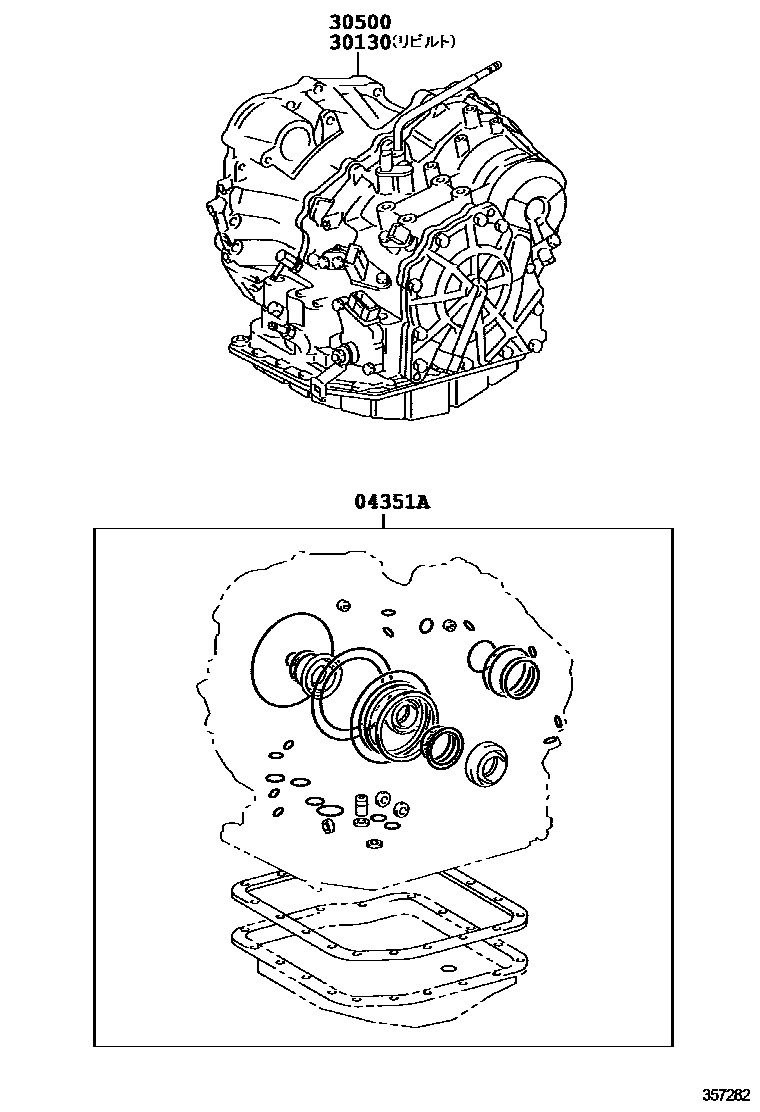

Toyota RAV4 EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-42080 · 04351-42130 |
| 30130 | Refurbished transmission axle assembly | 30130-42201 · 30130-42202 |
| 30500 | Automatic transmission axle assembly | 30500-42201 · 30500-42202 |
