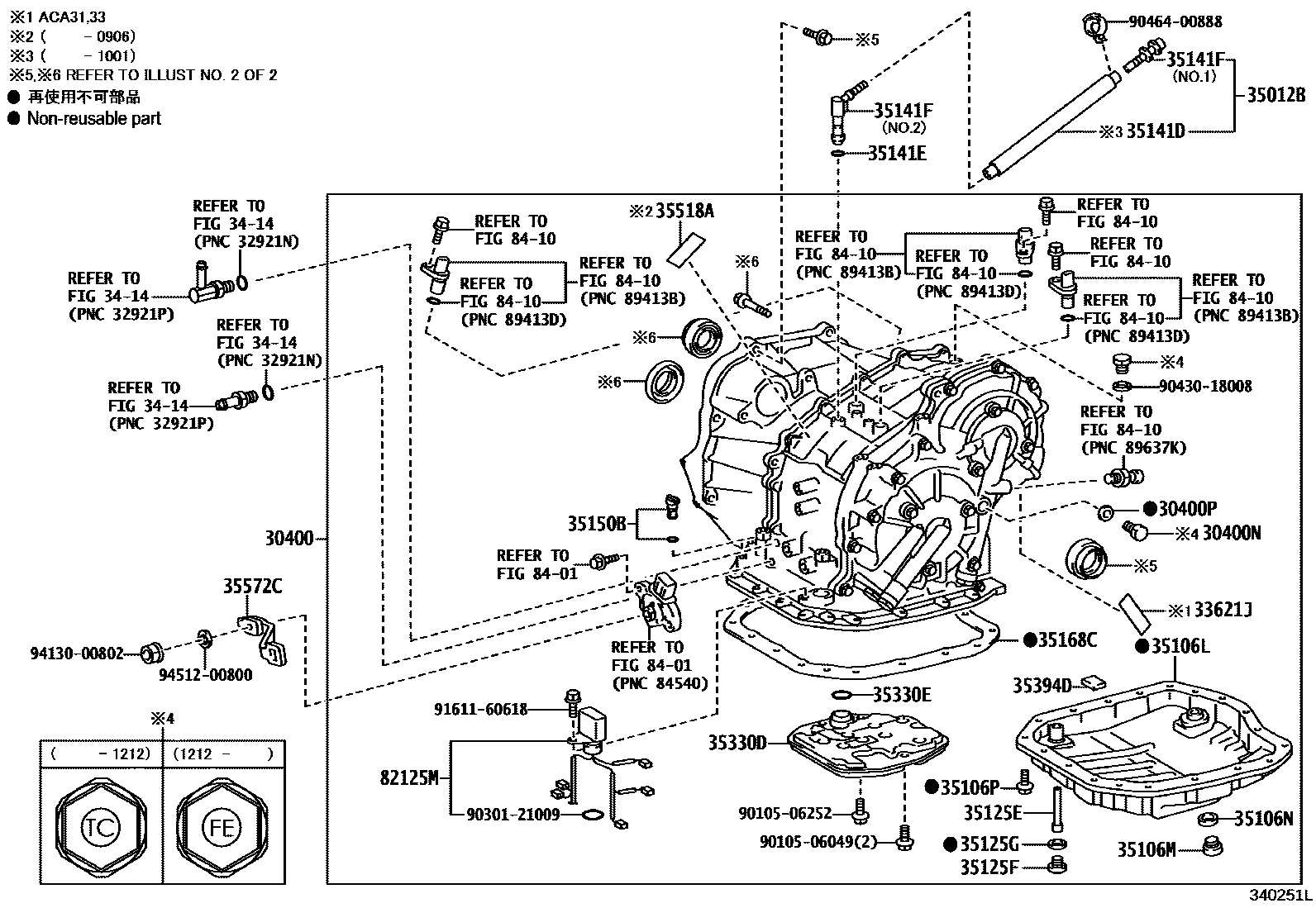

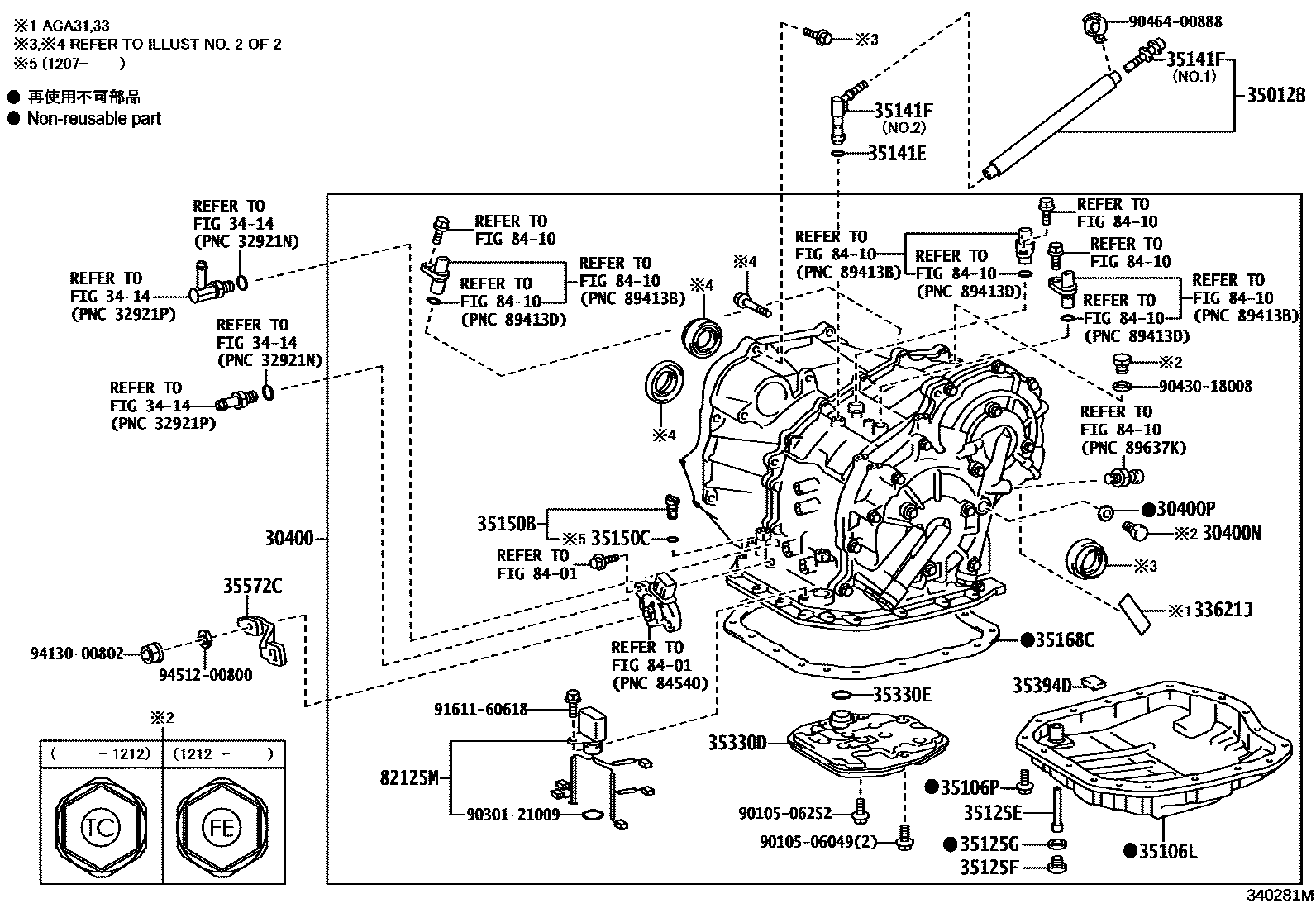

Toyota RAV4 传动桥总成(CVT) — Figure 3401
Toyota RAV4 EPC diagram 3401, 传动桥总成(CVT), with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

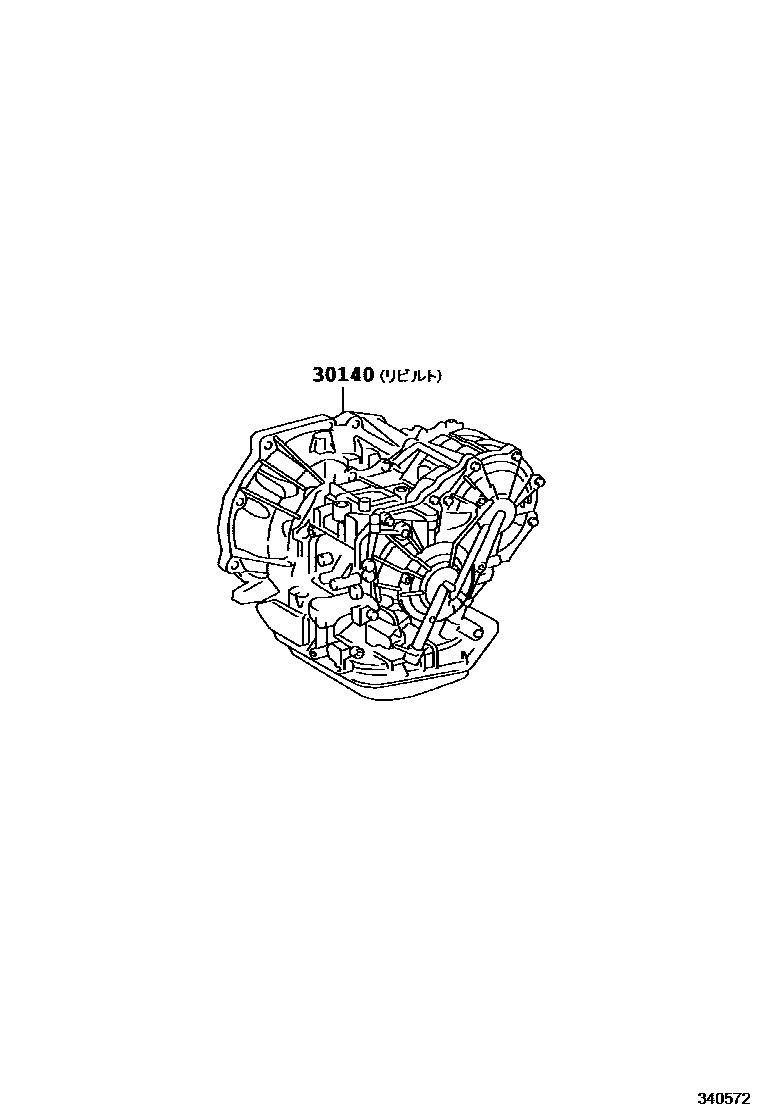

| 30140 | Refurbished continuously variable transmission axle assembly (without torque converter) | 30140-42010 · 30140-42011 · 30140-42012 · 30140-72010 · 30140-72011 · 30140-72012 |
| 30400 | Continuously variable transmission axle assembly | 30400-42010 · 30400-42011 · 30400-42020 · 30400-49005 · 30400-72010 · 30400-72011 · 30400-79005 |

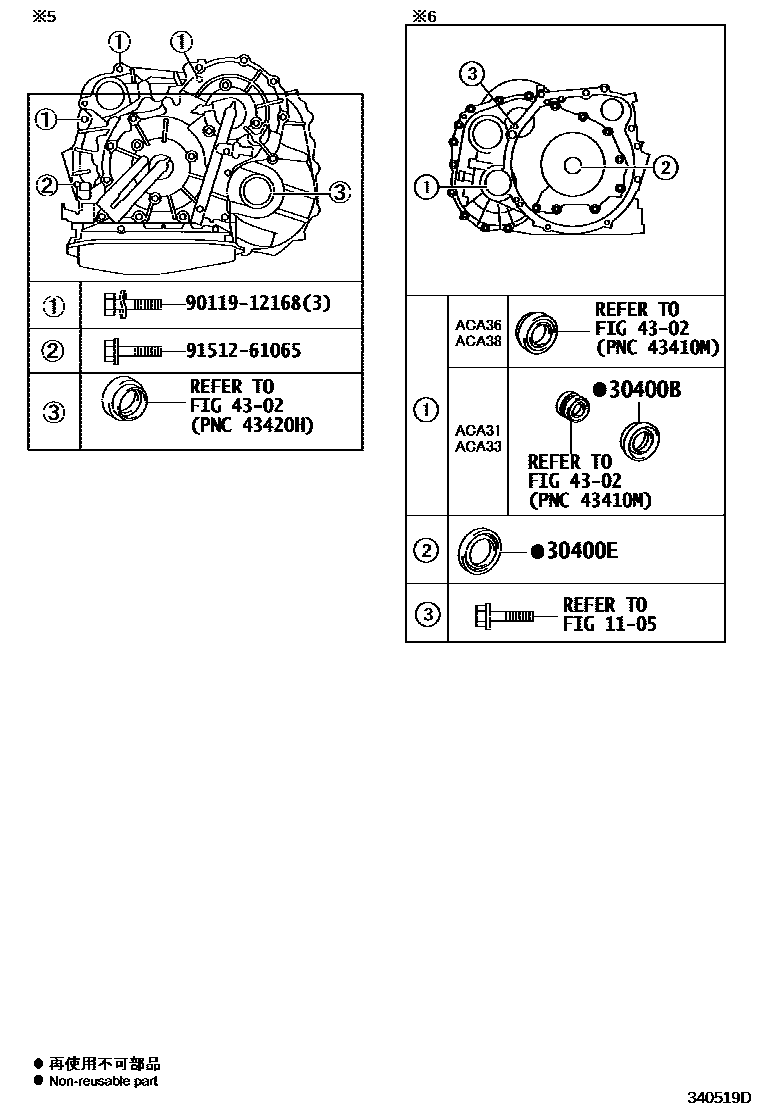

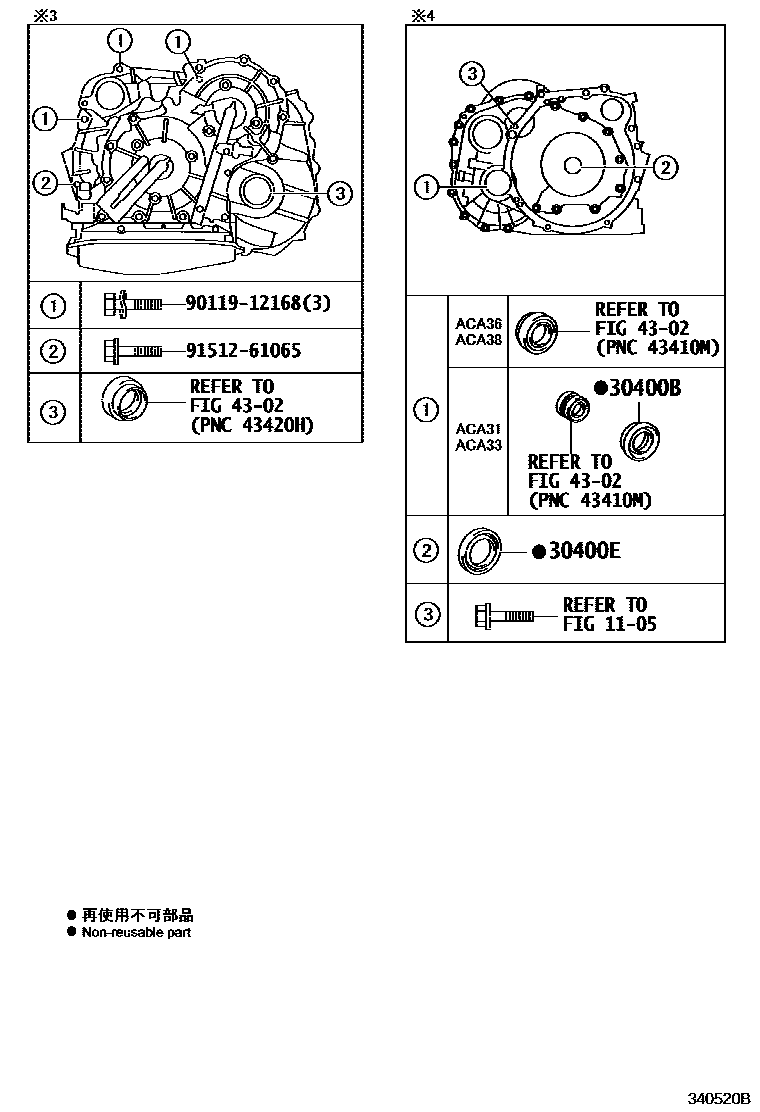

| 30400B | No. 1 T-type oil seal (for CVT) | 90311-49002 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45025 · 90311-45027 |
| 30400N | Toyota part | 90341-18061 · 90341-18077 |
| 30400P | Toyota part | 90430-18008 |
| 33621J | Transaxle oil information label | 33621-12150 · 33621-28021 |
| 35012B | Transmission breather hose sub-assembly | 3510A-44010 · 3510A-44011 · 3510A-44012 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-44020 · 35106-44021 · 35106-44022 · 35106-44023 · 35106-44024 |
| 35106M | Drain plug sub-assembly (CVT) | 90341-18016 |
| 35106N | Drain plug gasket (CVT) | 90430-18008 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125E | Toyota part | 35125-44070 · 35125-44071 |
| 35125F | Toyota part | 90341-12034 |
| 35125G | Toyota part | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-63010 |
| 35141E | O-ring (for breather plug) | 90301-06005 · 90301-06021 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03164 |
| 35150B | gearbox plug assembly | 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-20010 · 35168-63010 |
| 35330D | Toyota part | 35330-0W040 |
| 35330E | Toyota part | 90301-24013 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 |
| 35518A | No. 2 automatic transmission axle information label | 35518-63010 |
| 35572C | transmission control lever | 35572-42030 |
| 82125M | Transmission wiring harness | 82125-44020 |
