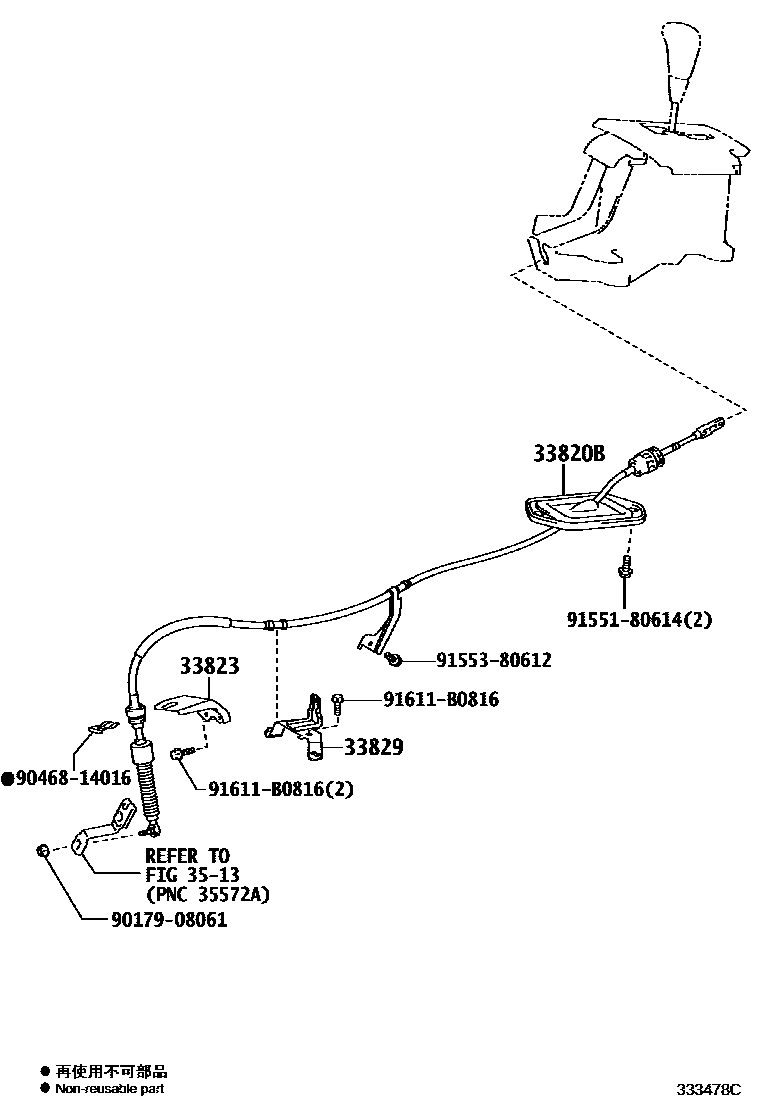

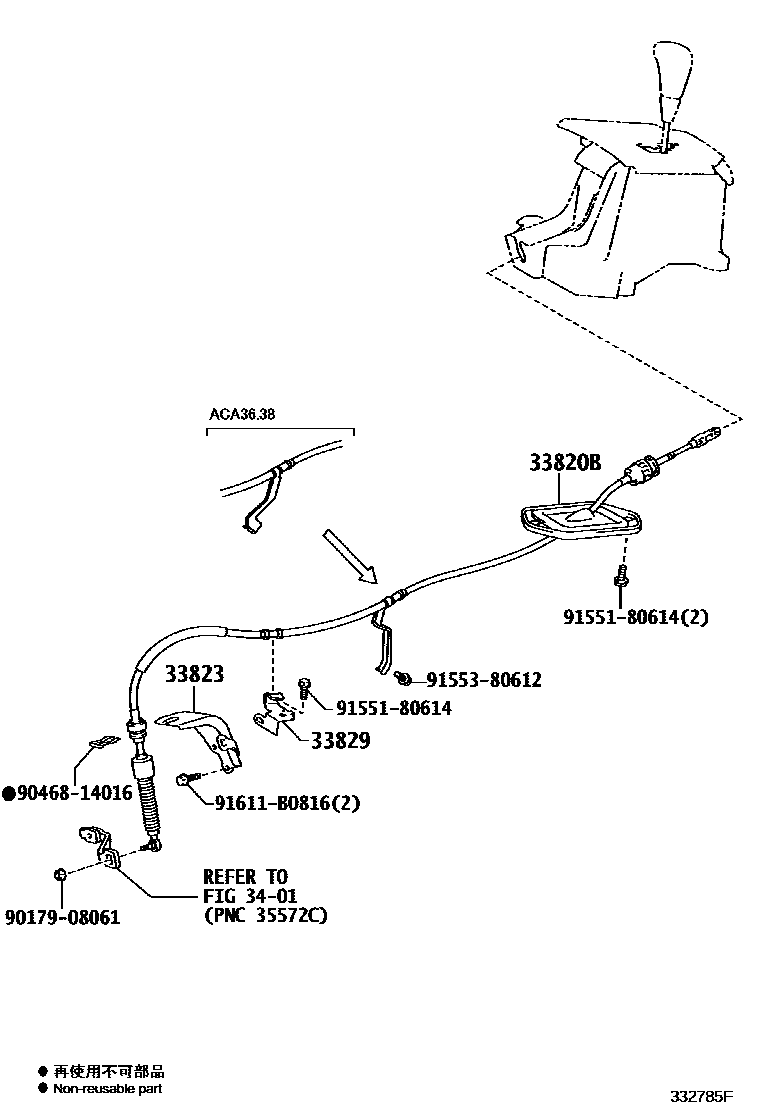

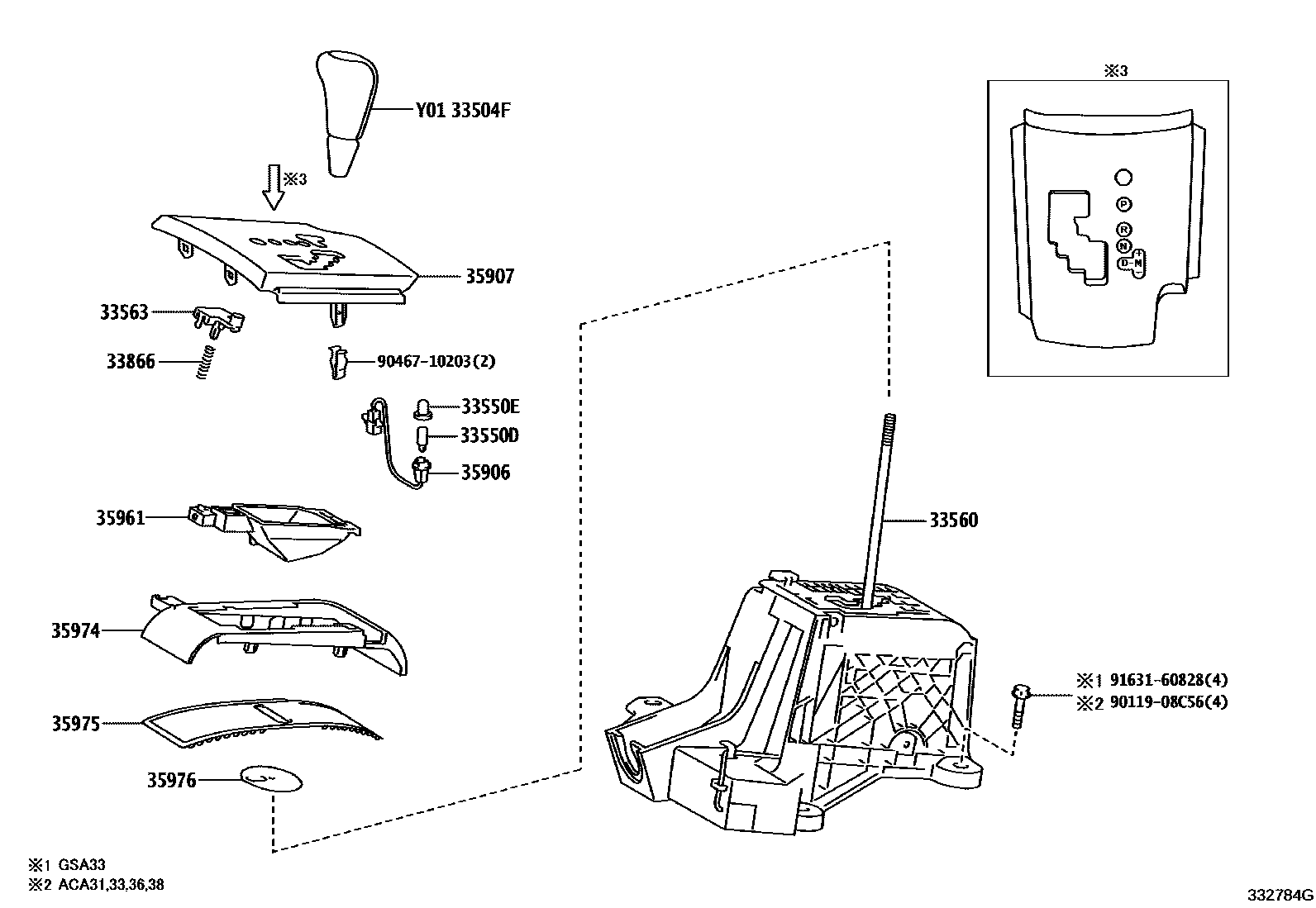

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550D | position indicator light bulb | 90981-11018 · 90981-30001 |
| 33550E | position indicator cover | 90339-04071 |
| 33560 | Shift lock control unit assembly | 33560-42050 · 33560-42080 |
| 33563 | Shift lock release button | 33563-42070 · 33563-42080 |
| 33820B | Transmission control cable assembly | 33820-42270 · 33820-42300 · 33820-42310 · 33820-42390 · 33820-42400 |
| 33823 | No. 1 transmission control cable bracket | 33823-42020 · 33823-42030 |
| 33829 | Transmission control cable bracket | 33829-42040 · 33829-42050 |
| 33866 | Shift lock release spring | 33866-33010 · 33866-42010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-42050 · 35906-42060 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-42050 · 35907-42051 · 35907-42060 · 35907-42100 · 35907-42101 · 35907-42110 · 35907-42111 |
| 35961 | position indicator housing | 35961-42020 · 35961-42030 |
| 35974 | Position indicator light lower shell | 33560-42070 · 33560-42071 |
| 35975 | Slide cover (for position indicator light) | 35975-42030 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-42010 · 35976-42011 |
