Toyota RAV4 点火线圈和火花塞 — Figure 1901

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.

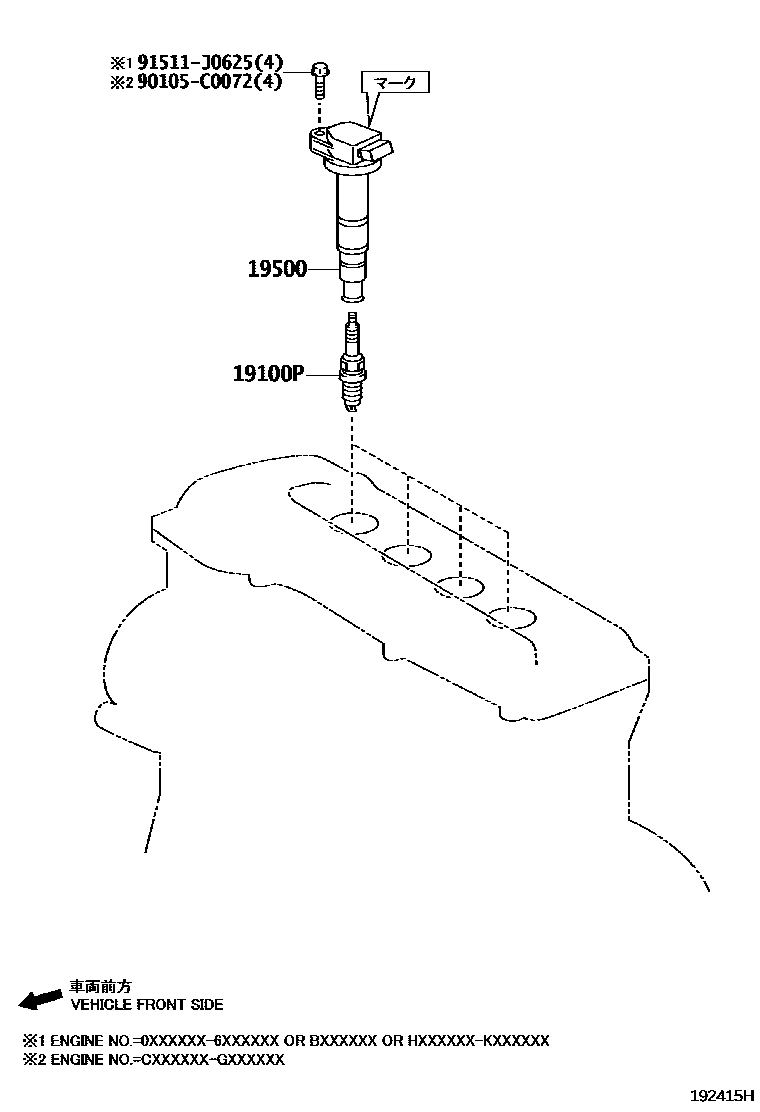

Toyota RAV4 点火线圈和火花塞 EPC diagram — 192415H
点火线圈和火花塞 — 192415H (200511 – 999999)

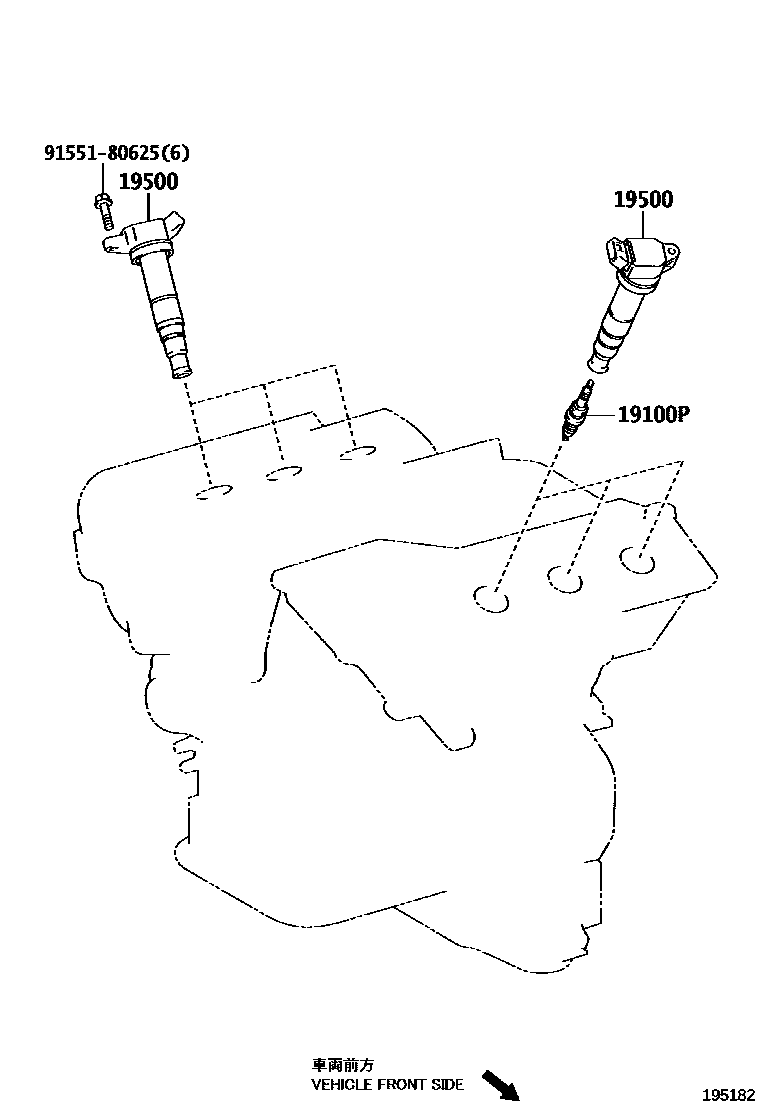

Toyota RAV4 点火线圈和火花塞 EPC diagram — 195182
点火线圈和火花塞 — 195182 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01237 · 90919-01240 · 90919-01247 · 90919-T1007
19500Ignition coil assembly90919-02244 · 90919-02248 · 90919-02251 · 90919-02255 · 90919-02266 · 90919-C2002 · 90919-C2006 · 90919-T2005
