Toyota RAV4 Air Cleaner — Figure 1703

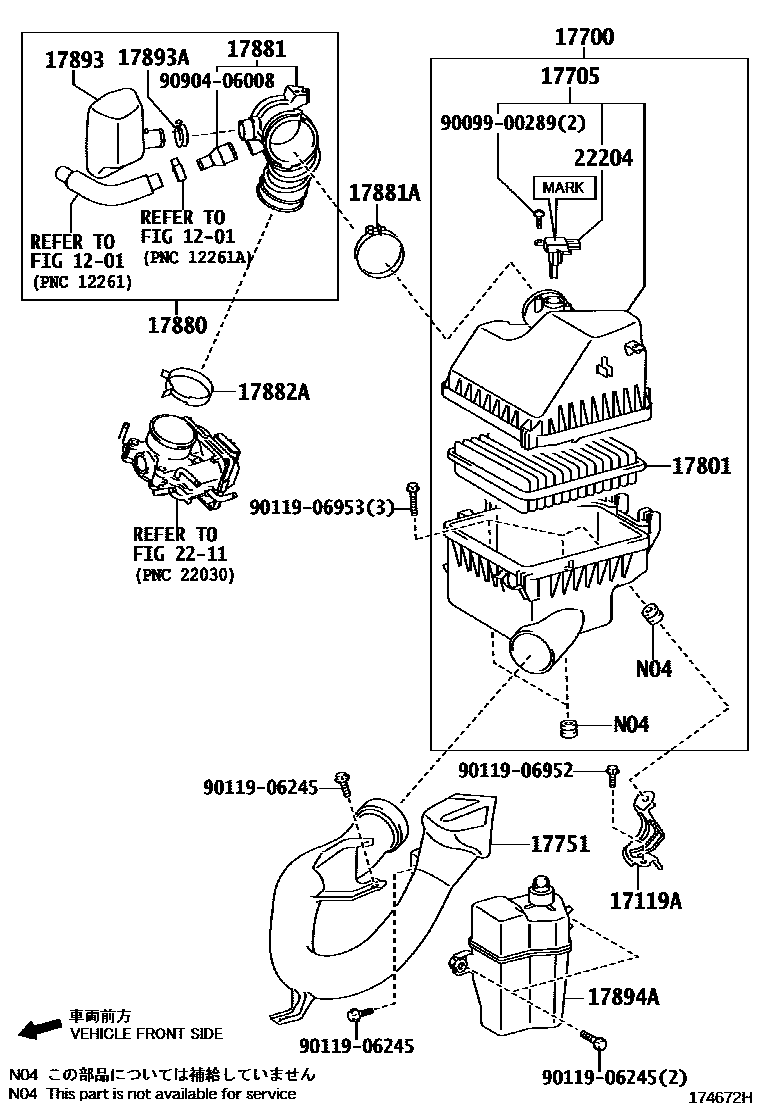

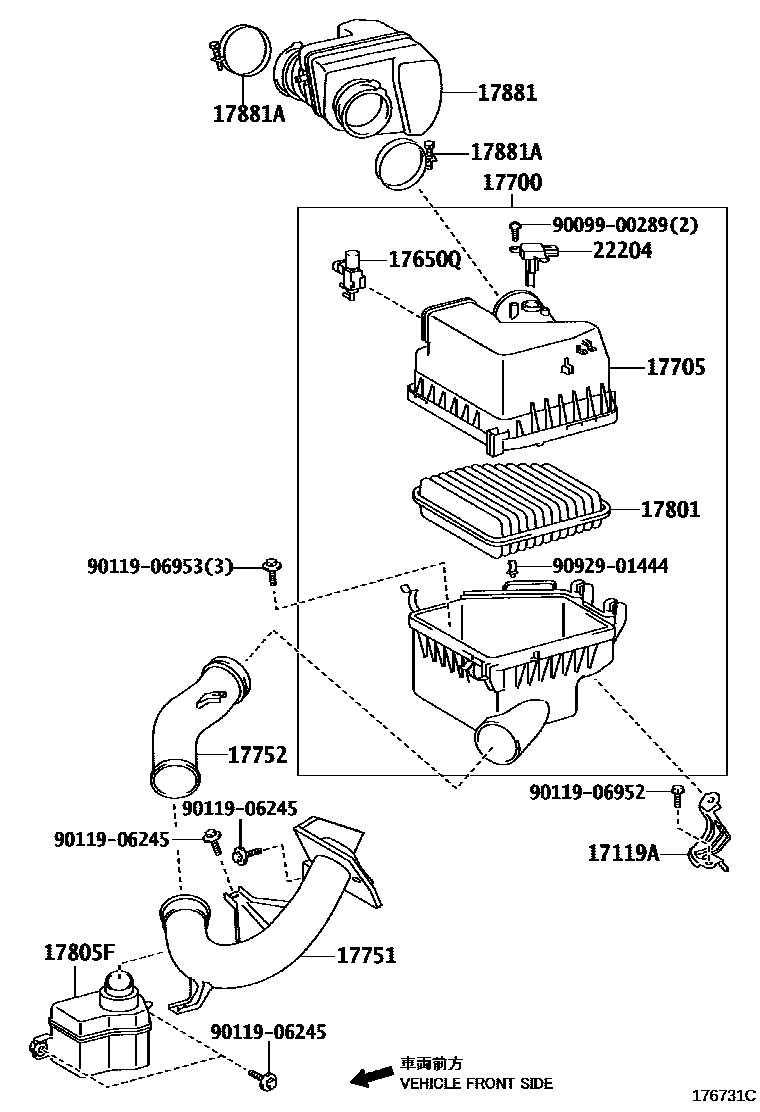

Toyota RAV4 EPC diagram 1703, Air Cleaner, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-28070 |
| 17650Q | Vacuum switch valve | 90910-12088 |
| 17700 | air filter assembly | 17700-28300 · 17700-28301 · 17700-28302 · 17700-31622 · 17700-31623 |
| 17705 | Air filter cover sub-assembly | 17705-28250 · 17705-28251 · 17705-28252 · 17705-31171 · 17705-31172 |
| 17751 | No. 1 air filter air inlet | 17751-28060 · 17751-31210 |
| 17752 | No. 2 air filter air inlet | 17752-31030 |
| 17801 | Air filter element sub-assembly | 17801-31120 |
| 17805F | Intake resonator sub-assembly | 17894-31030 |
| 17880 | Air cleaner hose assembly | 17880-28240 |
| 17881 | No. 1 air cleaner hose | 17880-31090 · 17881-28260 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 · 96111-10900 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-28060 |
| 17893A | hose clamp | 96111-10380 |
| 17894A | No. 2 intake resonator | 17894-28110 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T010 · 22204-31010 · 22204-31020 |
