Toyota RAV4 Exhaust Pipe — Figure 1702

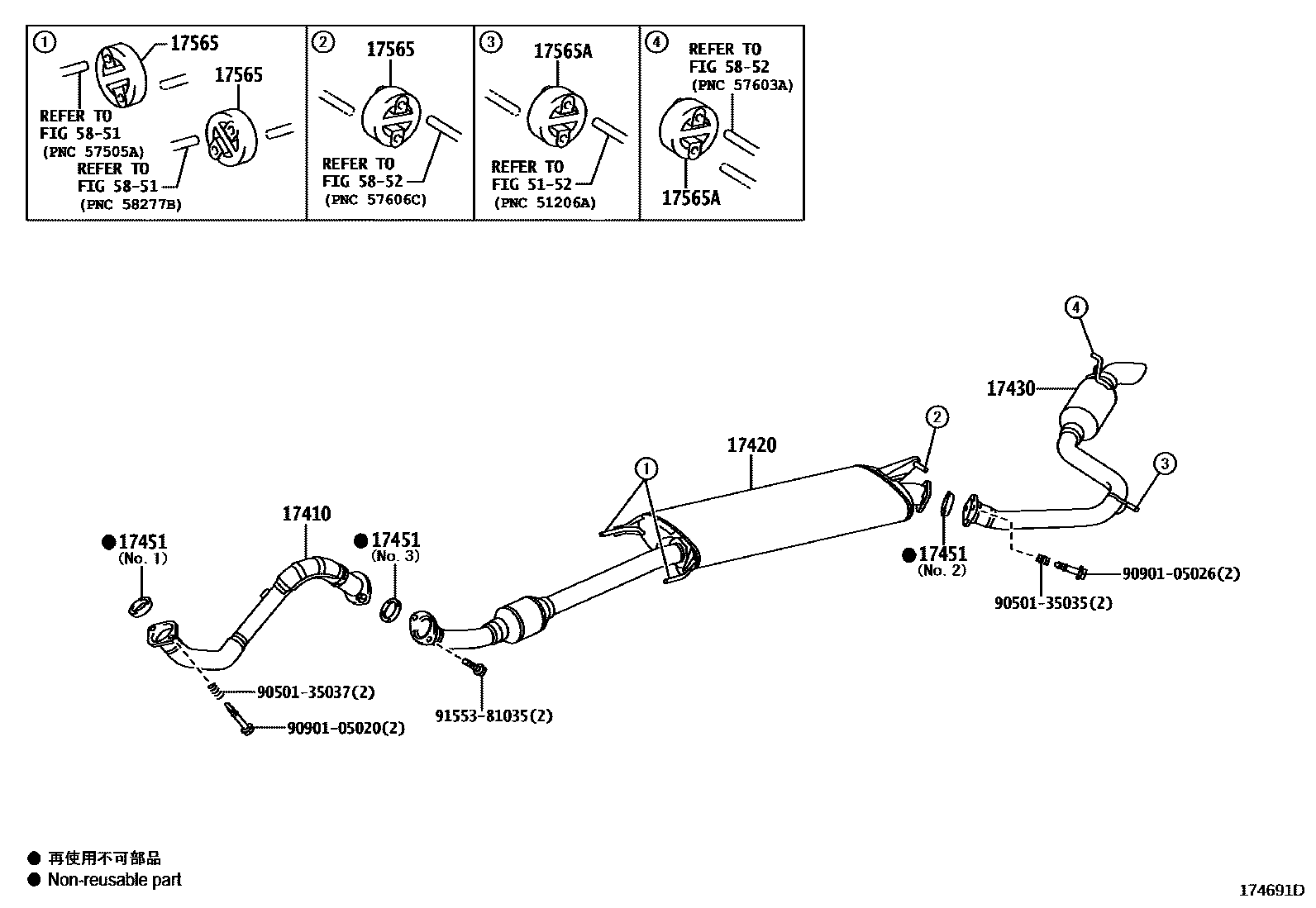

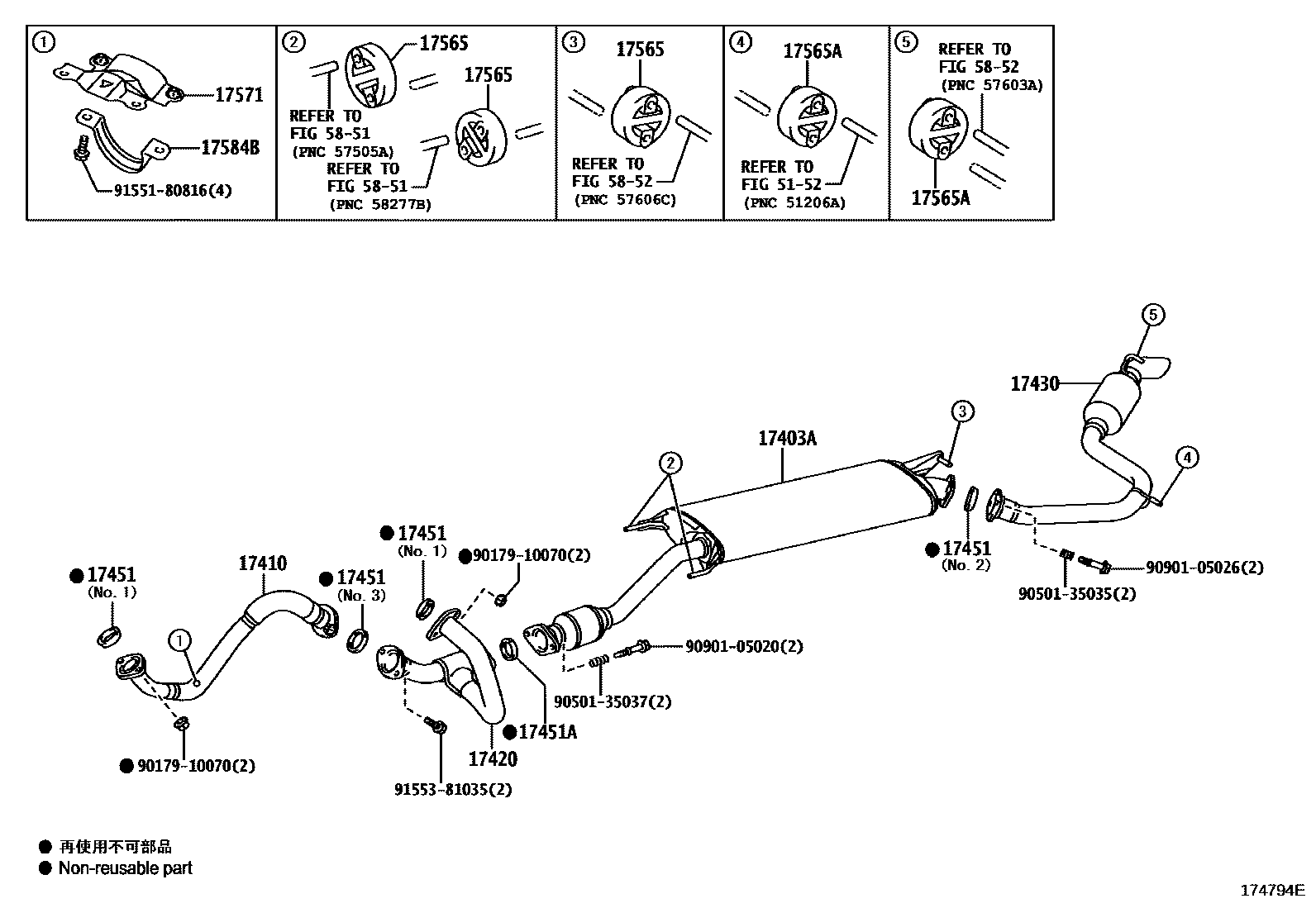

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17403A | No. 2 central exhaust pipe sub-assembly | 17404-31100 · 17404-31101 · 17404-31102 |
| 17410 | Front exhaust pipe assembly | 17410-28580 · 17410-28581 · 17410-28582 · 17410-28583 · 17410-31610 · 17410-31611 |
| 17420 | Central exhaust pipe assembly | 17403-31050 · 17403-31051 · 17420-28620 · 17420-28710 · 17420-28B00 · 17420-28B01 · 17420-28B02 |
| 17430 | Exhaust tailpipe assembly | 17430-28760 · 17430-28761 · 17430-28762 · 17430-28770 · 17430-28771 · 17430-28773 · 17430-28774 · 17430-31510 · 17430-31511 · 17430-31513 · 17430-31514 · 17430-37370 · 17430-37371 · 17430-37372 · 17430-37373 |
| 17451 | Exhaust pipe gasket | 17451-28050 · 17451-28070 · 17451-31010 · 17451-31011 · 17451-31012 · 90917-06078 · 90917-06089 |
| 17451A | No. 2 exhaust pipe gasket | 17451-28040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22030 |
| 17571 | No. 1 exhaust pipe bracket | 17571-31190 |
| 17584B | No. 1 exhaust pipe bracket | 17584-31040 |
