Toyota RAV4 Manifold — Figure 1701

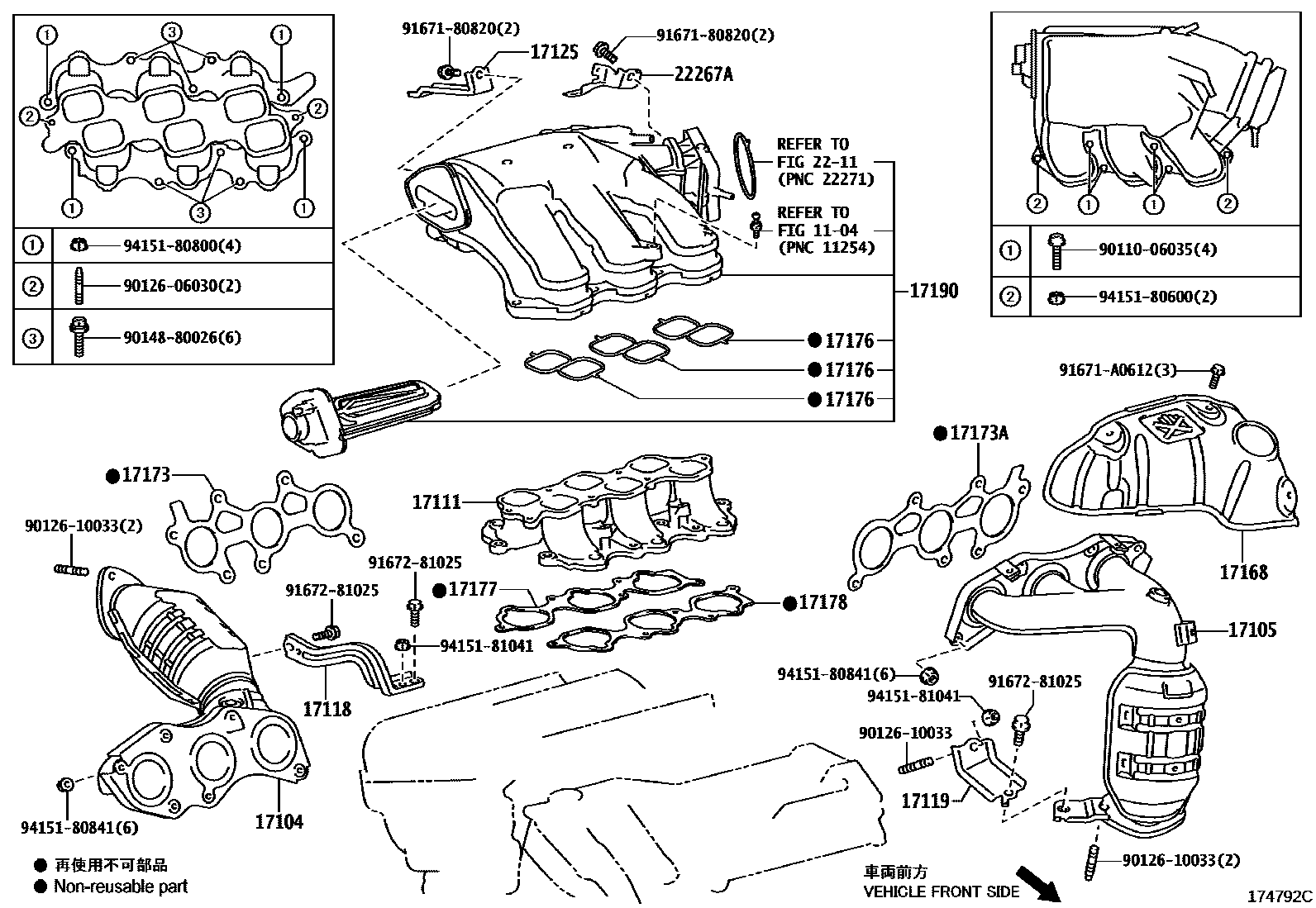

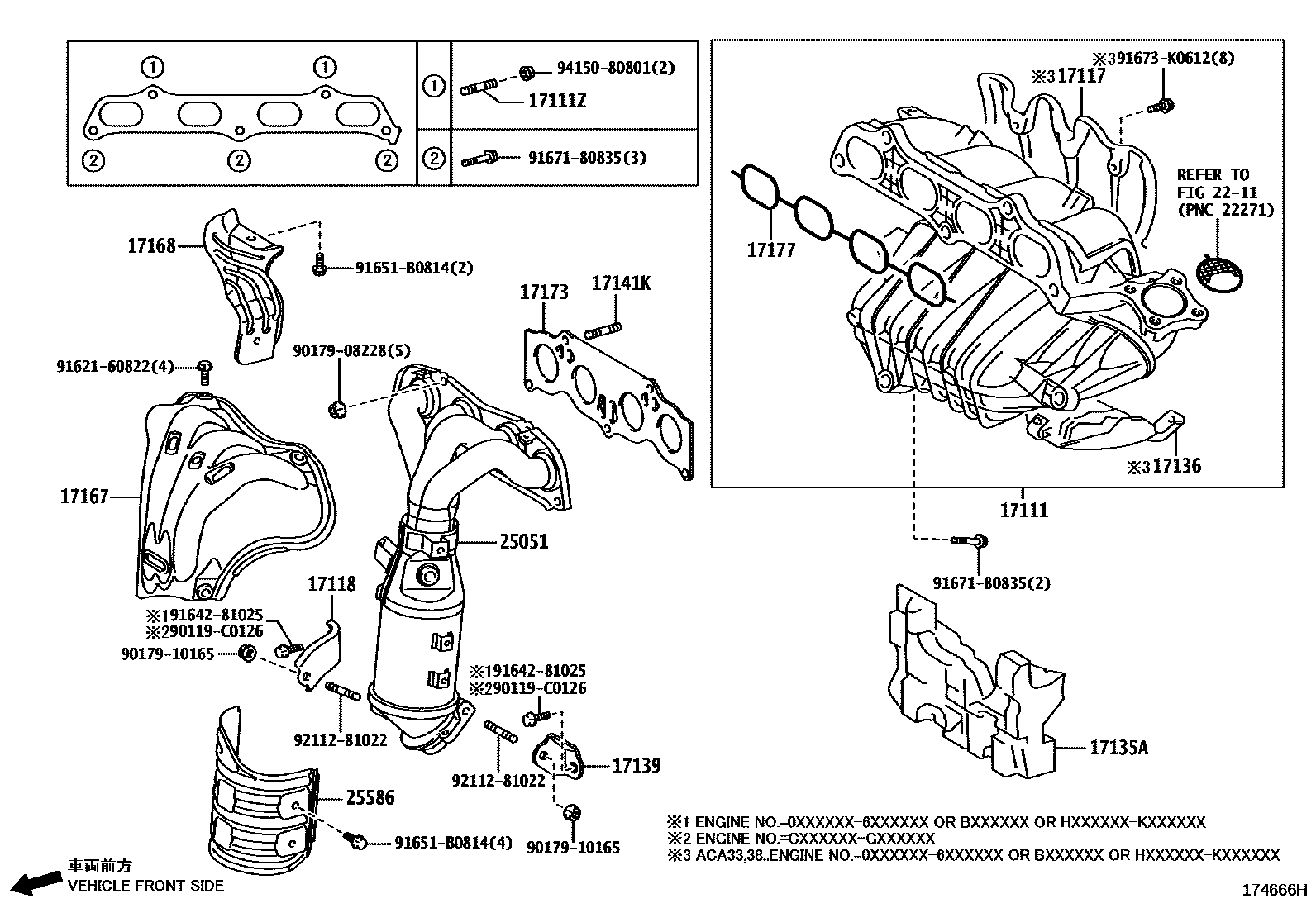

Toyota RAV4 EPC diagram 1701, Manifold, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17104 | Right exhaust manifold sub-assembly | 17140-31150 |
| 17105 | Left exhaust manifold sub-assembly | 17150-31150 |
| 17111 | Intake Manifold | 17111-31141 · 17120-28140 · 17120-28141 · 17120-28170 · 17120-28171 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 |
| 17117 | Intake pipe insulation pad | 17117-28040 |
| 17118 | Manifold stays | 17118-28080 · 17118-31050 |
| 17119 | No. 2 manifold stay | 17119-31020 |
| 17125 | No. 1 pressure tank stay | 17125-31040 |
| 17135A | Intake manifold No. 1 heat shield | 17135-28011 |
| 17136 | Intake manifold No. 2 heat shield | 17136-28020 |
| 17139 | No. 2 manifold stay | 17139-28050 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08037 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0H050 · 17167-28060 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0H050 · 17168-28030 · 17168-31021 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0H040 · 17173-28010 · 17173-31020 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-31020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-31040 · 17176-31090 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-28010 · 17177-28031 · 17177-31040 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-31030 |
| 17190 | Intake pressure regulator tank assembly | 17190-31061 · 17190-31180 |
| 22267A | Throttle body bracket | 22267-31030 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0H070 · 25051-0H140 · 25051-28340 · 25051-28360 · 25051-28470 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0H050 · 25586-28090 |
