Toyota RAV4 Oil Filter — Figure 1502

Toyota RAV4 EPC diagram 1502, Oil Filter, with 2 images and 7 PNC and OE references.

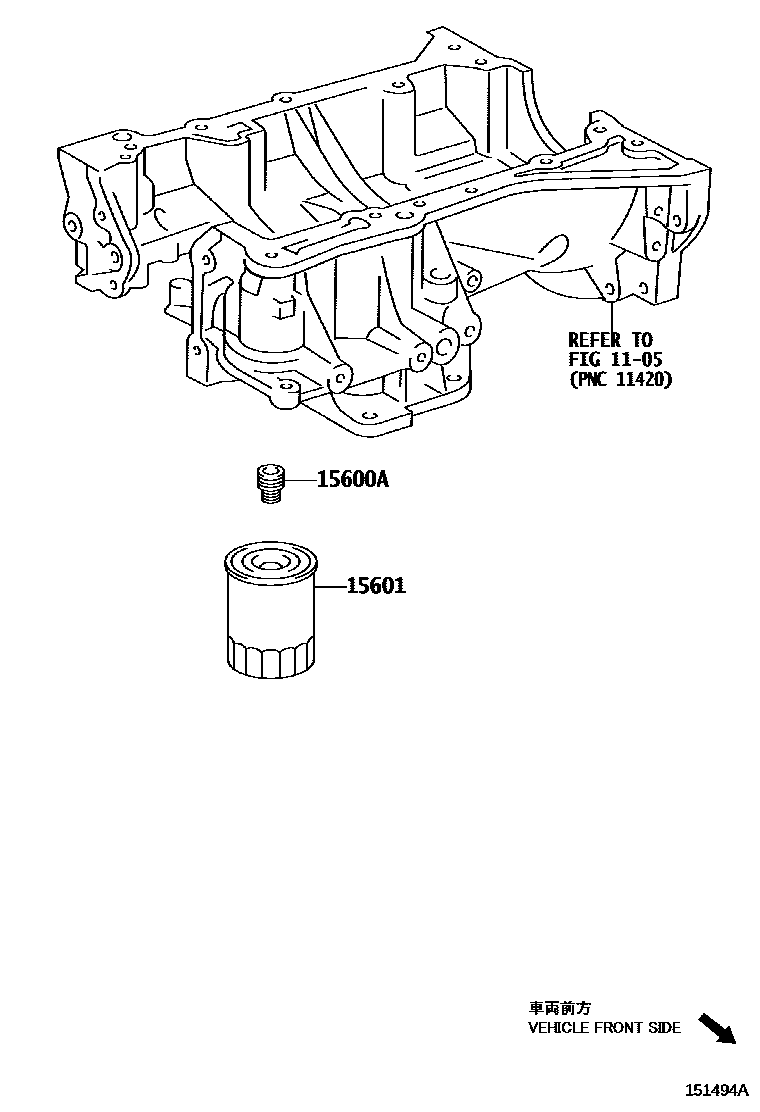

Toyota RAV4 Oil Filter EPC diagram — 151494A
Oil Filter — 151494A (200511 – 999999)

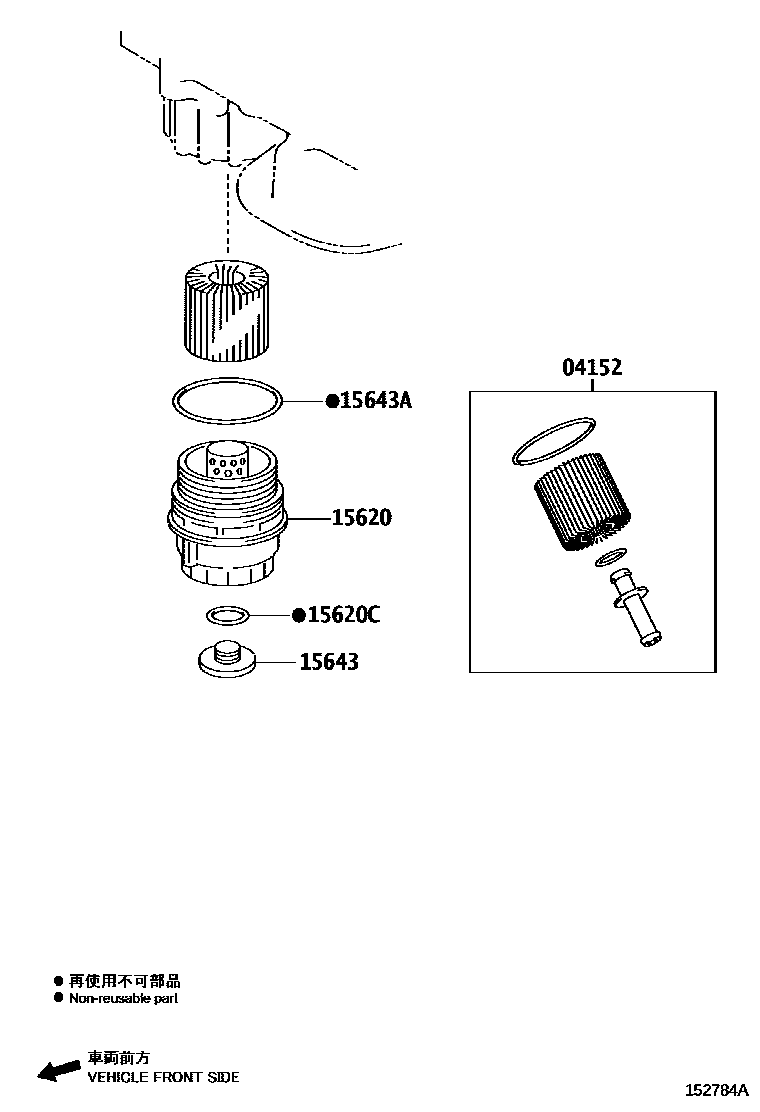

Toyota RAV4 Oil Filter EPC diagram — 152784A
Oil Filter — 152784A (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31090
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10004 · 90915-CA001
15620Oil filter cover assembly15620-31060
15620CGasket (for oil filter cover)96723-35028
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)90301-79006
